Wood Pallet Nailing Machine, wooden pallet assembly machine,semi-automatic pallet machine

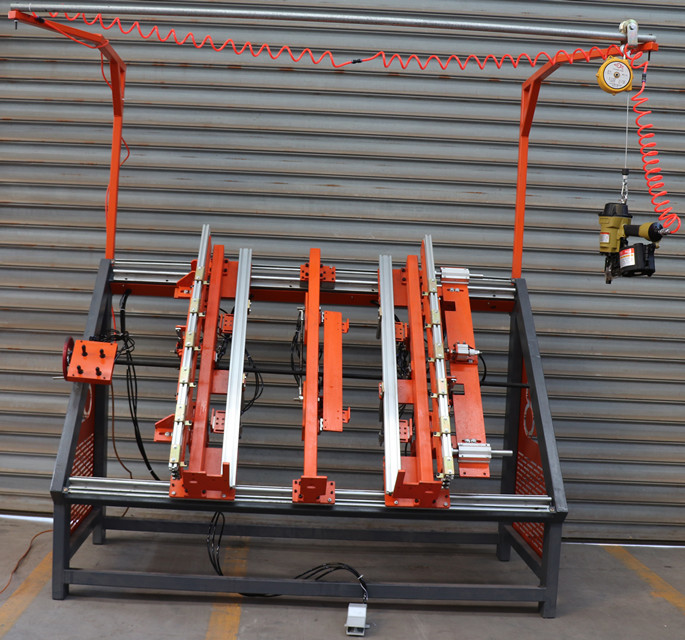

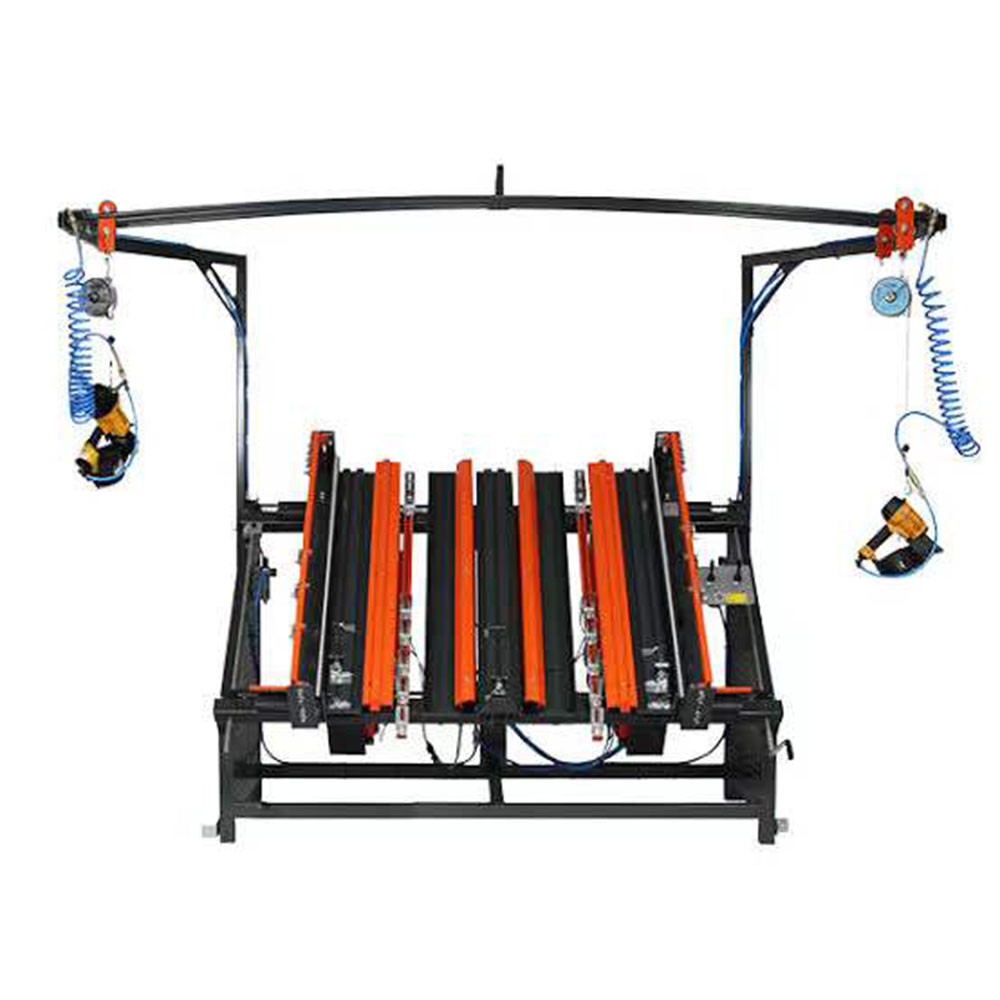

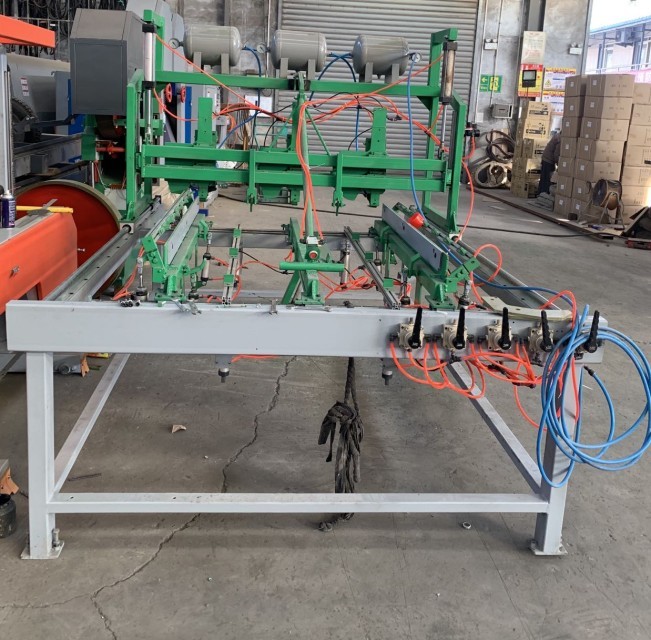

A universal pneumatic nailing table, Pneumatico PT-1500 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Technical specifications:

• Weight: 440 kg
• Operating pressure: up to 8 bar
• Material: structural steel

Dimensions of the pallets:

• Width: 800 – 1500 mm
• Length: 1300 mm

Instruction:

• Easy to use One operator can build 210-230 pallets within 8 hours
• Compact design Total footprint 3.3 m² (35.5 ft²)
• Universal Adjustable worktop allows production of:
• Pallets on 2, 3, 4, or 5 stringers
• Efficient Quickly switch to any size pallet
• Pneumatic clamp Easily centers the blocks
• Pneumatic lift Raises pallet to minimize operator lifting
• Overhead roller track Nail guns can move freely during work
• Bottom template Template to build pallet legs
• Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
• Unique Diagonal table adjustment reduces work by 50%
• Only 2 Allen keys required to adjust the table

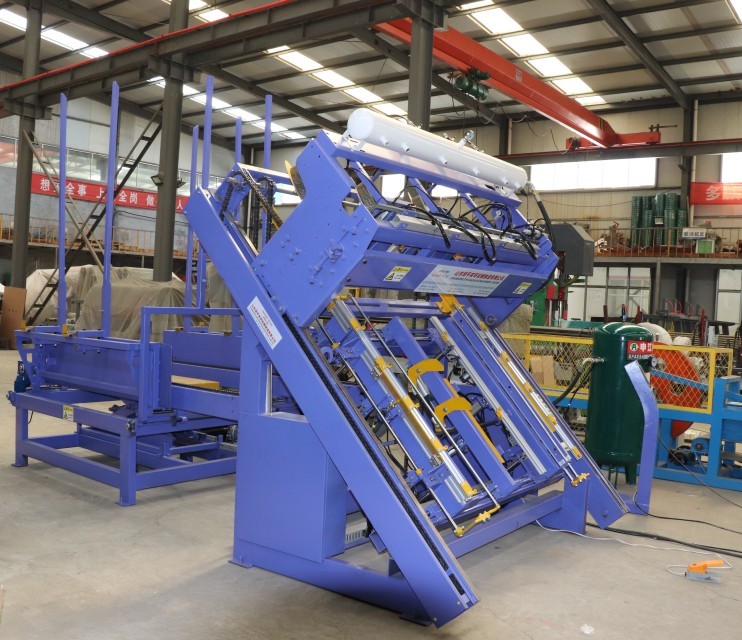

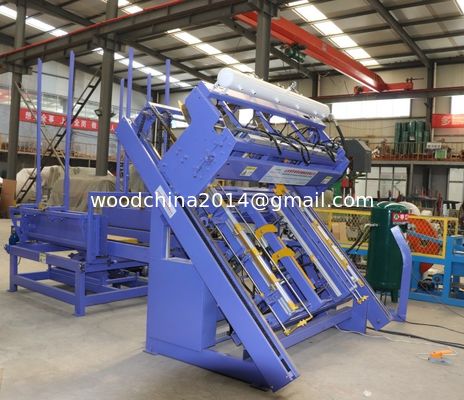

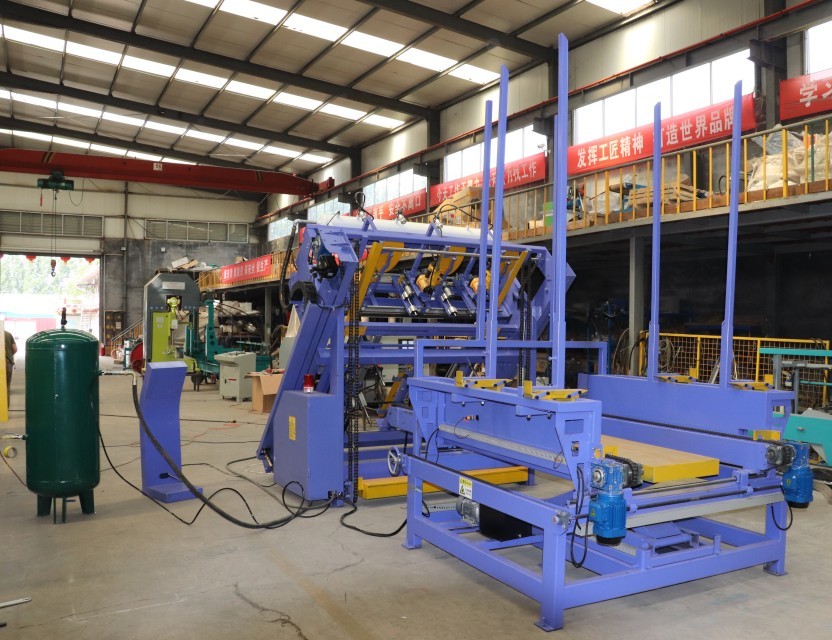

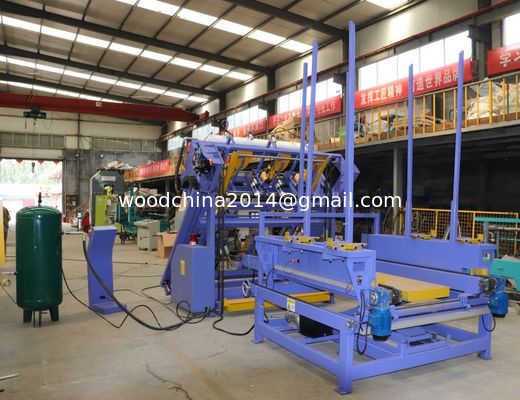

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation

-- Manual Feeding,Automatic Nailing and Automatic Stacking

-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.

-- After the nailing process,The pallets are turned over to the stacking platform automatically.

-- Convenient for forklift transport.

-- Save time and space.

-- Technical data

Automatic wooden pallet nailing machine
Model	AWPN-1300
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	220V/ 2kw Servo motor
Air pressure	0.8MPA
Tank size	0.2 cubic meter
Nail gun speed	7 times /second.
Production efficiency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Weight	2000kg
Size	Host machine 1660*1970*2217mm Stacking 2945*2054*1410



Related Products

Semi-automatic Wood Pallet Nailing Machine

https://www.chinawoodsawmill.com/sale-36228876-semi-automatic-pallet-machine-wooden-pallet-nailing-machine-with-palletizer.html

Pallet Notcher

https://www.chinawoodsawmill.com/sale-36251784-double-blade-heads-pallet-notcher-machine-wood-pallet-notcher-for-american-tray.html

Wood Pallet Notching
Model	WPN-1 single head type	WPN-2 double heads type
Power	15kw	30kw
Material of knife	Alloy	Alloy
Capacity	600-800pics/h	1800pics/h
Processing size	Wood pallet length: max 1800mm	Wood pallet length: max 1400mm
	Wood pallet width: 160mm	Wood pallet width: max 90mm
	Wood pallet thickness:40-60mm	Wood pallet thickness: 40-60mm
	Slot depth: <45mm	Slot depth: <45mm
	Slot width: 200-230mm	Slot width: 200-230mm
Machine size	1200*1100*1200mm	2300*1300*1300mm
Machine weight	400kg	1000kg
Feature	Slot smooth, size consistent
Apply for many kinds of slots, also can customized.



Double Heads type

Single Head Type
