Dia.2500mm Large Size Wood Cutting Horizontal Band Sawmill, automation technology sawmill

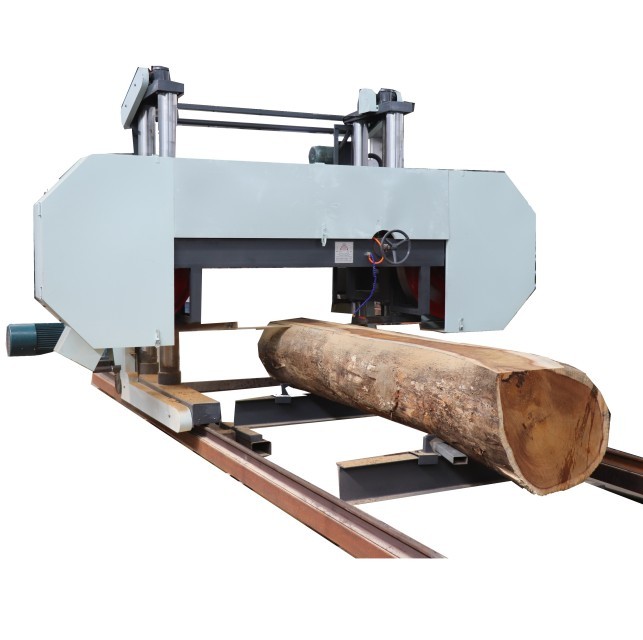

Heavy Duty Large Size Horizontal Band Sawmill
1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.
3. Diesel engine powered big sawmill is workable
Structure Features:
1.High quality parts, SKF bearings from Sweden
2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .
Technical specifications:
Diesel Engine Powered Large Size Horizontal Band Sawmill
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Diesel engine +20kw generator | 80HP | 80HP | 80HP | 80HP |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
Electric Type
