Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine

1 SET Pallet making machine
MOQ
US $4,200 - 21,500 / Set
Price
Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pallet Nailing Machine
Pallet Width: 800-1700mm
Pallet Length: 600-1300mm
Capacity: 210-320 Pallets /8hours
Operating Pressure: 0.8MPA
Number Of Coil Nail Guns: 1pc
Weight: 440kgs
Qty Of Stringers: 3, 5P (or Customized)
Pneumatic Clamp: Easily Centers The Blocks
After-sales Service Provided: Online Support,Free Spare Parts,commissioning And Training
Key Words: Wood Pallet Machine, Pallet Board And Block Nailing Machine
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: PT-1700,PT-3400, etc
Payment & Shipping Terms
Packaging Details: container loading of Pallet nailing machine
Delivery Time: within 20 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets/year of Pallet nailing machine
Product Description

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 0

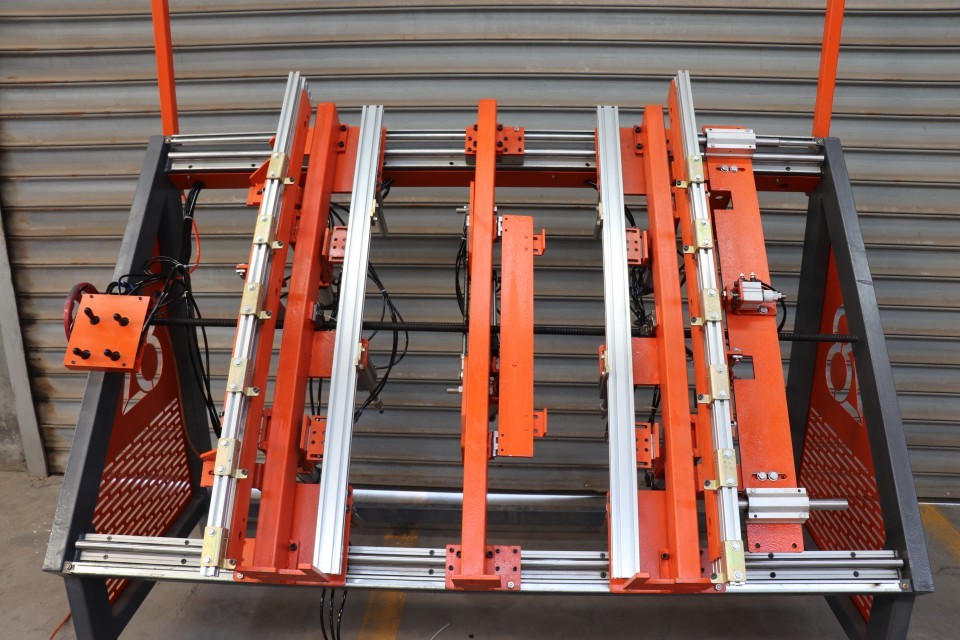

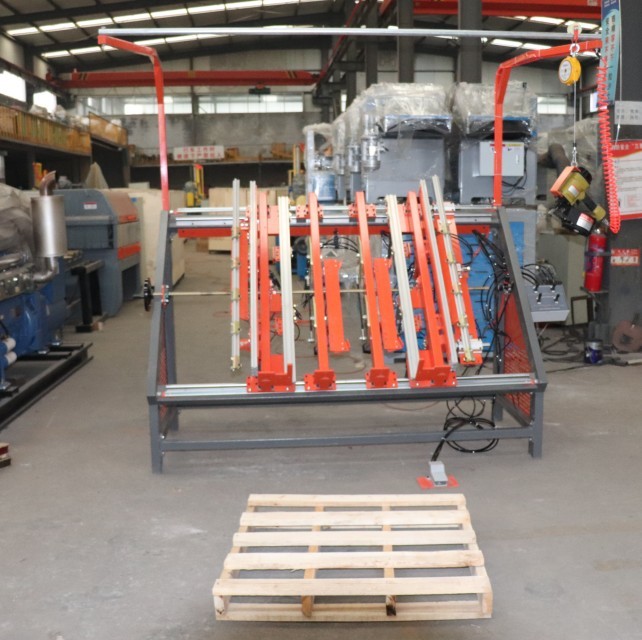

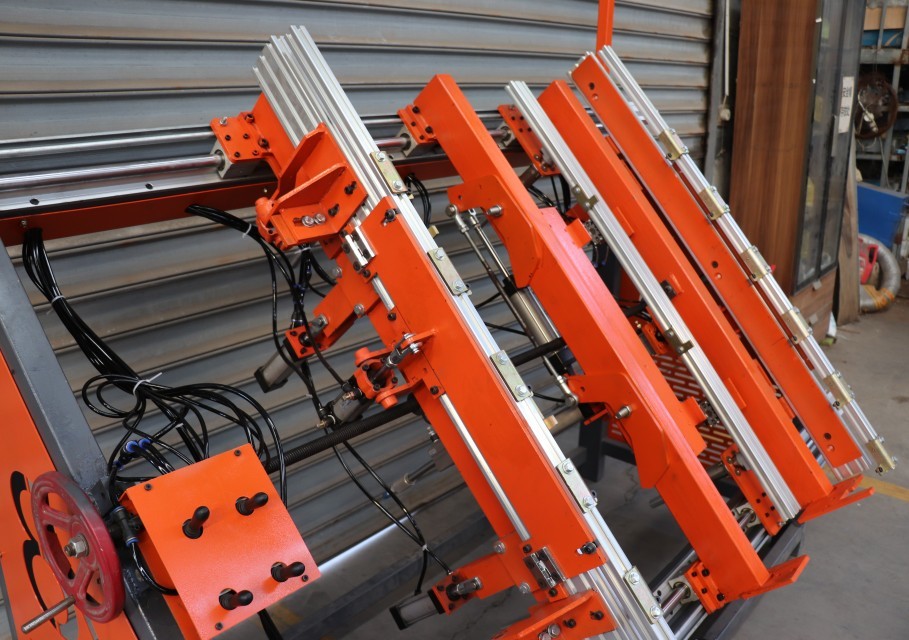

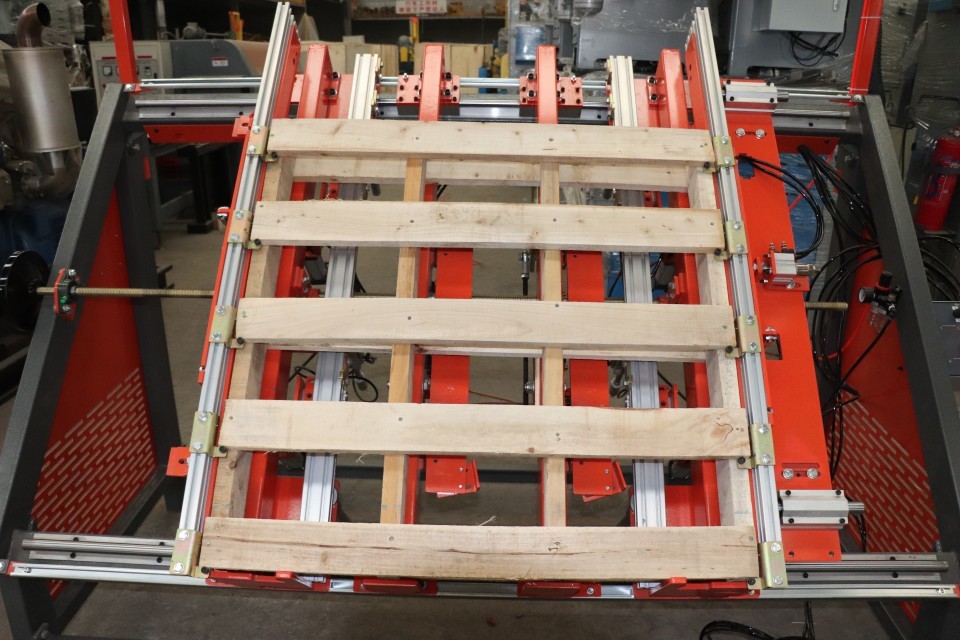

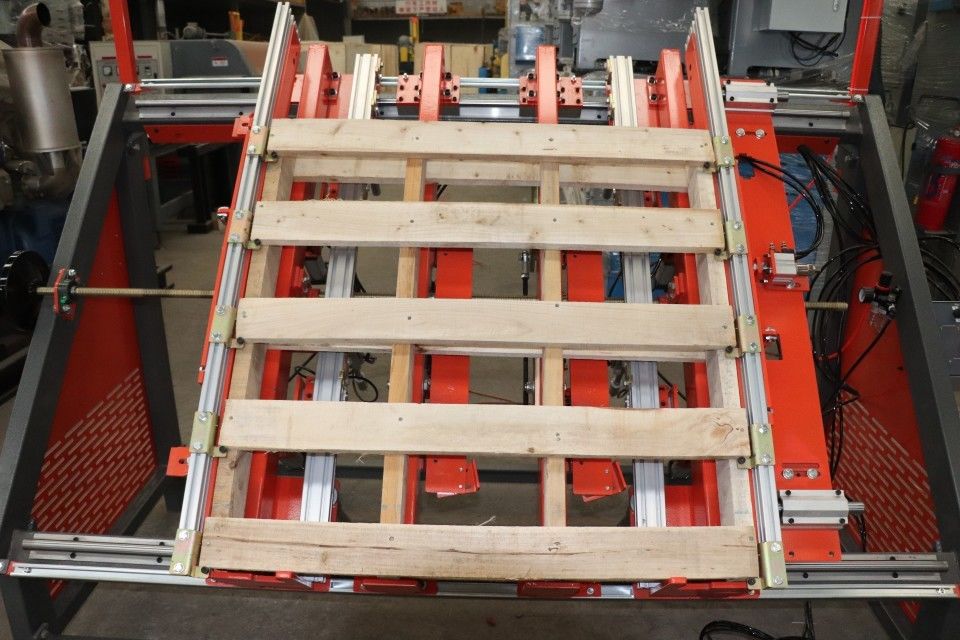

A universal pneumatic nailing table, Pneumatico PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.



Instruction:

  • Easy to use One operator can build 210-230 pallets within 8 hours
  • Compact design Total footprint 3.3 m² (35.5 ft²)
  • Universal Adjustable worktop allows production of:
  • Pallets on 2, 3, 4, or 5 stringers
  • Efficient Quickly switch to any size pallet
  • Pneumatic clamp Easily centers the blocks
  • Pneumatic lift Raises pallet to minimize operator lifting
  • Overhead roller track Nail guns can move freely during work
  • Bottom template Template to build pallet legs
  • Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
  • Unique Diagonal table adjustment reduces work by 50%
  • Only 2 Allen keys required to adjust the table

Technical specifications:

Model PT-1700 PT-3400
Wood pallet length 600-1300mm 700-1500mm
Wood pallet width 800-1700mm 900-3400mm
Operational mode Pneumatic operation Pneumatic operation
Air pressure 0.8MPA 0.8MPA
Production efficiency 30-40pcs /h 20-30pcs /h
Number of beams 3p (or customized) 5p (or customized)
Number of nail guns

1P (CN70)

American Stanley staple gun

1P (CN70)

American Stanley staple gun
Weight 440kg 840kg
Size 2250*980*1900mm 4050*1050*2100mm

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 1

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 2

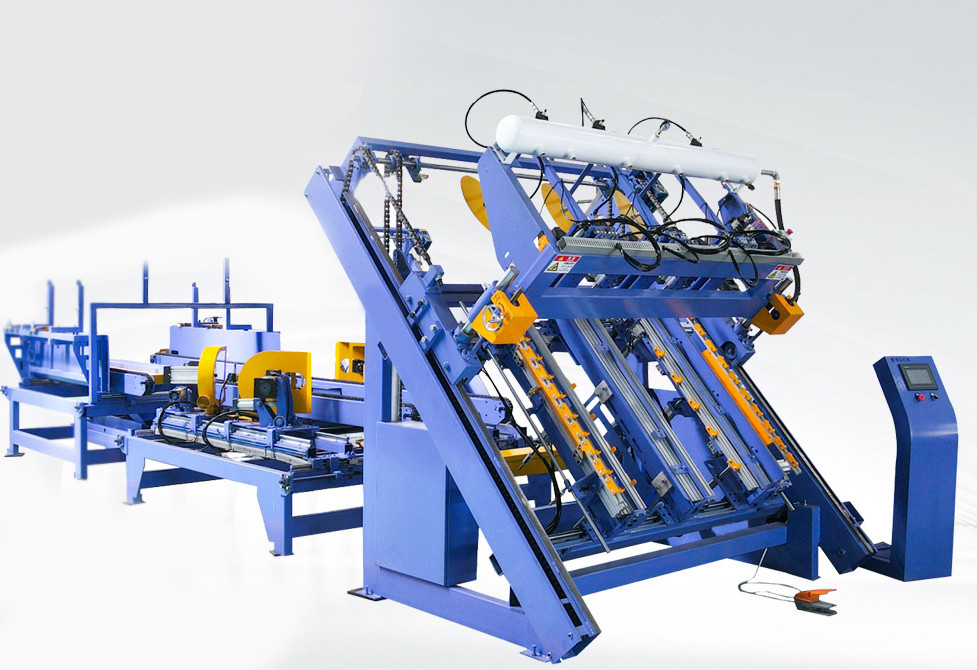

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
Model AWPN-1300
Wood pallet length 600-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 220V/ 2kw Servo motor
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Weight 2000kg
Size Host machine 1660*1970*2217mm
Stacking 2945*2054*1410

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 3

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 4

Related Products

Pallet Notcher



Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 5

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 6



Multi Blades Rip Saw



Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 7

Wooden Stringer Pallet Machine,Pallet Nailing Machine, China Wood Pallet Making Machine 8
