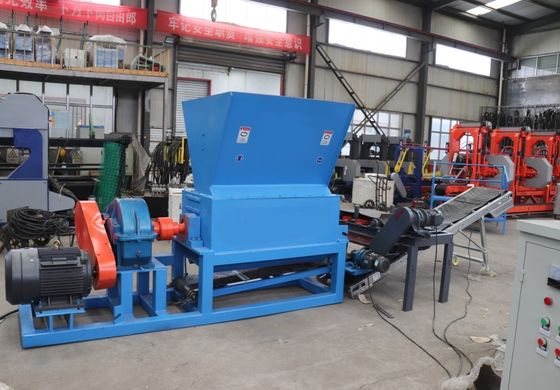

Wood Pallet Crusher
Technical data
| Model | SHTF1350 |
| Feeding Inlet | 1350*230mm |
| Blade Shaft Diameter | 450mm |
| Blade Quantity | 36 |
| Motor Power | 37KW |
| Conveyor belt length | 3000mm |
| Production Capacity | 60 Pallets/Hour |
| Weight | 3200KG |
|
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor |
|
Detailed Image
Optional -magnetic machine
Roller and blades
Wood Chippers
Related Products
Wood Composite Crusher
Tehnical data:
| Model | SH2000-1000 | SH1300-600 | SH1400-600 | SH1600-600 | |
| Feeding inlet size | 2000x1000mm | 1250x600mm | 1400x600mm | 1600x600mm | |
| Blade roller diameter | 1400mm | 850mm | 850mm | 850mm | |
| Blade roller speed | 750RPM | 850RPM | 850RPM | 850RPM | |
| Production capacity | 70-100ton/H | 12-15ton/H | 18-20ton/H | 25-30ton/H | |
| 1 | YG8 hammer blade qty | 86pcs | 20pcs | 24pcs | 28pcs |
| 2 | Blade qty | 3groups/9tablets | 2groups/4tablets | 2groups/4tablets | 2groups/4tablets |
| Max. Processing log diameter | <800mm | 450mm | 450mm | 450mm | |
| Main motor power | 450kw | 160kw | 200kw | 250kw | |
| Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | |
| Working life of blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | |
|
Optional :
|
|||||
Photos:
Wood Sawdust Machine
Technical Data:
| Model | SHMF1300-700 | SHMF1500-800 |
| Feeding inlet size | 1300X700mm | 1500X800mm |
| Blade shaft diameter | 700mm | 800mm |
| Blade quantity | 84pcs | 84pcs |
| Main motor power | 132kw | 160kw |
| Production capacity | 4-5ton/hour | 6-8ton/hour |
| Feeding system | 1set,5.5KW,With strong magnetic machine | |
| Discharging system | 1set | |
| Bag dust collection | 1 unit(40bags, with Supports and pipes) | |
| Sacron Cyclone Dust Collector | 1unit(1200MM dia., with Supports and pipes) | |
| With Soft start inverter integrated control cabinet | ||
