Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price

1 SET Portable Saw Mill

MOQ

US $4,500 - 19,000 / set

Price

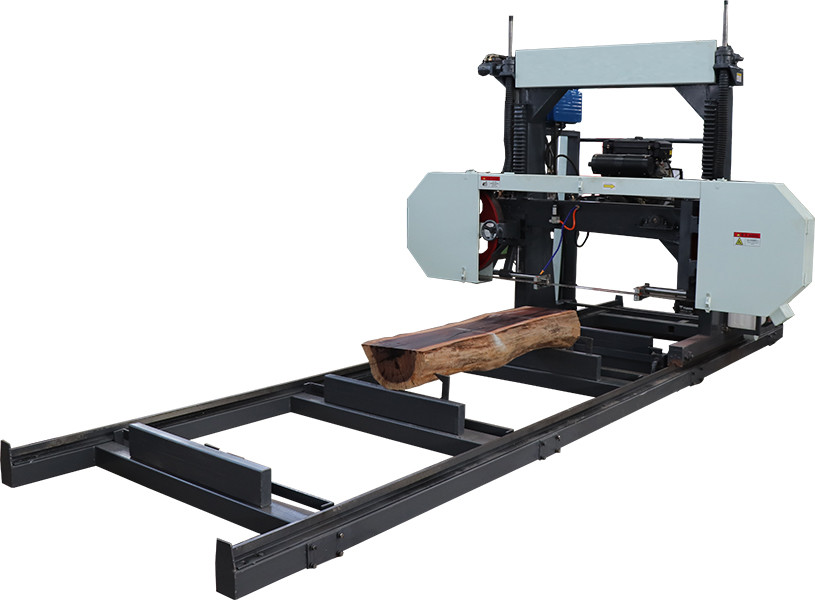

Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Diesel Engine Portable Horizontal Band Sawmill

Type: Band Sawmill

Band Wheel Diameter: 700mm

Max. Sawing Width: 700 To 1600mm

Max. Sawing Length: 4500mm Or As Customer Needs

Diesel Engine: 22HP, 25HP, 27HP

Saw Head Walking: Manual

Saw Head Up/down: Hydraulic

Bandsaw Blade Width: 50-80mm

After-sales Service Provided: Online Support,commissioning And Training

Color: Customized

Application Wood: Hardwood Logs And Softwood

Basic Infomation

Place of Origin: Shandong province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ700P,MJ700D, MJ1000D, MJ1300D, MJ1600D

Payment & Shipping Terms

Packaging Details: export pallet packings

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1000sets/year

Gallery

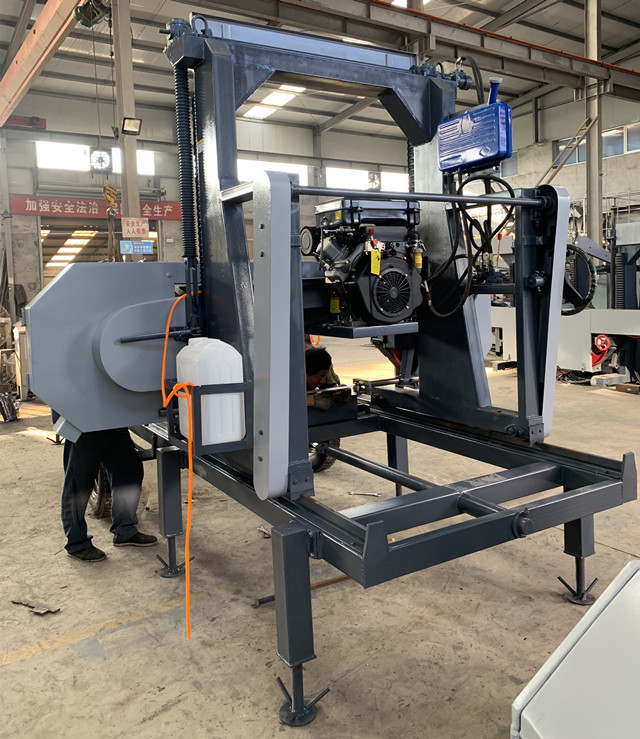

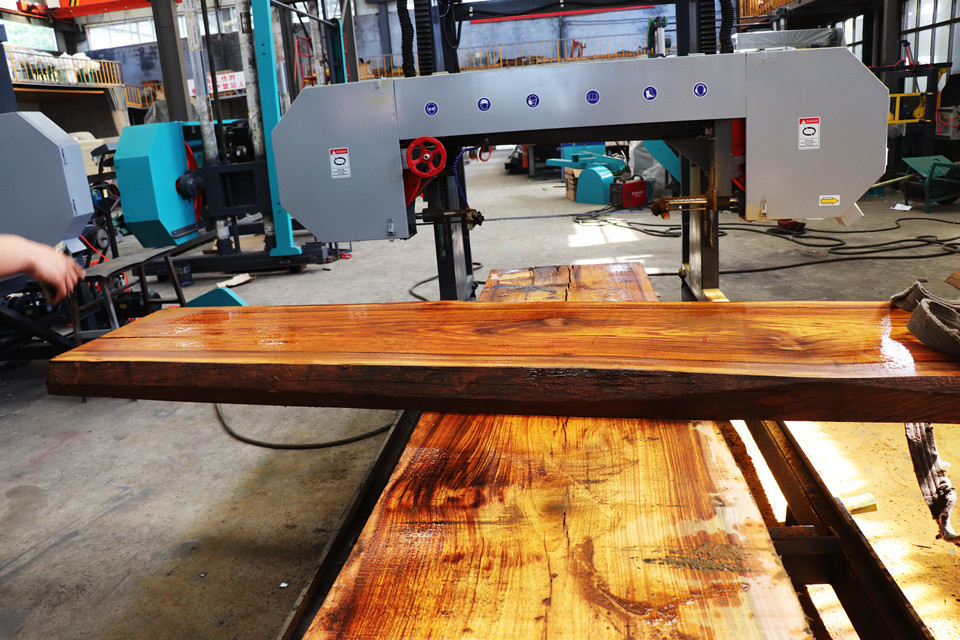

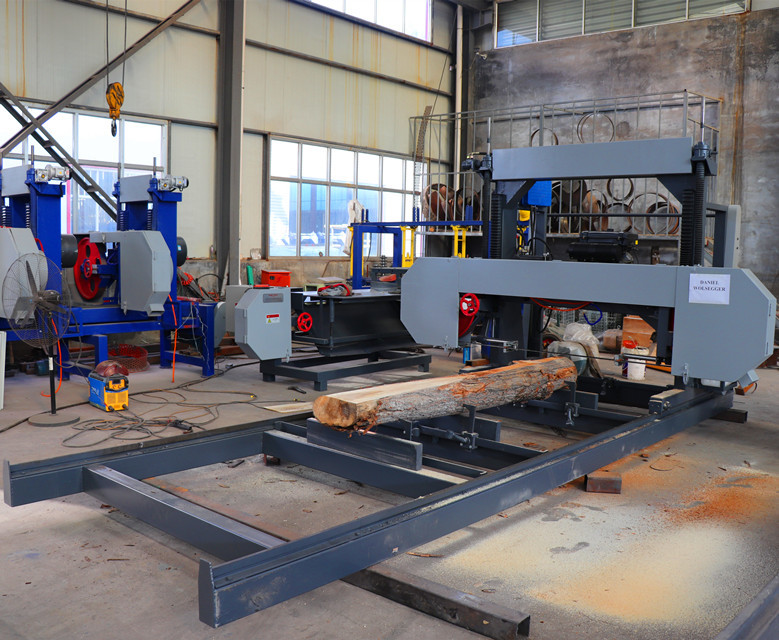

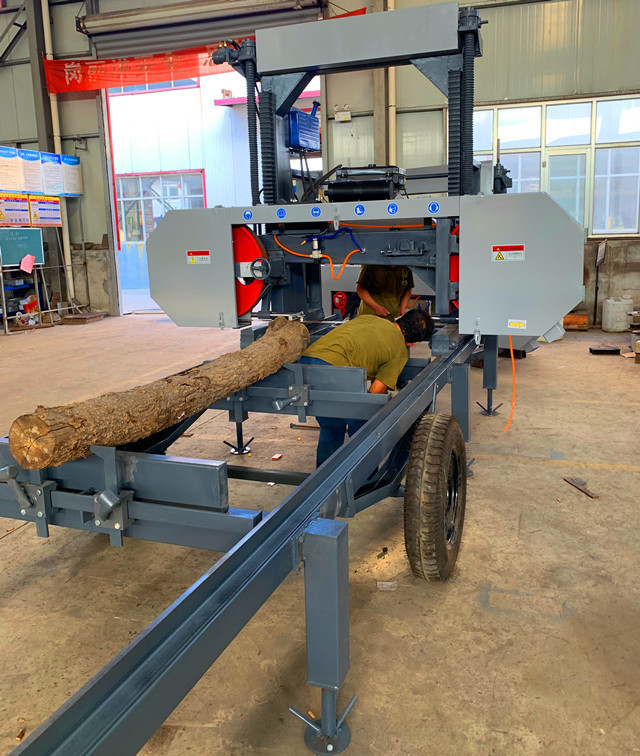

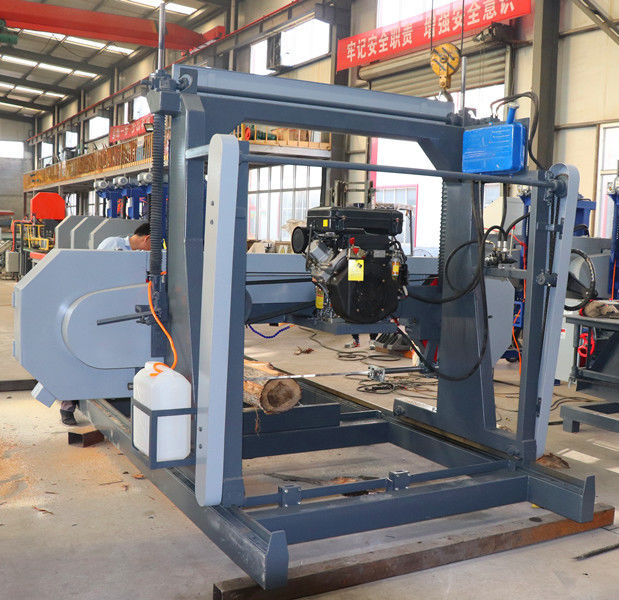

Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price

Product Description

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

Diesel Engine Powered Horizontal Portable Band Sawmill

Technical Parameter	MJ700P	MJ1000D	MJ1300D	MJ1600D
Sawing Wood width max.	700MM	1000mm	1300mm	1600mm
Saw Wheel Diameter(MM)	600mm	700mm	700mm	700mm
Sawing Wood Thicknes	10-200mm	10-300mm	10-300mm	10-300mm
Sawing Wood Length (MM)	1300-4500	1300-4500	1300-4500	1300-4500
Engine	22HP Petrol	22HP Diesel	25HP Diesel	27HP Diesel
Band Saw Blade Length	5500mm	6100mm	6600mm	7100mm
Machine Length(MM)	5800	5800	5800	5800
Total Weight (KG)	1100	1100	1300	1500

Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price 0

Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price 1

Optional Parts: Extend sawmill track

Optional Parts: wheel for mobile usage

Optional Parts: Hydraulic log loading arm

Optional Parts: Hydraulic log loading arm +Inverter feeding +Touching screen auto setworks

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate.
Finished with Carbide band saw blade for hard wood cutting .
The sawing kerf is small, reduce the waste to high output.
The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .

Technical data:

Specifications:
Model	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawn Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	1100	1100	1300	1500

Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price 7

CNC Horizontal Band Sawmill

Portable Diesel Sawmill Horizontal Band Saw Mill With Good Price 9
