CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw

1 SET

MOQ

US $4,200 - 10,200 / Set

Price

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Horizontal Band Sawmill Machine

Saw Wheel Diameter: 700mm

Max. Sawing Wood Width: 1600mm, 1300mm, 1000mm, 70mm

Carbide Blade Width: 0.9 Thickness X 75mm Width

Saw Head Walking: Inverter, Speed Adjustable

Sawing Log Max. Length: 4500mm Or As Customer Needs

Weight: 1100kgs To 1500kg

Color: Optional

Application: Wood Saw,wood Industry,Wood Factory

Keyword: Band Sawmill, Wood Saw Machines, Sawmill Portable

Highlight:

1300mm Timber Milling Machine

,

22KW Timber Milling Machine

,

MJ1300 Horizontal Sawmill

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ700, MJ1000, MJ1300, MJ1600

Payment & Shipping Terms

Packaging Details: iron frame pallet or paper carton packings

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1000sets/year

Gallery

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw

Product Description

Wood timber sawmill machine, horizontal wood band saw ,portable sawmill used wood cutting

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

CNC Horizontal Band Sawmill

Model	MJ700	MJ1000	MJ1300	MJ1600
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawing Wood Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Walking motor power	2.2kw	2.2kw	2.2kw	2.2kw
Total Weight (KG)	1100	1100	1300	1500

Images:

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw 0

Optional - Pneumatic log clamping

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw 1

Optional - Board returning hook

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw 2

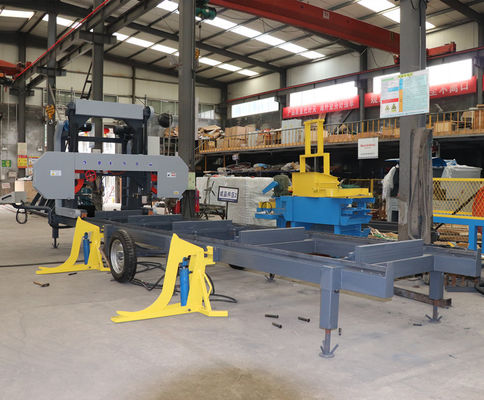

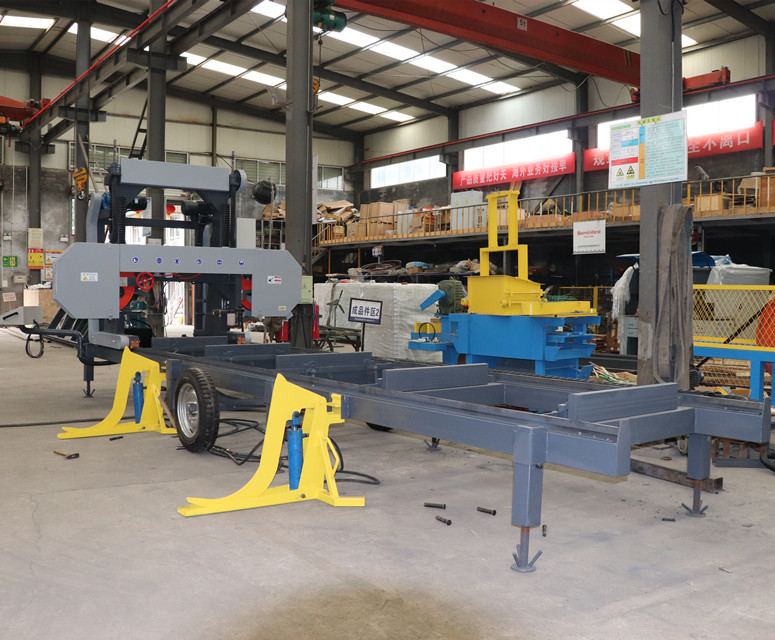

Optional - Mobile usage + hydraulic log loading arm

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw 3

PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL -electrical
Technical Parameter	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawing Wood Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	600	1100	1300	1500

CNC Portable Band Sawmill Machine For Wood Cutting, Automatic Wood Bandsaw 4
