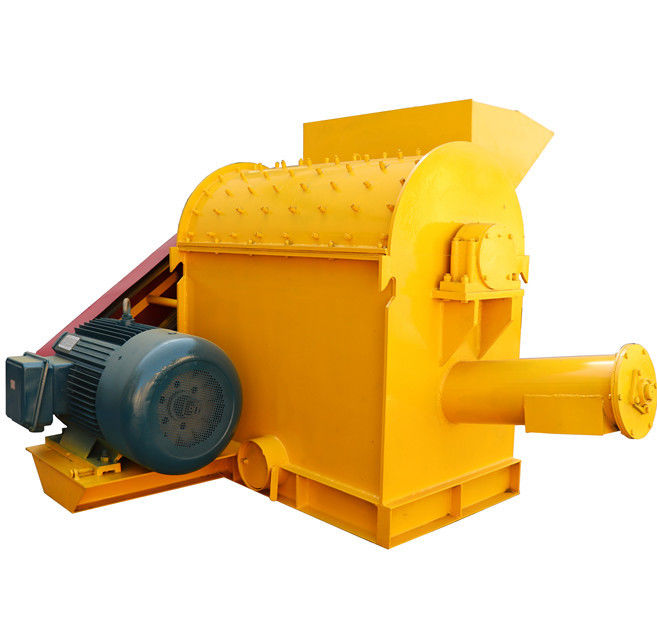

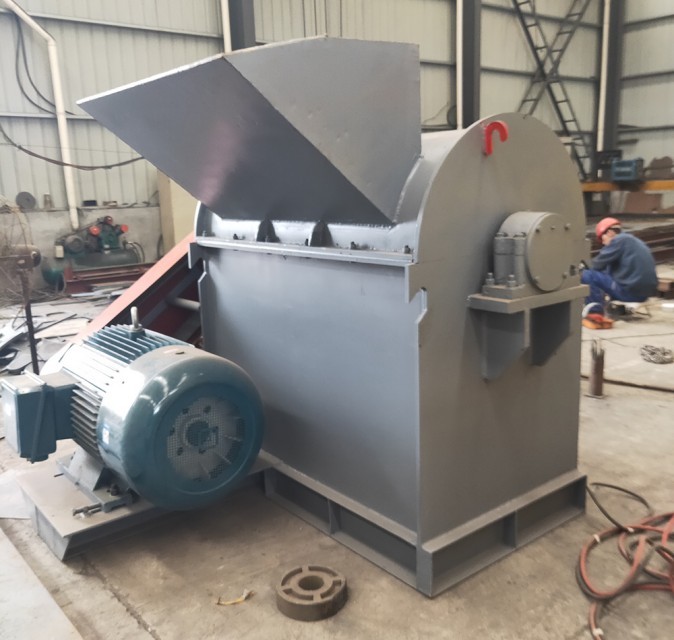

Wood Sawdust Machine
Technical Data:
| Model | SHMF1300-700 | SHMF1500-800 |
| Feeding inlet size | 1300X700mm | 1500X800mm |
| Blade shaft diameter | 700mm | 800mm |
| Blade quantity | 84pcs | 84pcs |
| Main motor power | 132kw | 160kw |
| Production capacity | 4-5ton/hour | 6-8ton/hour |
| Feeding system | 1set,5.5KW,With strong magnetic machine | |
| Discharging system | 1set | |
| Bag dust collection | 1 unit(40bags, with Supports and pipes) | |
| Sacron Cyclone Dust Collector | 1unit(1200MM dia., with Supports and pipes) | |
| With Soft start inverter integrated control cabinet | ||
Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Technical Parameter
| Model | SH2000-1000 | SH1300-600 | SH1400-600 | SH1600-600 | |
| Feeding inlet size | 2000x1000mm | 1250x600mm | 1400x600mm | 1600x600mm | |
| Blade roller diameter | 1400mm | 850mm | 850mm | 850mm | |
| Blade roller speed | 750RPM | 850RPM | 850RPM | 850RPM | |
| Production capacity | 70-100ton/H | 12-15ton/H | 18-20ton/H | 25-30ton/H | |
| 1 | YG8 hammer blade qty | 86pcs | 20pcs | 24pcs | 28pcs |
| 2 | Blade qty | 3groups/9tablets | 2groups/4tablets | 2groups/4tablets | 2groups/4tablets |
| Max. Processing log diameter | <800mm | 450mm | 450mm | 450mm | |
| Main motor power | 450kw | 160kw | 200kw | 250kw | |
| Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | |
| Working life of blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | |
|
Optional :
|
|||||
Electrical motor type
Diesel power type
Wheels for mobile usage
