Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones
3. Tehnical data:
| Model | SH 800-500 | SH 1300-600 | SH 1600-600 |
| Feeding Inlet | 800*500mm | 1300*600mm | 1600*600mm |
| Blade Roller Diameter | 850mm | 850mm | 850mm |
| Blade Roller Speed | 850RPM | ||
| Capacity | 10-15tons/hour | 15-20tons/hour | 25-30tons/hour |
| YG8 Hammer Blade Quantity | 16pcs | 20pcs | 28pcs |
| Knife Blade Quantity | 2groups/4pcs | ||
| Max. Processing Wood Diameter | 300mm | 450mm | 450mm |
| Motor Power | 110kw | 160kw | 250kw |
| Wood Chipper Size | 20-40cm(Custmized) | ||
| Working Life of the Hammer Blades | 4000T-5000T | ||
Heavy Duty Large Wood Crusher
| Model | SH2000-1000 |
| Feeding inlet size | 2000*1000MM |
| Blade roll diameter | 1400MM |
| Blade roll rotation speed | 750RPM |
| Production capacity | 70-100Ton/Hour |
| Blade quantity | 3sets/9pcs(H12 materials) |
| Processing max. Log diameter | ＜800MM |
| Power | 450KW |
| Chipper size | 30-50MM |
| Blade life | About 5000T |
| Steel plate thickness of host machine | 30mm |

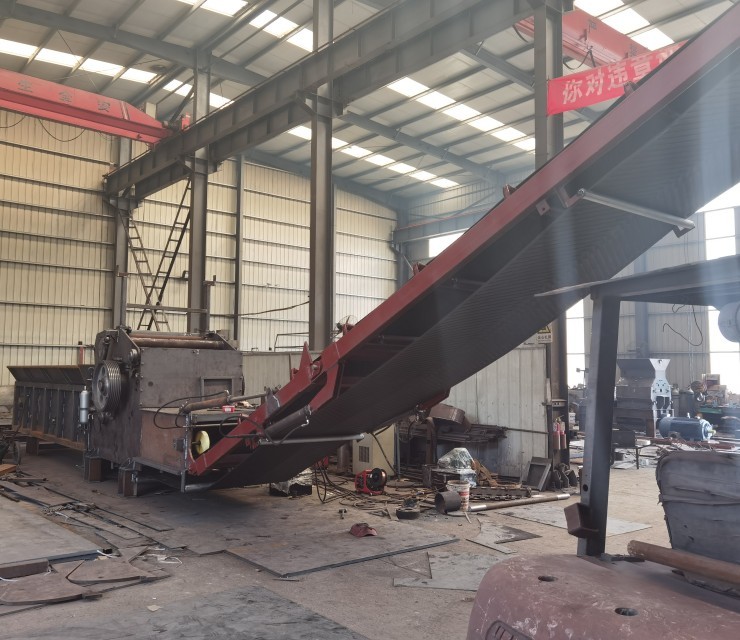

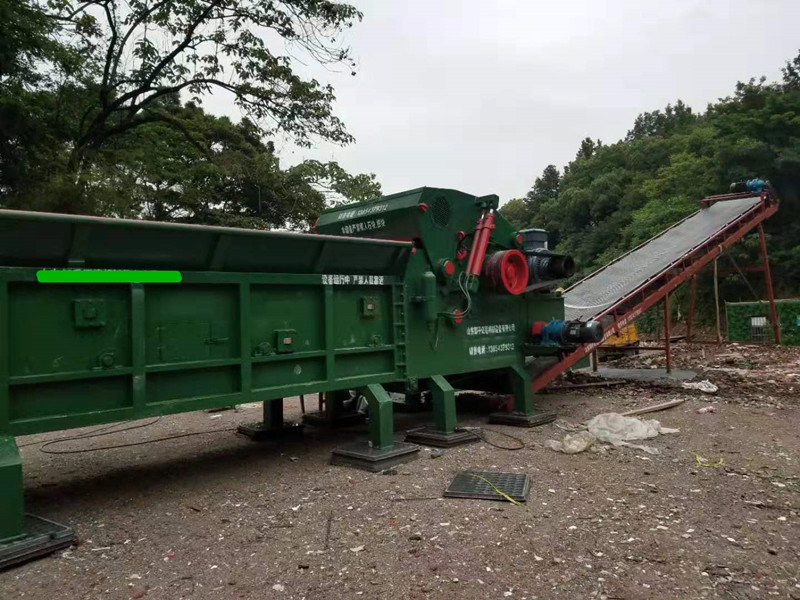

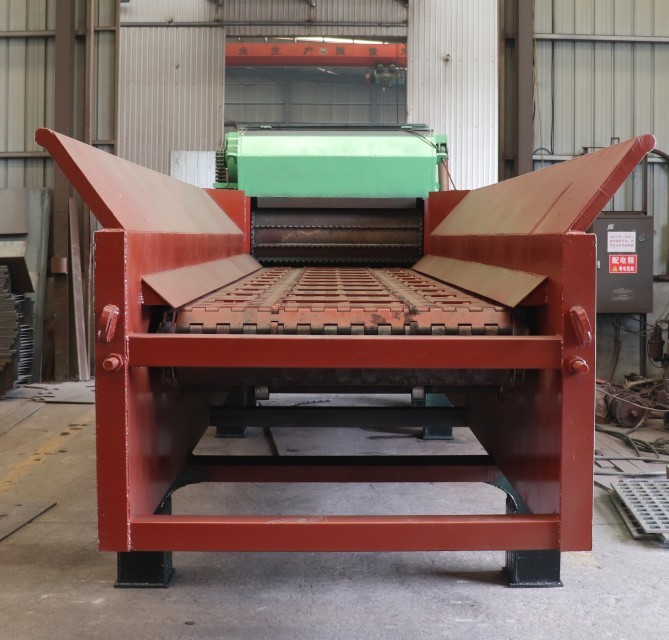

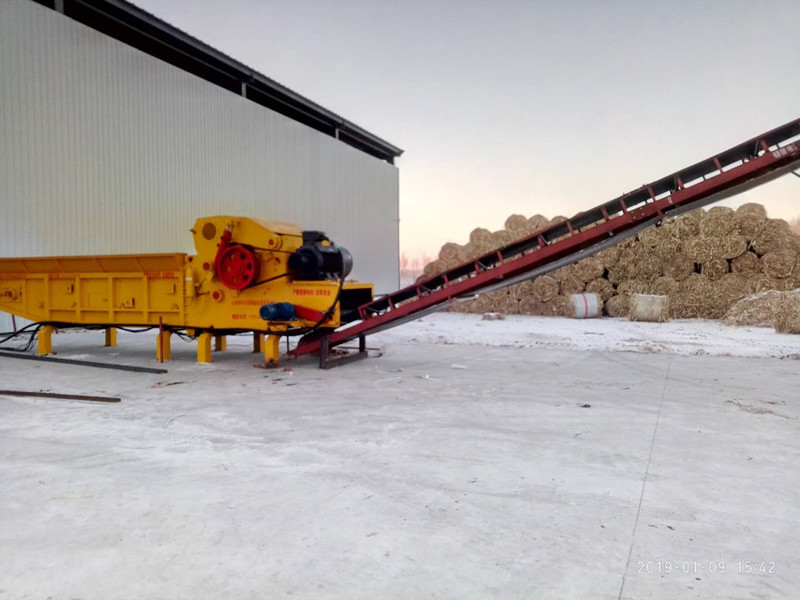

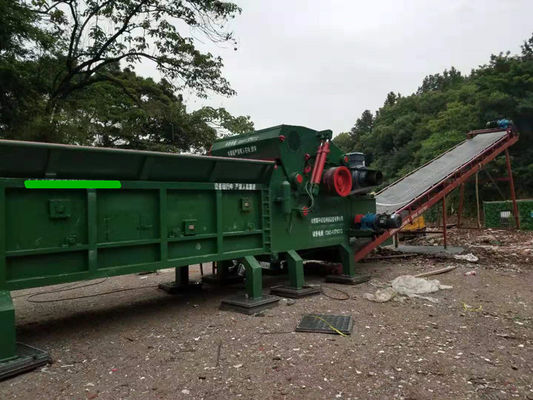

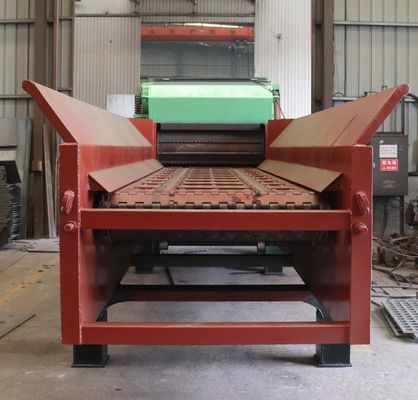

4. Photos:
Electrical type
Diesel engine + generator type

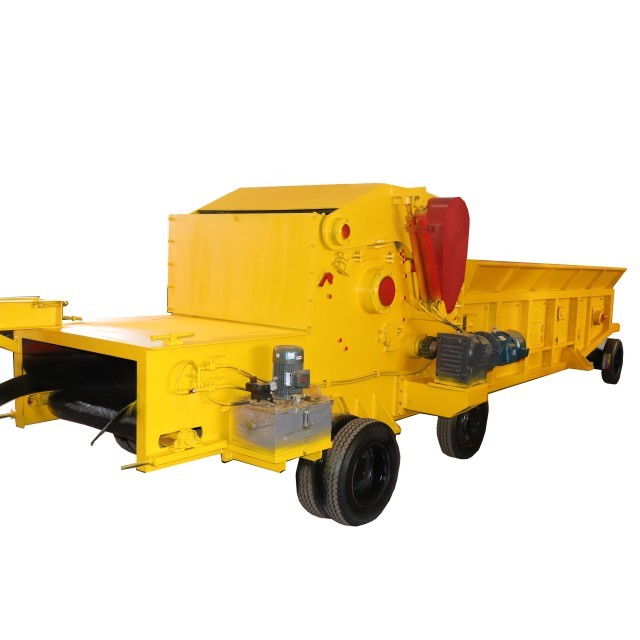

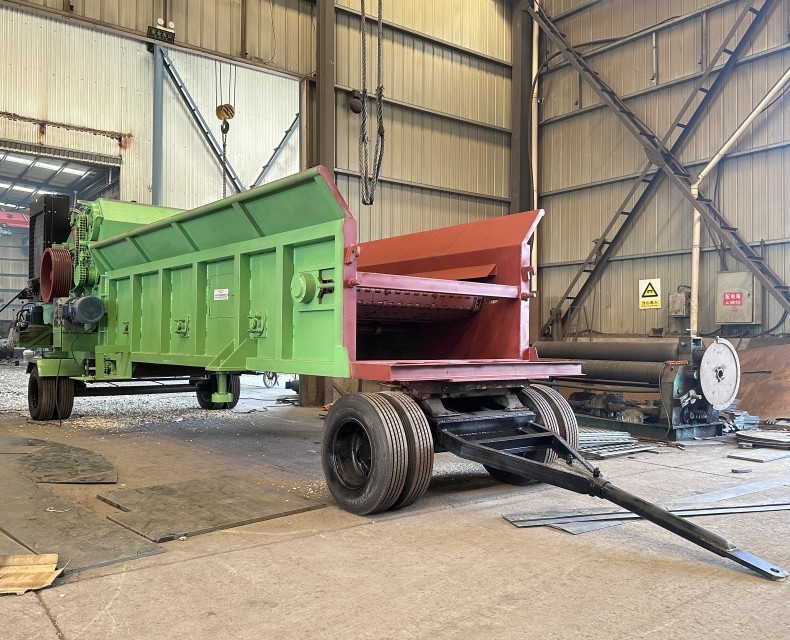

With wheels for mobile usage
Hydraulic Collapsible outlet conveyor
Control Cabinet
Container Loading -
Related Products:
Wood Roots Crusher/Grinder
Specification:
| Technical data | Model SH3600-1600 |
| Blade shaft size | 1600x850mm |
| Rotor diameter | 800mm |
| Blade quantity | 4 |
| Main motor power | 185KW |
| Feeding inlet diameter | 3600mm |
| Out feed conveyor | 12meters |
| Capacity | 25-30Ton/Hour |
| Weight | 18000kg |
Disc Chipper
| Wood Chipper Machine | ||
| Specification | SHJP1600 | SHJP1800 |
| Feeding inlet size | 450*450mm | 500*500mm |
| Knife No. | 6pcs | 6pcs |
| Main motor power | 185kw | 220kw |
| Horizontal feed conveyor | 8000mm | 8000mm |
| Slope outfeed conveyor | 10000mm | 10000mm |
| Wood chipper size | 20-35mm | 20-35mm |
| Discharging type | down | down |
| Production capacity | 20t/h | 30t/h |
