40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels

1 SET
MOQ
US $4,500 - 12,200 / Set
Price
40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Band Saw For Cutting Wood Wood Saw Machine
Condition: New
Type: Horizontal Band Saw
Voltage: 380V/3phase/50HZ Or As Customer Needs
Power(W): 15kw-30kw
Warranty: 12 Months
Application: Cutting Soft/hard Log
Max. Sawing Width: 1600mm
Max. Sawing Length: 4.5meters Or Extend Sawmill Track
Control: Manual / CNC Touching Screen
Other: We Can Customize Machine According To Customer Needs
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ700,MJ1000,MJ1300,MJ1600
Payment & Shipping Terms
Packaging Details: iron frame pallet or film wrapped packings
Delivery Time: within 25 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Product Description

band saw machine for wood cutting,portable saw mill,wood working machine



The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.



  • It is simple installation,easy operation,labor saving,and high productivity.
  • This machine can be drived by either electric motor or diesel engine.
  • It is widely used by the timber processing enterprises in the virgin forests areas.

Horizontal Portable Band Sawmill With Diesel Engine



Technical Parameter

 MJ700P MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

 700MM 1000 1300 1600



Saw Wheel Diameter(MM)

 600 700 700 700



Sawn Thicknes

 2-250 2-300 2-300 2-300



Sawing Wood Length (MM)

 1300-4500 1300-4500 1300-4500 1300-4500



Engine

 22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

 5500 6100 6600 7100



Machine Length(MM)

 5800 5800 5800 5800



Total Weight (KG)

 1100 1100 1300 1500



Image :

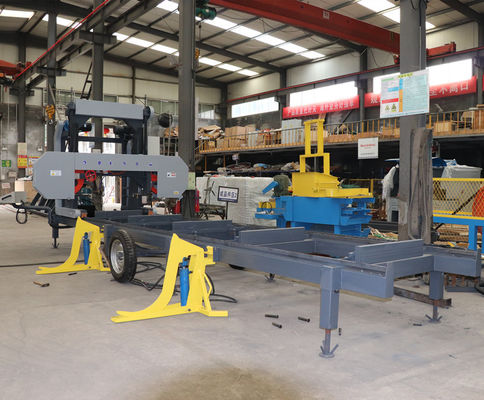

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 0

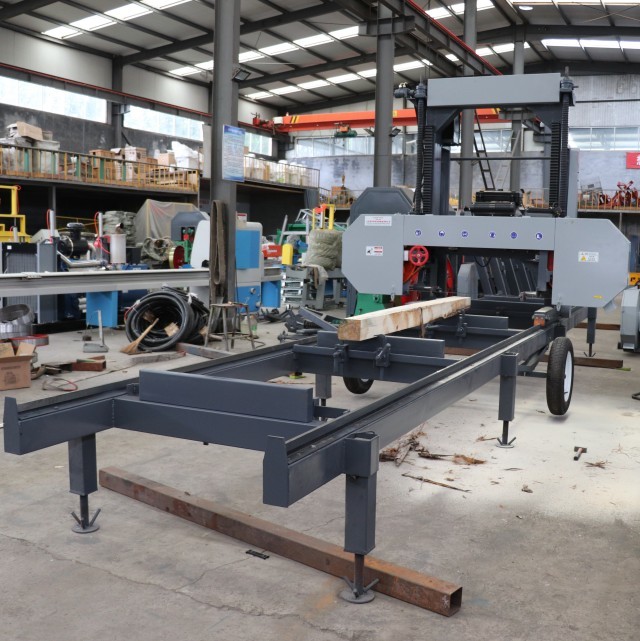

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 1

Image- Mobile Usage -optional

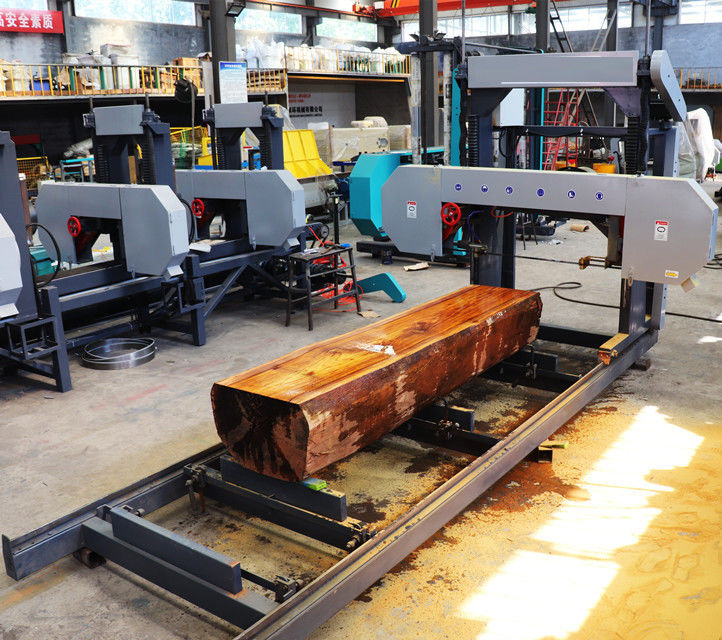

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 2

Image- Mobile Usage with hydraulic log loading arm - optional

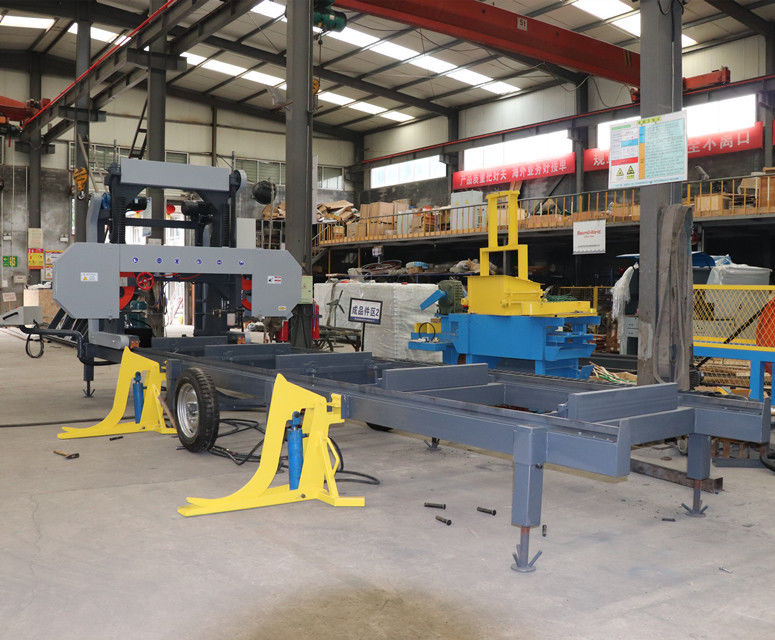

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 3





PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL



Technical Parameter

 MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

 700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

 600MM 700MM 700MM 700MM



Sawn Thickness

 2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

 1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

 15KW 18.5KW 22KW 30KW



Lifting Motor Power

 1.1KW 1.1KW 1.1KW 1.1KW



Total Weight (KG)

 1100 1100 1300 1500



Image -standard model

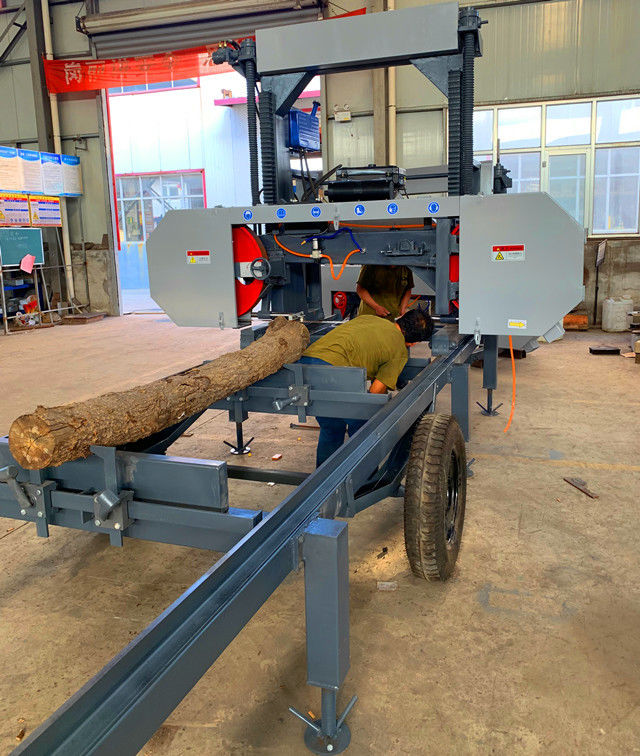

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 440 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 5

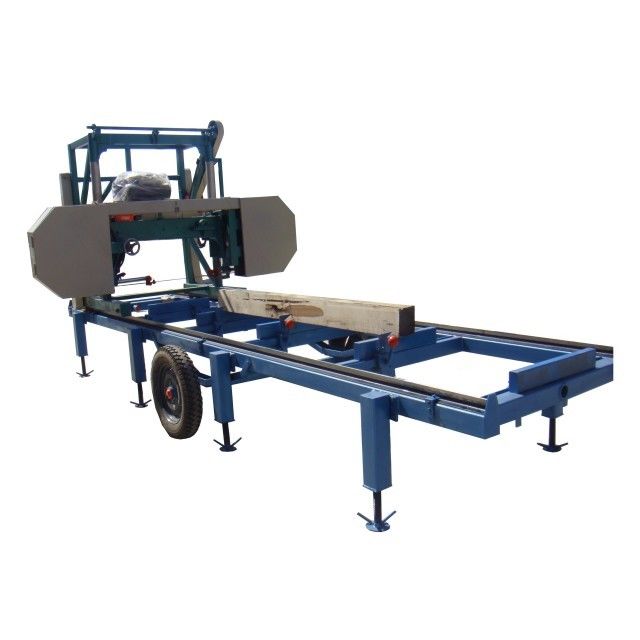

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 6

Image- extended sawmill track - optional

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 7

Image- CNC type - pneumatic log clamping - optional

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 8

Image- CNC type - board returning hook - optional

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 9

Image- feedback from abroad users

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 10

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 11

Sharpener

40 Inch Portable Band Sawmill Saw Mill Wood Saw Machines with 27hp Diesel Engine with Wheels 12
