Stellite Bandsaw Blade Production Line
| Item | Technical data |

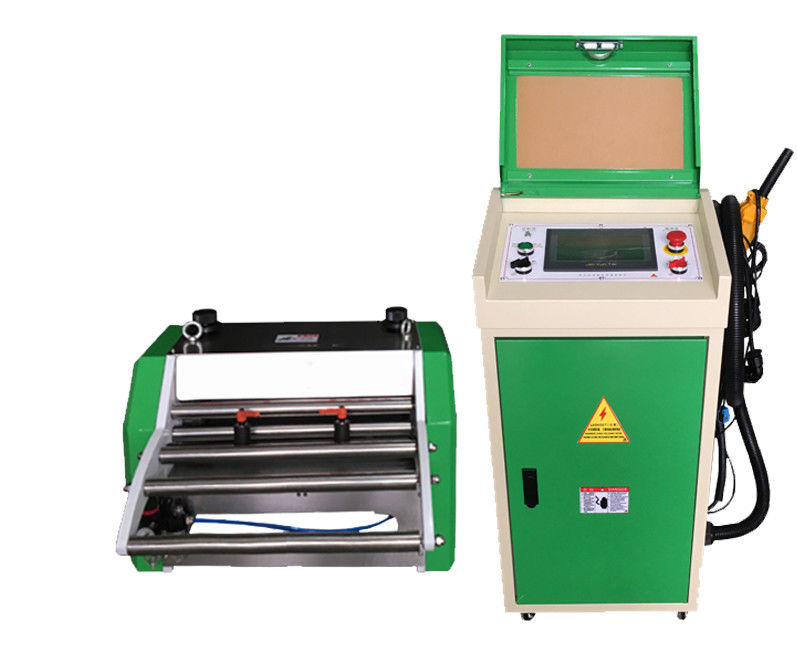

| Blade automatic feeder | Processing blade width:200mm |
 |
|

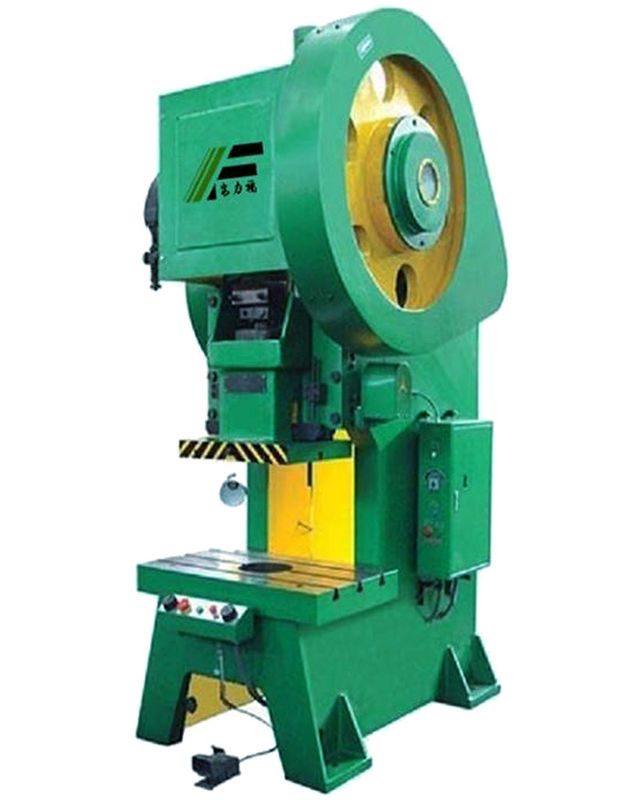

| Saw blade punch | Processing blade width:200mm |
|
|
| Saw blade welding machine | Blade width max.: 150mm blade thickness max.:1.25mm |
|
|
| Saw blade annealing machine | Blade width max.: 150mm blade thickness max.:1.25mm |
|
|

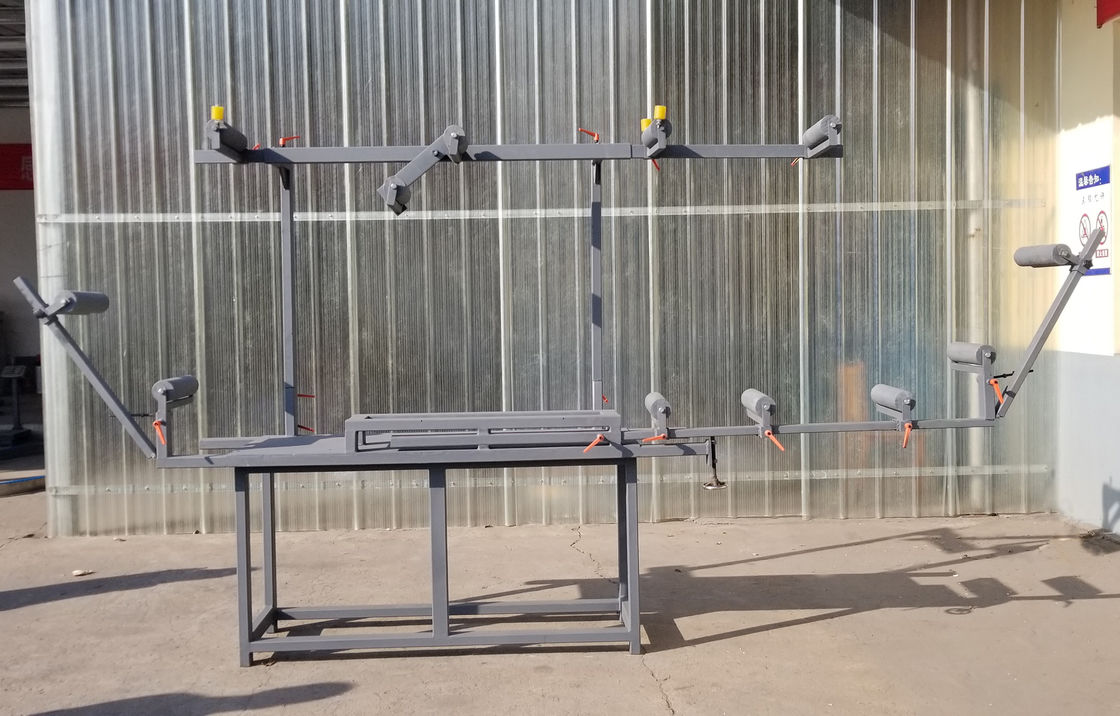

| Blade roll machine and working platform | Blade width max.: 150mm blade thickness max.:1.25mm |
|
|
| Blade recondition tool | cross hammer, recondition frame,etc |
| Alloy saw blade front angle grinder |
Grinde blade width max.:150mm Grinding speed: 50 tooth/min |
|
|
| Electric simple side grinder(optional I) | Blade length:500-11000mm blade width :6—250mm teeth pitch range:10-45mm |
|
|
| Stellite saw blade side grinder(optional II) | Blade length:500-11000mm blade width: 6—200mm feeding speed: 1-60tooth/min teeth pitch range: 10-40mm |
|
|
|

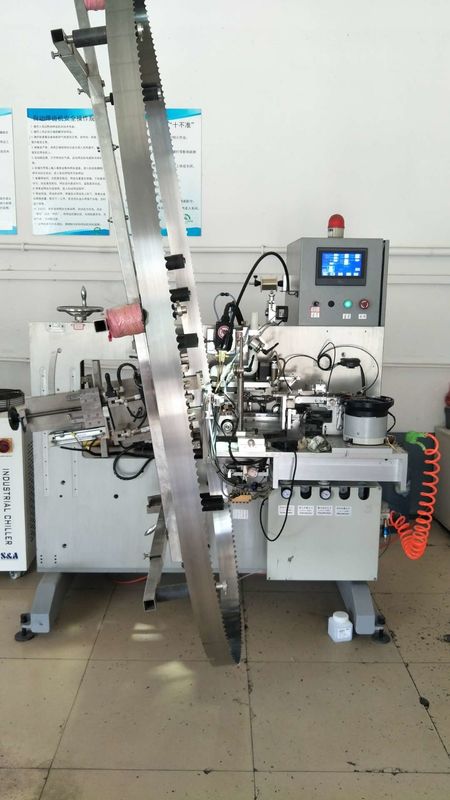

Stellite alloy tooth head welding machine Equipped with smart chiller |
Processing blade length: 3000-14800mm blade width:30-200mm blade thickness 0.6-2mm welding speed:360-400tooth/hourWelding wire diameter:1.6-4.0mm voltage:220V,50HZ |
|
|
