Wood Tree Debarking Peeling Log Debark Remove Bark Machine,Wood Debarkers

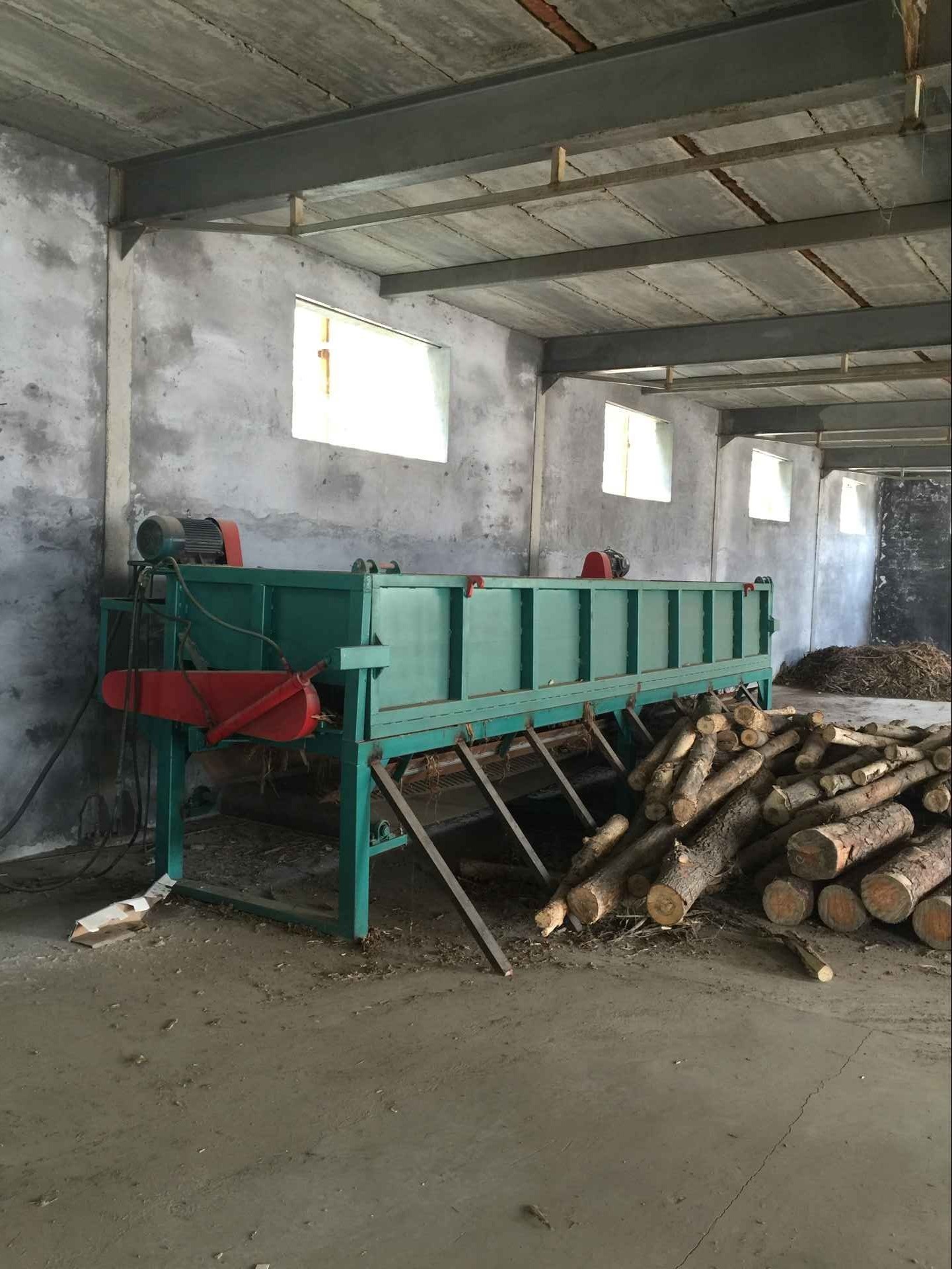

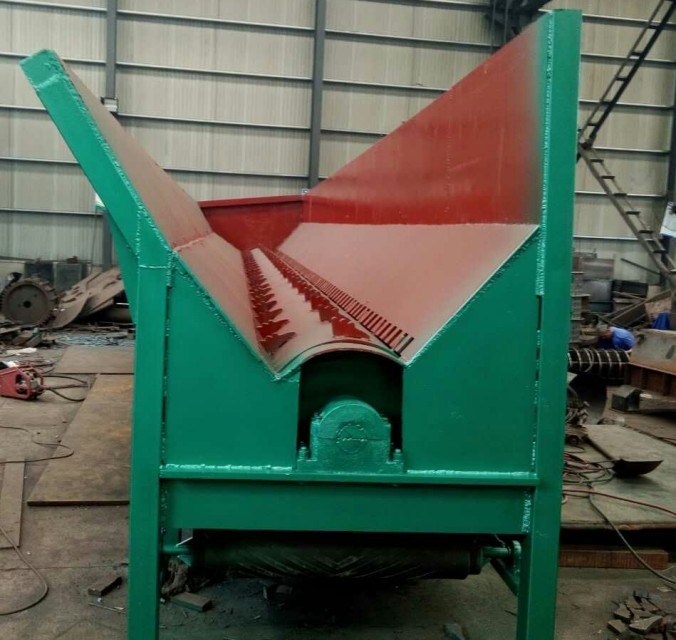

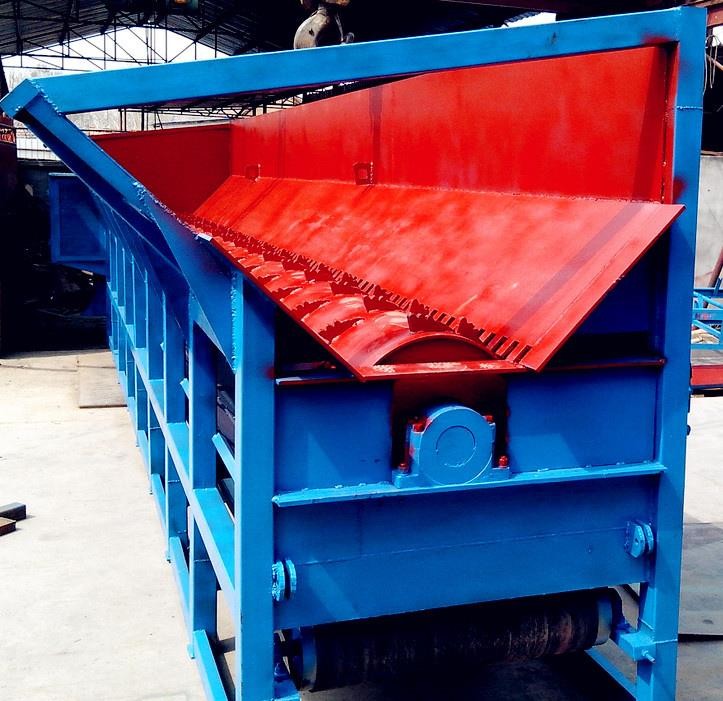

Single Roll Log Debarker
Introduction:
Specification:
| Model | SHBP6000 | SHBP9000 |
| Capacity Ton/Hour | 5-10 | 10-15 |
| Motor Power | 37KW | 45KW |
| Log Diameter | 15-320mm | 15-320mm |
| Debarking Rate | 98% | 98% |
| Max Log Length | 6000mm | 9000mm |
| Weight | 4000kg | 5000kgs |

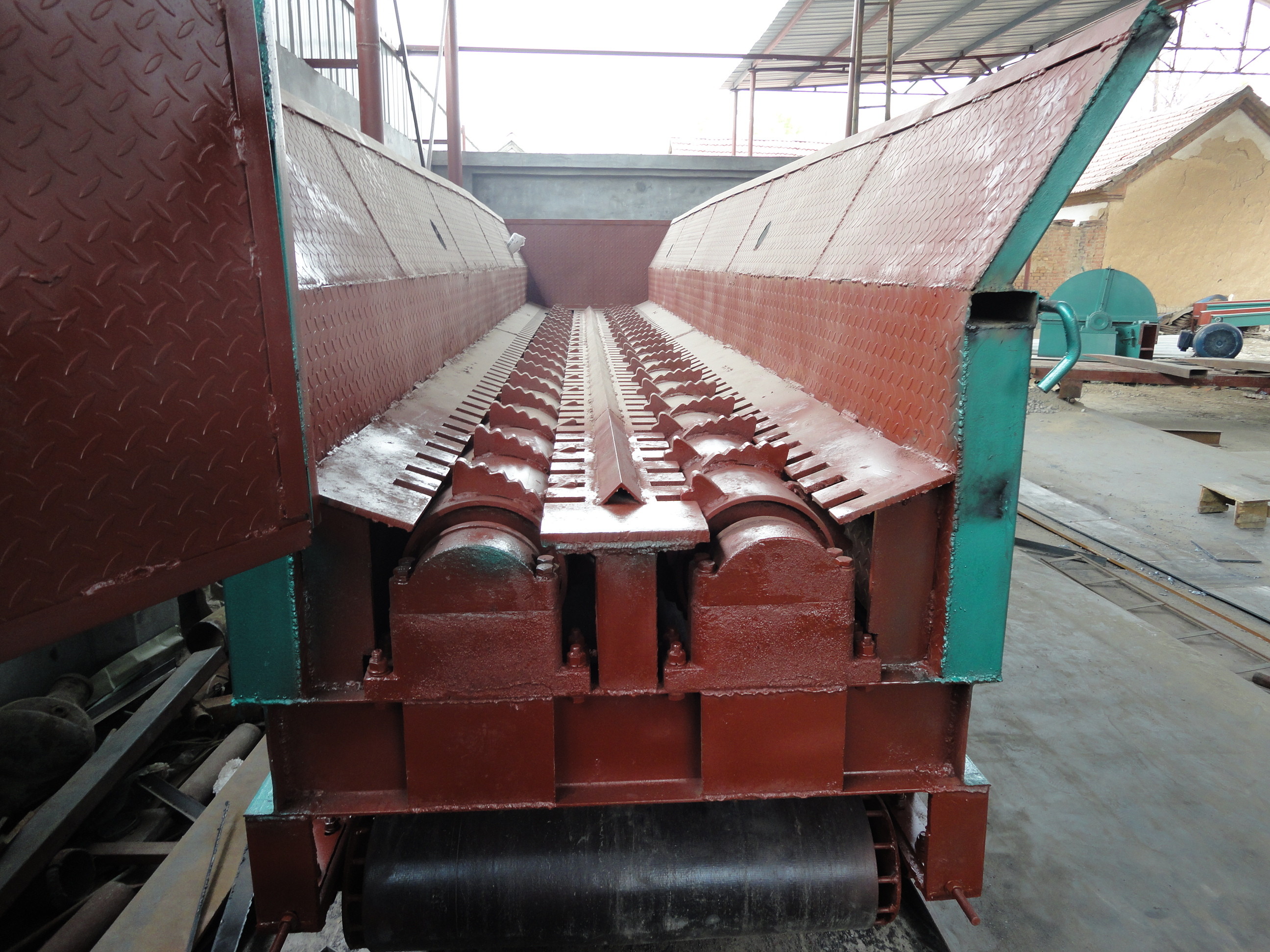

Double Rolls Log Debarker
| Model | SHBPD4500 | SHBPD6000 | SHBPD9000 |
| Capacity TON/HOUR | 3-6 | 5-10 | 10-15 |
| Motor Power | 7.5kw*2 | 11*2 | 15*2 |
| Log Diameter | 50-250mm | 50-250mm | 50-250mm |
| Debarking Rate | 98% | 98% | 98% |
| Max Log Length | 4500mm | 6000mm | 9000mm |
| Overall Size | 5.8*1.6*2m | 7.5*1.6*2m | 11*1.6*2m |
| Weight | 4500kgs | 5200kgs | 6500kgs |
Related Products
Wood Shaving Machine
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
|
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |
|||
Detailed Images:
Wood Wool Machine
Technical Data
|
Model |
SHMS500-1 | SHMS500-2 | |
|
Processing Log Length
|
300-500mm | 300-500mm | |
|
Max Processing Log Diameter
|
160mm | 160mm x 2pcs | |
|
Blade Quantity
|
2 | 2 | |
|
Excelsior Width
|
1mm-10mm | 1mm-10mm | |
|
Excelsior Thickness
|
0.1mm-1mm | 0.1mm-1mm | |
|
Excelsior Length
|
300-500mm | 300-500mm | |
|
Total Motor Power
|
9kw | 16.5KW | |
|
Production Capacity
|
50-100kg/hour | 100-150KG/Hour | |
Detailed Image
Model SHMS500-2
Wood Chipper
