Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

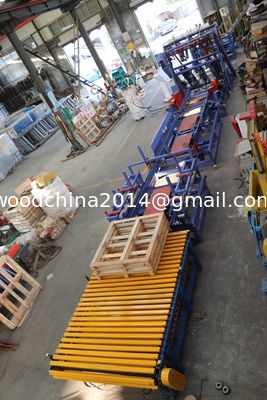

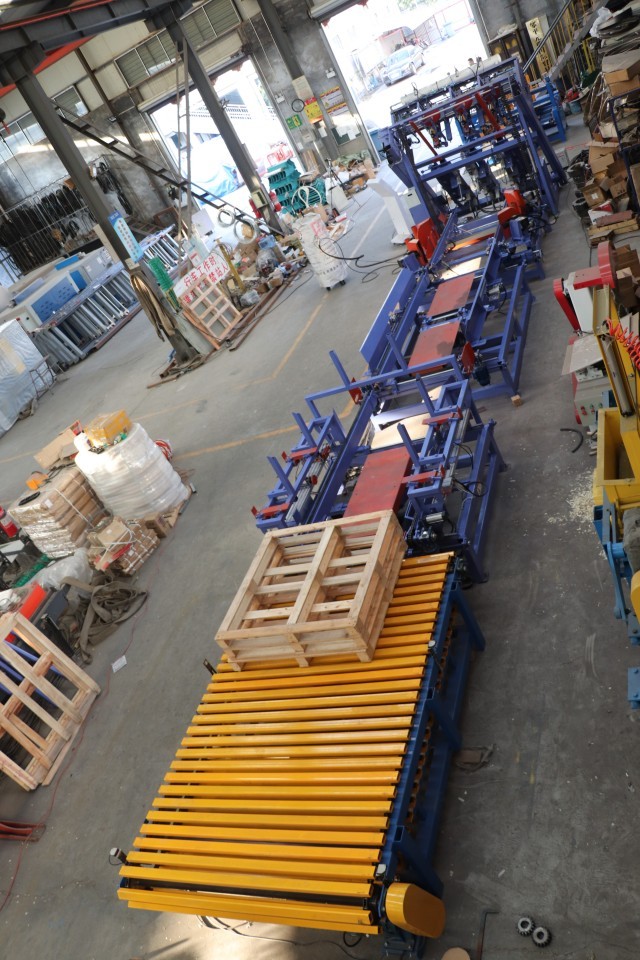

Euro Pallet Automatic Wood Pallet Making Line
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
| Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.5KW Servomotor |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |

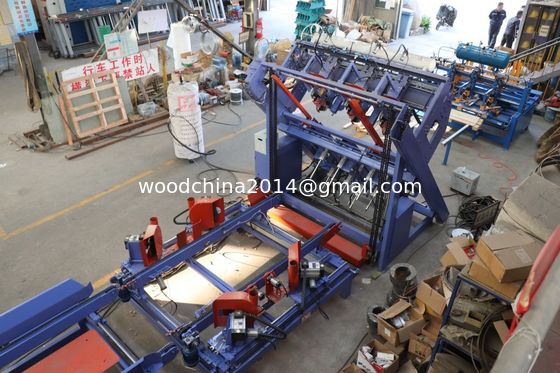

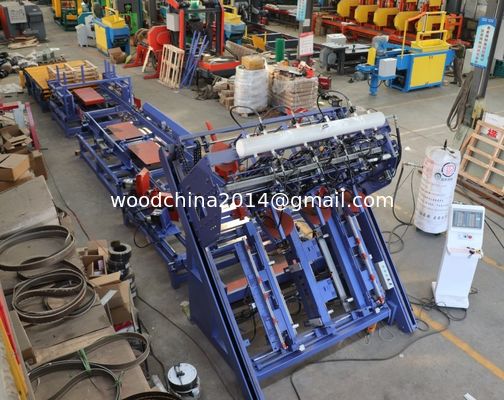

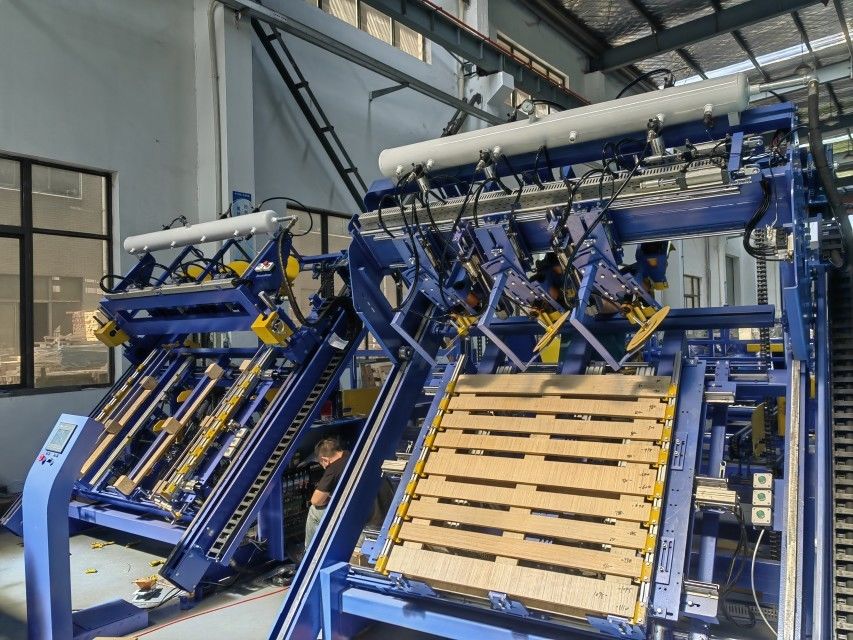

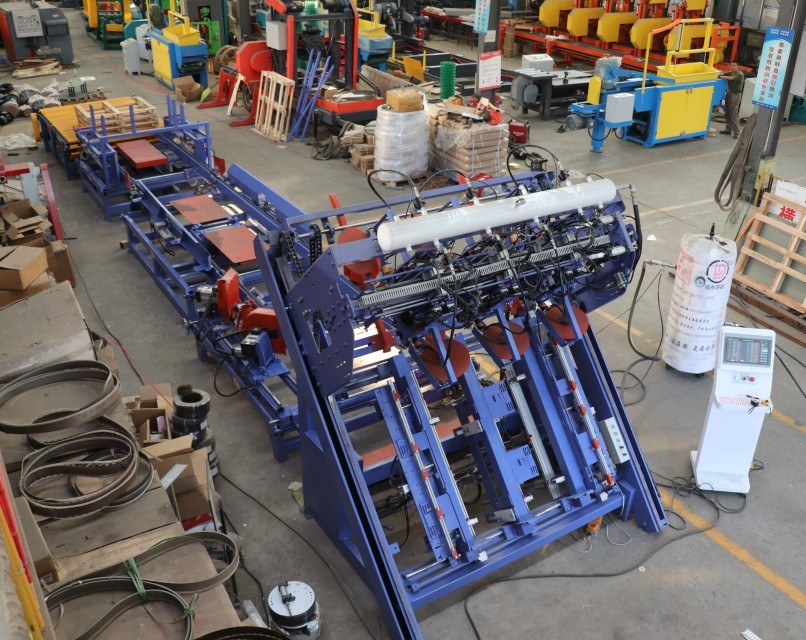

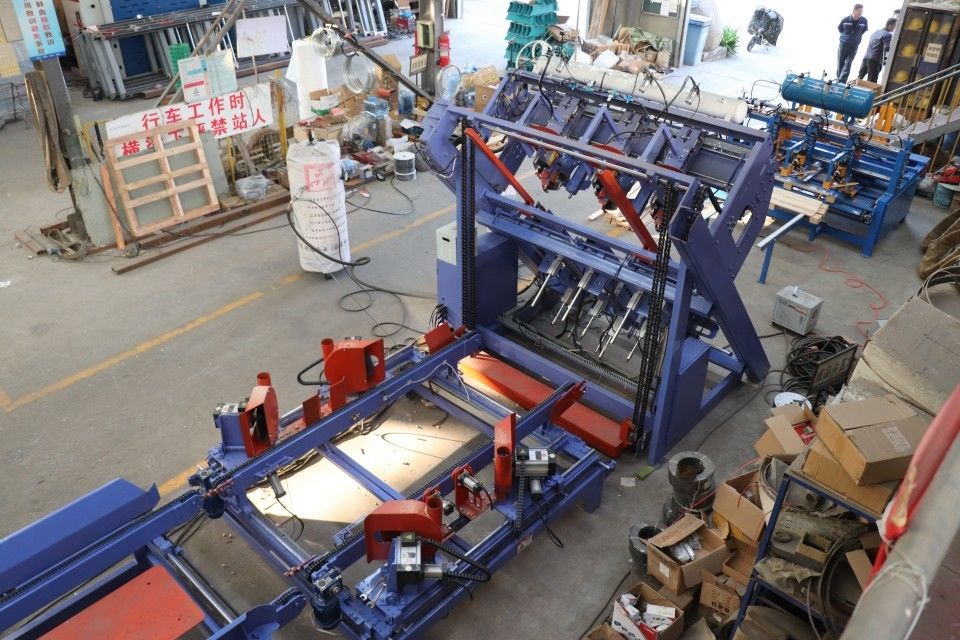

2,Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
3.Wood pallet branding machine
| Model | LY-4 |
| Processing Size | 800-1300mm |
| Branding material | Copper/die steel |
| Air pressure | 0.8MPA |
| Branding speed | 4-8 s/time with pallet machine speed |
| Motor power | 0.75KW*2 |
| Number of branding | 1-6 pcs |
| Control mod | Pallet machine production line integrated supporting |
4. Pallet angle cutting machine
| Model | PQ1300-4 |
| Processing size | 800-1300mm |
| Circular saw blade diameter | 300mm |
| Motor power | 2.2KW*4 |
| Working mode | Automatic feed,Automatic Angle cutting |
| Weight | 350kg |
5. Wooden pallet palletizer
| Model | MD-1300Z |
| Processing size | 800-1300mm |
| Lift control | Hydraulic |
| Palletizing speed | 4-8 s/time |
| Model power | 5.2KW |

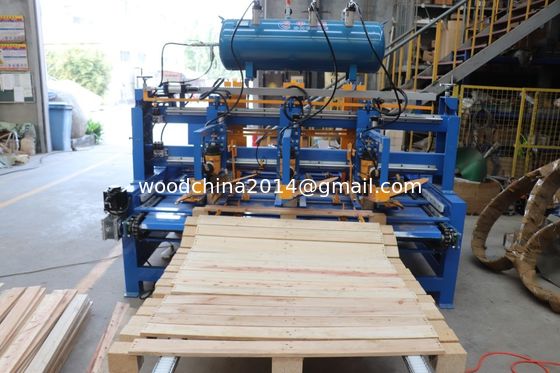

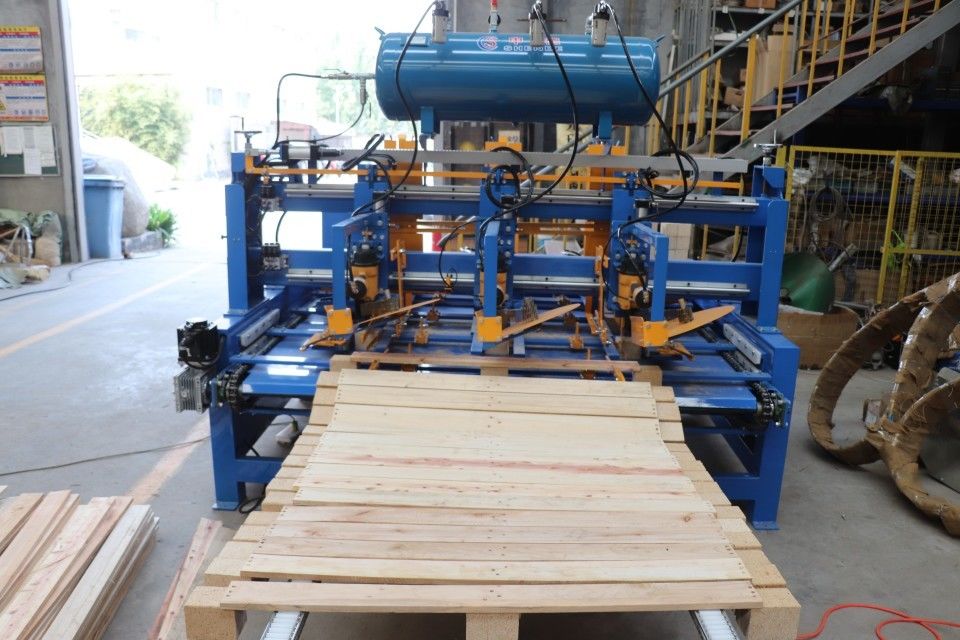

Stringer Pallets Making Machine
| Model | AWPN-1300 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 220V/ 2kw Servo motor |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Weight | 2000kg |
