Home /Products/Pallet Nailing Machine/7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width

7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width

1 SET Wooden pallet block nailing machine
MOQ
US $7,800 - 12,400 / Set
Price
7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wooden Pallet Block Nailing Machine
Condition: New
Power(w): 7.5KW，2.2KW*2，1KW
Voltage: 380V,3 Phase Or As Customer Needs
Capacity: 5-6m3/day
Raw Material Length: 1000-3000mm
Board Length: 40-200mm
Cutting Height: 40-120mm
Cutting Width: 40-100mm
Nail Gun: 1-3 Pcs (adjustable)
Warranty: 1 Year
After-sales Service Provided: Commissioning And Training, Video Technical Support
Highlight:

Automatic CNC Wooden Pallet Foot Pier

,

Wooden Pallet Foot Pier Making Machine

,

120MM Wood Pallet Machine
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001,CE
Model Number: PB200, SLDJ-1300-3
Payment & Shipping Terms
Packaging Details: export packing or film wrapped container loading
Delivery Time: within 20 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets/year ofWooden pallet block nailing machine
Product Description

Wooden pallet block nailing machine

  • Technical data
Model PB200
Working mode Automatic feeding ,automatic nailing and cutting
Operating mode Touch screen control
Operational mode Pneumatic operation
Motor power 7.5KW,2.2KW*2,1KW
Raw material length 1000-3000mm
Block Length 40-200mm
Cutting height 40-120mm
Cutting width 40-100mm
Cutting blade 350-400mm
Number of planer 2
Nail quantity 1-3 pcs (adjustable)
Working Efficiency 5-6m3/day
Voltage 380V/3 Phase
Weight 1200Kg
Dimension 5400*1400*1600mm

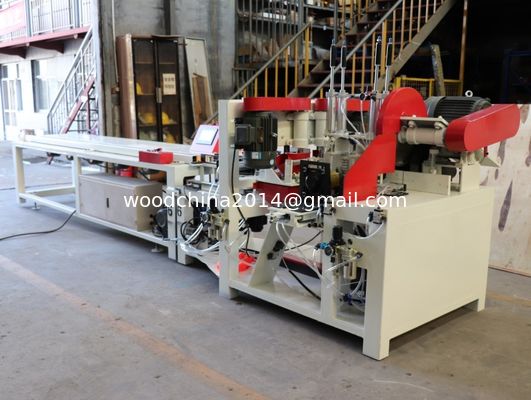

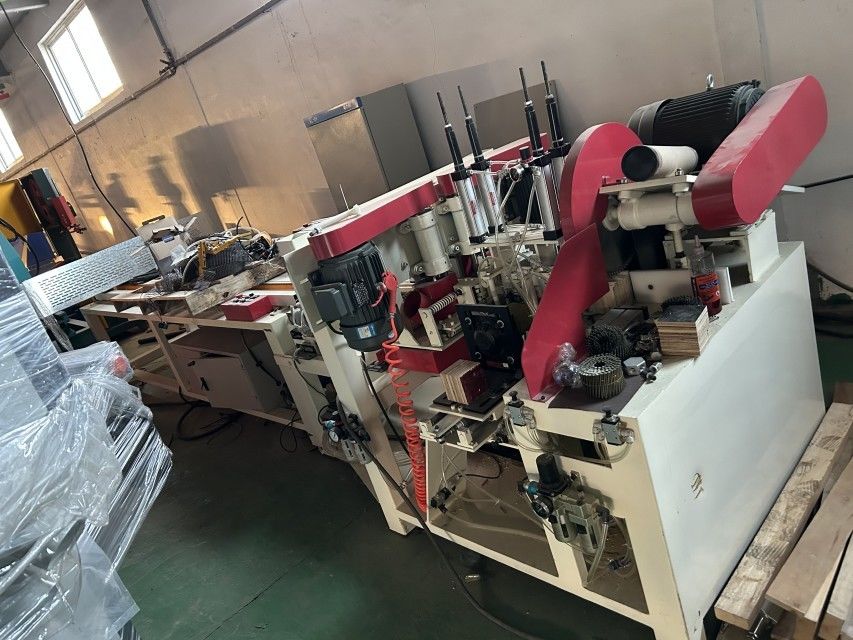

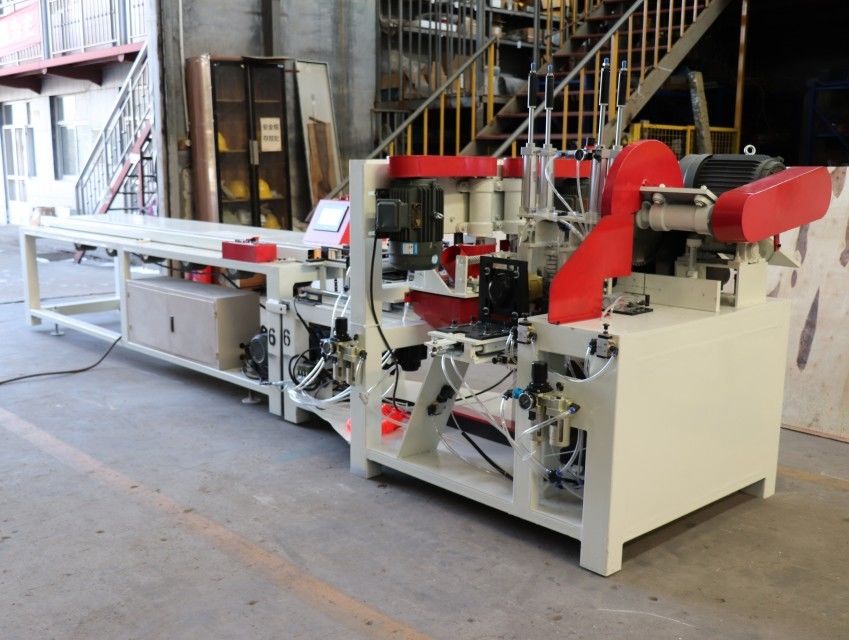

  • Detailed Images



7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 07.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 1



Related Hot Selling Machines

European wood pallet pier automatic connecting nailing machine

  • Technical data
Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun Stanley BOSTITCH Stitch gun70mm*3
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.1KW Servomotor
Capacity 600P/H
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier
Machine size 2500*1800*2100mm

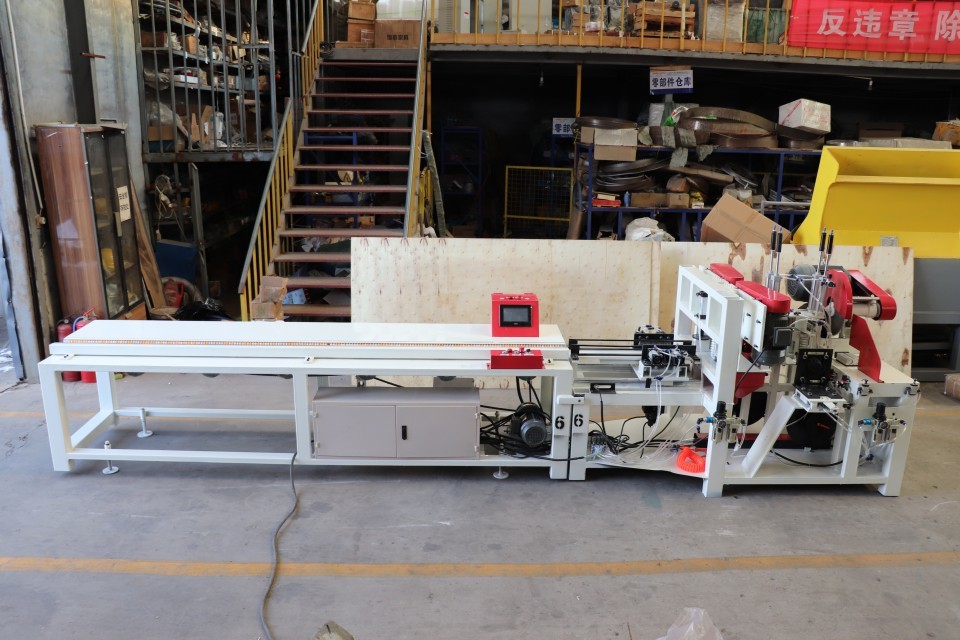

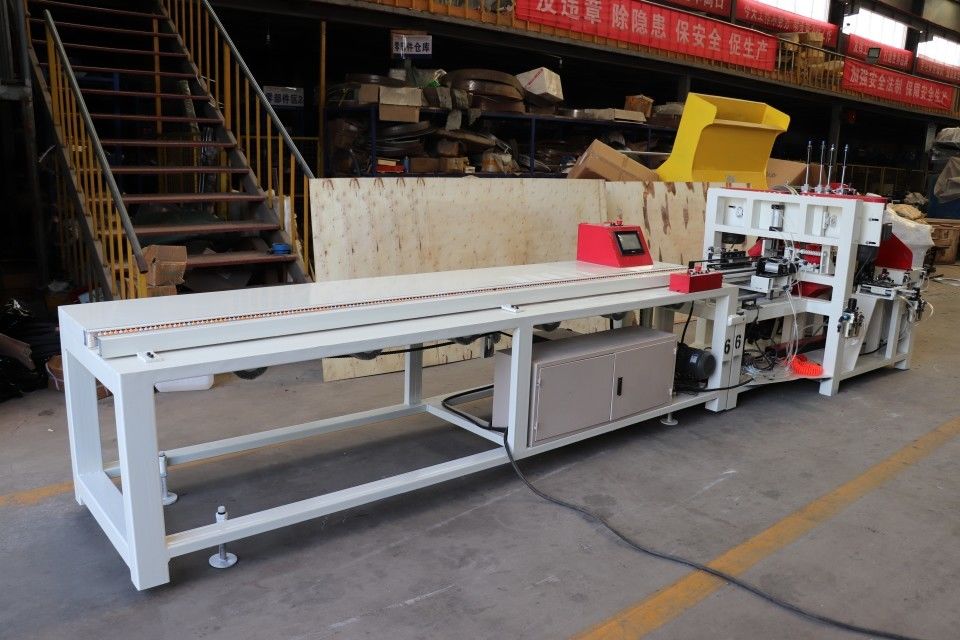

  • Images

7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 27.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 3

7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 4

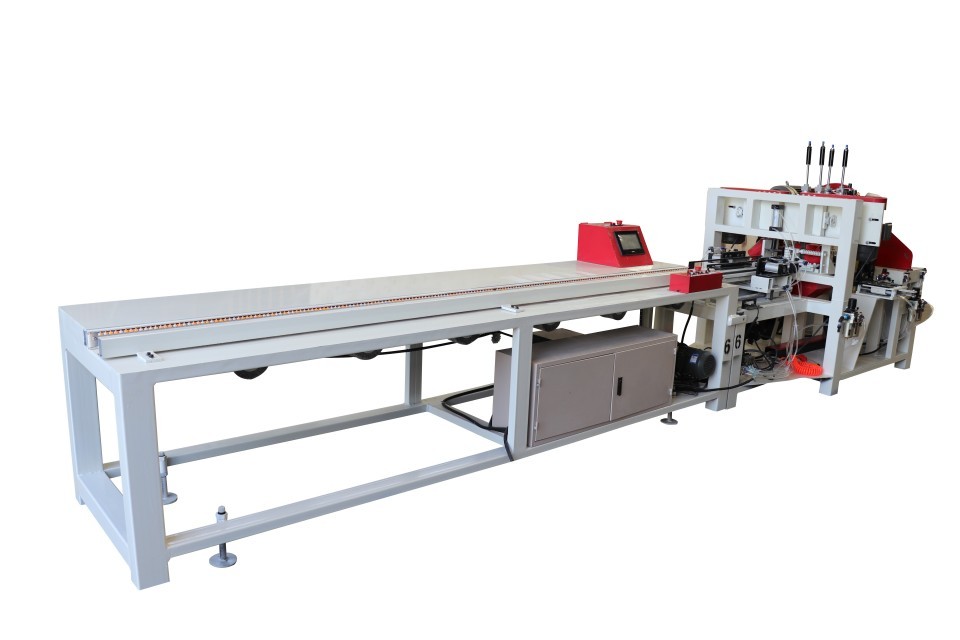

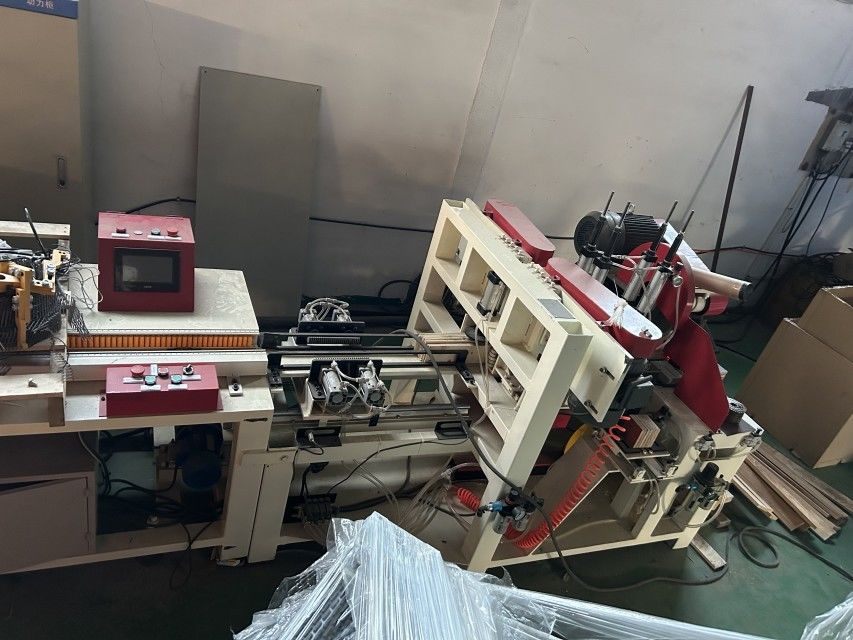

  • Euro Pallet Production Line

7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 5

7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 6



  • Wood block multi-blade saw

Model BM-1250
Cutting Length 1250mm
Cutting Thickness 100mm
Cutting Width 200mm
Saw Diameter 355mm
Motor 30kw
Weight 1600kg



7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 77.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 8

  • Automatic European pallet nailing machine

Model AEPN-1300
Wood pallet length 700-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Number of nail guns 6P CN70,CN58
Weight 2000kg



7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 9

7.5KW Automatic CNC Wooden Pallet Foot Pier Making Machine For 40-120MM Thickness 40-100MM Width 10
