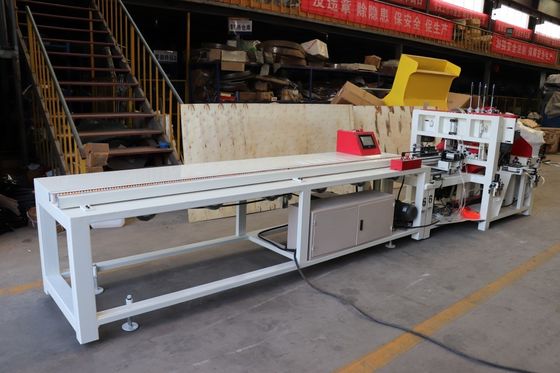

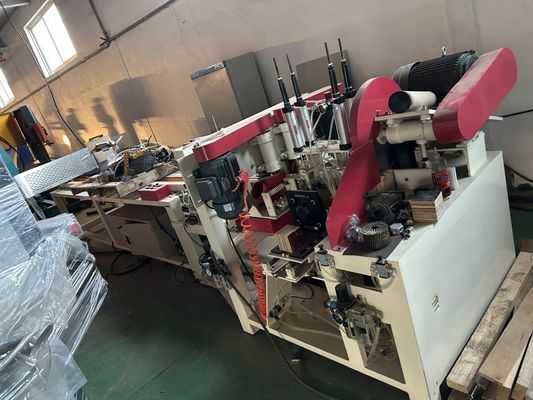

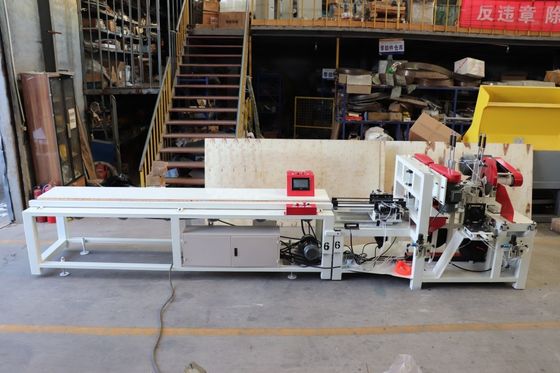

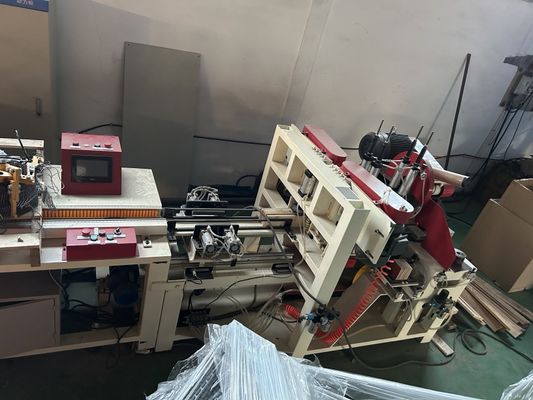

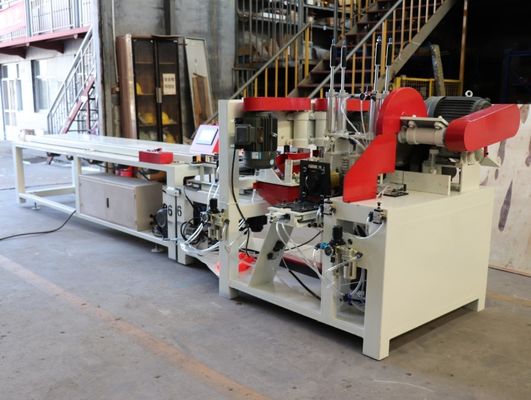

Wooden pallet block nailing machine
| Model | PB200 |
| Working mode | Automatic feeding ,automatic nailing and cutting |
| Operating mode | Touch screen control |
| Operational mode | Pneumatic operation |
| Motor power | 7.5KW,2.2KW*2,1KW |
| Raw material length | 1000-3000mm |
| Block Length | 40-200mm |
| Cutting height | 40-120mm |
| Cutting width | 40-100mm |
| Cutting blade | 350-400mm |
| Number of planer | 2 |
| Nail quantity | 1-3 pcs (adjustable) |
| Working Efficiency | 5-6m3/day |
| Voltage | 380V/3 Phase |
| Weight | 1200Kg |
| Dimension | 5400*1400*1600mm |
Related Hot Selling Machines
European wood pallet pier automatic connecting nailing machine
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | Stanley BOSTITCH Stitch gun70mm*3 |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.1KW Servomotor |
| Capacity | 600P/H |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
| Machine size | 2500*1800*2100mm |
Wood block multi-blade saw
| Model | BM-1250 |
| Cutting Length | 1250mm |
| Cutting Thickness | 100mm |
| Cutting Width | 200mm |
| Saw Diameter | 355mm |
| Motor | 30kw |
| Weight | 1600kg |
Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
Wood pallet branding machine
| Model | LY-4 |
| Processing Size | 800-1300mm |
| Branding material | Copper/die steel |
| Air pressure | 0.8MPA |
| Branding speed | 4-8 s/time with pallet machine speed |
| Motor power | 0.75KW*2 |
| Number of branding | 1-6 pcs |
| Control mod | Pallet machine production line integrated supporting |
| Voltage | 380V(Customized) |
| Machine size | 2500*2100*1600mm |
| Model | MD-1300Z |
| Processing size | 800-1300mm |
| Lift control | Hydraulic |
| Palletizing speed | 4-8 s/time |
| Model power | 5.2KW |
| Control mode | Automatic |
| Voltage | 220V(Customized) |
| Production mode | Automatic chain conveying |
| Machine size | 3500*2000*1800mm |
