FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine

1 SET wood planer
MOQ
US $2,200 - 5,299 / Set
Price
FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Wood Planer
Condition: New
Power(w): 3kw
Max. Planning Width: 1300mm
Max. Planning Thickness: 10-200mm
Max. Planning Length: 4500mm
Planing Head Diameter: 100mm
Polishing Head Diameter: 125mm
Application Wood: For Log Timber Production
After-sales Service Provided: Online Support,commissioning And Training
Keyword: Planer
Warranty: 1 Year
Voltage: 380V,or As Customer Needs
Application: Woodworking
Color: As Your Required
Weight: 180 To 260kgs
Highlight:

portable Sawmill Flattening Machine

,

Redwood Slab Sawmill Flattening Machine
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MB26, MB36, MB700, MB1000, MB1300
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20 days
Payment Terms: T/T, Western Union
Supply Ability: 1500sets/year of Wood planer
Product Description

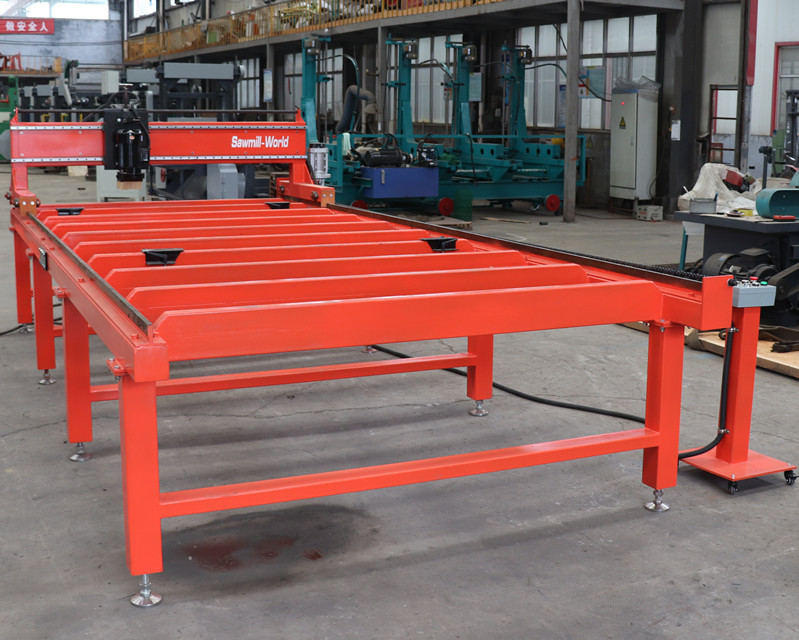

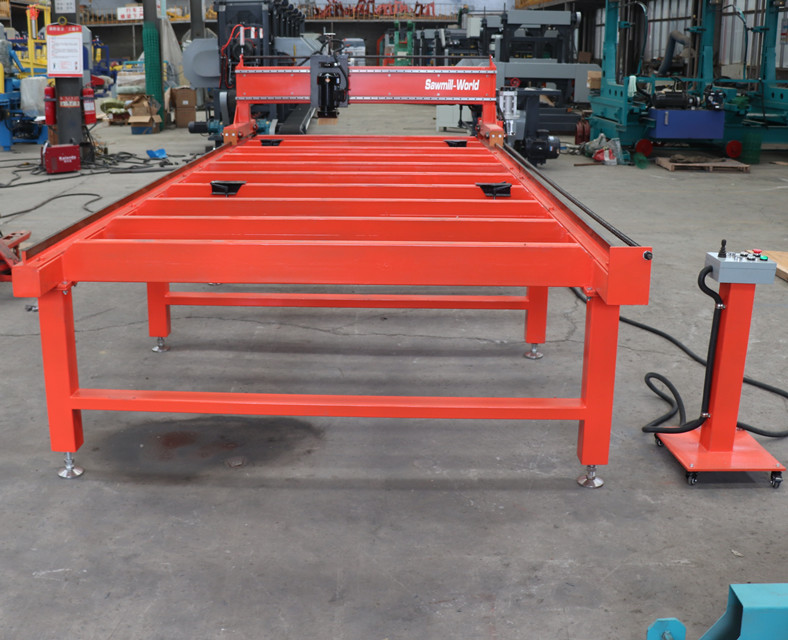

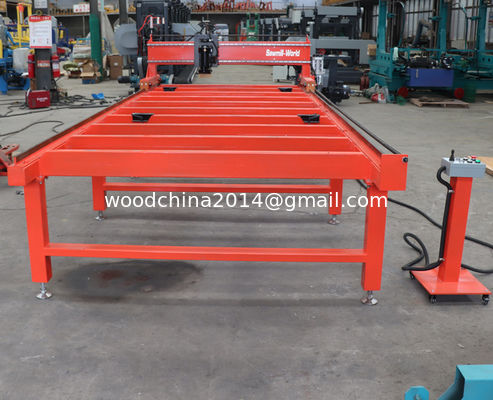

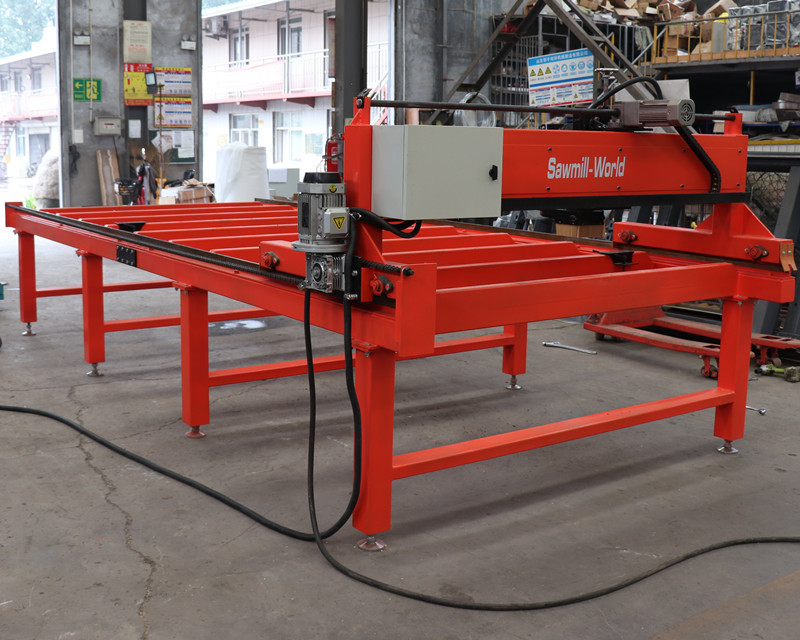

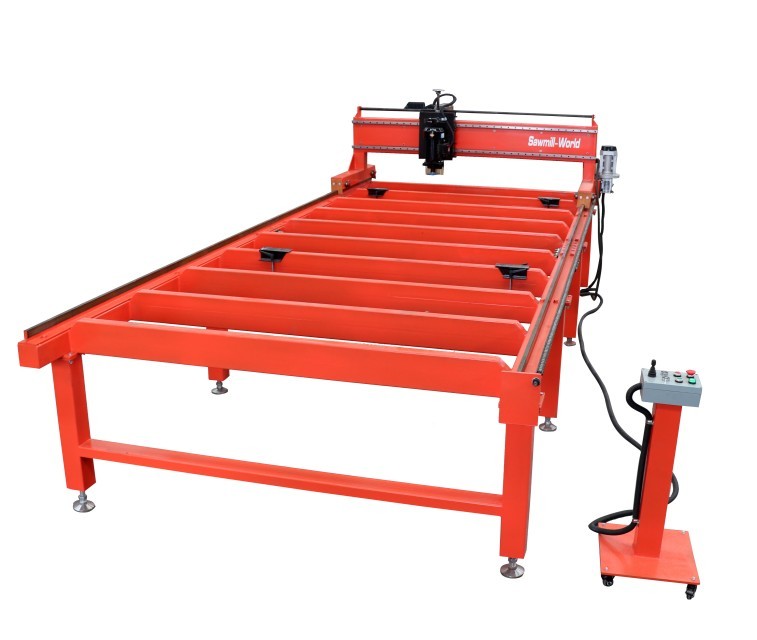

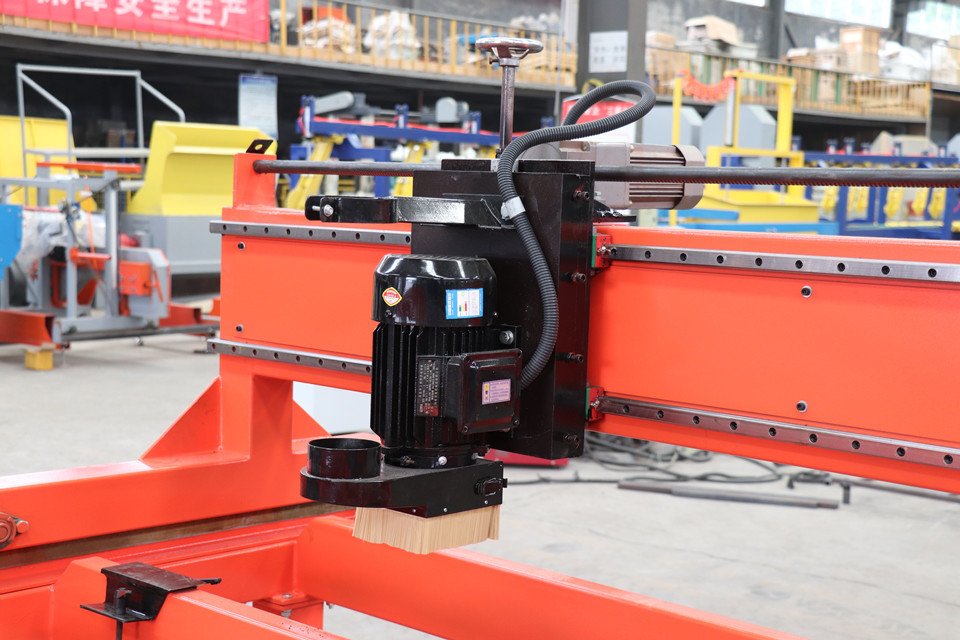

MB1300 Wood Planer slab flattening machine matched with the portable sawmill



Wood Planer

Expand your business with the MB Series planer and begin the production of planed timber products.

  • It planes rough wood surfaces smooth.
  • The MB Series Planer uses the same log bed as the Portable Horizontal Band Sawmill, and they can be used together or separately.

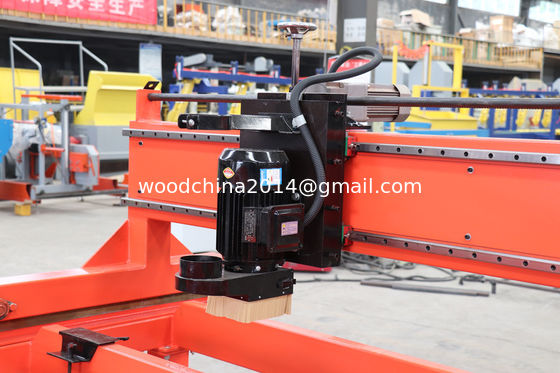

  • The PLANER  head can be added to an existing PORTABLE sawmill and logs can be processed into a finished product without ever leaving the sawmill bed.
  • After the log has been squared with the sawmill, the MB Series Planer can then mould or plane it into the final product.

SPECIFICATIONS:



Model MB26 MB36 MB700 MB1000 MB1300
Max. Planning width 650mm 900mm 700mm 1000mm 1300mm
Max. Planning length 3000mm 3000mm 4500mm 4500mm 4500mm
Processing thickness 10-200MM 10-200MM 10-200MM 10-200MM 10-200MM
Main motor power 3kw 3kw 3kw 3kw 3kw
Planing head diameter 100mm 100mm 100mm 100mm 100mm
Polishing head diameter 125mm 125mm 125mm 125mm 125mm
Dust hole 100mm 100mm 100mm 100mm 100mm
Weight 180kg 200kg 180kg 230kg 260kg
Matched sawmill model SW26 SW36 MJ700 MJ1000 MJ1300



Large Plank polishing machine(MB1700)

Specification:



Max processing planks width 1700mm
Max processing planks length 3500mm
Max processing planks thickness 10-200mm
Main motor power 3kw
Planing head diameter 100mm
Polishing head diameter 125mm
Weight 560kg

FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine 0FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine 1

FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine 2FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine 3

Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
Specifications:



Model

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

 700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

 600MM 700MM 700MM 700MM



Sawn Thickness

 2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

 1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

 15KW 18.5KW 22KW 30KW



Lifting Motor Power

 1.5KW 1.5KW 1.5KW 1.5KW



Total Weight (KG)

 1100 1100 1300 1500



Detailed Images of stanard model:

FlFlattening And Sanding Redwood Slab With Sawmill Flattening Machine, Portable Sanding Machine 4
