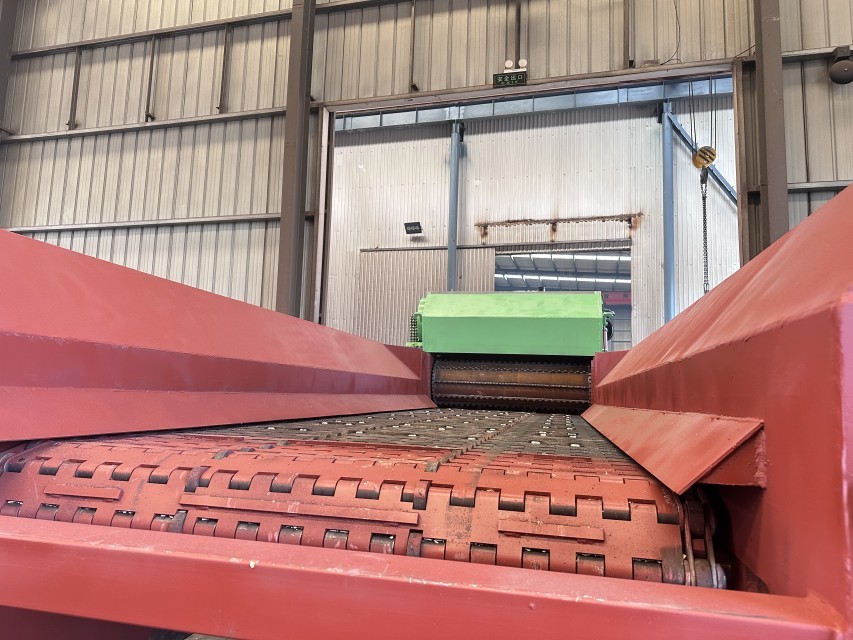

SH Series crusher is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones
3. Tehnical data:
| Model | SH 800-500 | SH 1300-600 | SH 1600-600 |
| Feeding Inlet | 800*500mm | 1300*600mm | 1600*600mm |
| Blade Roller Diameter | 850mm | 850mm | 850mm |
| Blade Roller Speed | 850RPM | ||
| Capacity | 10-15tons/hour | 15-20tons/hour | 25-30tons/hour |
| YG8 Hammer Blade Quantity | 16pcs | 20pcs | 28pcs |
| Knife Blade Quantity | 2groups/4pcs | ||
| Max. Processing Wood Diameter | 300mm | 450mm | 450mm |
| Motor Power | 110kw | 160kw | 250kw |
| Wood Chipper Size | 20-40cm(Custmized) | ||
| Working Life of the Hammer Blades | 4000T-5000T | ||
Heavy Duty Large Wood Crusher
| Model | SH2000-1000 |
| Feeding inlet size | 2000*1000MM |
| Blade roll diameter | 1400MM |
| Blade roll rotation speed | 750RPM |
| Production capacity | 70-100Ton/Hour |
| Blade quantity | 3sets/9pcs(H12 materials) |
| Processing max. Log diameter | ＜800MM |
| Power | 450KW |
| Chipper size | 30-50MM |
| Blade life | About 5000T |
| Steel plate thickness of host machine | 30mm |
4. Photos:
Electrical type

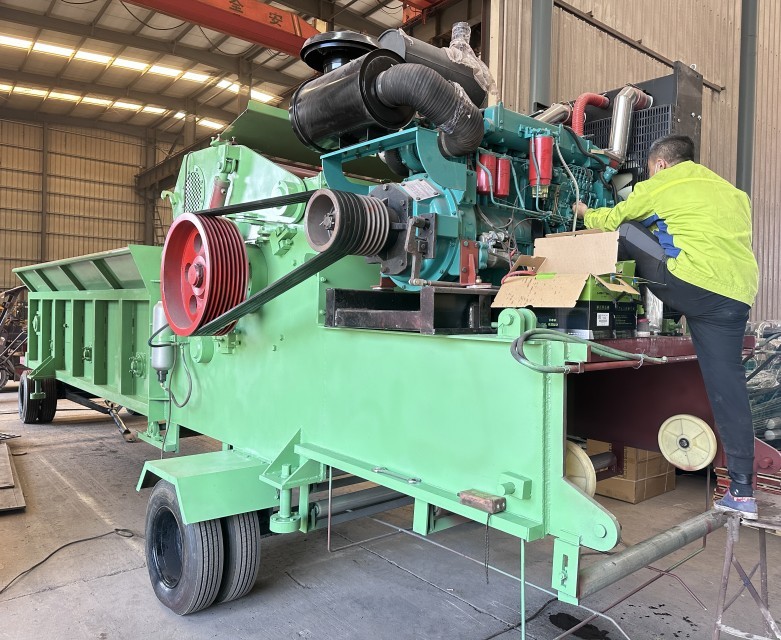

Diesel engine + generator type

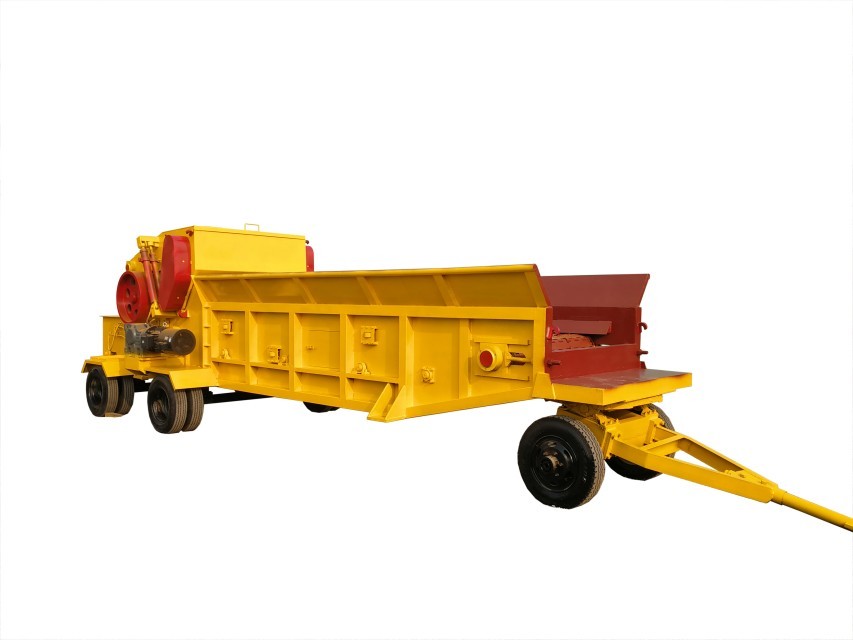

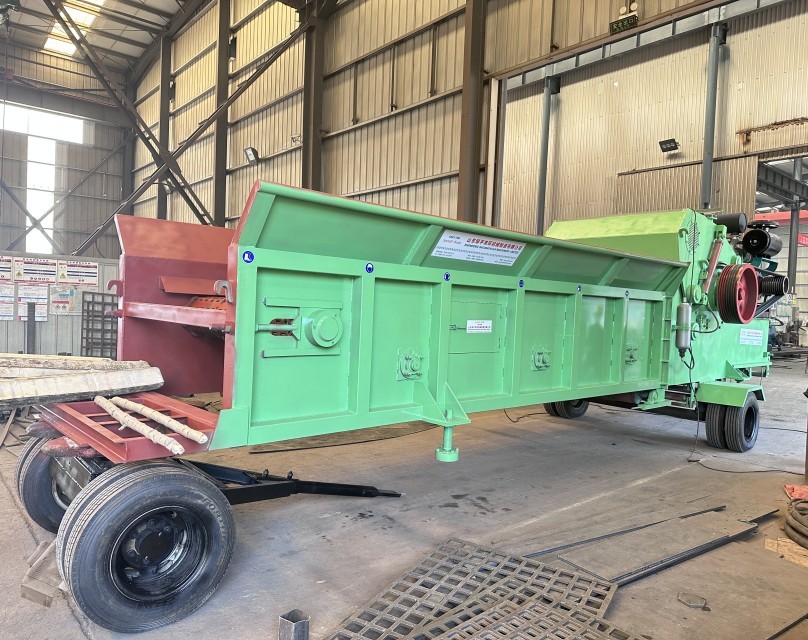

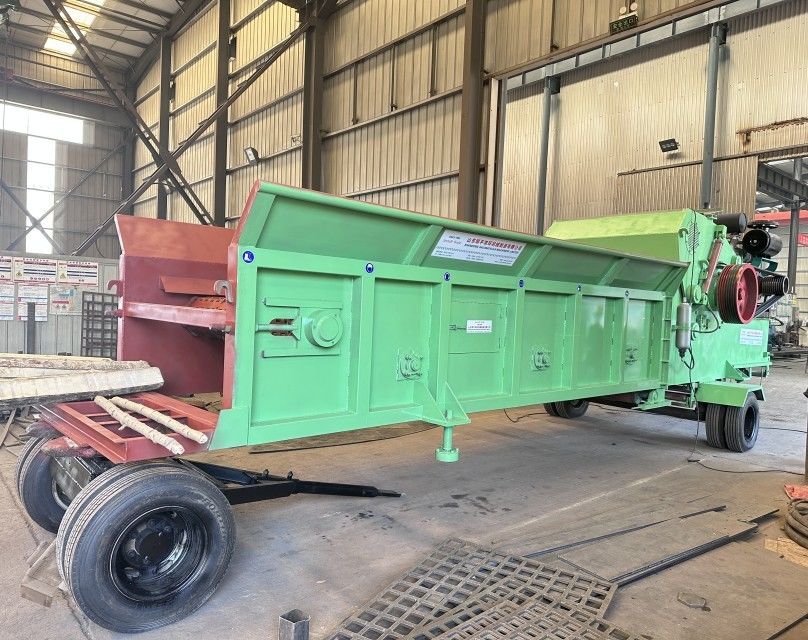

With wheels for mobile usage
Hydraulic Collapsible outlet conveyor
Control Cabinet

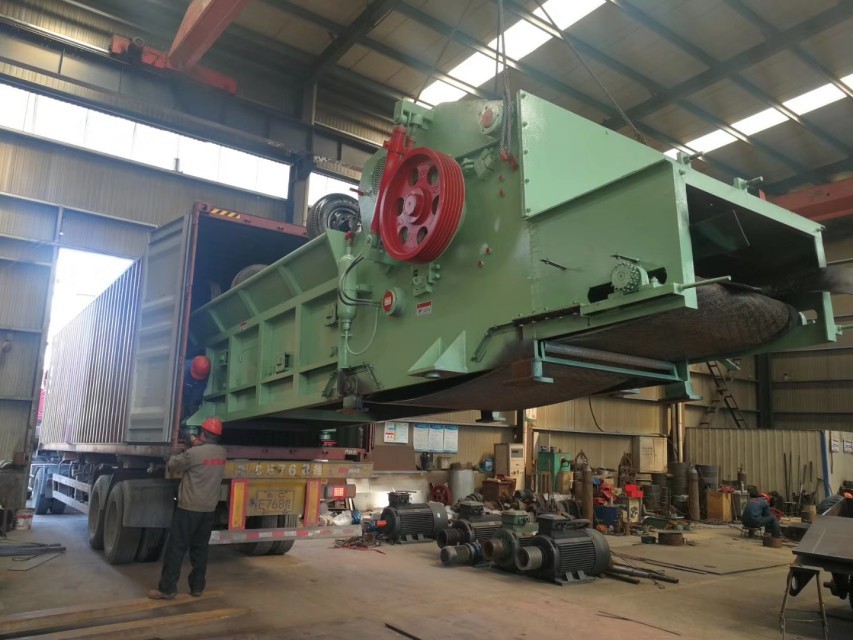

Container Loading -
Related Products:
Wood Roots Crusher/Grinder
Specification:
| Technical data | Model SH3600-1600 |
| Blade shaft size | 1600x850mm |
| Rotor diameter | 800mm |
| Blade quantity | 4 |
| Main motor power | 185KW |
| Feeding inlet diameter | 3600mm |
| Out feed conveyor | 12meters |
| Capacity | 25-30Ton/Hour |
| Weight | 18000kg |
Disc Chipper
| Wood Chipper Machine | ||
| Specification | SHJP1600 | SHJP1800 |
| Feeding inlet size | 450*450mm | 500*500mm |
| Knife No. | 6pcs | 6pcs |
| Main motor power | 185kw | 220kw |
| Horizontal feed conveyor | 8000mm | 8000mm |
| Slope outfeed conveyor | 10000mm | 10000mm |
| Wood chipper size | 20-35mm | 20-35mm |
| Discharging type | down | down |
| Production capacity | 20t/h | 30t/h |
