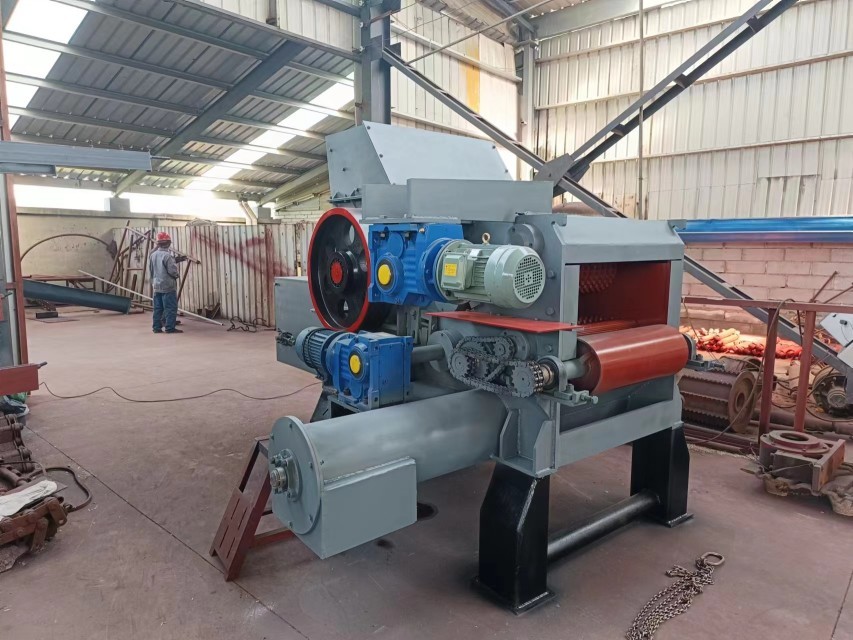

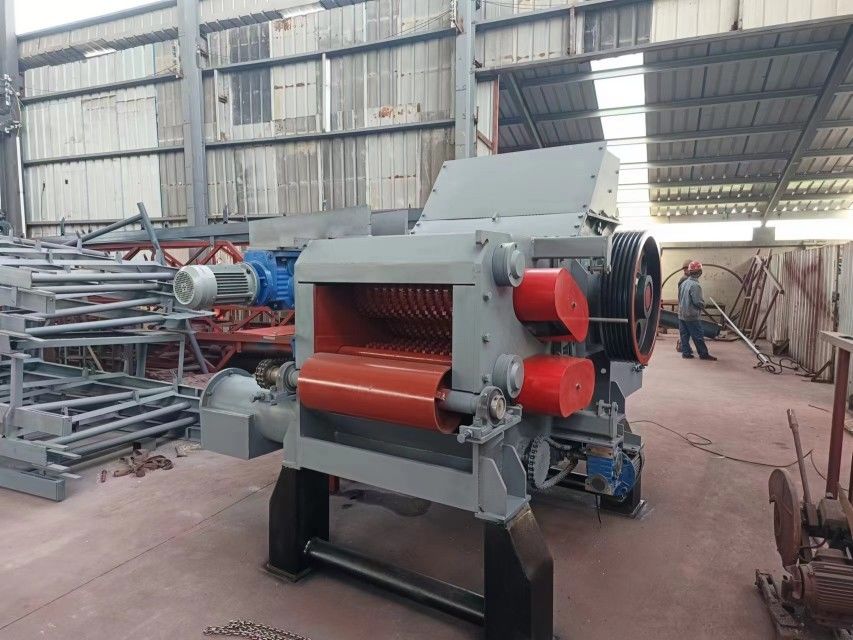

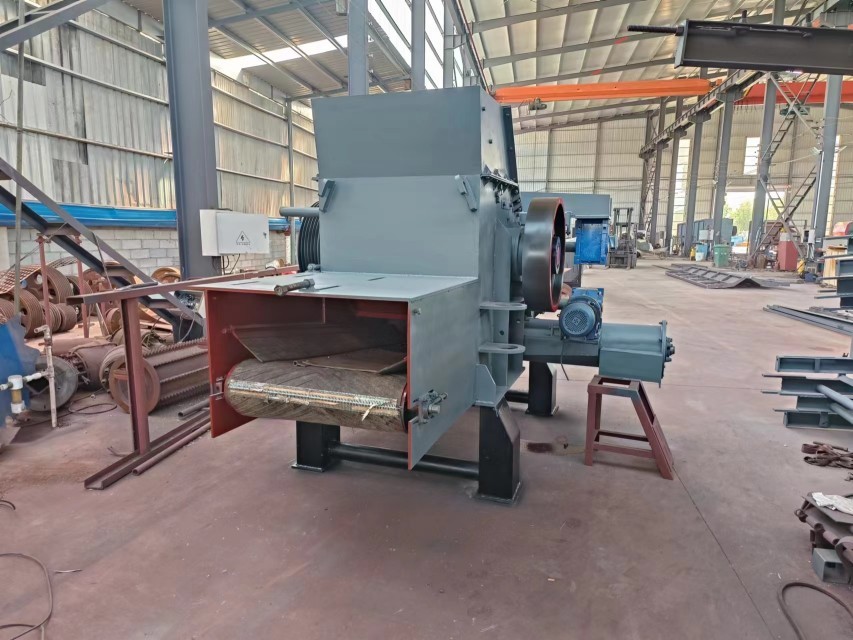

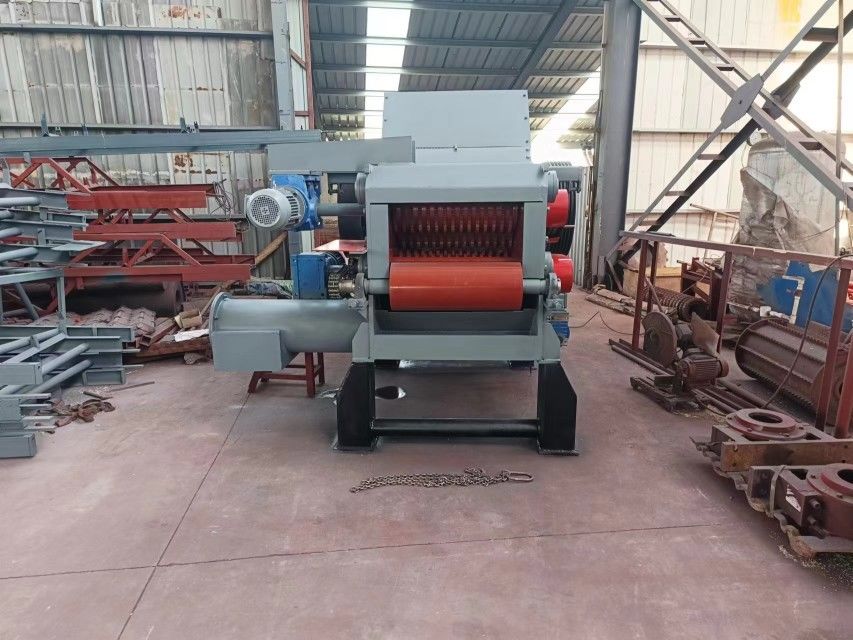

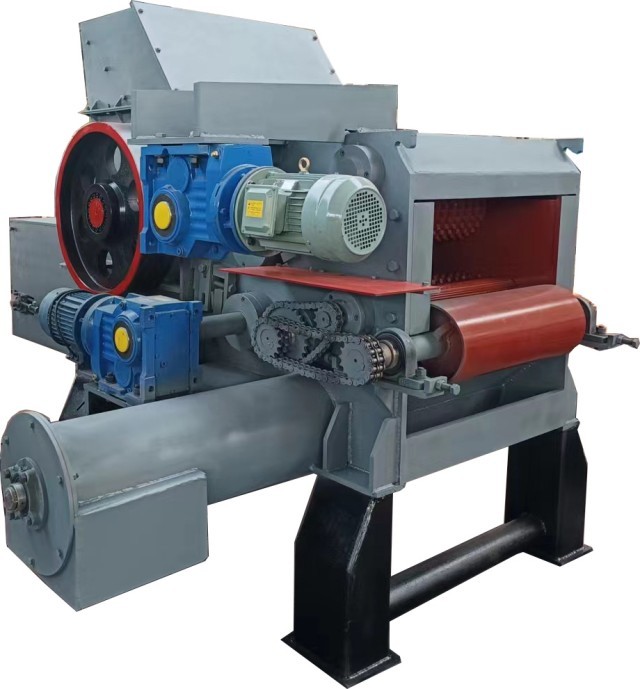

Wood Chip Sawdust all in one machine
It is used to process wood logs directly into wood sawdust/powder .
| Feeding inlet size | 750×320mm |
| Flying knife | 3pcs |
| Bottom knife | 1 |
| Hammer blade | 36 |
| Blade roller | Length 850mm , diameter 800mm |
| Processing wood max. diameter | < 300mm |
| Wood chipper size | 2-5mm granular |
| Main motor power | 132kw |
| Pulley | 730-6 slot |
| Feeding motor | 3kw*2SETS+4kw*1SET |
| Screen-er hole | 12mm |
| Feeding roller | 4pcs |
| Feeding conveyor | Length 6m |
| Outlet conveyor | Length 12m |
| Discharge rotary conveyor (skirt conveyor) | Length 5m |
| Production capacity | 2-5 tons/hour |
| Control cabinet | Soft start, distant control |
| Overall size | 2980*2480*2300mm |
| Machine weight | 11.8 tons |

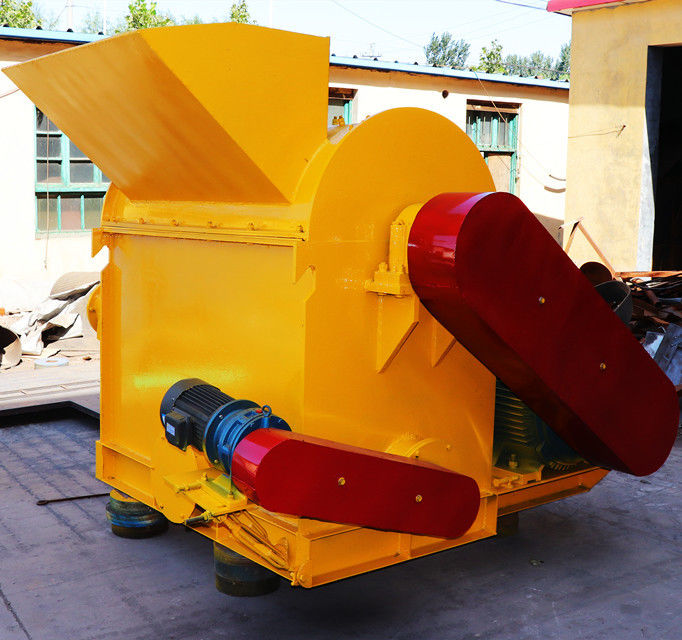

Wood Sawdust Machine
Technical Data:
| Model | SHMF700 | SHMF1100 | SHMF1500 |
| Feeding Inlet | 1000*600mm | 1000*700mm | 1000*800mm |
| Blade Shaft Diameter | 700mm | 1100mm | 1500mm |
| Blade Quantity | 84 | 84 | 84 |
| Blade Roll Speed | 2800R/M | 1450R/M | 1450R/M |
| Motor Power | 132KW | 160KW | 220KW |
| Discharge Mode | Single auger discharge | Double Auger discharge | Double Auger discharge |
| Feed conveyor | 10000mm | 10000mm | 10000mm |
| Discharge conveyor | 6000mm | 6000mm | 6000mm |
| Max Processing wood size | 20-50mm | 20-50mm | 20-50mm |
| Finished shape | sawdust /powder | sawdust/powder | sawdust/powder |
| Capacity | 3-4T/H | 5-6T/H | 8-10T/H |
| Integrated electric control box | Soft starter*1 | Soft starter*1 | Soft starter*1 |
SH1300-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Technical Parameter Of Host System Equipment
| Model | SH1300-600 |
| Feeding Inlet | 1300*600MM |
| Blade Roller Diameter | 850MM |
| Blade Roller Speed | 850RPM |
| Capacity | 15-20T/Hour |
| YG8 Hammer Blade Quantity OR Blades | 22 pcs hammers or 2sets blades |
| Max Processing Wood Diameter | 450MM |
| Electric motor power | 160KW |
| Wood Chipper Size | 20-40MM |
| Working Life Of THE Hammer Blades | 4000T-6000T |
