Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine

1 SET

MOQ

US $5,000-14,950 / Set

Price

Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Horizontal Wood Cutting Band Saw

Application: Wood Cutting,Furniture

Max. Sawing Width: 400mm, 650mm, 800mm

Max. Sawing Height: 110mm

Motor Power: 15kw To 30kw

Feeding Motor: 0.75kw, 1.5kw

Feeding Speed: 0.1 To 30meter/min

Min Sawing Thickness: 2mm

Weight: 1850kgs To 2750kgs

Keyword: Wood Cutting Band Saw,Wood Table Saw Machine,Horizontal Band Saw

Guarantee: 1 Year

After-sales Service: Video Technical Support, Spare Parts

Highlight:

Resaw Wood Sawmill Cutting Machine

,

Wood Horizontal Band Saw Machine

,

Multi Heads horizontal bandsaw wood

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: SHJM800, SHJM400, SHJM650, SHJM1000

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1000 Set/Sets per Year

Gallery

Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine

Product Description

Woodworking Horizontal Band Resaw Machine With Return conveyor Belt
Precision Wood Cutting Horizontal Resaw Band Saws For Sale

Digital Control Sawing Thickness Setting
Max. sawing wood width: 1300mm
Saw wheel diameter : 600mm or 700mm or 800mm
With board returning conveyor
Specifications:

Model	SHJM-400	SHJM-650	SHJM-800
Saw Wheel Diameter	600MM	600MM	700MM
Max Sawing Wood Width	400MM	650MM	800MM
Max Sawing Height	110MM
Min Sawing Thickness	2MM
Feeding Speed	0.1-30 Meters/Minute
Motor Power	15KW	18.5KW	22KW
Feeding Motor	0.75KW	0.75KW	1.5KW

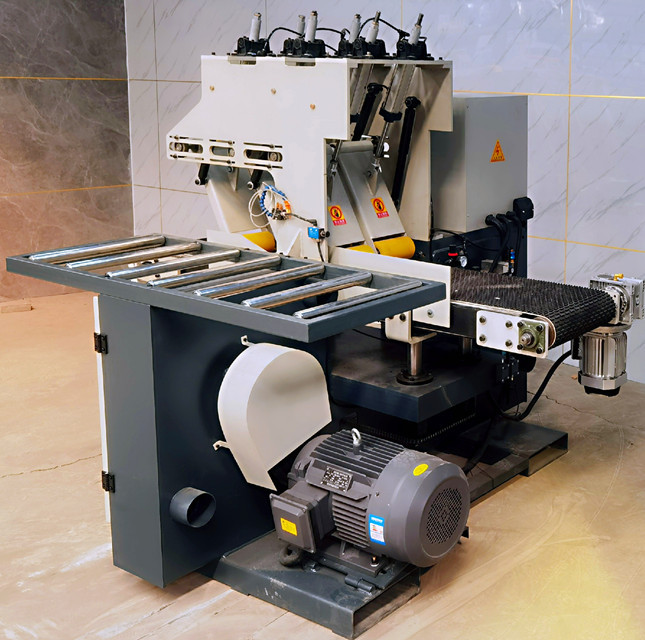

Detailed Image
Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine 0
Related Saw Machine

Multiple Heads Horizontal Resaw Band Saws

This machine is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

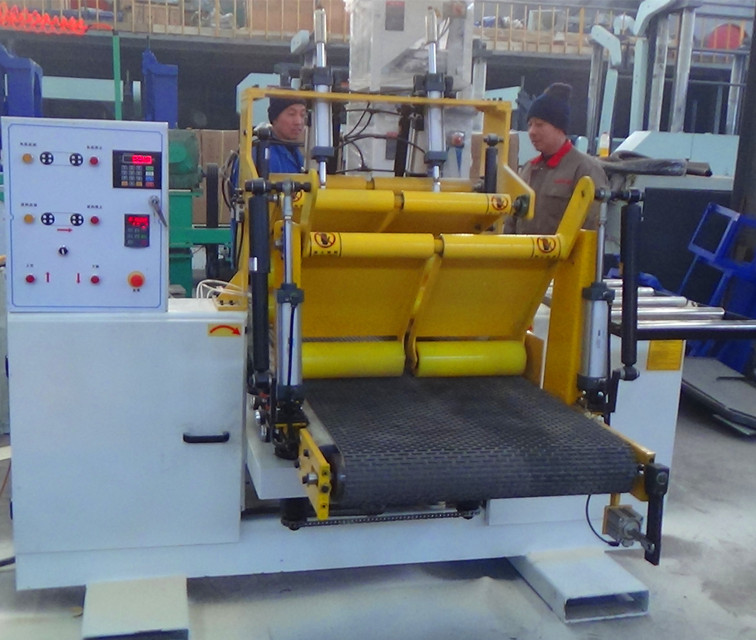

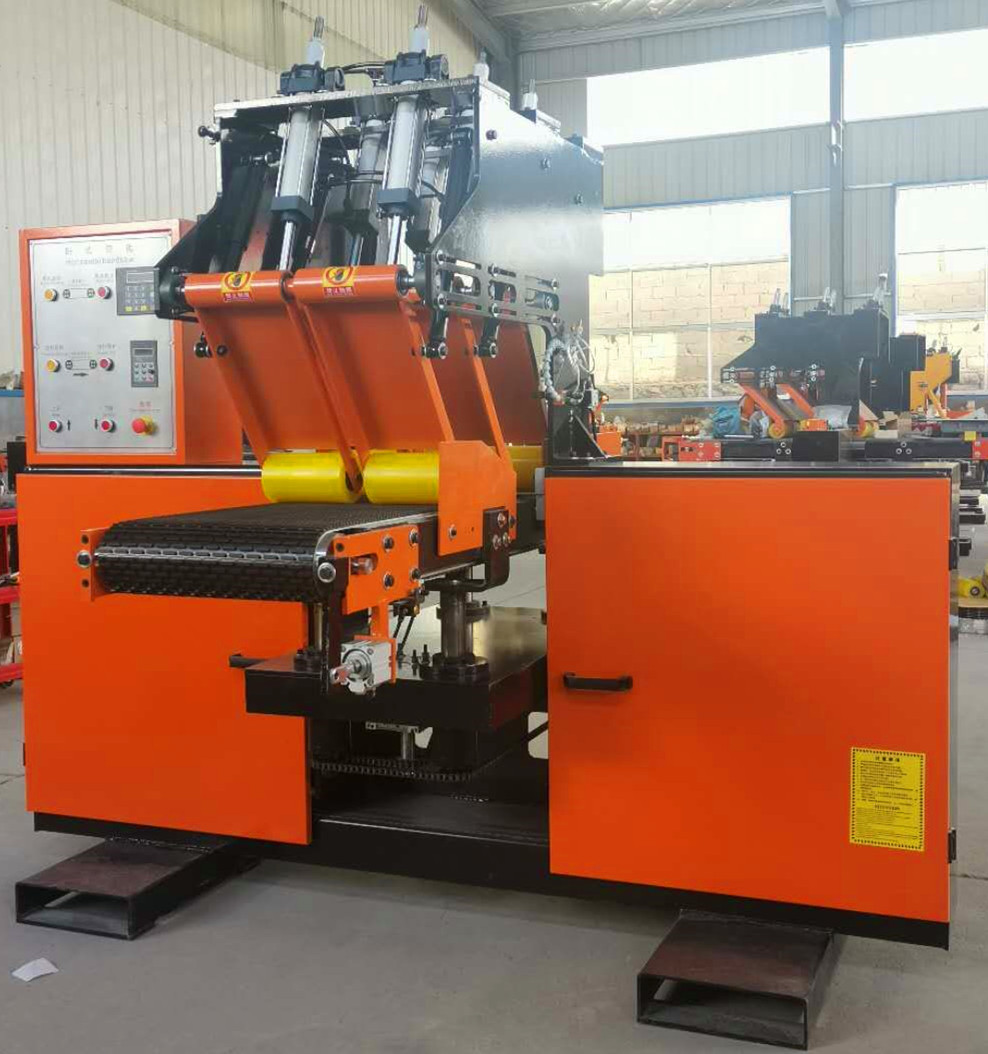

Detailed Image -6heads reaw equipment
Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine 3
Optional - board returning conveyor

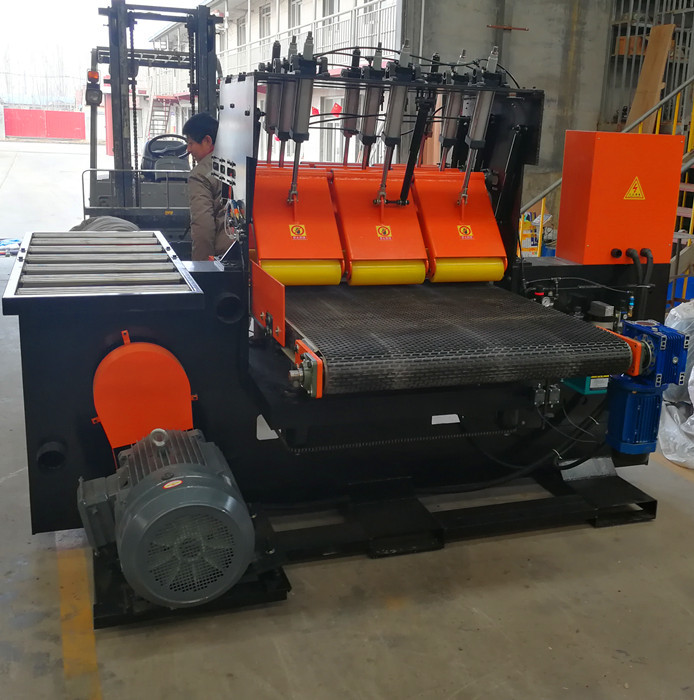

5heads reaw equipment

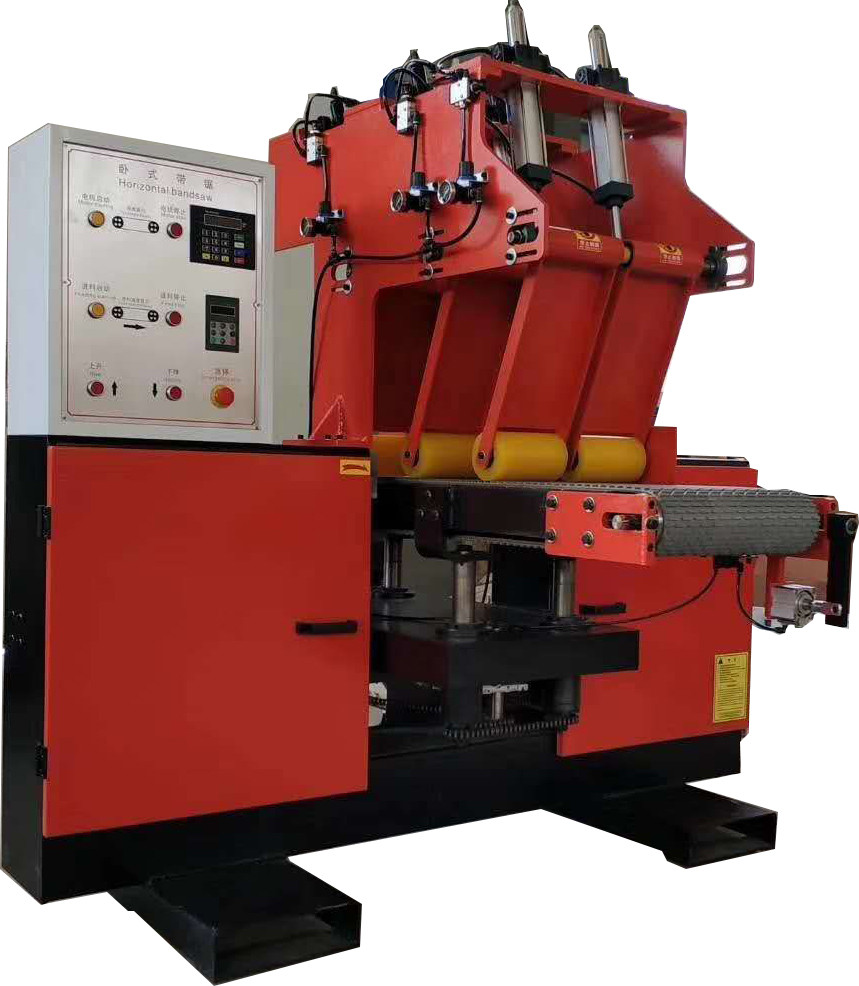

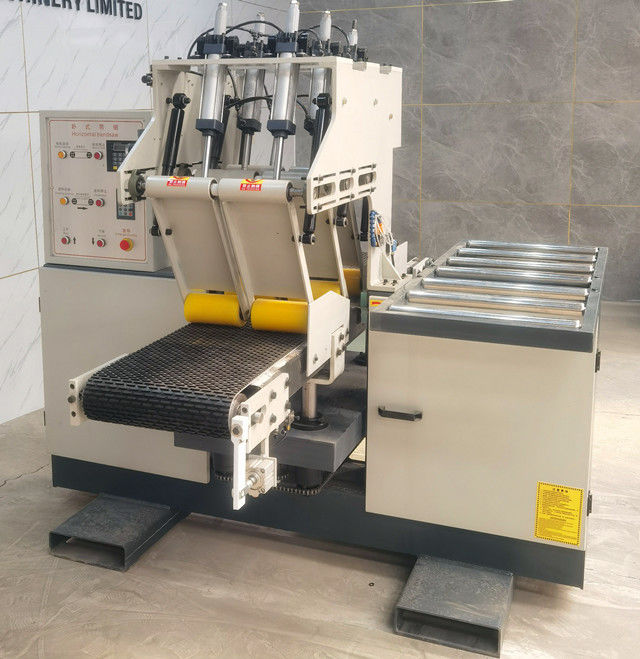

4heads reaw equipment

Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine 6
