Semi-Automatic Wood Pallet Nailing Machine/Euro Block Pallet Production Line
features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
Technical specifications:
| AEPN-1400-1 Semi-automatic European pallet nailing machine | |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 700-1600mm |
| Nailing mode | manual |
| Working mode | PLC touching screen |
| Pallet returning mode | Electrical |
| Air pressure | 0.8MPA |
| Number of beams | 3p (or customized) |
| Number of nail guns | 2P (CN70,CN55) American Stanley staple gun |
| Main motor power | 5kw |
| Wood Pallet Turning Machine | |
| Turning speed | 4-8s/time |
| Wood Pallet Automatic Palletizer | |
| Palletizing capacity | 20pcs pallets |

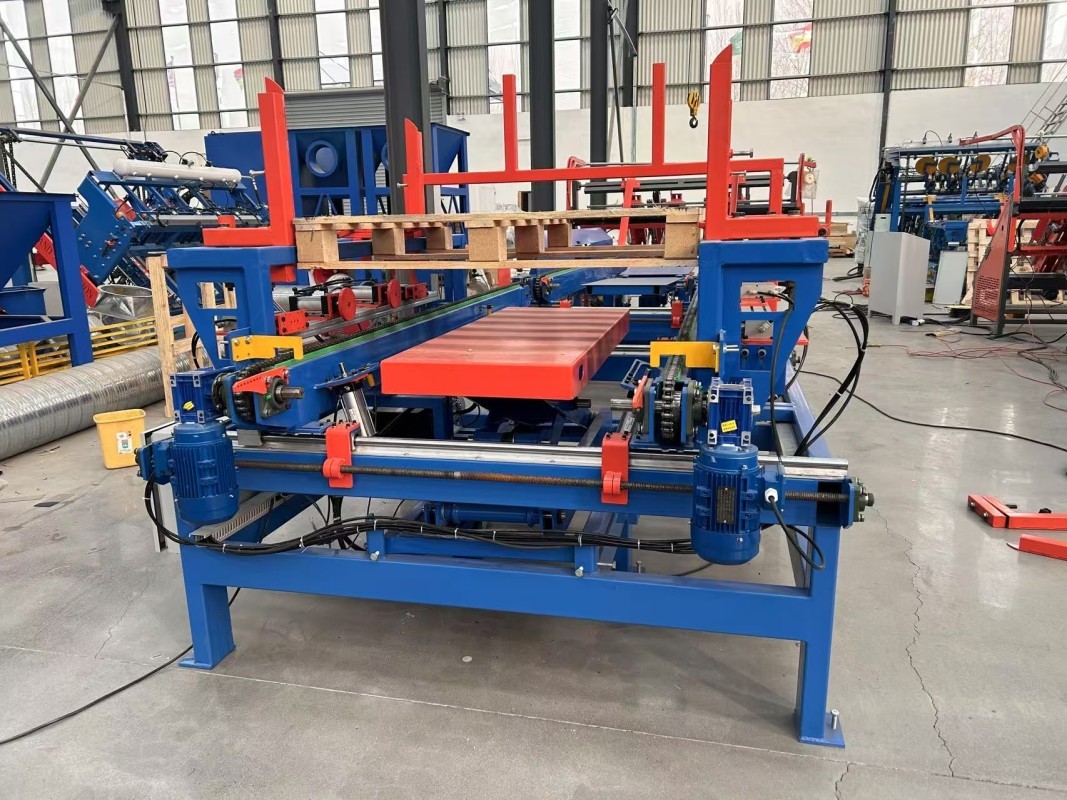

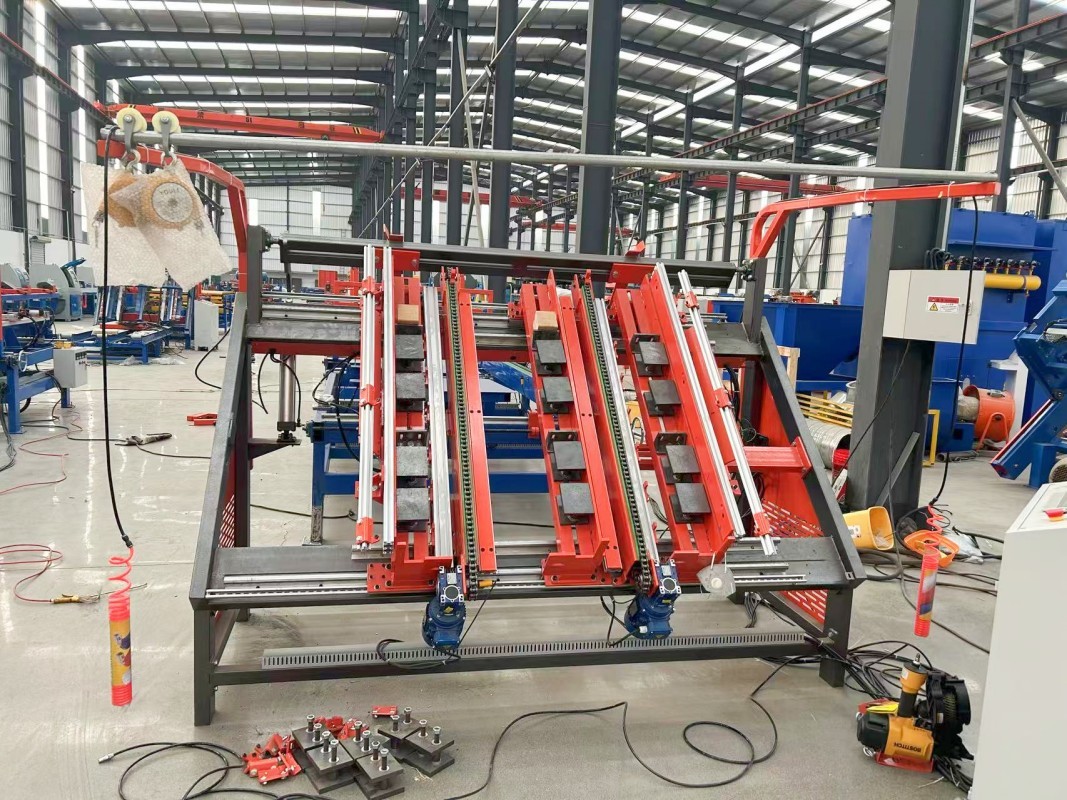

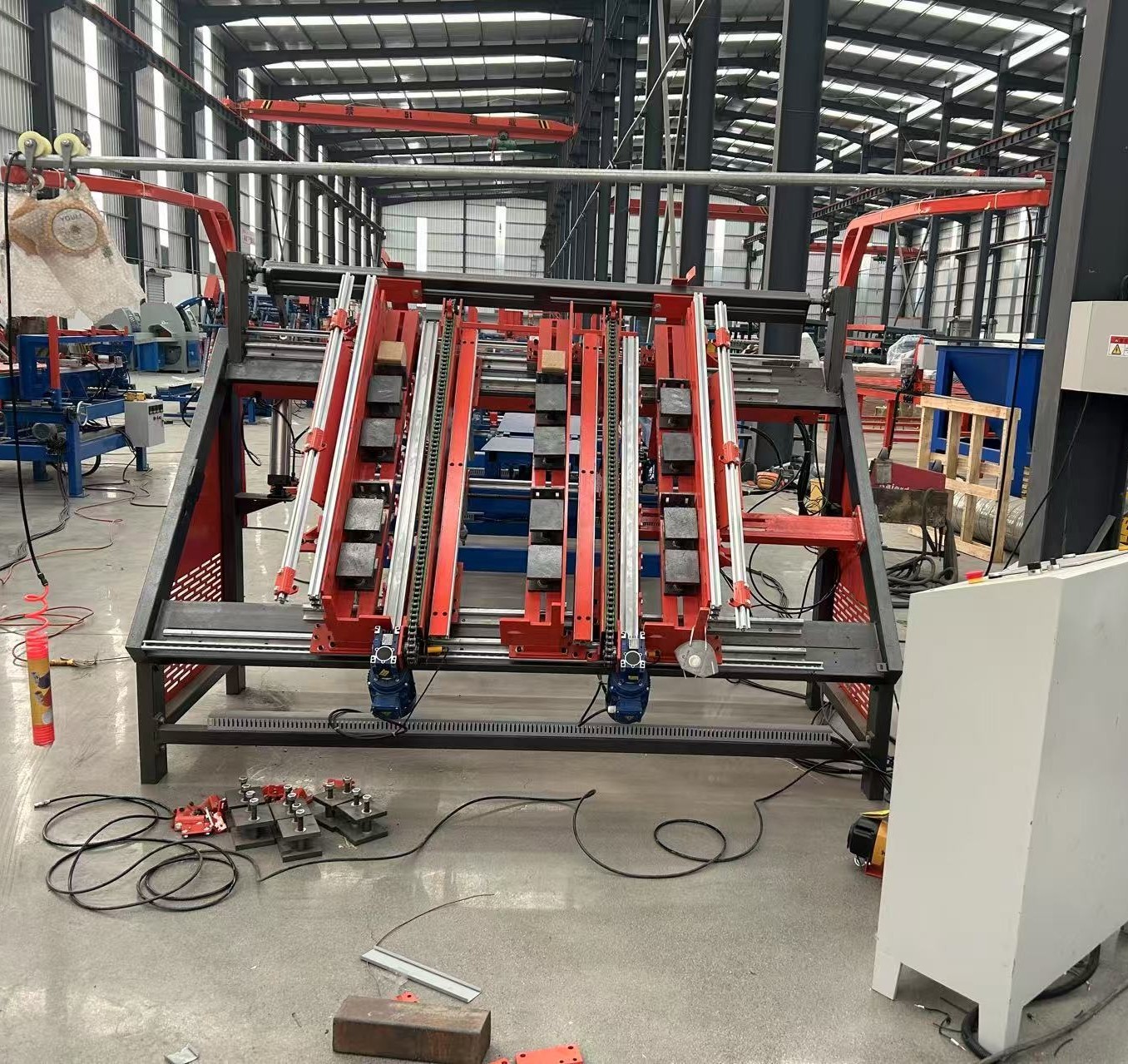

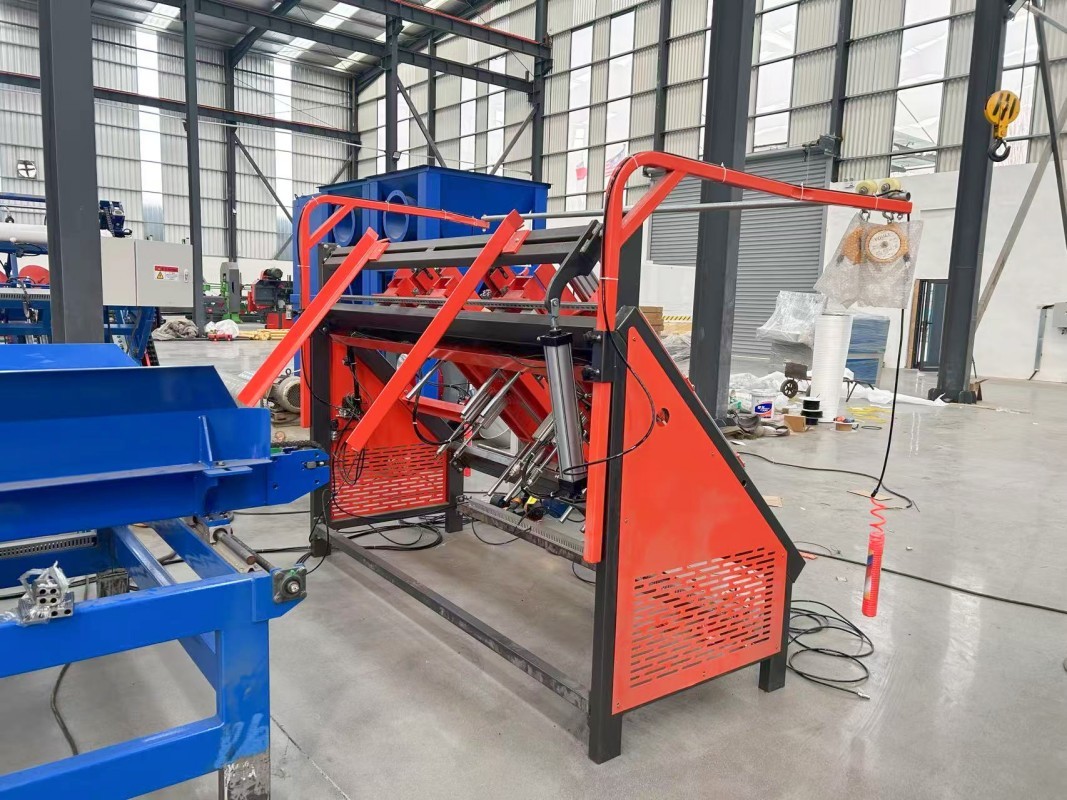

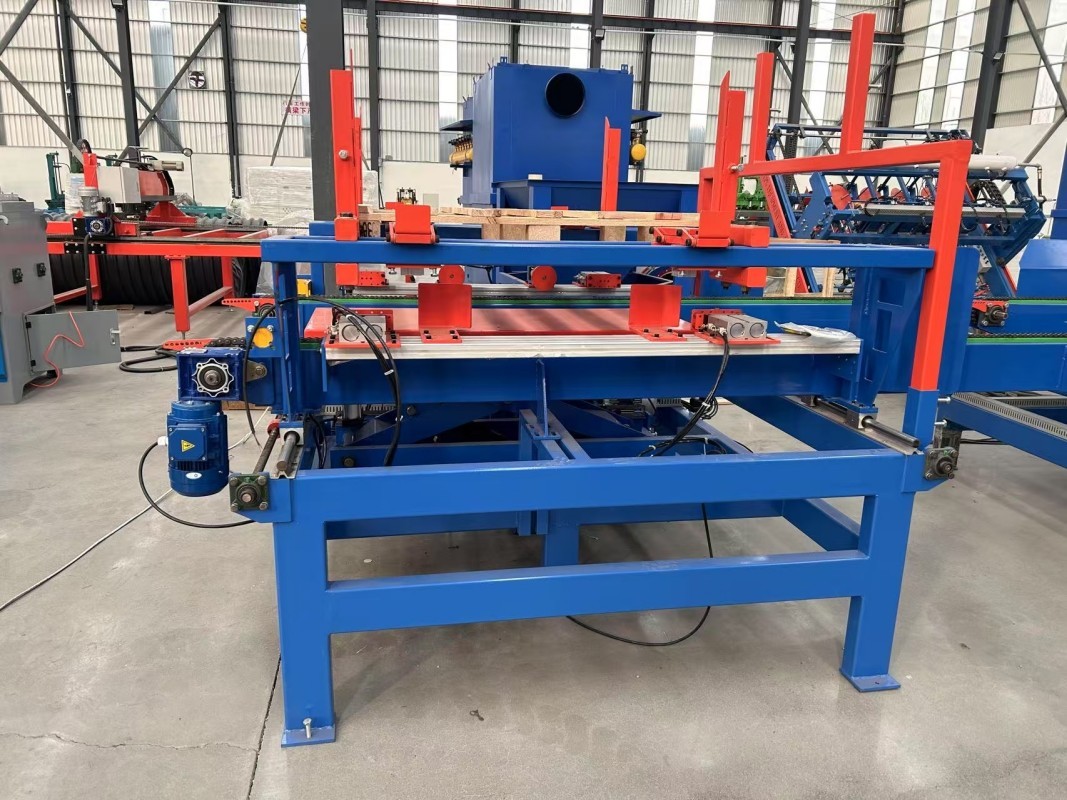

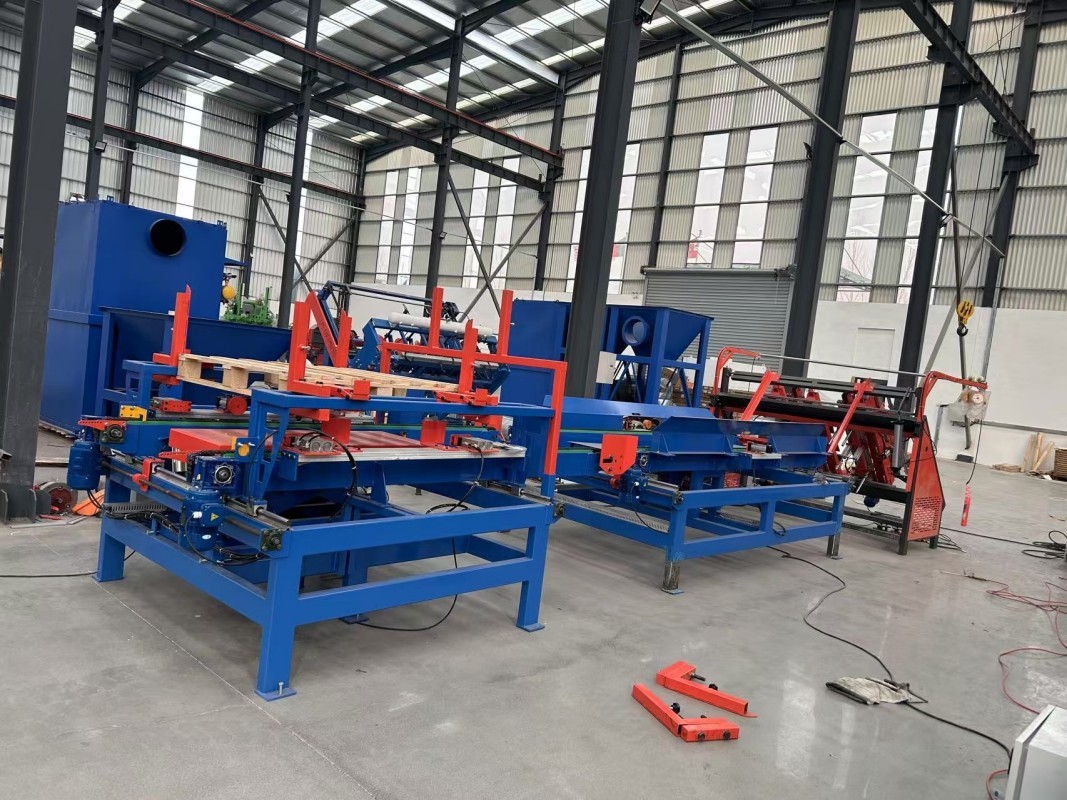

Detailed Images
Related Products
European Automatic Pallet Production Line
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| wood pallet width | 800-1300mm |
| Production efficiency | 50-80 pallets/hour |
Device list :
