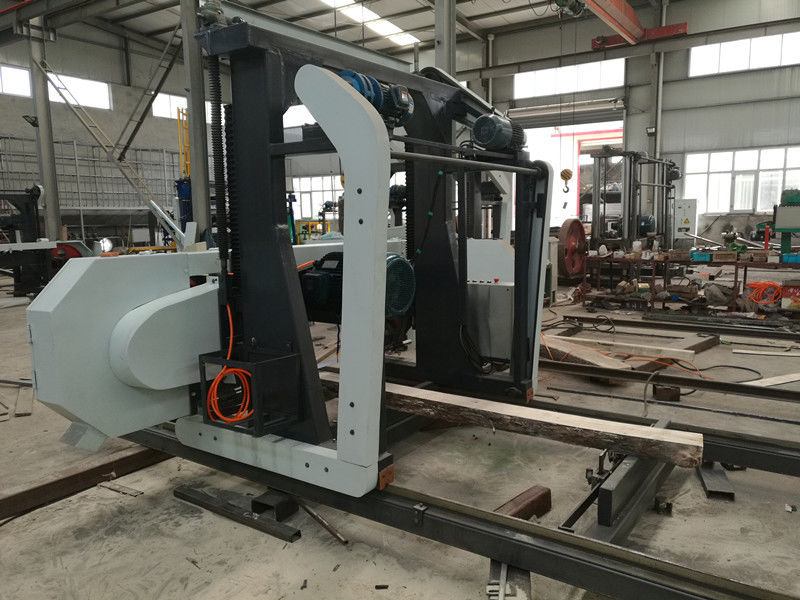

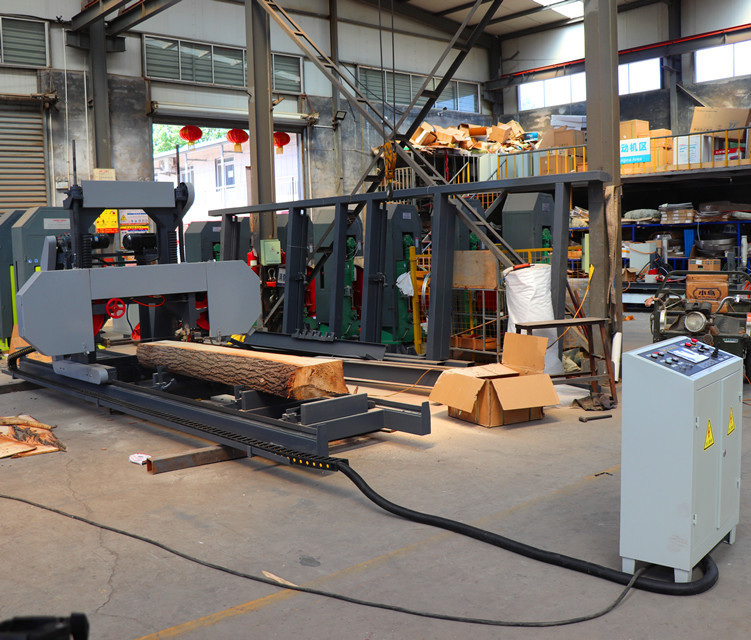

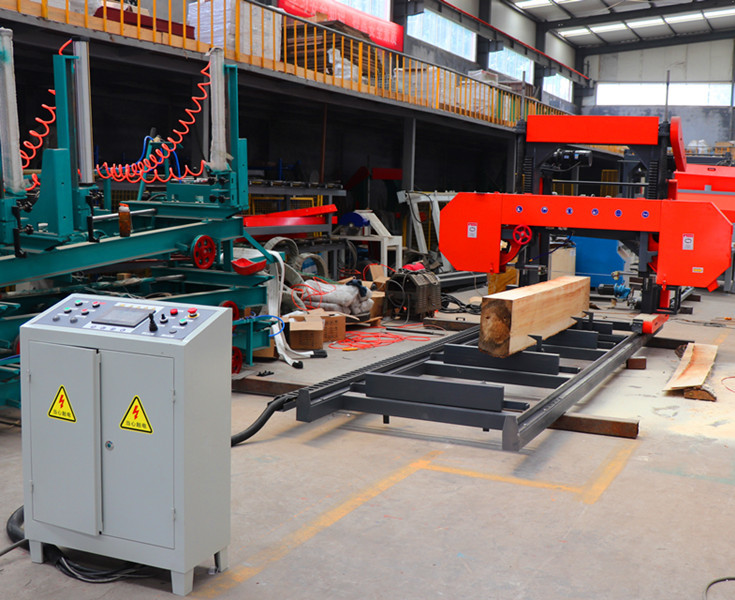

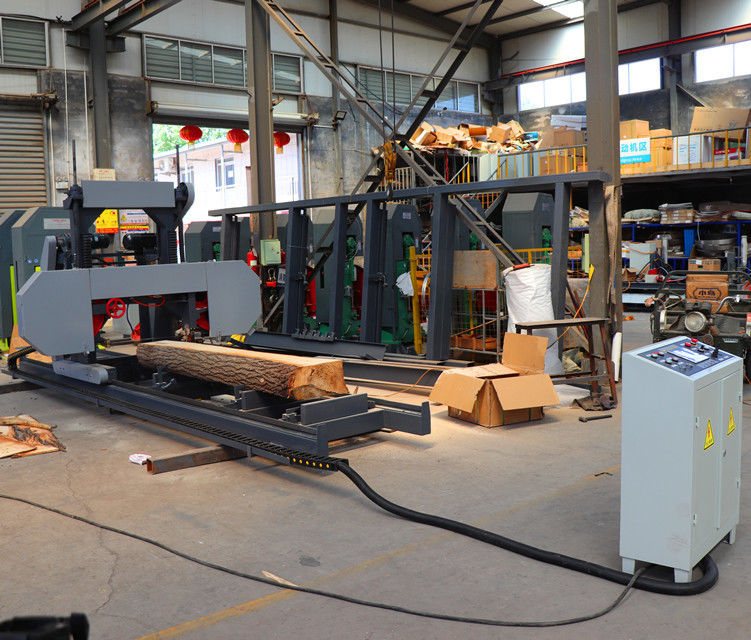

CNC Woodworking band saw mills, Horizontal cutting Log band saw sawmill Machine
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
| Technical specifications | MJ1000AE | MJ1300AE | MJ1600AE |
| Cutting wood max. Diameter: | 1000mm | 1300mm | 1600mm |
| Cutting max. length, : | 4500mm | 4500mm | 4500mm |
| Sawn thickness range: | 2mm ~300mm | 2mm ~300mm | 2mm ~300mm |
| Band wheel diameter & width: | 700mm & 75mm | 700mm & 75mm | 700mm & 75mm |
| Main motor power,3phase | 18.5kw | 22KW | 30KW |
| Saw head lift up/down motor | 1.5kw | 1.5kw | 1.5kw |
| Saw walking forward/back | Frequency variable auto feeding | ||

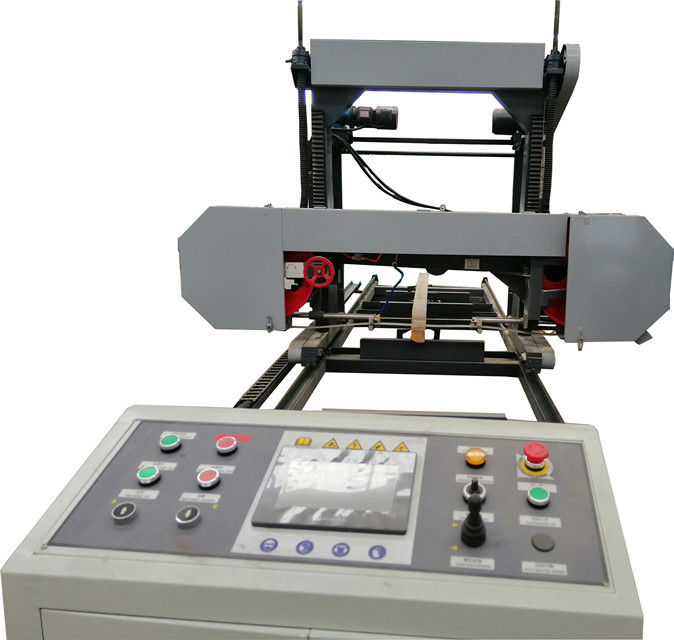

| Operation of sawn sizes | Touching screen precision setting sizes | ||
| Sawmill track length: | 5.8meters | 5.8meters | 5.8meters |
| Band saw blade width | 40mm to 80mm | 40mm to 80mm | 40mm to 80mm |
| Band saw blade length | 6100 | 6600mm | 7100mm |
| Machine weight: | 1800kgs | 2000kgs | 2200kgs |
Auxiliary Parts for Bandsaw blade Sharpening Machine :
| Item | Auxiliary Equipment | ||||
| 1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
| 2 | Sand Wheel For MR1111 | ||||
| 3 | UN65 Flash Seal Welding Machine | ||||
| 4 | MR417 Roll Machine | ||||
| 5 | Dual Tooth Setter | ||||
| 6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
| USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
| 7 | Wood Cant Hook 48” Handle | ||||
