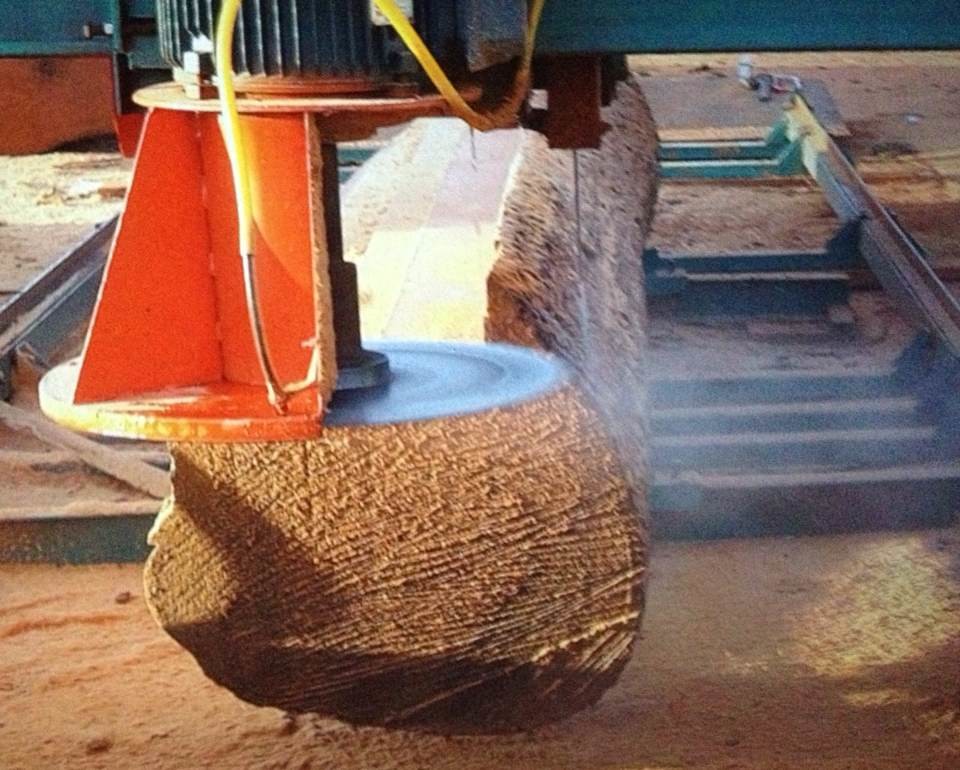

DS1300 double swing blade sawmill with tungsten carbide tipped circular saw blade
Double Saw blade Angle Circular SawMill
Specification:
| Technical Parameter | DS700 | DS1300 | DS2000 |
| Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM |
1*760mm 1*546mm |
| Motors Power(KW) |
11KW*2, 1.1KW*3 |
15KW*2, 1.5KW*3 |
22KW*1, 15KW*1 2.2KW*3 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 3000KG |

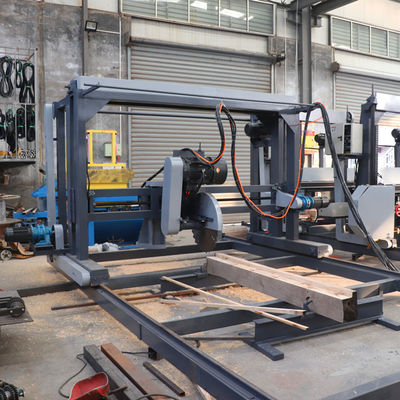

Photos:
Container Loading in whole set
