Home /Products/Circular Sawmill/1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage

1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage

1 SET
MOQ
US $3,000-9,800 / Sets
Price
1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Circular Sawmill
Use: Woodworking
Style: Vertical
Voltage: 380V/3PH/50HZ
Power(W): 22kw
Warranty: 1 Year
Engine: Electric Motor Or Diesel Engine
Saw Blade Diameter: 1200mm
Operation: Manual Or Automatic
Highlight:

1200mm Round Blade Saw Mill

,

1200mm Saw Mill Wood Cutting

,

Log Carriage Round Blade Saw Mill
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: PCY3000-3, PCY4000-4, PCY5000-5
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

1200mm Wood Cutting Circular Blade Sawmill Machine with Log Carriage

Circular Sawmill With Carriage

  • Designed to saw mahogany sanders,teak, rosewood in African and South American.
  • The blade is 1.2 meters diameter,made of Japanese hard alloy,easy to polish.
  • The power can be generated from electricity or electric start diesel engine.
  • The machine is easy to operate and high efficiency.

Technical specifications:

Model
PCY3000-3
PCY4000-4
PCY5000-5
Max. Sawing Log Diameter
500mm
500mm
500mm
Motor Power
22kw
22kw
22kw
Carriage Walking(forward, back)
manual
manual
manual
Carriage Stake Quantity
3sets
4sets
4sets
Carriage Length
3meters
4meters
5meters
Max Sawing Wood Length
4meters
5meters
6meters
Rail Length
9meters
11meters
11meters
Machine Weight
1500kg
1800kgs
2000kgs
Note: Circular Saw Blade : 1.2 Meters Diameter 36 Teeth Hard Alloy Circular Saw Blade
Option 1:Change to Electric forward and backward.
Option 2:Change Electric start diesel engine.
Option 3:Add Conveyor

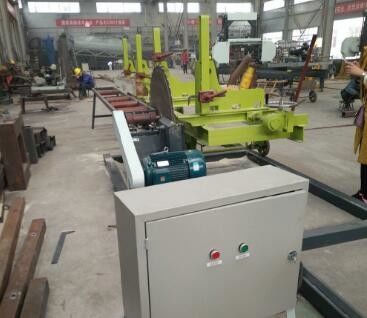

1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage 0

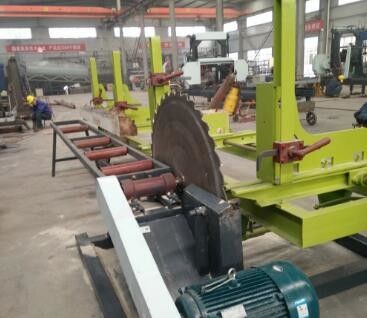

1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage 1

Related Saw Machine

Twin Blades Circular Sliding Table Sawmill

  • The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
  • The circular saw blade can avoid band saw blade bending,or dig hole on wood.
  • The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
  • The production capacity is more than 4 timers than band sawmill.
  • The specification is adjustable,Convenient to move the running rule,accuracy.
  • The track use linear guideway,accuracy,no error,wear resistent.
  • The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.

Technical Data of Manual type

Model TT1500 TT2500 TT3000

Max Sawing Wood Diameter
 400mm 400mm 400mm

Max Sawing Wood Length
 1500mm 2500mm 3000mm

Saw Blade Diameter
 500mm 500mm 500mm

Motor Power
 7.5KW*2 7.5KW*2 7.5KW*2

Rail Length
 3000mm 5000mm 5800mm

Wood Fasten Model
 Pneumatic Pneumatic Pneumatic

Carriage Rail Model
 Linear Axis Linear Axis Linear Axis

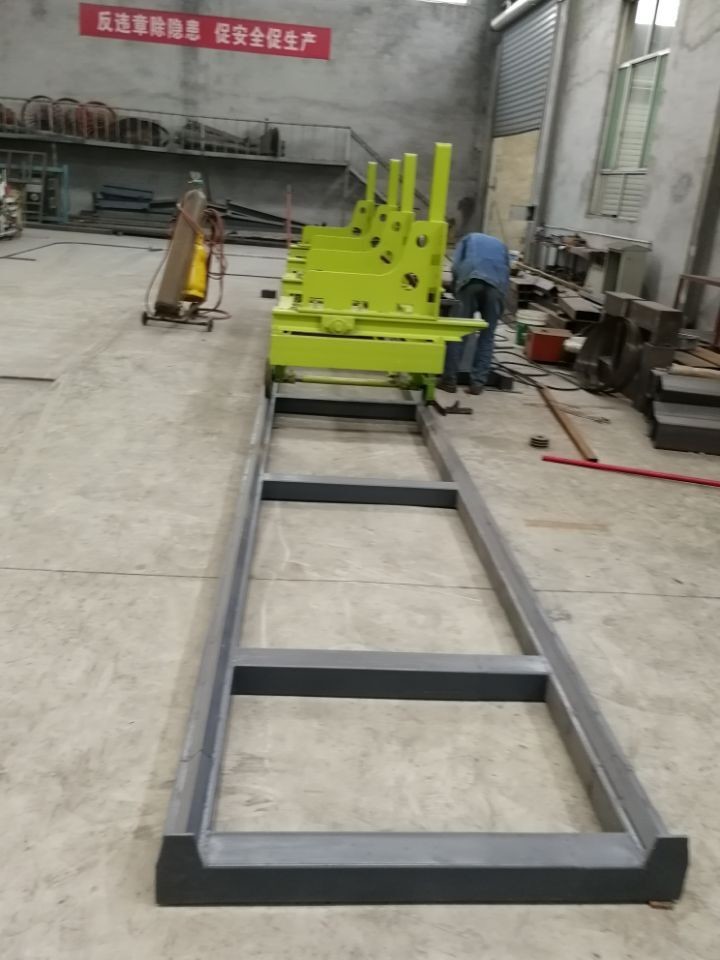

1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage 2

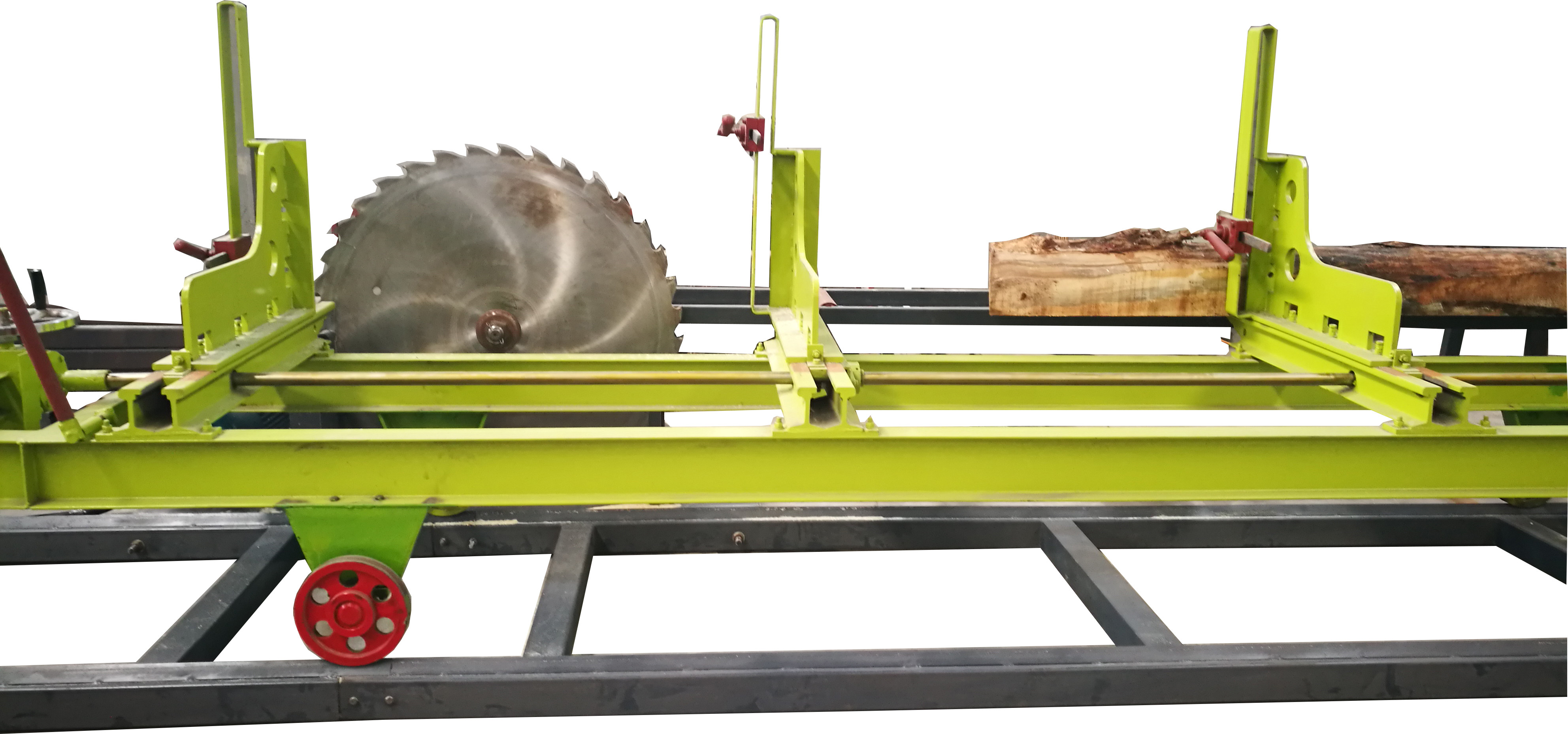

1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage 3

Wood Sliding Table Sawmill (Computer Type)



Model CT1500 CT2000 CT3000
Max Sawing Wood Diameter 400mm 400mm 400mm
Max Sawing Wood Length 1500mm 2000mm 3000mm
Saw Blade Diameter 500mm 500mm 500mm
Motor Power 7.5KW*2 7.5KW*2 7.5KW*2
Rail Length 3500mm 5000mm 6500mm
Wood Fasten Model Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Model Linear Axis Linear Axis Linear Axis
Feeding mode Electric frequency variable speed adjustable
Operation PLC touching screen automatic operation

Optional part:

1.Maximum sawing log diameter is upto 48cm .

2.When cutting very hardwood we can increase motor power as customer needs .

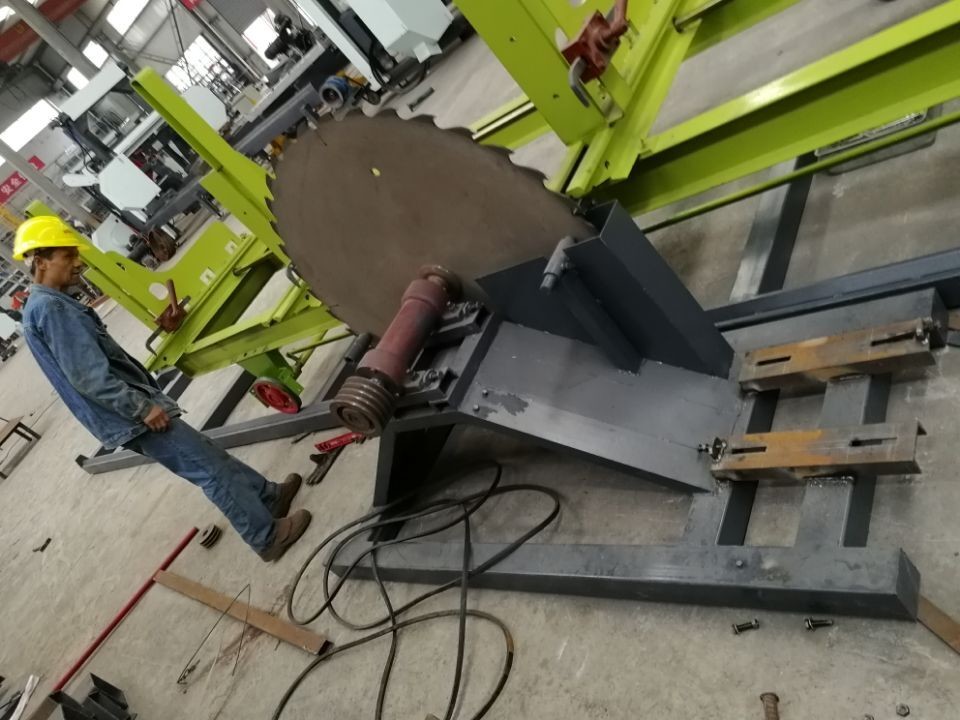

1200mm Round Blade Saw Mill Wood Cutting Equipment With Log Carriage 4
