Circular sawmill machine, Diesel portable sawmill, Circular blade saw mill for sale
Circular Blade Wood Cutting Table Saw
Introduction:
1.Easy operation, cheap price
2.Big electric motor power, carbide circular blade for hardwood cutting
3.Diesel engine powered saw is workable. Fit for forest working . Motor is electric start
Specifications: electric type
| Heavy Duty Circular Sawmill With Table | ||
| Specification | MJ105 | MJ109 |
| TCT Circular Saw Blade Diameter | Φ500mm | Φ900mm |
| Max Sawing Wood Thickness | 150MM | 360MM |
| Working table size | 900×750mm | 1500×800mm |
| Spindle power | 2340r/min | 1500r/min |
| Motor power | 7.5KW/380V | 15KW/380V |
| Weight | 480KG | 550KG |

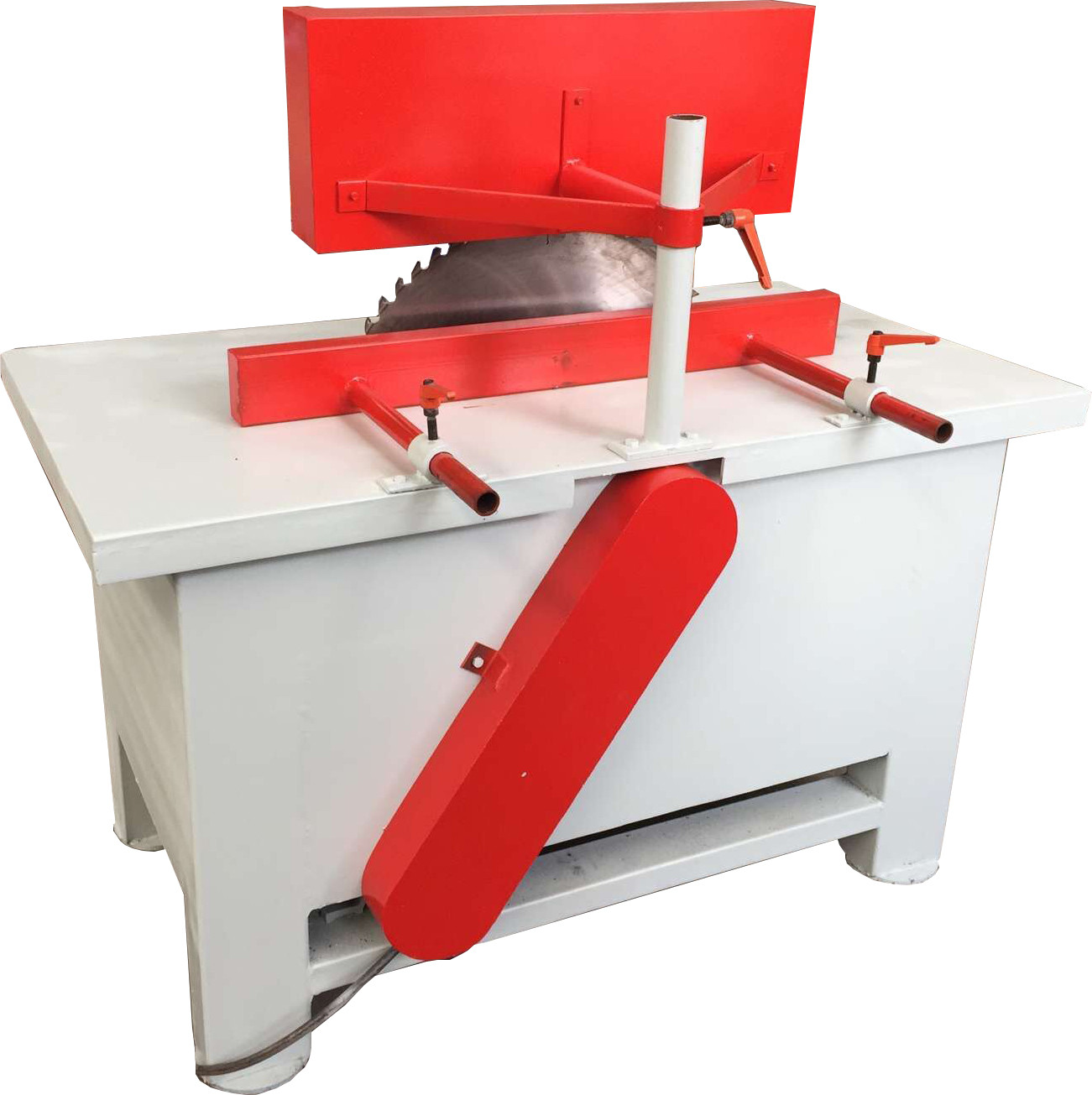

Image - electrical type

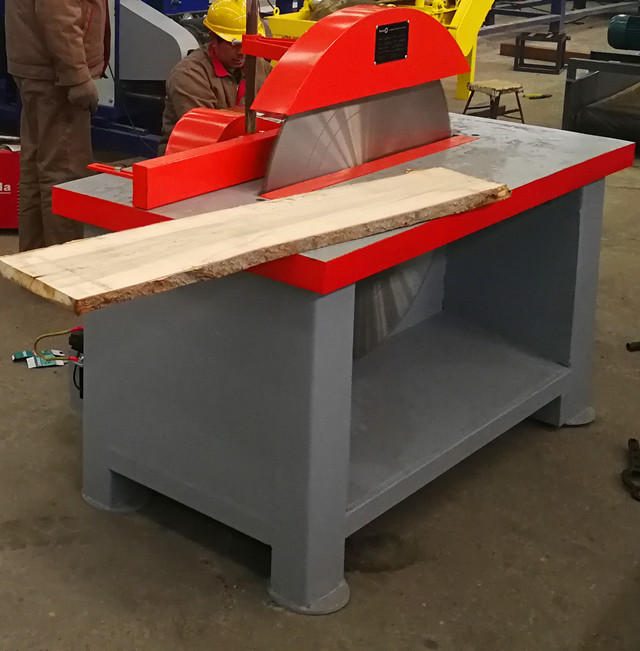

Image - electrical type
Twin blades sliding table sawmill -manual type
| model | TT1500 | TT2000 | TT3000 |
| Cut log max. diameter | 400mm | 400mm | 400mm |
| Cut length | 1.5m | 2m | 3m |
| Blade diameter | 500mm | 500mm | 500mm |
| Main Motor power | 7.5KW*2 | 7.5KW X 2 sets | 7.5KW X 2 sets |
| Track length | 3000mm | 5000mm | 6000mm |
| Log clamping | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
| Feeding mode | Manual | Manual | Manual |
| Setting size mode | Manual | Manual | Manual |
Image of electrical type

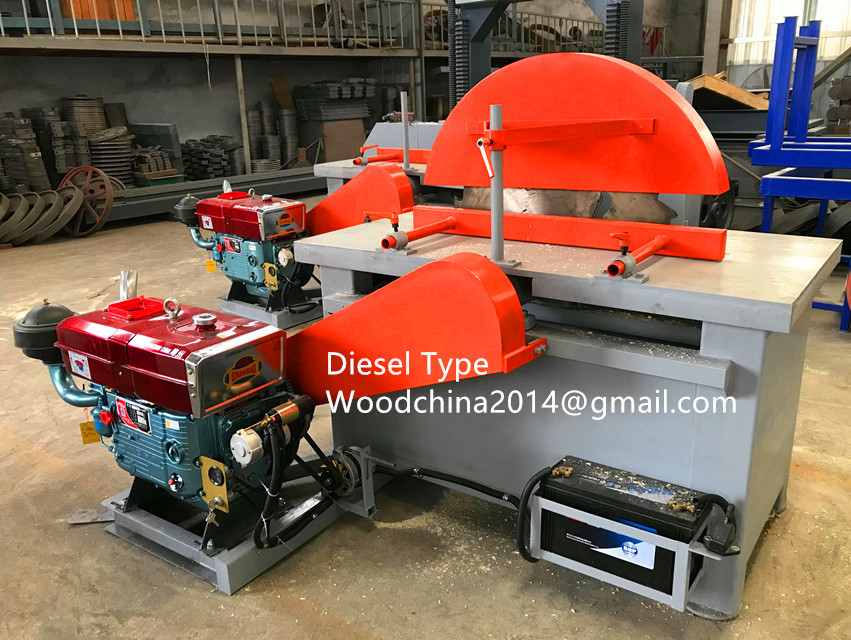

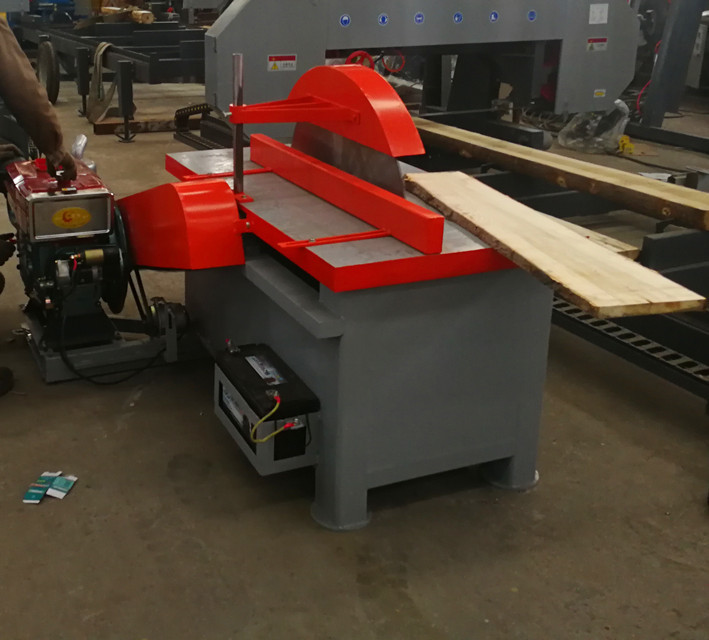

Image of diesel engine type
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |

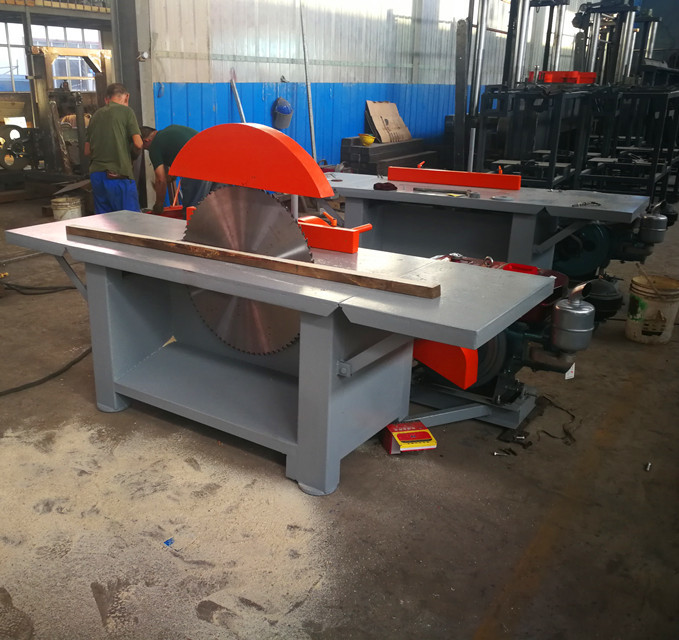

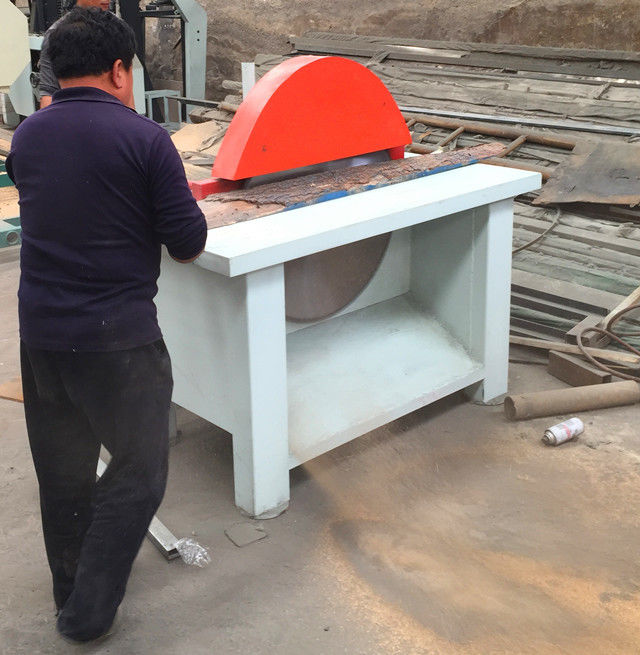

Photos:
