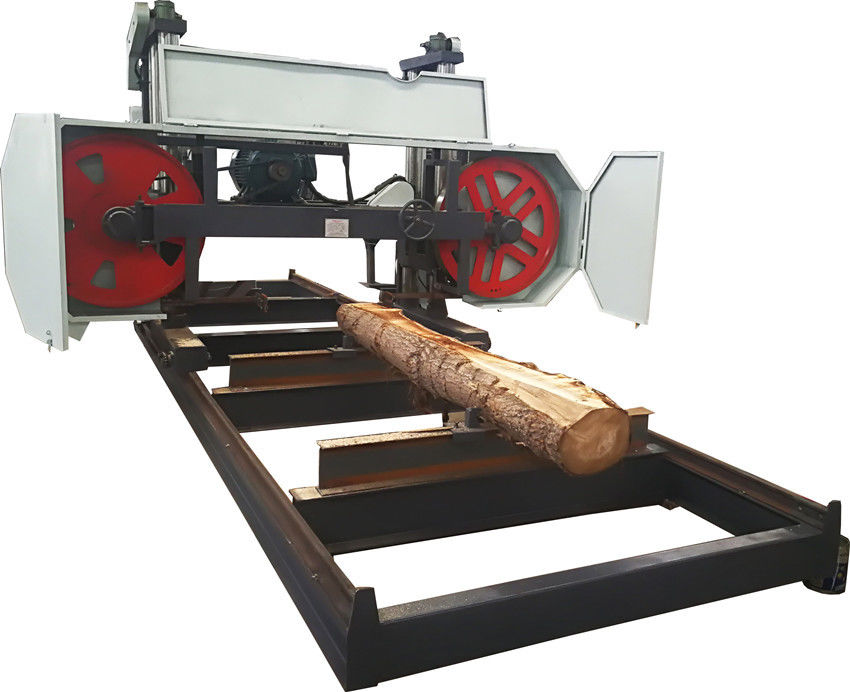

Heavy Duty Large Size Horizontal Band Sawmill
1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.

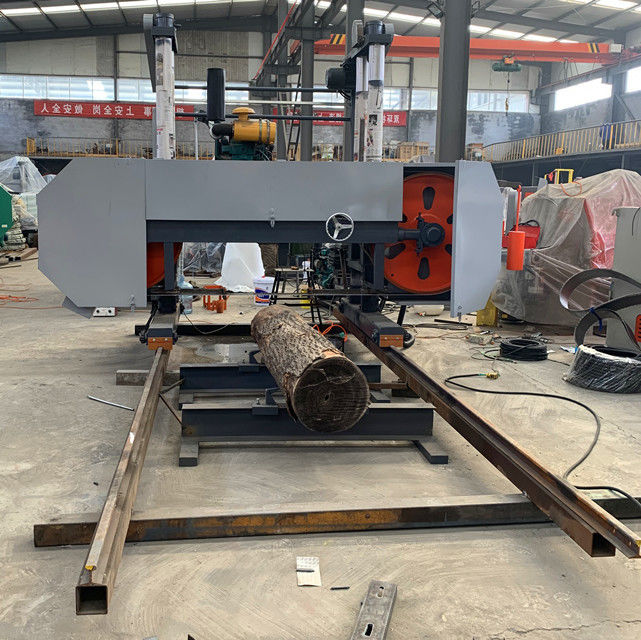

3. Diesel engine powered big sawmill is workable
Structure Features:
1.High quality parts, SKF bearings from Sweden
2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
| Sawing thickness (MM) | 400 | 450 | 480 | 480 |
| Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
| Main Motor Power (KW) | 30 | 37 | 45 | 55 |
| Walking motor (kw) | 3kw | 3kw | 3kw | 3kw |
| Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
|
Electric & Screw Band Saw Blade Tension
|
||||
