Large Horizontal Wood Cutting Band Sawmill For Sale /diesel engine horizontal band sawmill

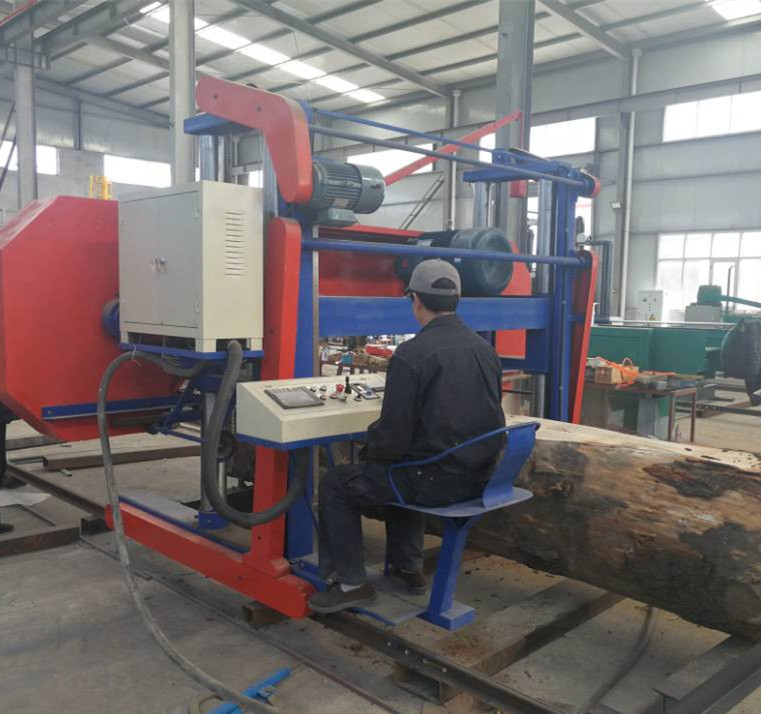

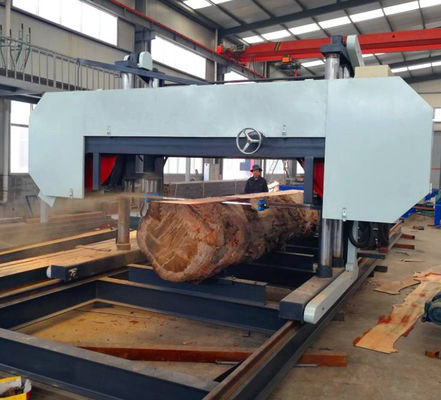

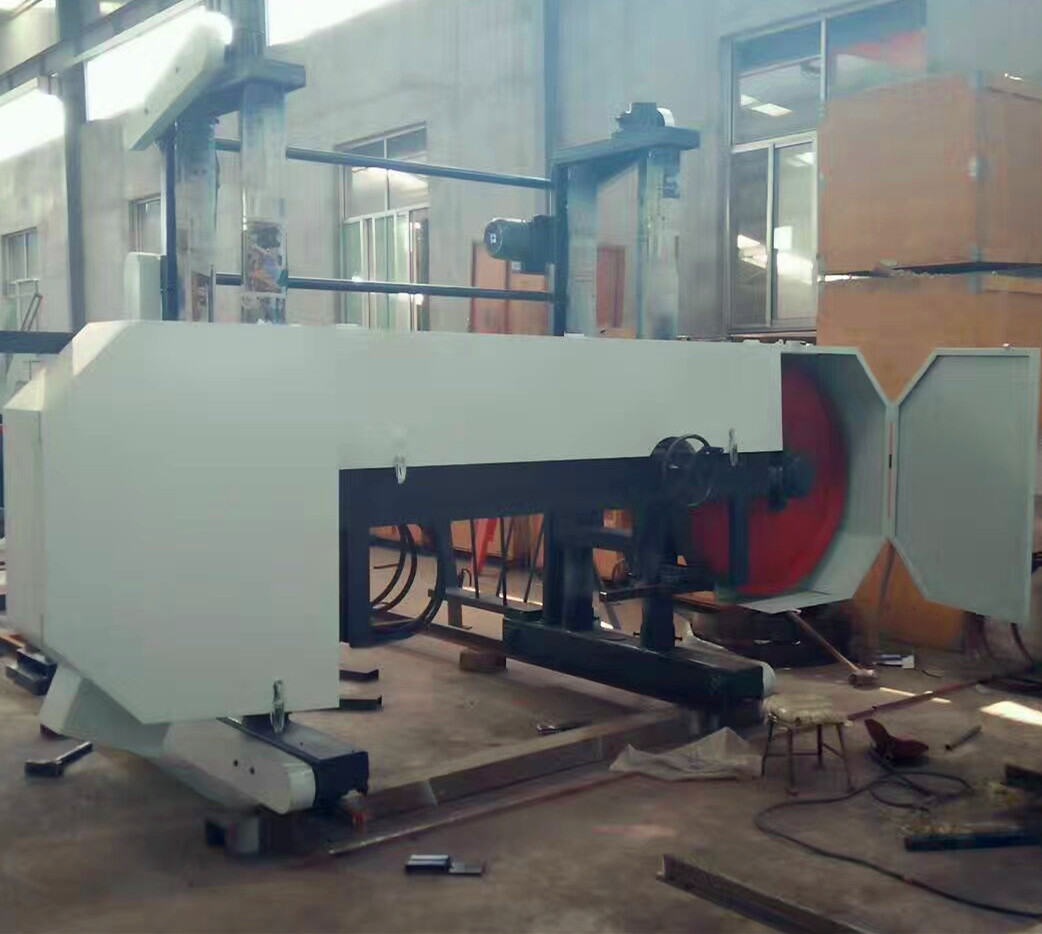

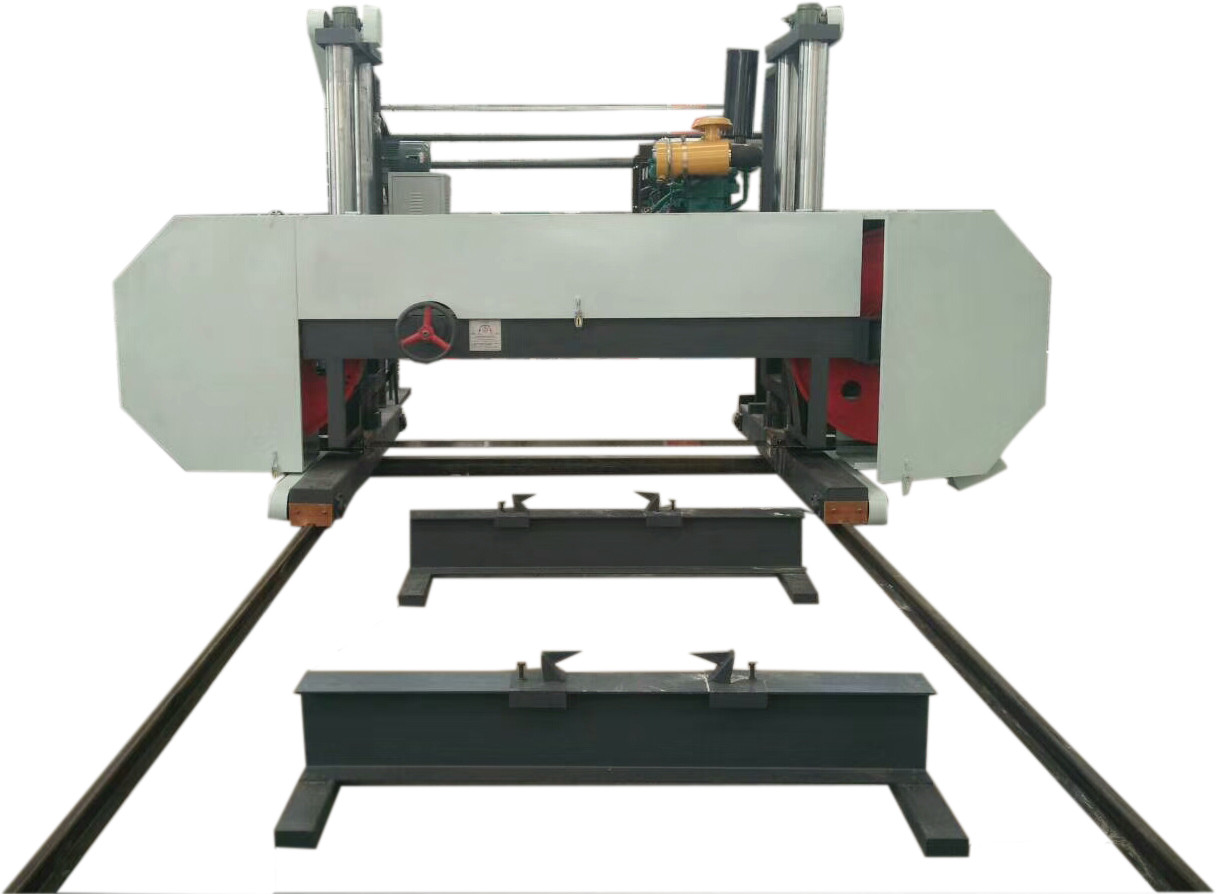

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .
Technical specifications:

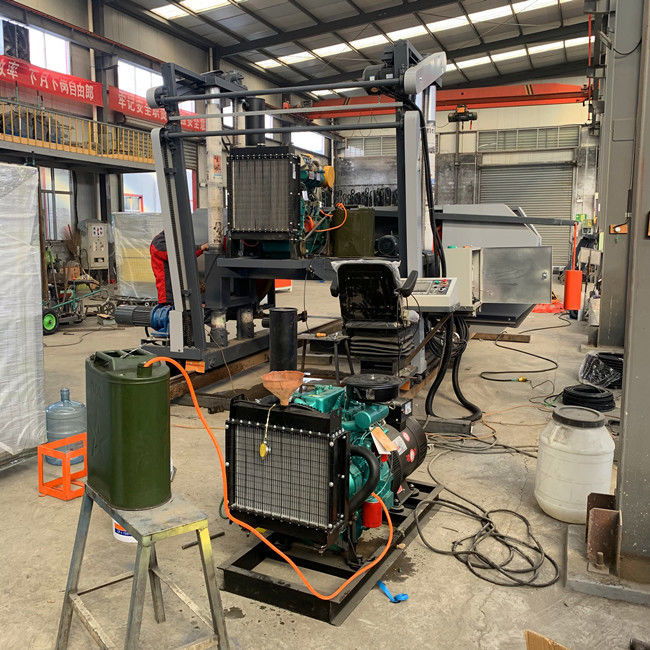

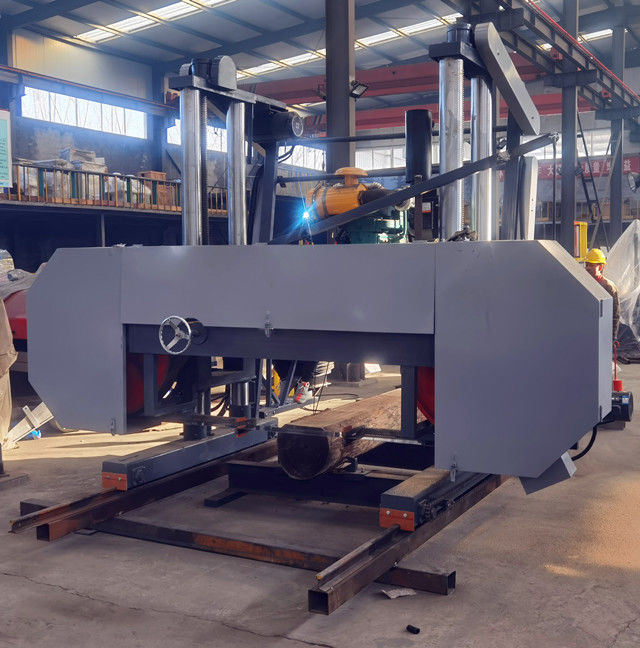

Diesel Engine Powered Large Size Horizontal Band Sawmill
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Diesel engine +20kw generator | 80HP | 80HP | 80HP | 80HP |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Main motor power | 30kw | 37kw | 45kw | 55kw |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
Accessories for blades maintaining (optional)
| Product Name | Main technical data |
| MR150 Hard alloy band saw blade sharpener |
Grinding teeth pitch range: 6-40mm Feeding speed: 0-120 teeth/min (adjustable) Width of blade: 30-150mm Length of blade: 2.8m-11meters Power: 0.55kw |
| Alloy grinding wheel | |
| UN150 Blade Welding Machine |
Welding saw blade width: 30mm-150mm Voltage 380v/50hz Welding blade thickness:0.7-1.25mm Weight(kg) 250 |
| MR417 Blade Roll-machinery |
Roll diameter(mm) 70 Processing Speed(r/min) 52 Equipped with power(kw) 0.75 Width of the max processing(mm) 150 |
| Blade recondition frame with back rule, roll platform, tooth shaper and cross hammer | Trim saw blade work platforms |
