Home /Products/Large Bandsaw Mill/55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine

1 SET
MOQ
US $12,000 - 31,000 / Set
Price
55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Large Size Wood Cutting Horizontal Band Sawmill
Condition: New
Type: Horizontal Band Saw
Max. Sawing Log Diameter: 2000mm
From Rail To Blade Height: 1700mm
Sawing Wood Max. Length: 6meters Or As Customer Needs
Band Wheel Diameter: 1070mm
Bandsaw Blade Width: 125mm , 150mm
Main Motor Power: 45kw
Saw Head Walking: Inverter
Blade Tensioning: Electrical
After-sales Service Provided: Engineers Available To Service Machine Overseas
Highlight:

55KW Electric Bandsaw Sawmill

,

55KW horizontal band saw mill

,

2000mm Electric Bandsaw Sawmill
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

Large Trees Saw Horizontal Bandsaw Sawmill Machine Made in China

Heavy Duty Large Size Horizontal Band Sawmill

  1. Configuration:
  • cutting wood max. width: 2500mm
  • cutting length: 6meters or extending track
  • main motor power :55kw
  • weight: 5500kgs

2. Technical specifications:



Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Height from blade to track(mm) 1100 1200 1700 2200
Saw wheel diameter & width (MM) 1070&125 1070&125 1070&125 1070&125
Max. Sawing thickness (MM) 400 400 400 400
Sawing wood Length (M) 6 6 6 6
Motor Power 30KW 37KW 45KW 55KW
Bandsaw blade length (M) 8 8.6 9.7 10.5
Total Weight (KG) 3800 4500 5000 5500

Instructure features:

  • Electric Band Saw Blade Tension
  • Infinitely variable speeds forward and backward
  • Touch Screen sawing thickness setting
  • Control Cabinet and Seats built on the sawmill
  • 4 group Mobile card wood file .



Detailed Image

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 055KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 155KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 2

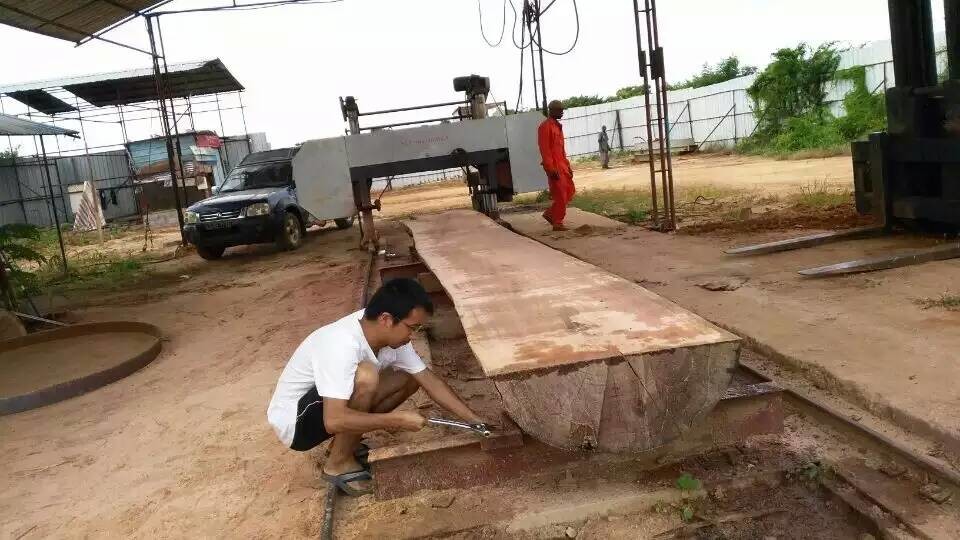

Optional parts --free base ground  sawmill rail

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 3

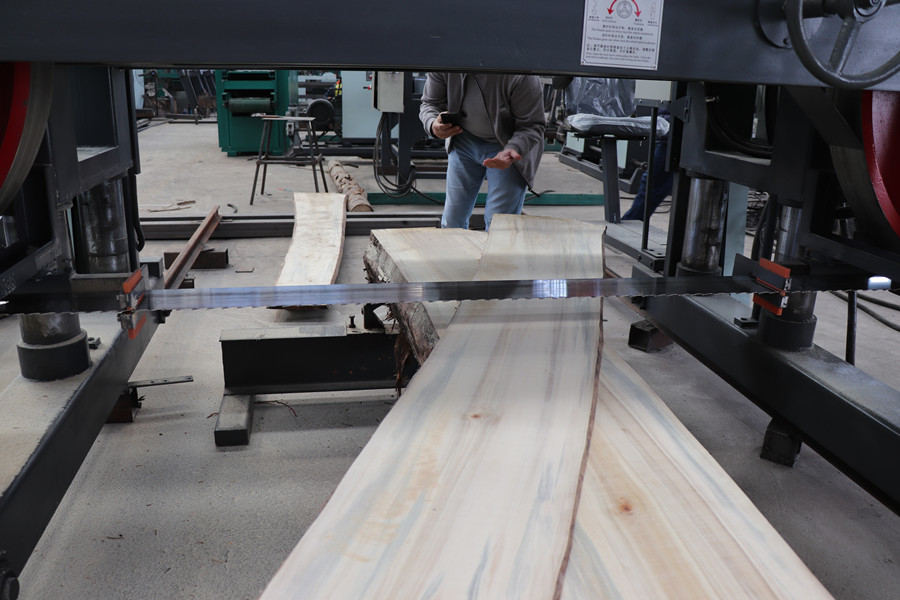

Optional parts --blades

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 4

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 5

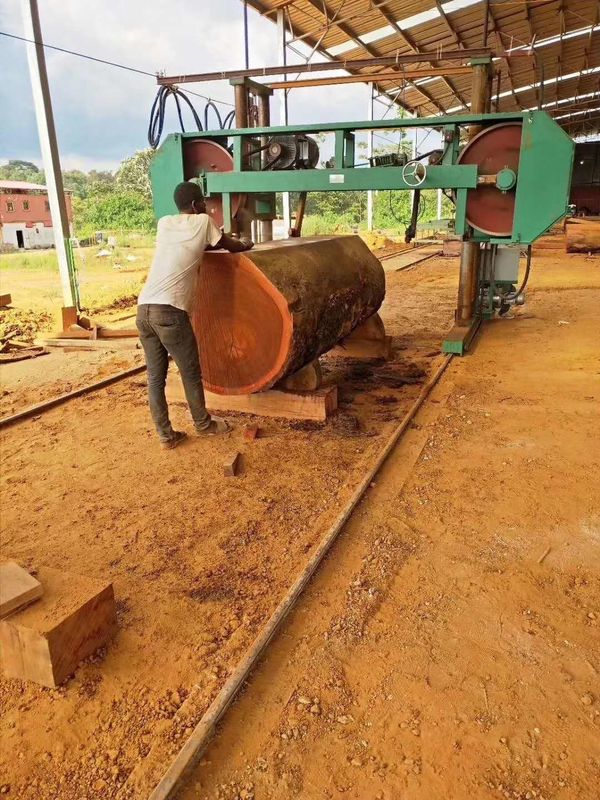

Optional parts --pneumatic log clamp

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 6

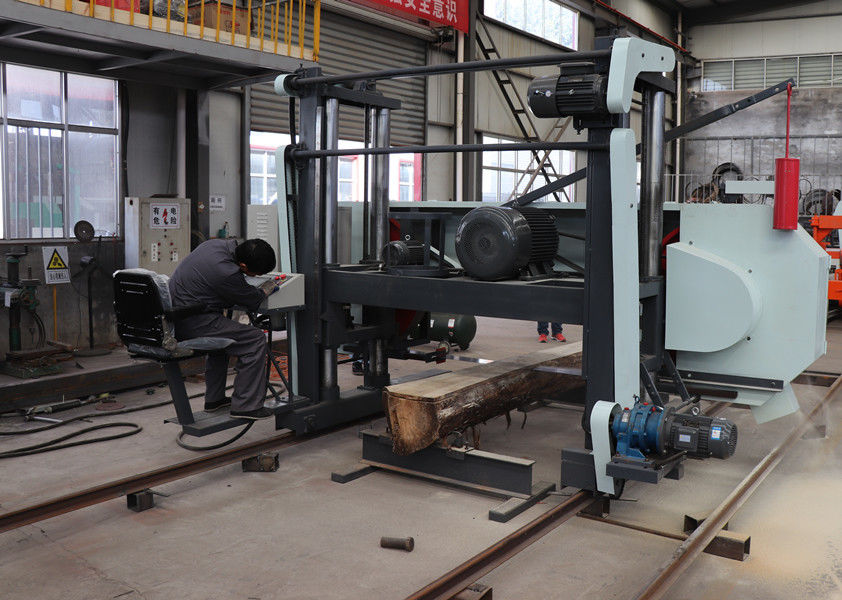

Optional parts --automatic sharpener

55KW Electric Bandsaw Sawmill 2000mm Heavy Duty 4 stand columns Large Horizontal Log Cutting Saw Mill Machine 7
