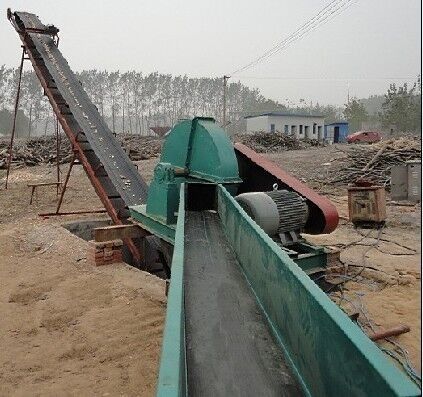

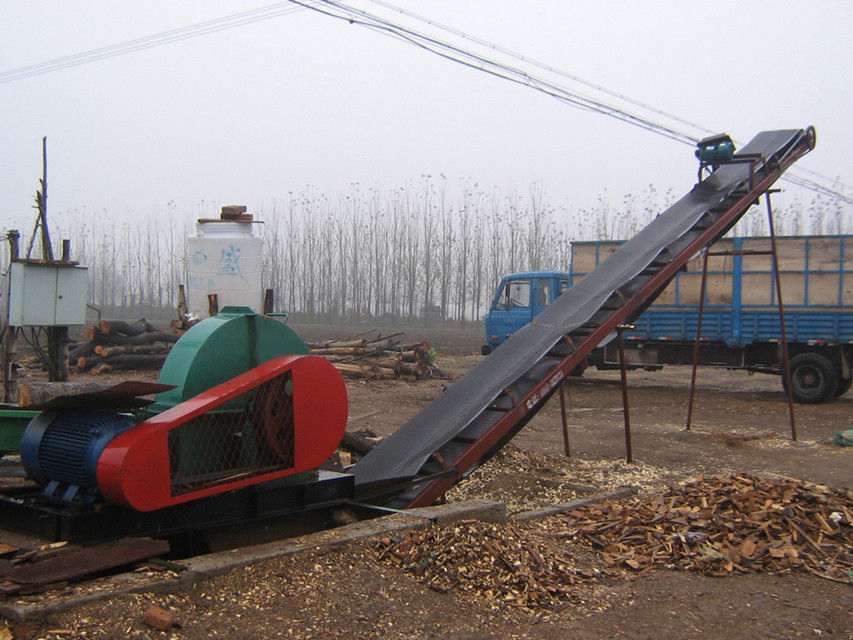

Wood Chipper Production Line with production capacity 20ton to 25 tons per hour
| Double Roll Log Debarking Machine | |
| Specification | SHBP12000 |
| Production capacity | 15-25t/h |
| Main motor power | 11KW*4 |
| Processing log diameter | 50mm-300mmm |
| Processing log length | 1000mm-6000mm |
| Roll shaft length | 6000mm*2 |
| Bark slope conveyor | 6000mm |

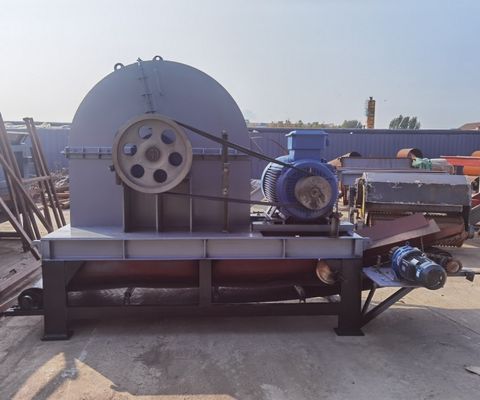

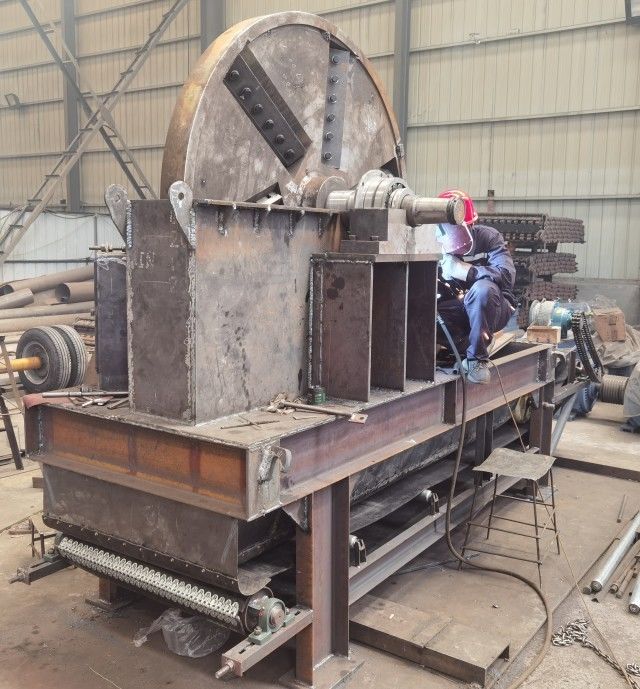

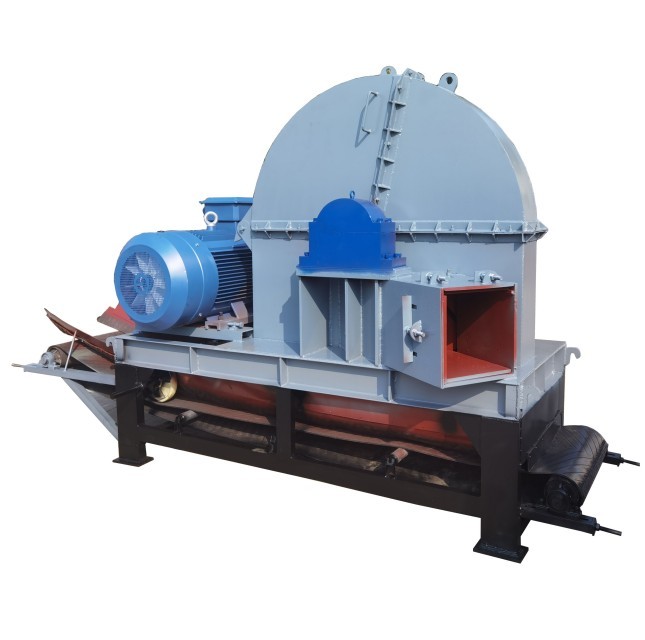

| Wood Chipper Machine | |
| Specification | SHJP1600 |
| Feeding inlet size | 450*450mm |
| Knife No. | 6片 |
| Main motor power | 185kw |
| Horizontal feed conveyor | 8000mm |
| Slope outfeed conveyor | 10000mm |
| Wood chipper size | 20-35mm |
| Discharging type | down |
| Production capacity | 25-30t/h |
| Wood Chipper Screen | |
| Specification | SH3800 |
Length of wood chipper screen |
3800mm |
Width of wood chipper screen |
1900mm |
| Shaking screen rotation speed | 180r/min |
| Motor power | 5.5kw |
| Discharging slope conveyor | 10000mm |
| Production capacity | 15-20t/h |
Related Wood Chipper Machine
Wood Logs Drum Chipper
Introduction:
1. Processing log diameter : 50-300mm
2. End chips size :20-40mm
3. Production capacity : 7-15tons/hour
4. We can also do production line design as customer needs
Technical Data
| Model | SH216 | SH218 |
| Feeding Inlet | 240*540mm | 310*680mm |
| Rotor Diameter | 650mm | 800mm |
| Blade Quantity | 2 or 3 | 2 or 3 |
| Motor Power | 55KW | 110KW |
| In Feed Conveyor | 6000mm | 6000mm |
| Out Feed Conveyor | 10000mm | 10000mm |
| Capacity | 7-10T/H | 9-13T/H |
| Weight | 4070KG | 7500KG |
Wood Composite Crusher
| Model | SH2000-1000 | SH1300-600 | SH1400-600 | SH1600-600 | |
| Feeding inlet size | 2000x1000mm | 1250x600mm | 1400x600mm | 1600x600mm | |
| Blade roller diameter | 1400mm | 850mm | 850mm | 850mm | |
| Blade roller speed | 750RPM | 850RPM | 850RPM | 850RPM | |
| Production capacity | 70-100ton/H | 12-15ton/H | 18-20ton/H | 25-30ton/H | |
| 1 | YG8 hammer blade qty | 86pcs | 20pcs | 24pcs | 28pcs |
| 2 | Blade qty | 3groups/9tablets | 2groups/4tablets | 2groups/4tablets | 2groups/4tablets |
| Max. Processing log diameter | <800mm | 450mm | 450mm | 450mm | |
| Main motor power | 450kw | 160kw | 200kw | 250kw | |
| Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | |
| Working life of blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | |
|
Optional :
|
|||||
Image of Electrical type
