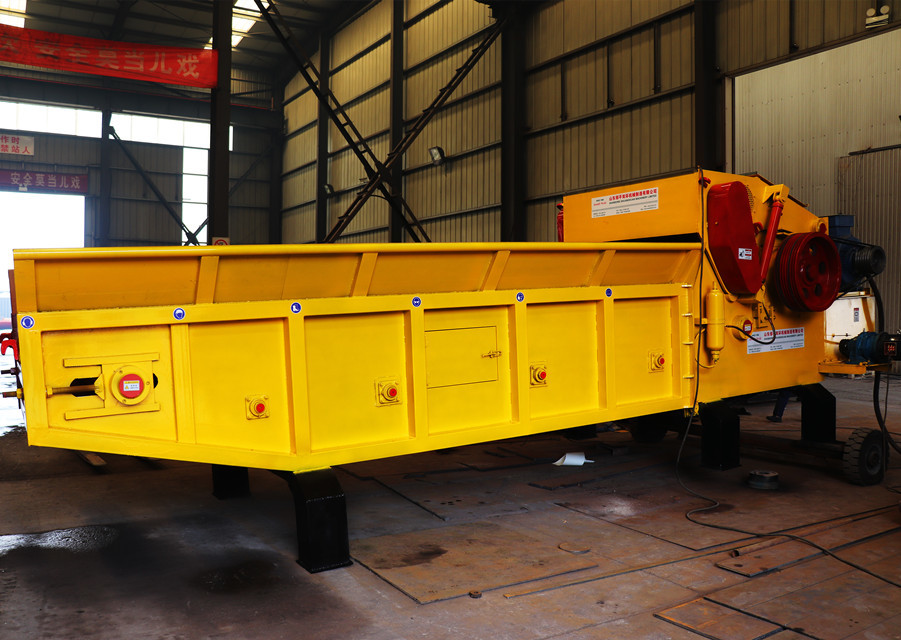

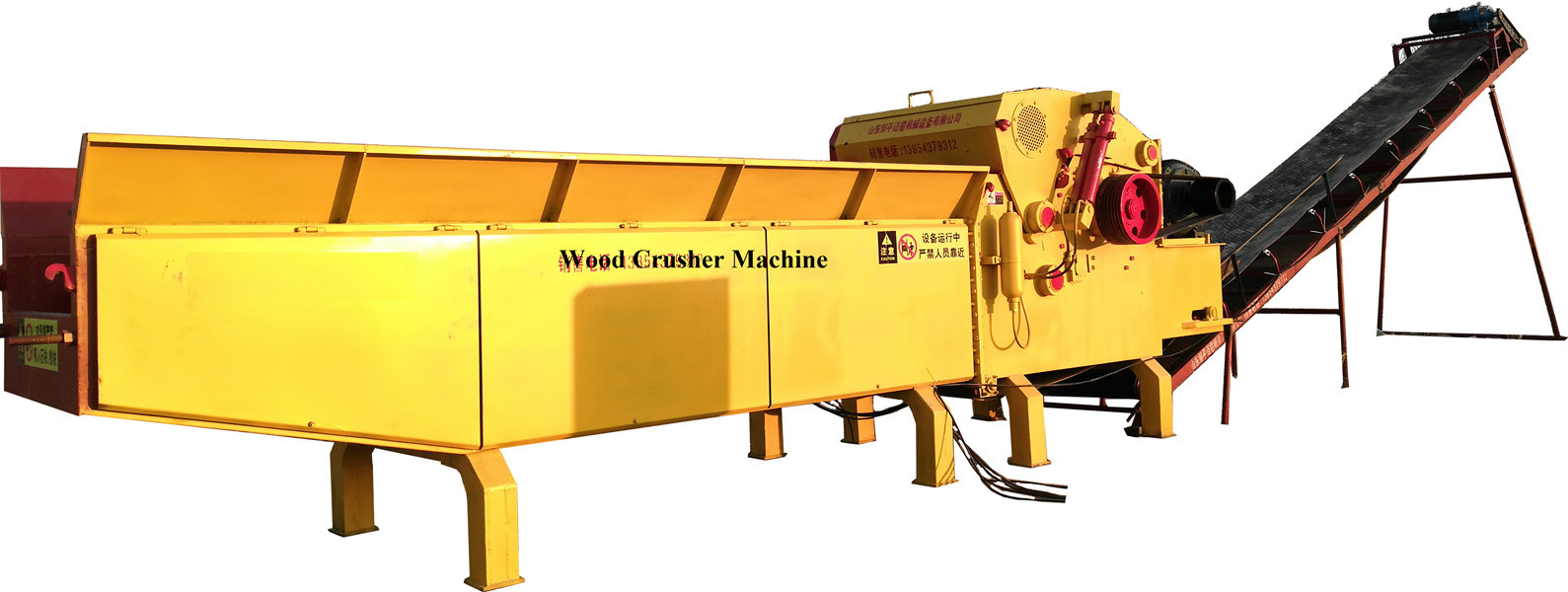

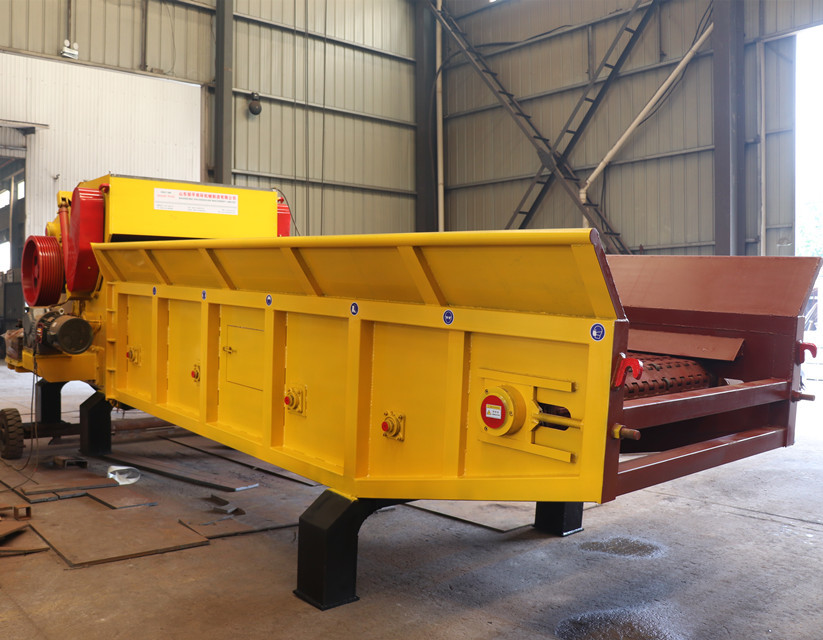

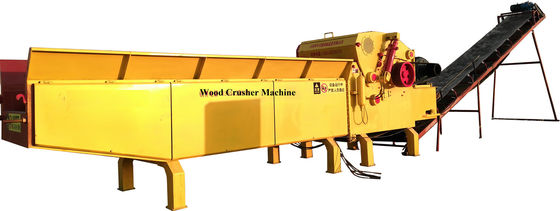

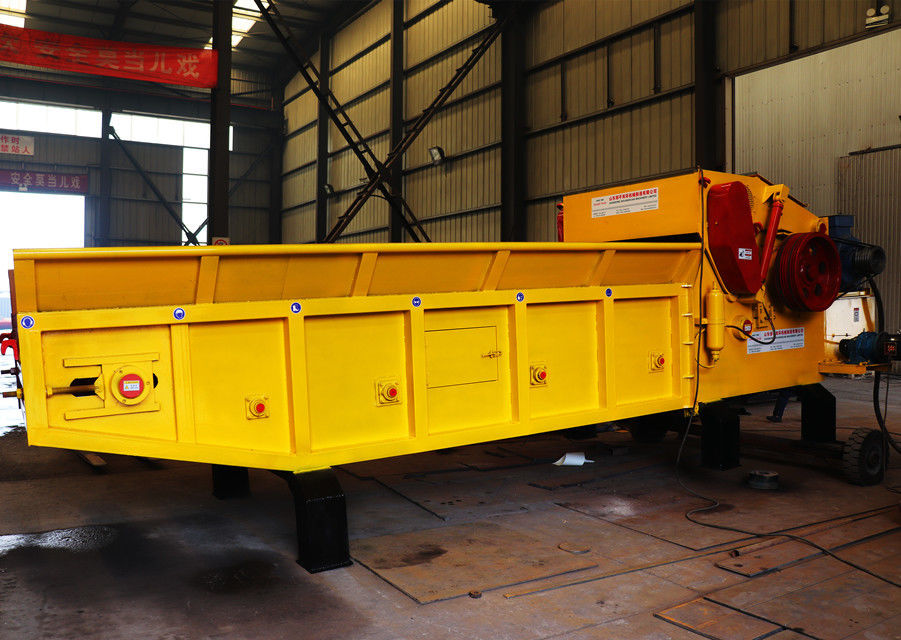

SH1600-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Specification of Model SH1600-600
| 型号 | Model | SH1600-600 |
| 进料口尺寸 | Feeding Inlet | 1600*600MM |
| 刀辊直径 | Blade Roller Diameter | 850MM |
| 刀辊转速 | Blade Roller Speed | 850RPM |
| 产量 | Capacity | 25T-30Tons/Hour |
| 刀片数量 | blade Quantity OR hammer blades | 2units (4pcs) or 28pcs |
| 最大加工木材直径 | Max Processing Wood Diameter | 450MM |
| 电机功率 | Motor Power | 250KW, 3Phase |
| 木片尺寸 | Wood Chipper Size | 2-4CM |
| 刀片寿命 | Working Life Of THE Hammer Blades | 4000T-6000T |
| 喂料电机功率 | Feeding Motor Power | 15KW+11KW |
| 传送带长度 | Conveyor Length | 6000MM |
| 一次出料:7.5KW电机减速机 | First Outlet Motor | 7.5KW With Gear Box |
| 二次出料:5.5KW电机减速机 | Second Outlet Motor | 5.5KW With Gear Box |
| 输送带长度*宽度 | Conveyor Length*Width | 10m*1.5m |
| 主机启动方式 | Host Start Model | Soft Start |
|
Optional Part: Strengthened magnetic roller OR Strengthened magnetic machine Wheels for mobile usage Hydraulic folding discharging conveyor |
||
