Wood Logs Chipper/Shredder Production line with capacity 20-25ton/hour
Introduction:
1. Processing log diameter : 50-300mm
2. Processing log max. length :6meters
3. Production capacity : 20-15tons/hour
4. We can also do production line design as customer needs
Specification :
| Double Roll Log Debarking Machine | |
| Specification | SHBP12000 |
| Production capacity | 15-25t/h |
| Main motor power | 11KW*4 |
| Processing log diameter | 50mm-300mmm |
| Processing log length | 1000mm-6000mm |
| Roll shaft length | 6000mm*2 |
| Bark slope conveyor | 6000mm |
 | |
| Wood Chipper Machine | |
| Specification | SHJP1600 |
| Feeding inlet size | 450*450mm |
| Knife No. | 6片 |
| Main motor power | 185kw |
| Horizontal feed conveyor | 8000mm |
| Slope outfeed conveyor | 10000mm |
| Wood chipper size | 20-35mm |
| Discharging type | down |
| Production capacity | 25-30t/h |
| |

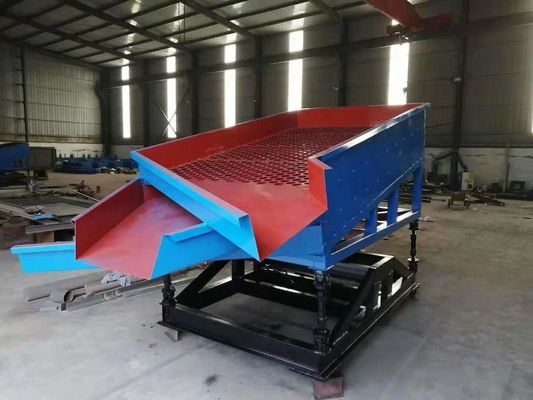

| Wood Chipper Screen | |
| Specification | SH3800 |
Length of wood chipper screen | 3800mm |
Width of wood chipper screen | 1900mm |
| Shaking screen rotation speed | 180r/min |
| Motor power | 5.5kw |
| Discharging slope conveyor | 10000mm |
| Production capacity | 15-20t/h |
| |

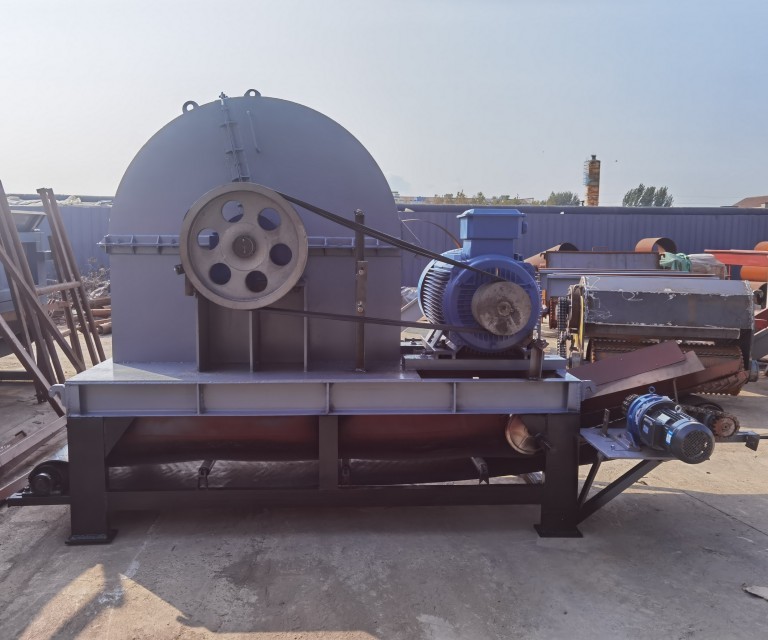

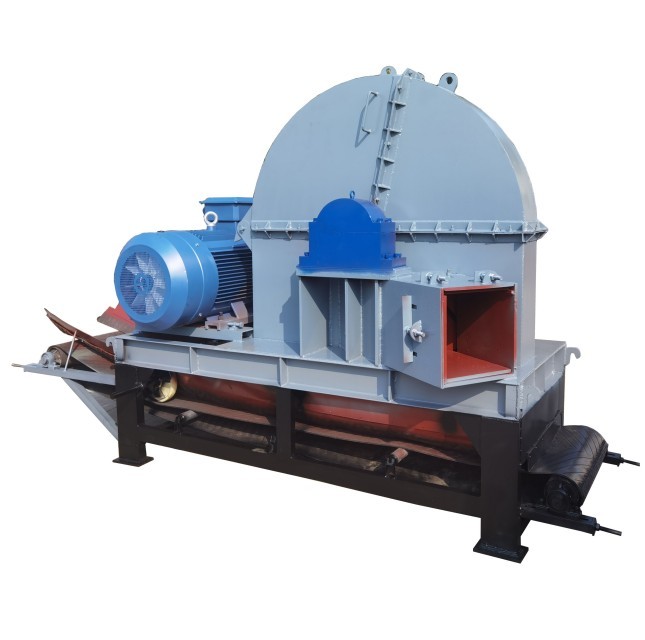

Wood Disc Chipper
| Wood Chipper Machine | ||
| Specification | SHJP1600 | SHJP1800 |
| Feeding inlet size | 450*450mm | 500*500mm |
| Knife No. | 6pcs | 6pcs |
| Main motor power | 185kw | 220kw |
| Horizontal feed conveyor | 8000mm | 8000mm |
| Slope outfeed conveyor | 10000mm | 10000mm |
| Wood chipper size | 20-35mm | 20-35mm |
| Discharging type | down | down |
| Production capacity | 20t/h | 30t/h |

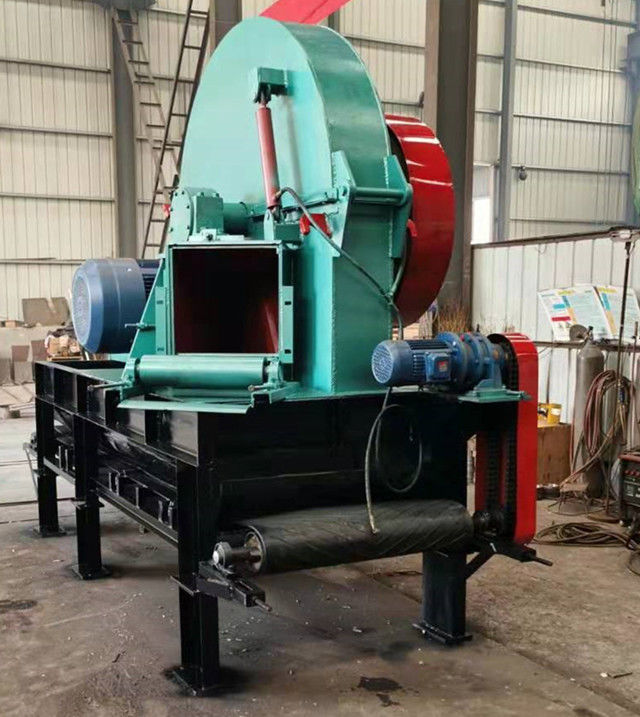

Wood Logs Drum Chipper
Introduction:
1. Processing log diameter : 50-300mm
2. End chips size :20-40mm
3. Production capacity : 7-15tons/hour
4. We can also do production line design as customer needs
Technical Data
| Model | SH216 | SH218 |
| Feeding Inlet | 240*540mm | 310*680mm |
| Rotor Diameter | 650mm | 800mm |
| Blade Quantity | 2 or 3 | 2 or 3 |
| Motor Power | 55KW | 110KW |
| In Feed Conveyor | 6000mm | 6000mm |
| Out Feed Conveyor | 10000mm | 10000mm |
| Capacity | 7-10T/H | 9-13T/H |
| Weight | 4070KG | 7500KG |
