Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones
3. Tehnical data:
| Model | SH2000-1000 | SH1300-600 | SH1400-600 | SH1600-600 | |
| Feeding inlet size | 2000x1000mm | 1250x600mm | 1400x600mm | 1600x600mm | |
| Blade roller diameter | 1400mm | 850mm | 850mm | 850mm | |
| Blade roller speed | 750RPM | 850RPM | 850RPM | 850RPM | |
| Production capacity | 70-100ton/H | 12-15ton/H | 18-20ton/H | 25-30ton/H | |
| 1 | YG8 hammer blade qty | 86pcs | 20pcs | 24pcs | 28pcs |
| 2 | Blade qty | 3groups/9tablets | 2groups/4tablets | 2groups/4tablets | 2groups/4tablets |
| Max. Processing log diameter | <800mm | 450mm | 450mm | 450mm | |
| Main motor power | 450kw | 160kw | 200kw | 250kw | |
| Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | |
| Working life of blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | |
|
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine for sucking out iron products |
|||||
4. Photos:

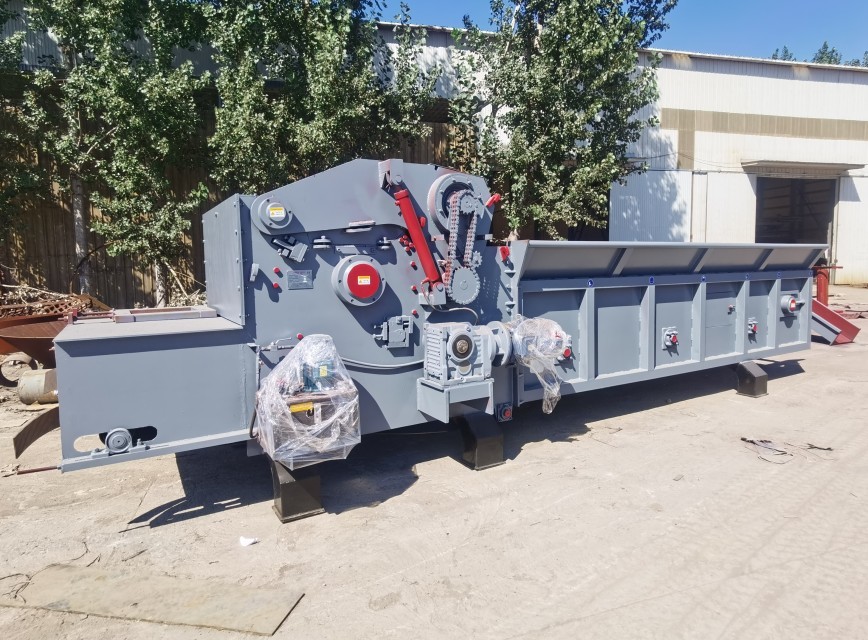

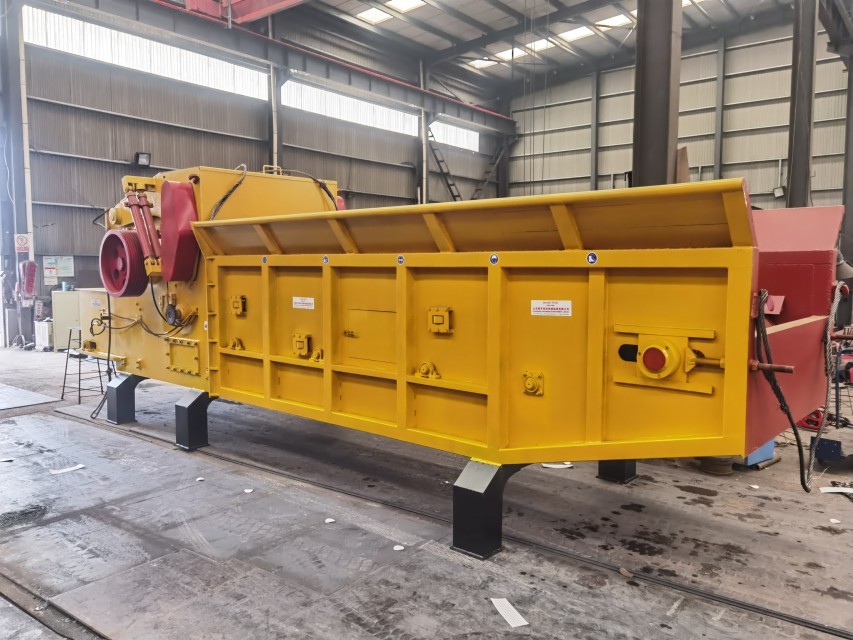

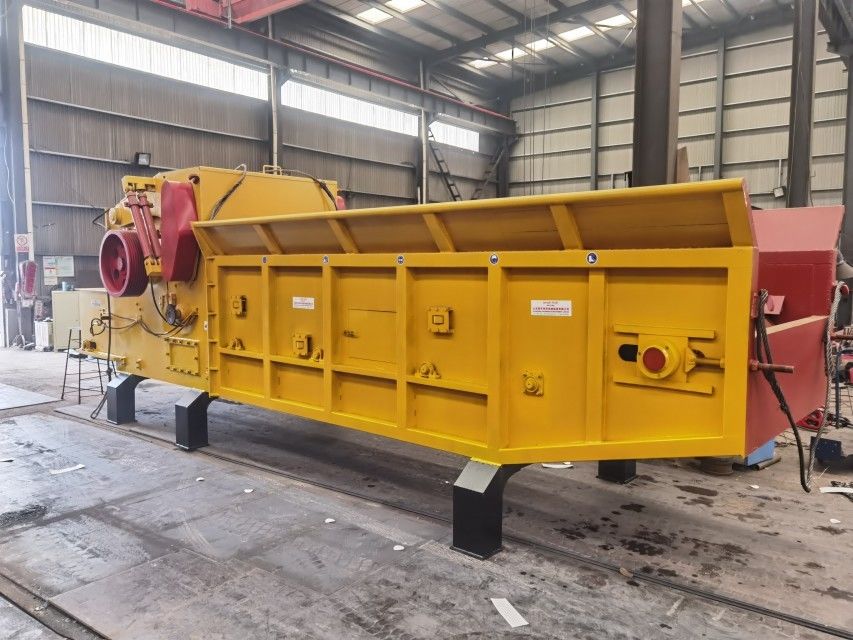

Electrical type
Diesel engine + generator type

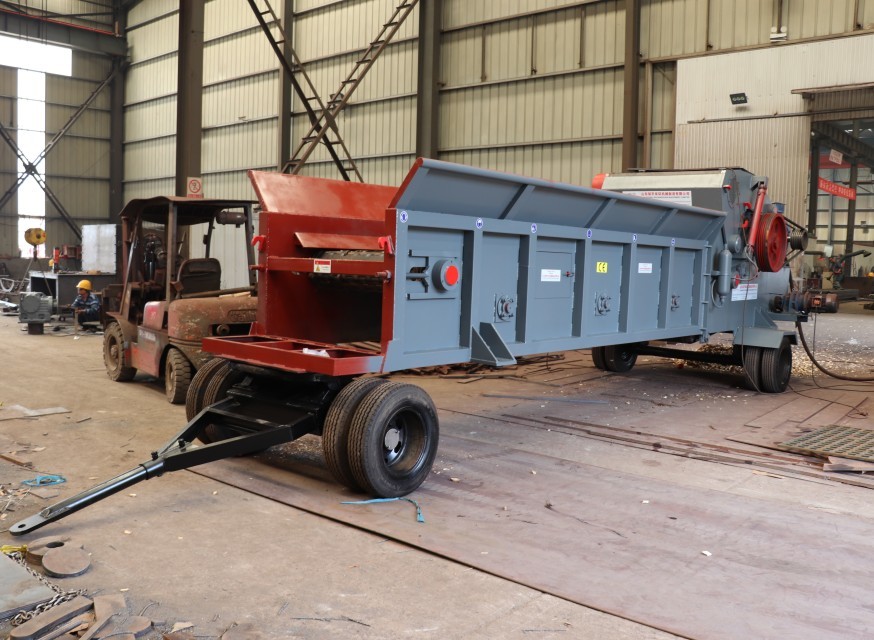

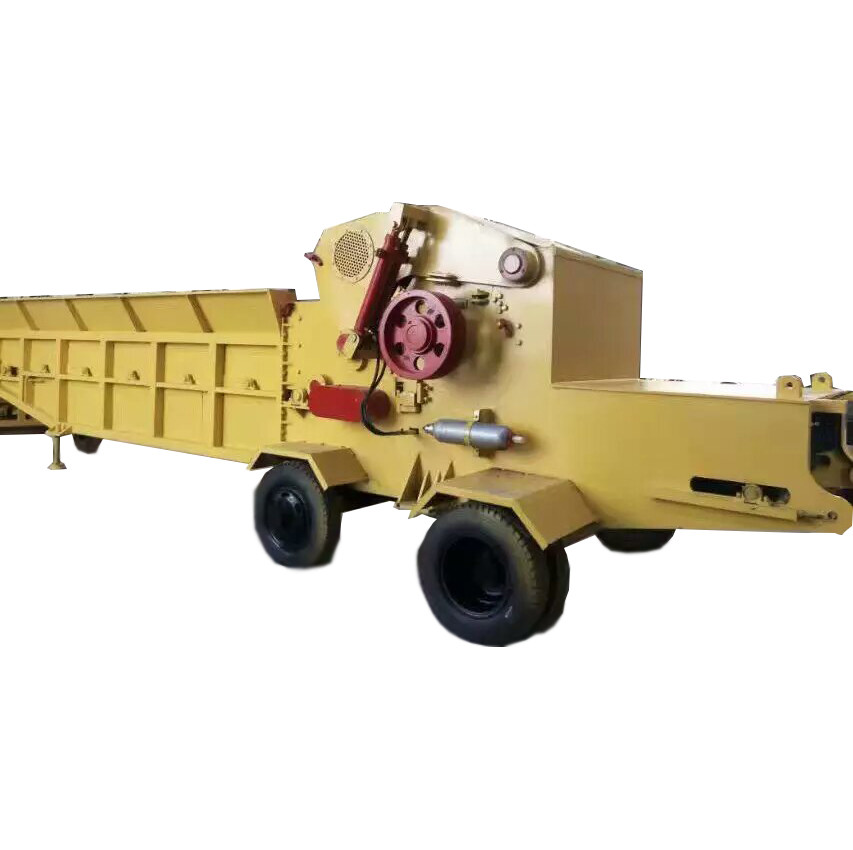

With wheels for mobile usage

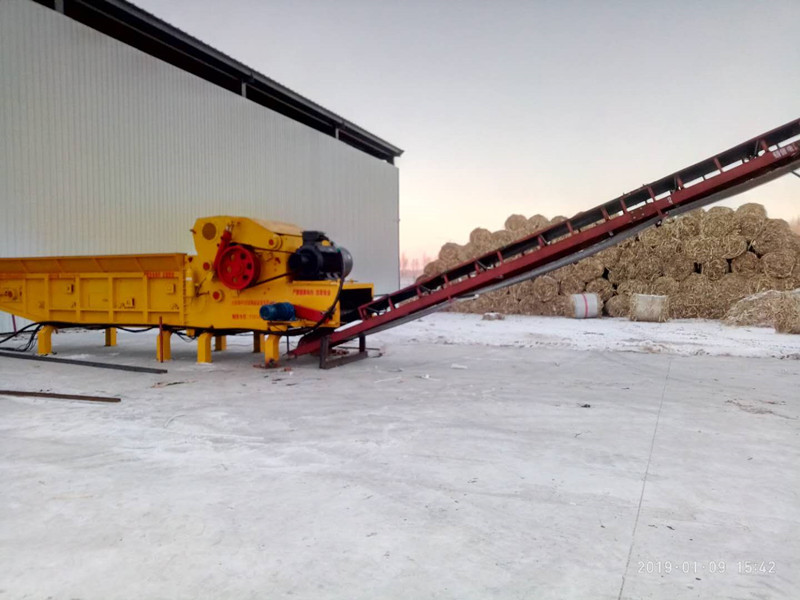

Hydraulic Foldable outlet conveyor

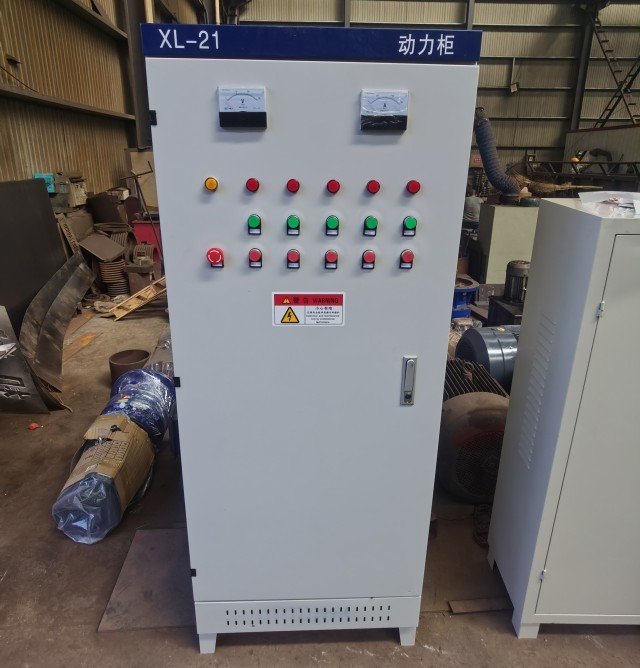

Control Cabinet
Container Loading -
Related Products:
Wood Roots Crusher/Grinder
Specification:
| Technical data | Model SH3600-1600 |
| Blade shaft size | 1600x850mm |
| Rotor diameter | 800mm |
| Blade quantity | 4 |
| Main motor power | 185KW |
| Feeding inlet diameter | 3600mm |
| Out feed conveyor | 12meters |
| Capacity | 25-30Ton/Hour |
| Weight | 18000kg |
