Drum clipper is a kind of specialized equipment to manufacture wood chip, which can be used for the manufacture of flake board, fiber board and paper. The small-sized drum clipper is the best equipment for labs of factories. Raw materials for drum clipper are thin timber, branches, remainder of wood processing (slab, batten, heart of log) and sugar cane stalk, reed, bamboo.
Specification:
| Model | SH216 | SH218 |
| Feeding Inlet | 240*540mm | 310*680mm |
| Rotor Diameter | 650mm | 800mm |
| Blade Quantity | 2 or 3 | 2 or 3 |
| Motor Power | 55KW | 110KW |
| In Feed Conveyor | 6000mm | 6000mm |
| Out Feed Conveyor | 10000mm | 10000mm |
| Capacity | 7-10T/H | 9-13T/H |
| Weight | 4070KG | 7500KG |
Wood Composite Crusher
| Model | SH2000-1000 | SH1300-600 | SH1400-600 | SH1600-600 | |
| Feeding inlet size | 2000x1000mm | 1250x600mm | 1400x600mm | 1600x600mm | |
| Blade roller diameter | 1400mm | 850mm | 850mm | 850mm | |
| Blade roller speed | 750RPM | 850RPM | 850RPM | 850RPM | |
| Production capacity | 70-100ton/H | 12-15ton/H | 18-20ton/H | 25-30ton/H | |
| 1 | YG8 hammer blade qty | 86pcs | 20pcs | 24pcs | 28pcs |
| 2 | Blade qty | 3groups/9tablets | 2groups/4tablets | 2groups/4tablets | 2groups/4tablets |
| Max. Processing log diameter | <800mm | 450mm | 450mm | 450mm | |
| Main motor power | 450kw | 160kw | 200kw | 250kw | |
| Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | |
| Working life of blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | |
|
Optional :
|
|||||

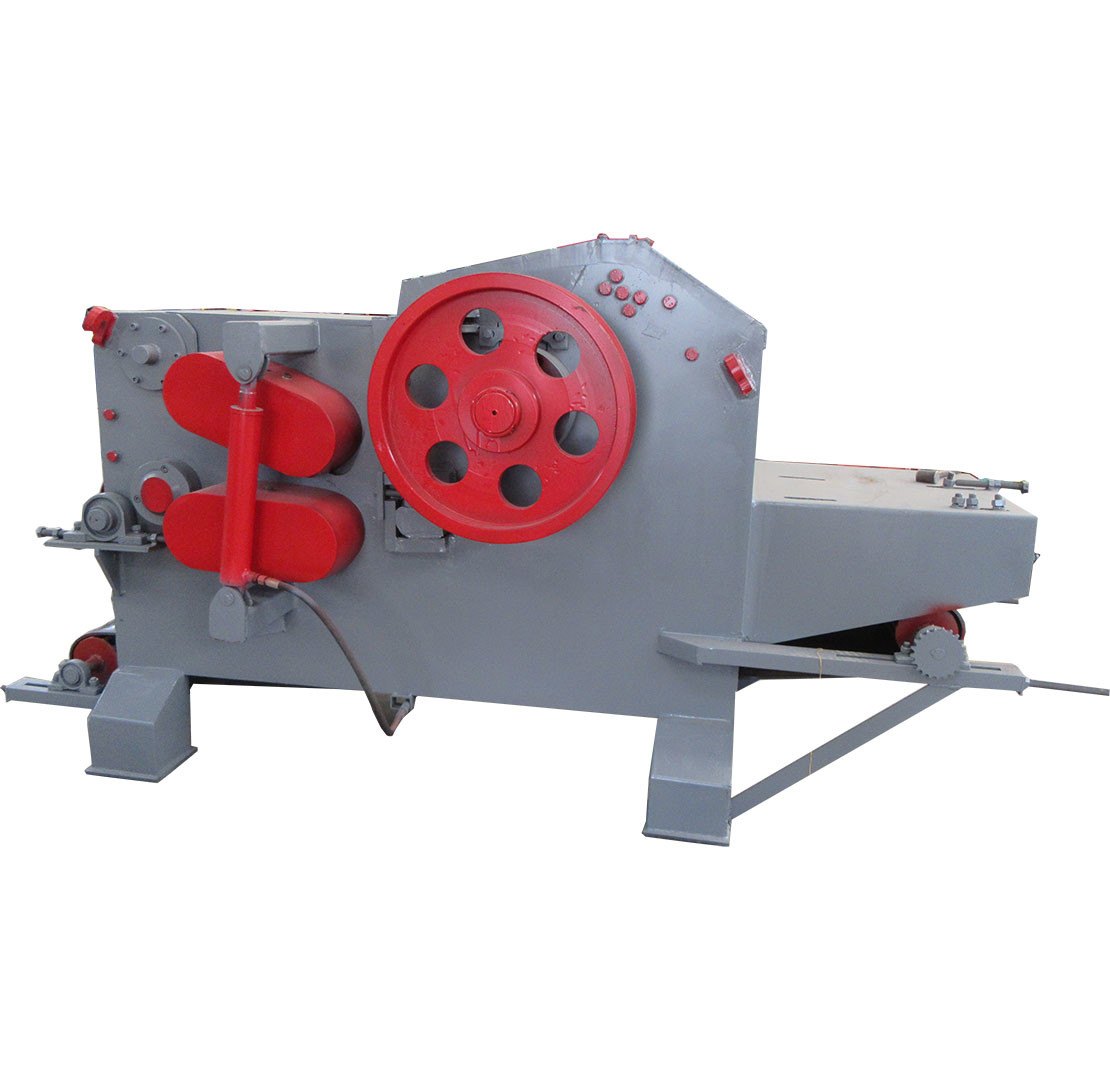

Image of Electrical type
Image of Electrical Mobile usage type
Image of Diesel Mobile usage type
