Name: Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
Brand: Weifang Jiuyi Information technology co., LTD
SKU: MJ1200,MJ1500, MJ2000, MJ2500
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Conditon: New

Type: Horizontal Band Saw

Use: Woodworking

Voltage: 380V/3phase/50HZ Or As Customer Needs

Power: 30KW- 53KW

Weight: 2800kg To 4000kgs

Warranty: 12 Months

After-sales Service Provided: Engineers Available To Service Machine Overseas

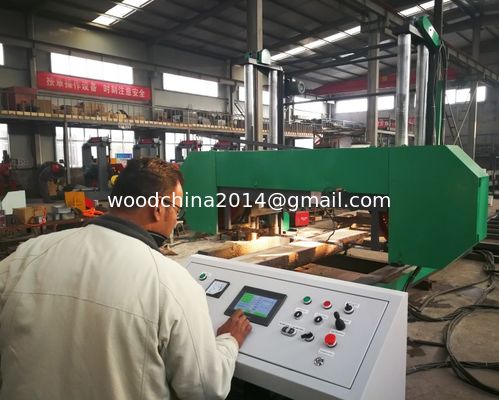

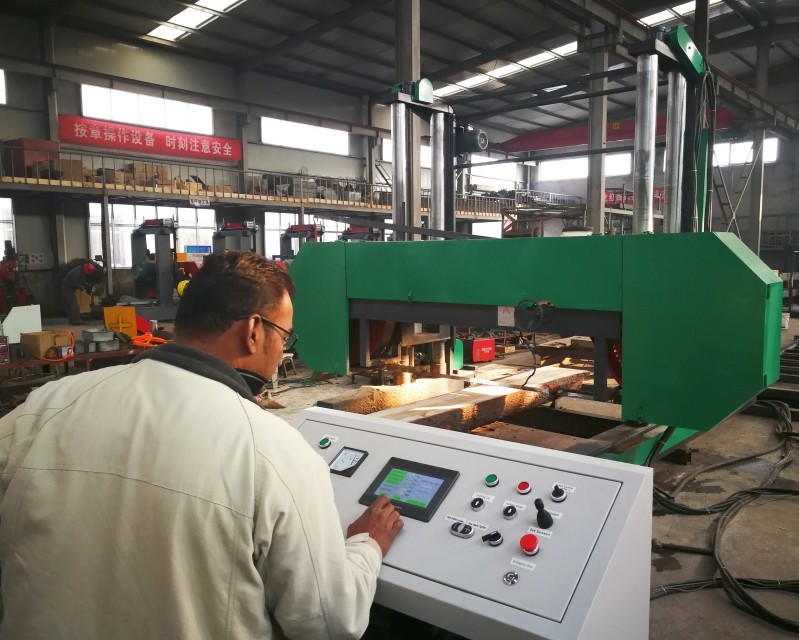

Operation: PLC Touching Screen Automatic

Engine: Electrical Type Or Diesel Engine Powered

Highlight:

Electric Motor Large Bandsaw Mill

Horizontal Band Saw For Cutting Logs

Large Bandsaw Mill Horizontal

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ1200,MJ1500, MJ2000, MJ2500

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 20 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1500sets/year

Gallery

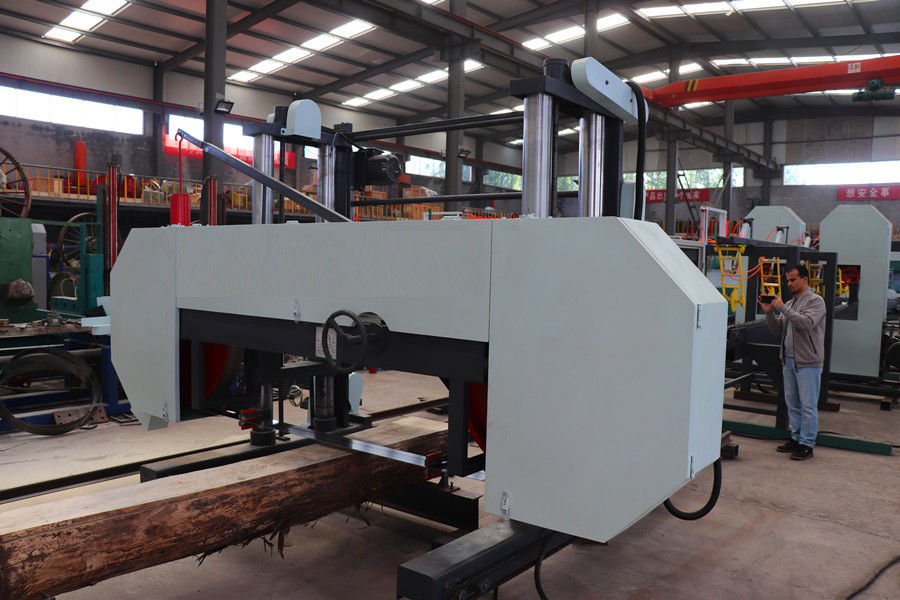

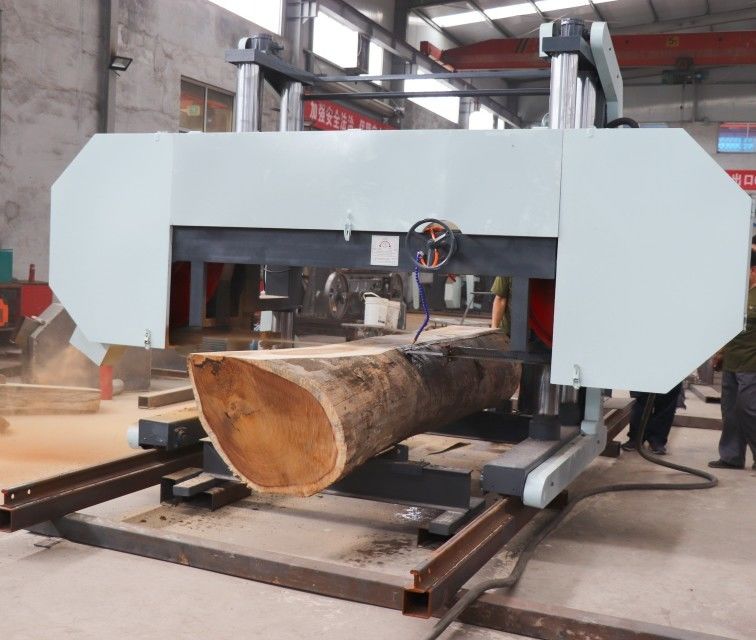

Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs

Product Description

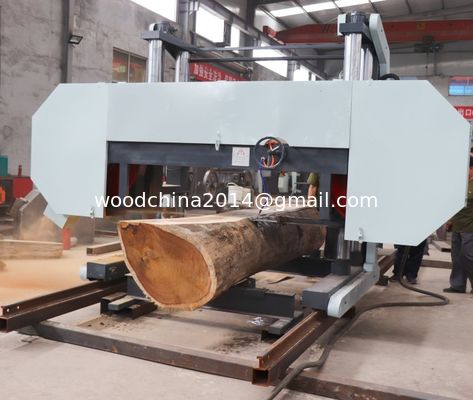

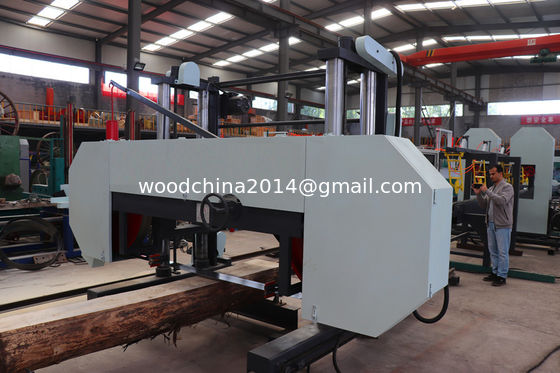

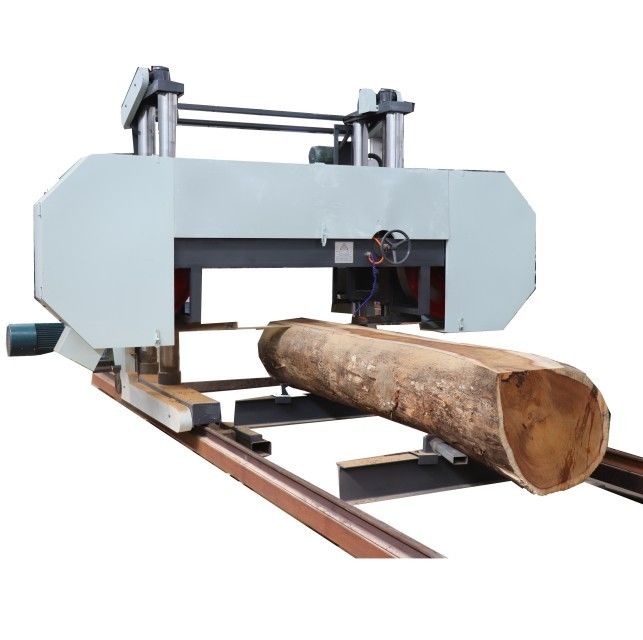

Automatic Wood Band Saw Machine Electric Motor Log Cutting Horizontal Bandsaw Mill

Heavy Duty Large Size Horizontal Band Sawmill

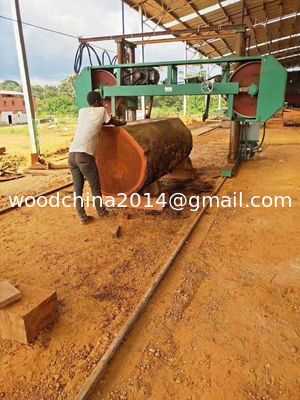

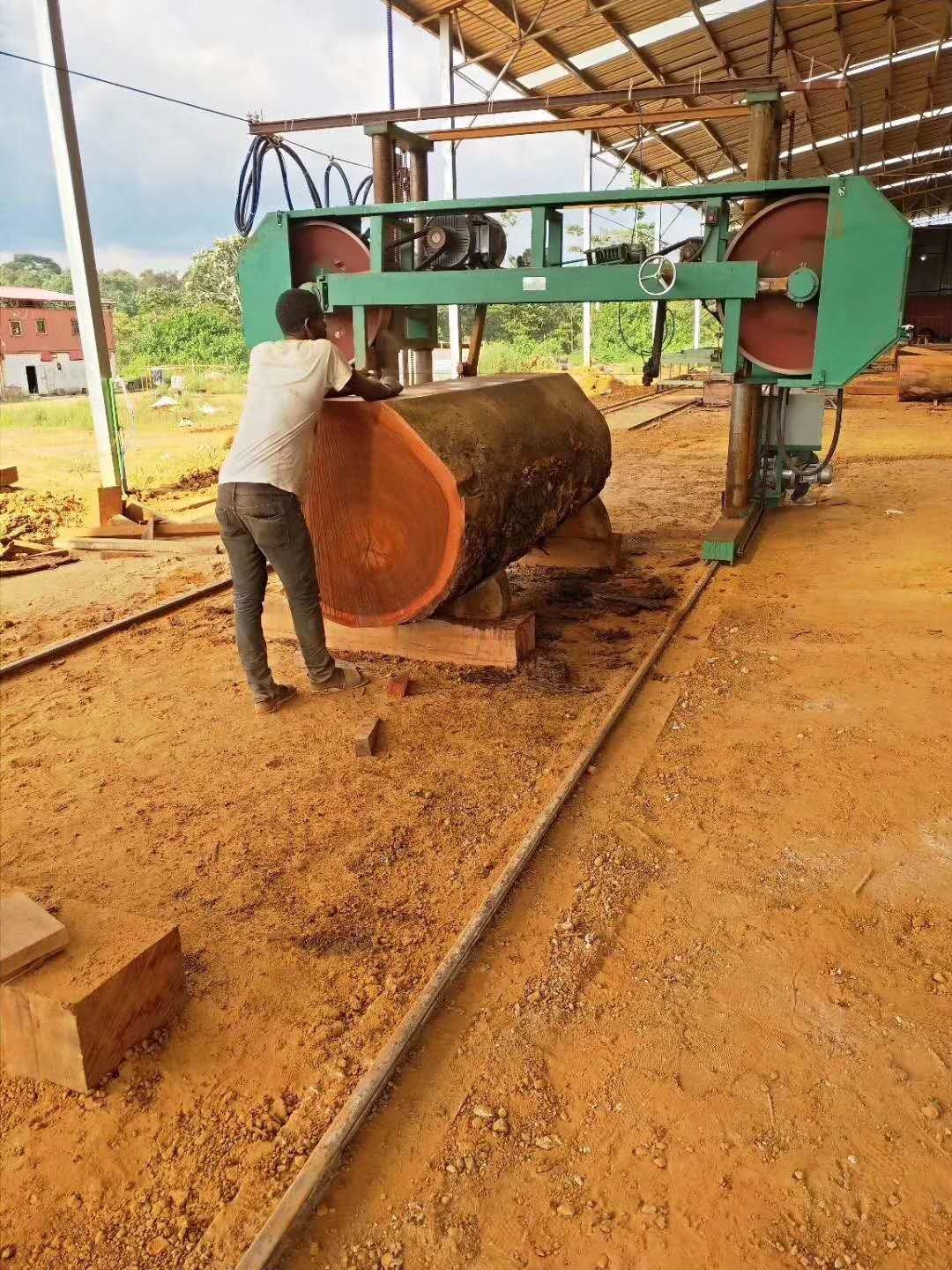

The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .

Technical specifications:

Model	MJ1200	MJ1500	MJ2000	MJ2500
Max. sawing width	1200mm	1500mm	2000mm	2500mm
Height from blade to track	1100mm	1200mm	1700mm	2200mm
Saw wheel diameter	1070mm	1070mm	1070mm	1070mm
Max.sawn thickness	350mm	350mm	400mm	400mm
Sawing wood length max.	6meters	6meters	6meters	6meters
Saw blade length & width	7900 &125mm	8600&125mm	9700&125mm	10500&125,150mm
Main motor power	30kw	37kw	45kw	55kw
Weight	3800kgs	4500kg	5000kg	5500kg

Detailed Image

Optional Parts- free base ground track

Optional Parts- pre-cut

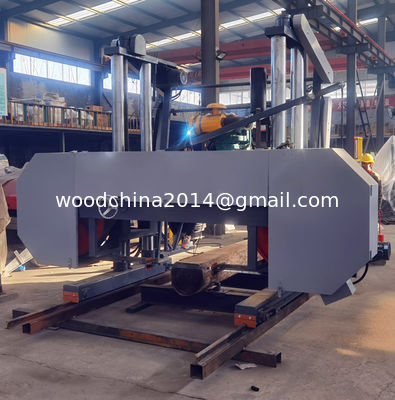

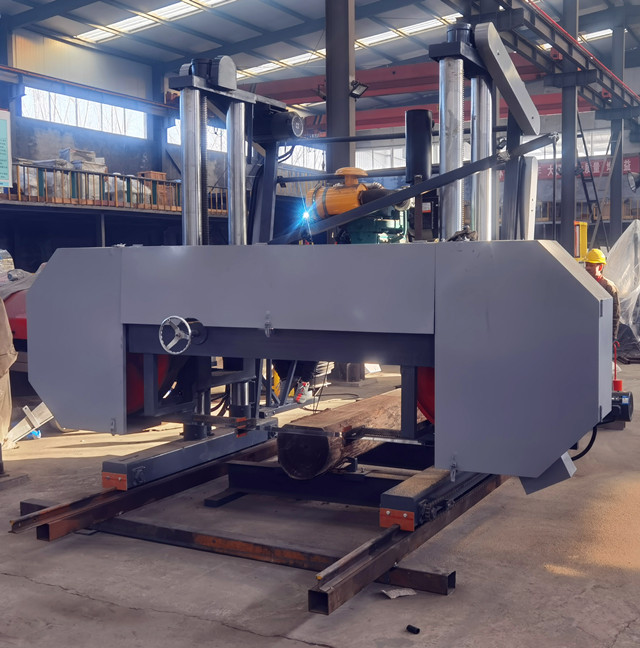

Diesel Engine Powered Large Size Horizontal Band Sawmill

Model	MJ1200	MJ1500	MJ2000	MJ2500
Max. sawing width	1200mm	1500mm	2000mm	2500mm
Height from blade to track	1100mm	1200mm	1700mm	2200mm
Saw wheel diameter	1070mm	1070mm	1070mm	1070mm
Max.sawn thickness	350mm	350mm	400mm	400mm
Sawing wood length max.	6meters	6meters	6meters	6meters
Saw blade length & width	7900 &125mm	8600&125mm	9700&125mm	10500&125,150mm
Diesel engine +20kw generator	80HP	80HP	80HP	80HP
Weight	3800kgs	4500kg	5000kg	5500kg

Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 5

Spare parts -optional -auto blade sharpener

Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 7
