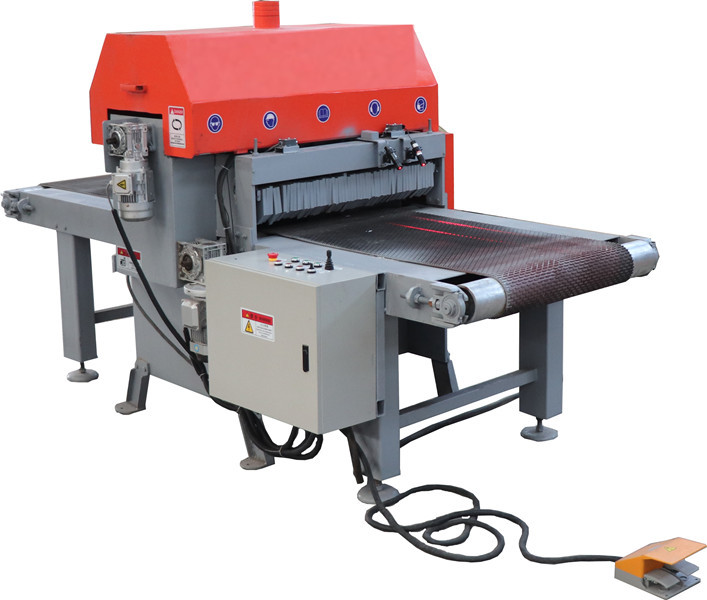

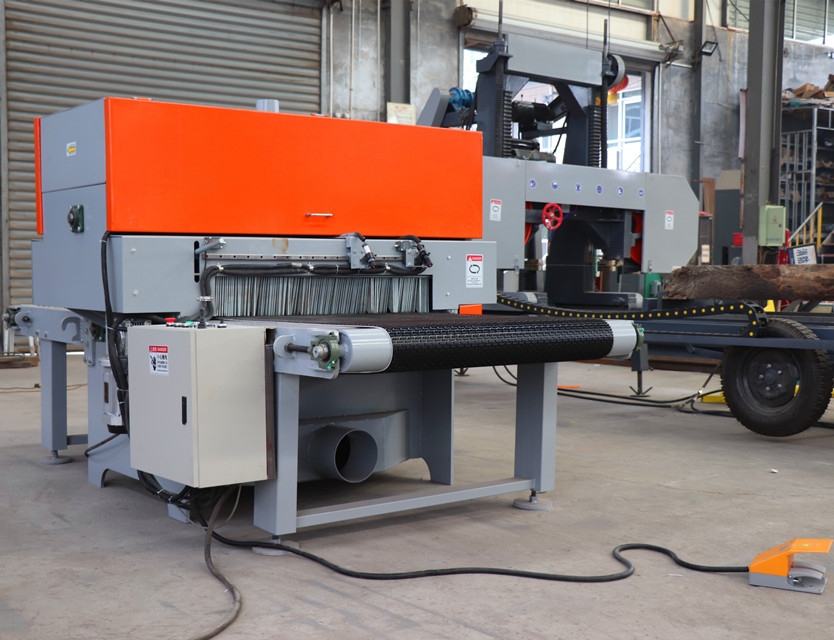

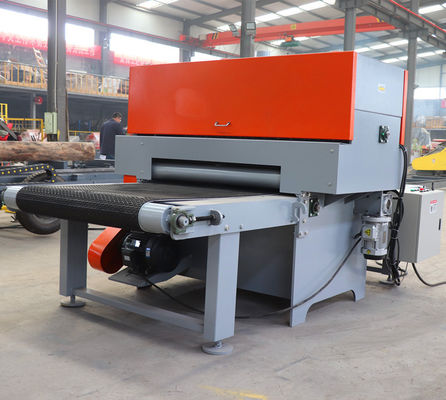

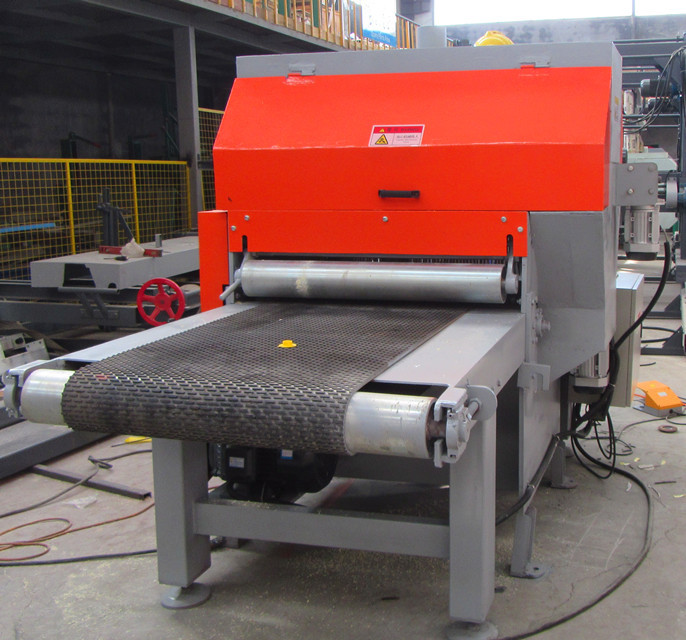

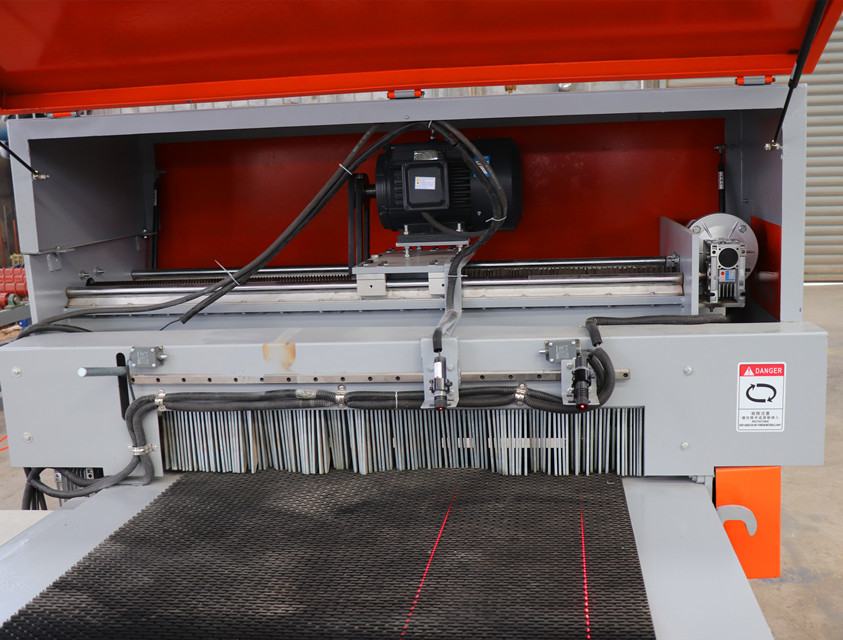

Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable

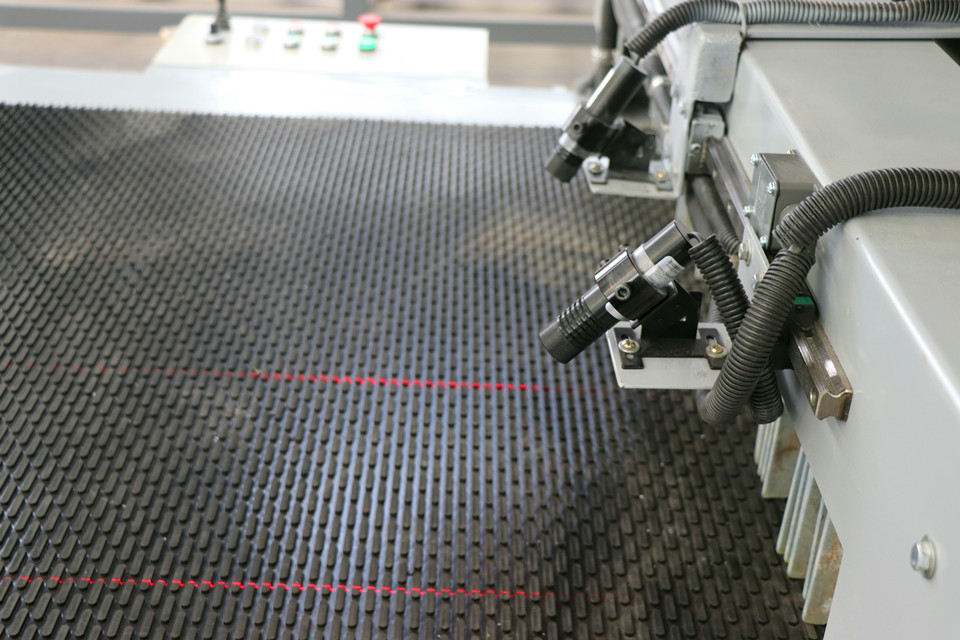

4. The saw blade moves with infrared light and moves at the same time .
Technical data :
| Technical parameters | EG600A |
| cutting max. width | 600mm |
| cutting min. width | 50mm |
| sawn max. thickness | 70mm |
| sawn min. thickness | 10mm |
| Blade | 2*350mm |
| Feeding method | Automatic feeding conveyor |
| Feed Rate | 20-25m/ minute |
| Power | 15KW electric motor |
| Positioning | Infrared line |
| Machine weight | 800KG |
|
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable |
|
Working video link : https://youtu.be/f9dqaVCXnfg
Photos:
Single Blade Board Edger
1. With one piece circular blade fixed .
2. With 13HP USA Kolher gasoline engine powered.
3. Easy usage and transportable
4. Cutting length is as customer needs
5. Roller conveyor is easy for wood feeding and discharing .
Specifications:
| Single blade board edger (blade fixed) | |
| Max. sawing width with baffle rising | 350mm |
| Max. sawing width with baffle down | 500mm |
| Circular blade diameter | 355mm |
| Feeding roller length | 1500mm |
| Discharging roller length | 1500mm |
| Engine | 13HP Kolher petrol engine |
Working video link : https://youtu.be/wwB7MJA02nU
Photos:
