Wood Chamfer Machine
Technical data:
| Model | EPWC-7050 |
| Convey servo motor | 1kw |
| Hydraulic motor | 2.2kw |
| Total motor | 7.2kw |
| Voltage | 380v 50Hz 3phase |
| Cutter type | 45° V milling cutter, left and right |
| Working length | 600-1500mm |
| Working thickness | 17-35mm |
| Working width | 80-150mm |
| Productivity | 500-700pc/h |
| Hydraulic pressure | 0.4-0.5Mpa |
| Control system | Siemens |
| Machine dimension | 4450*800*1400mm |
| Packing dimension | 3220*920*1760mm |
| Machine weight | 1040kg |

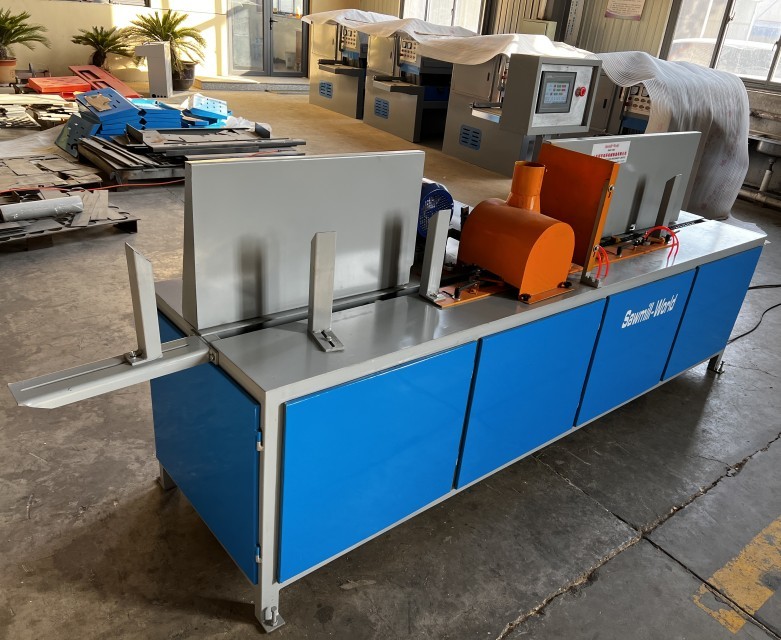

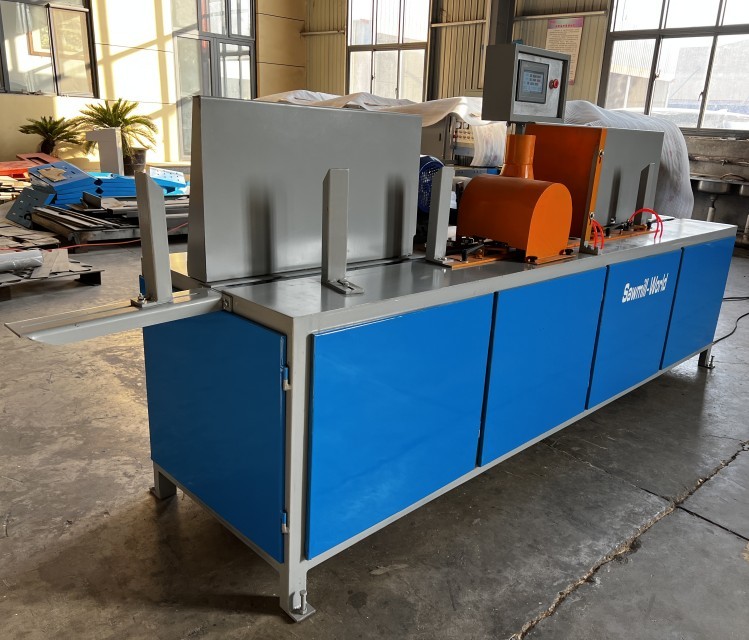

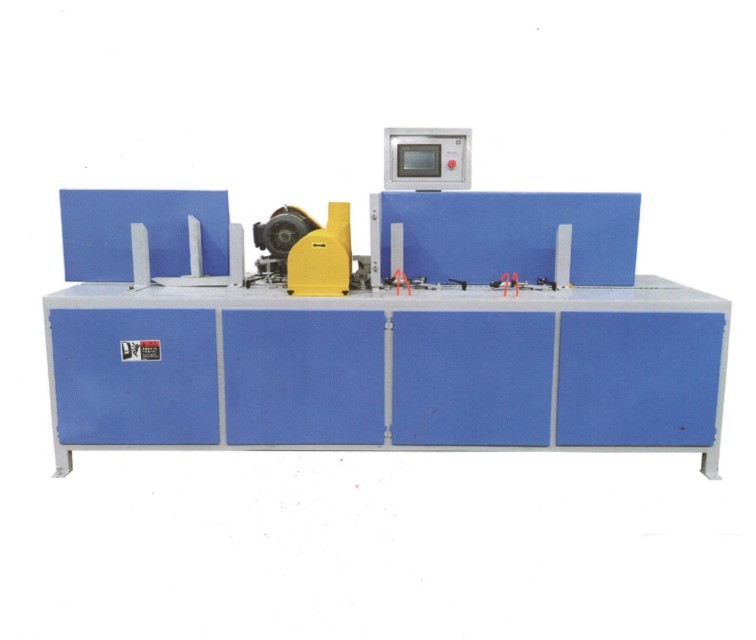

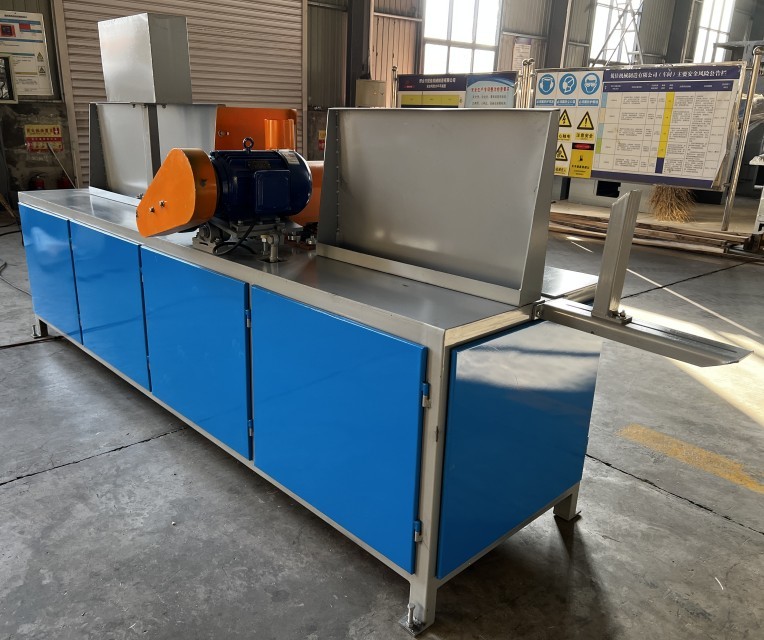

Photo:
Related Products:
| Model | JD-1500 |
| Cutting wood max. length | 1500mm |
| Cutting Thickness | 50-120mm |
| Cutting Width | 60-200mm |
| Pallet foot pier size | 30-200mm |
| Saw Diameter | 400mm |
| Motor | 7.5kw/3phase |
| Production capacity | 1500-1800P/H |
| Weight | 350kgs |

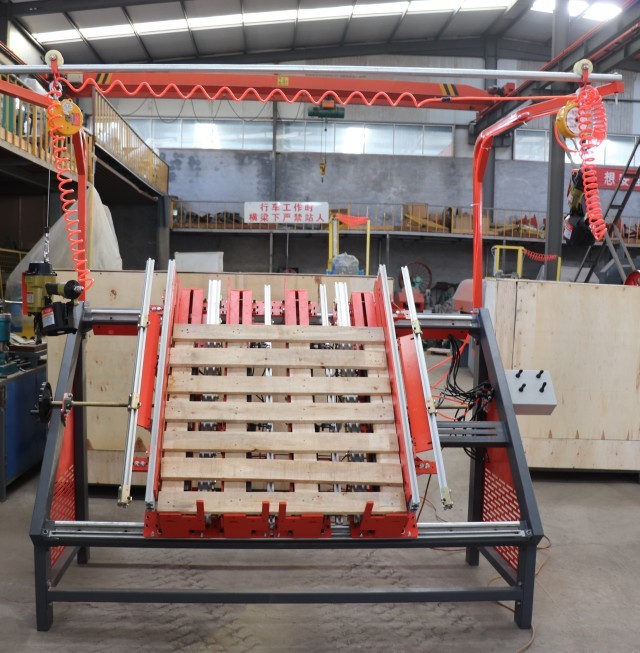

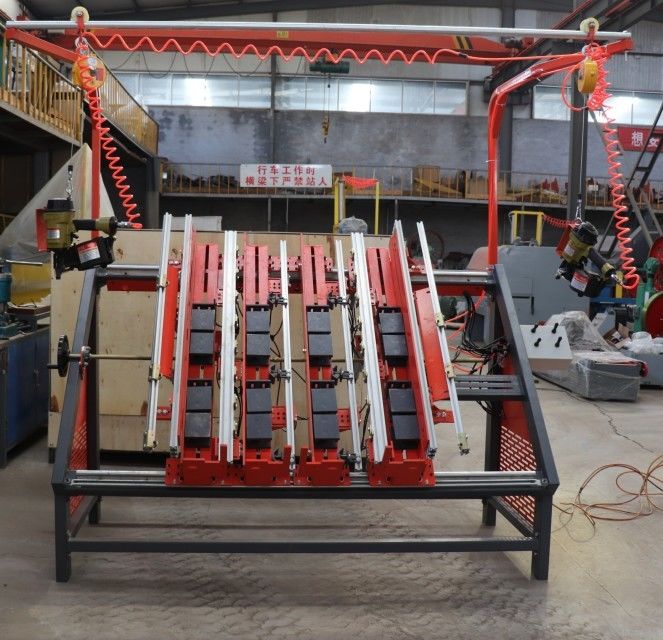

| Model | PT-1600 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1600mm |
| Operational mode | Pneumatic operation |
| Air pressure | 0.8MPA |
| Production efficiency | 30-40pcs /h |
| Number of beams | 3p |
| Number of nail guns | 2P (CN70,CN55) |
| Weight | 650kg |
