Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer

1 SET Pallet making machine

MOQ

US $4,200 - 21,500 / Set

Price

Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Pallet Nailing Machine

Pallet Width: 800-1700mm

Pallet Length: 600-1300mm

Capacity: 210-320 Pallets /8hours

Operating Pressure: 0.8MPA

Number Of Coil Nail Guns: 1pc

Weight: 440kgs

Qty Of Stringers: 3, 5P (or Customized)

Pneumatic Clamp: Easily Centers The Blocks

After-sales Service Provided: Online Support,Free Spare Parts,commissioning And Training

Key Words: Wood Pallet Machine, Pallet Board And Block Nailing Machine

Highlight:

Semi Automatic Wooden Pallet Nailer

,

Semi Automatic Wooden Pallet Making Machine

,

Woodworking Pallet machine

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: PT-1700,PT-3400, etc

Payment & Shipping Terms

Packaging Details: container loading of Pallet nailing machine

Delivery Time: within 20 days

Payment Terms: T/T, Western Union

Supply Ability: 1000sets/year of Pallet nailing machine

Gallery

Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer

Product Description

AWPN-1500 Horizontal Semi-Automatic Wood Pallet Nailing Machine with Palletizer/stacker

Technical data

Model	AWPN-1500
Wood pallet length	600-1300mm
Wood pallet width	800-1700mm
Feeding mode	Touching screen auto setworks
Palletizing mode	Automatic
Operational mode	Pneumatic operation
Voltage	380V,480V or other
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production efficiency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Palletizing quantity	10P
Weight	2000kg
Overall dimension	380022002217mm
Package size	250022002500


Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer 0

Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer 2

A universal pneumatic nailing table, Pneumatico PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:
Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

Technical specifications:

Model	PT-1700	PT-3400
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1700mm	900-3400mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production efficiency	30-40pcs /h	20-30pcs /h
Number of beams	3p (or customized)	5p (or customized)
Number of nail guns	1P (CN70) American Stanley staple gun	1P (CN70) American Stanley staple gun
Weight	440kg	840kg
Size	22509801900mm	405010502100mm

Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer 3

Woodworking Machinery Semi Automatic Wooden Pallet Making Machine / Pallet Nailer 4

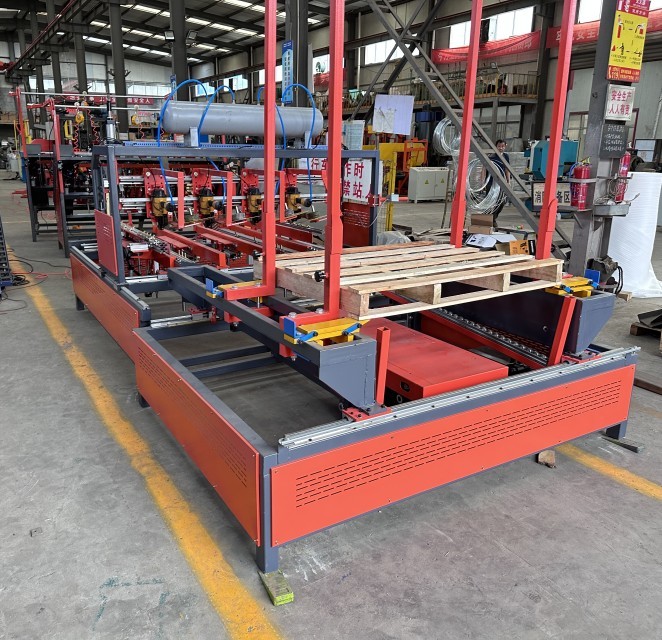

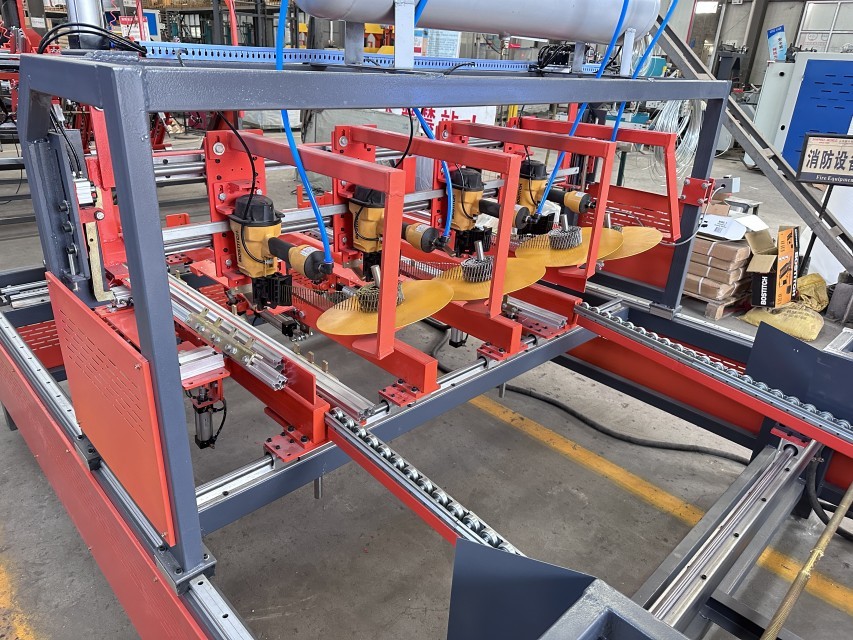

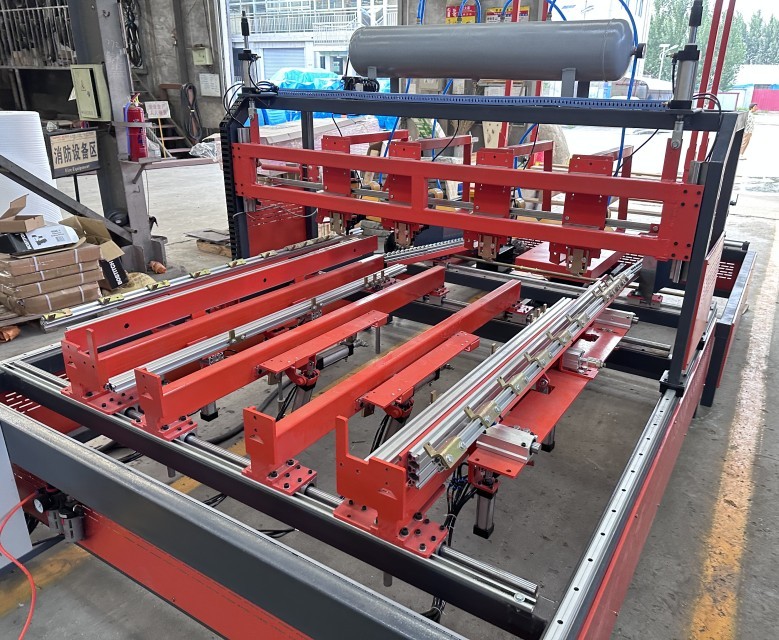

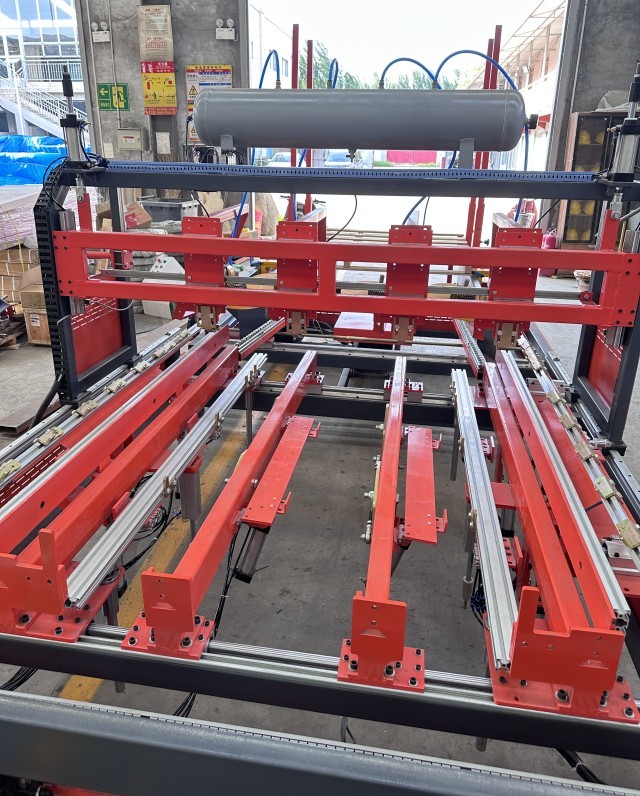

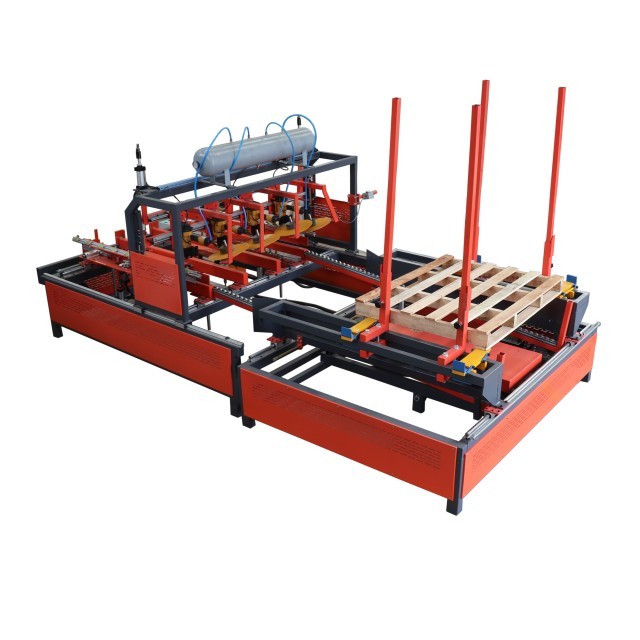

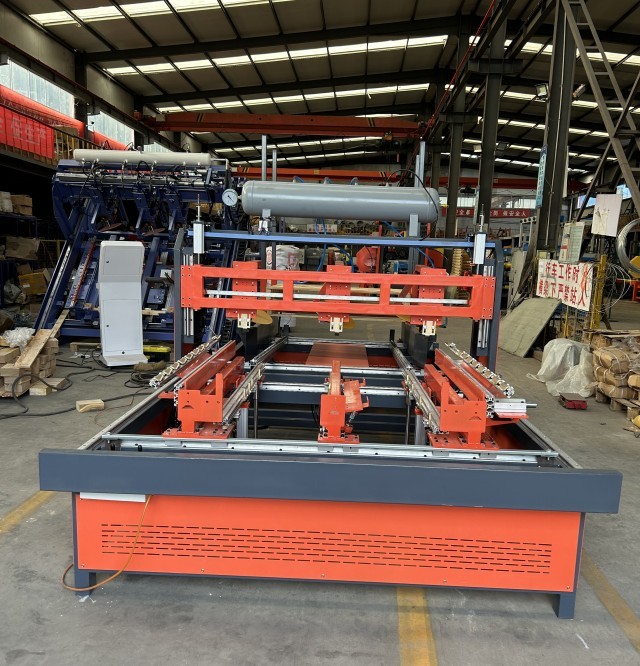

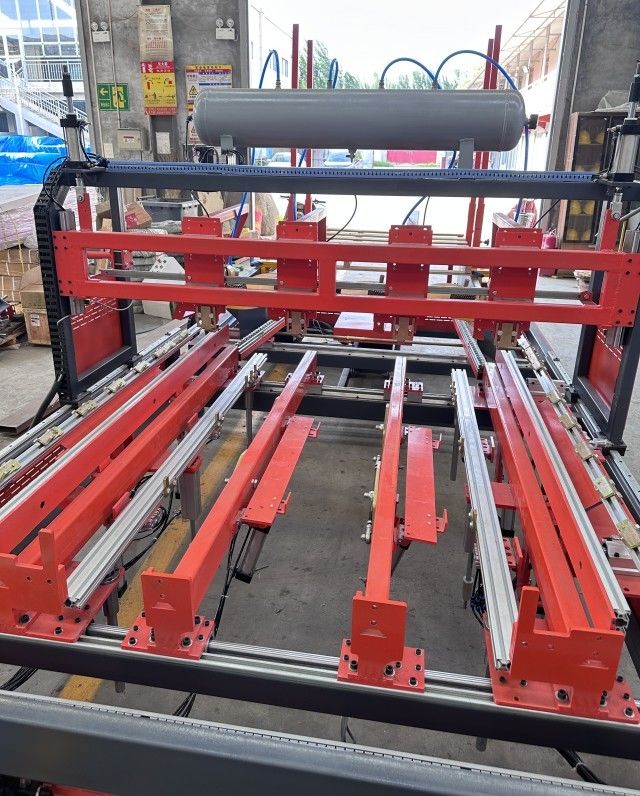

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data

			Model
			AWPN-1300

			Wood pallet length
			600-1300mm

			Wood pallet width
			800-1300mm

			Working mode
			Automatic feeding and stacking

			Operation mode
			Touch screen

			Operational mode
			Pneumatic operation

			Voltage and power
			220V/ 2kw Servo motor

			Air pressure
			0.8MPA

			Tank size
			0.2 cubic

			Nail gun speed
			7 times /second.

			Production efficiency
			1-2pcs /min

			Apply a nail
			Less than 90mm

			Number of nail guns
			3P OR 4P

			Weight
			2000kg

			Size
			Host machine 1660*1970*2217mm

			Stacking 2945*2054*1410

Related Products
Pallet Notcher

			Model
			WPN-1
			WPN-2

			Power
			15kw
			30kw

			Material of knife
			Alloy
			Alloy

			Capacity
			600-800pics/h
			1800pics/h

			Processing size
			Wood pallet length: max 1800mm
			Wood pallet length: max 1400mm

			Wood pallet width: 160mm
			Wood pallet width: max 90mm

			Wood pallet thickness:40-60mm
			Wood pallet thickness: 40-60mm

			Slot depth: <45mm
			Slot depth: <45mm

			Slot width: 200-230mm
			Slot width: 200-230mm

			Machine size
			1200*1100*1200mm
			2300*1300*1300mm

			Machine wight
			400kg
			1000kg

			Feature
			Slot smooth, size consistent

			Apply for many kinds of slots, also can customized.

Multi Blades Rip Saw
