Wood saw machine circular saw multi blades rip saw, Multi Ripsaw for panels small pcs cutting
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |

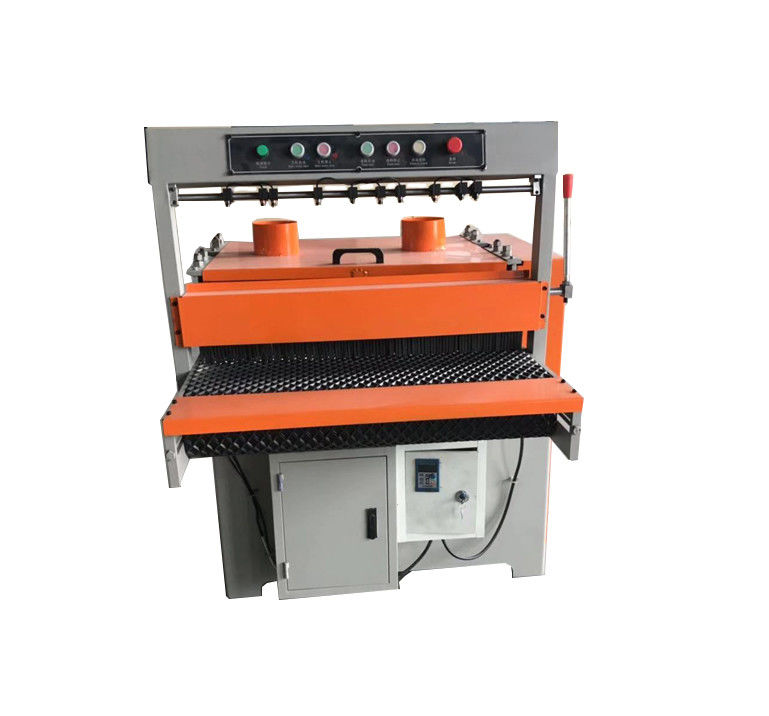

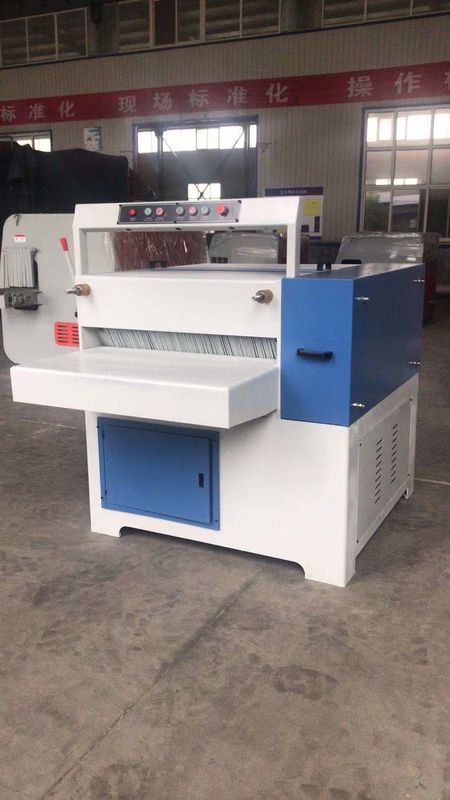

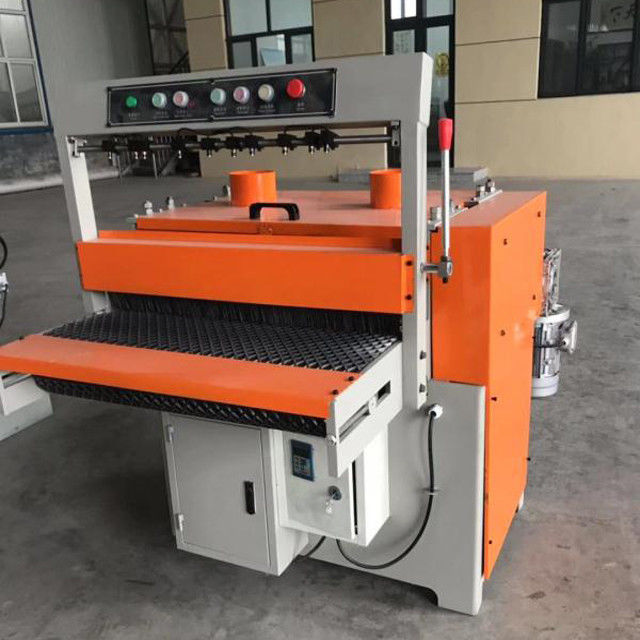

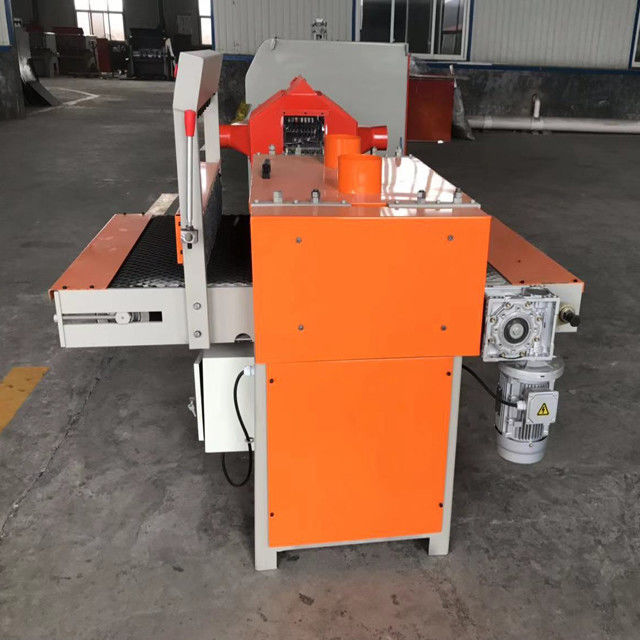

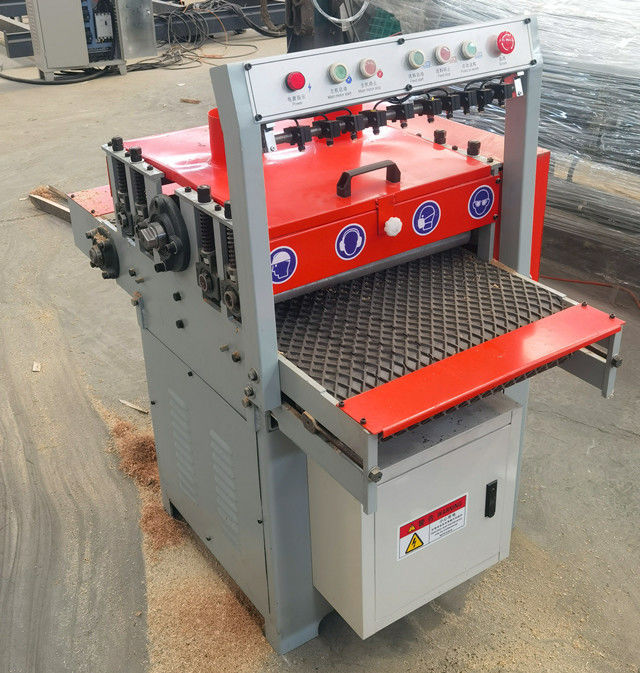

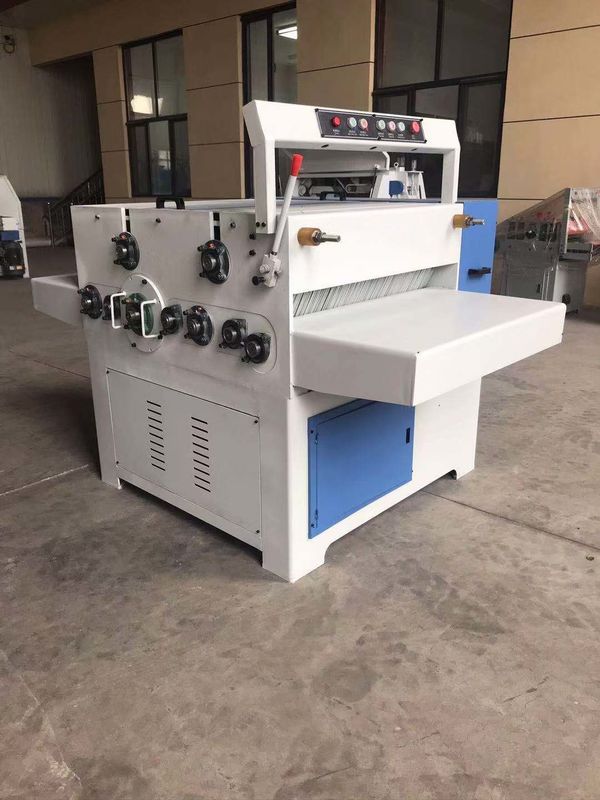

Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
Related Saw Machine:
Wood Slabs Cutting Circular Sawmill
Specifications:
|
Model |
BPJ200 | BPJ250 | BPJ300 |
| Cutting width (mm) | 200 | 250 | 300 |
| Motor power (KW) | 7.5kw x 2 | 7.5kw x 2 | 7.5kw x 2 |
| Feeding | Frequency variable auto feeding | ||
| Circular blade diameter (mm) | 300 | 355 | 405 |
| Weight (kg) | 200 | 220 | 250 |
We can also do bigger model as customer needs .
Photos :
Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light and moves at the same time .
Technical data :
| Technical parameters | EG600A |
| cutting max. width | 600mm |
| cutting min. width | 50mm |
| sawn max. thickness | 70mm |
| sawn min. thickness | 10mm |
| Blade | 2*350mm |
| Feeding method | Automatic feeding conveyor |
| Feed Rate | 20-25m/ minute |
| Power | 15KW electric motor |
| Positioning | Infrared line |
| Machine weight | 800KG |
|
Remarks: |
|
Photos:
