Twin Vertical Electric Band Saw Log Cutting Saw Machine,Vertical band saw sawmill machine
Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· Block 100% Square
· High-production continuous feed system.
· Production up to 4,000 m³ per month.
· Highly efficient use of wood, with the thinnest kerf on the market.
· Motorization and automatic electric panel included.
· Automatic feeding, inverter speed adjustable .
Technical data :
| Model | SLSP400 |
| Maximum log diameter | 400mm |
| Minimum log diameter | 100mm |
| Wood length | 1000~3000mm |
| Feed speed | 9~25m/min |
| Conveyor length | 7000mm |
| Bandwheel diameter | 700mm |
| Blade width | 50~80mm |
| Saw motor | 18.5KW X 2 |
| Feed motor | 5.5kw |
| Weight | 2500kg |
Deatiled Image
Related Saw Machine
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |

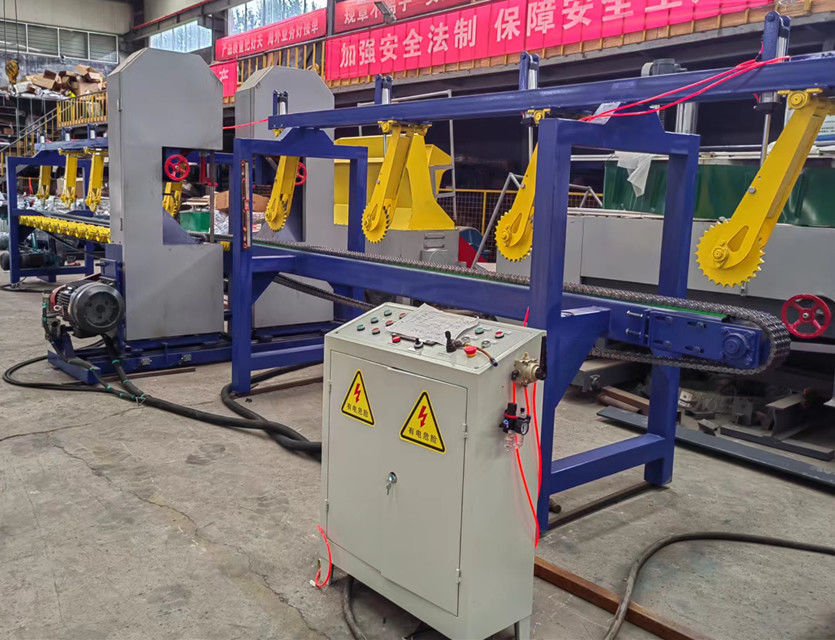

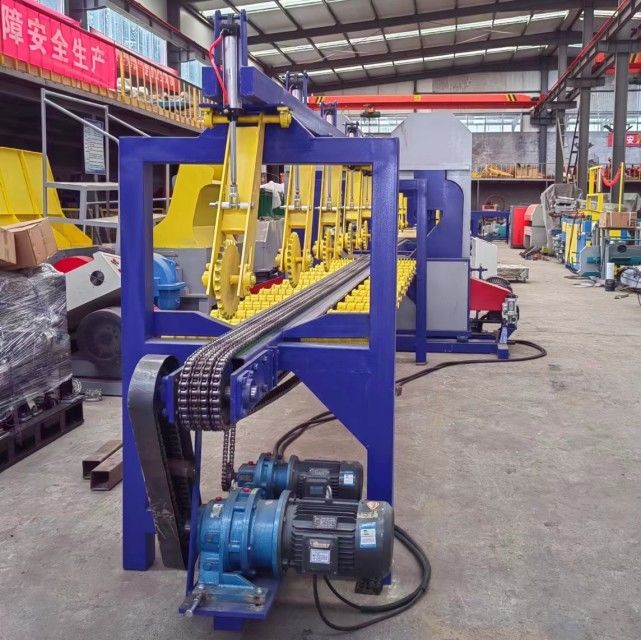

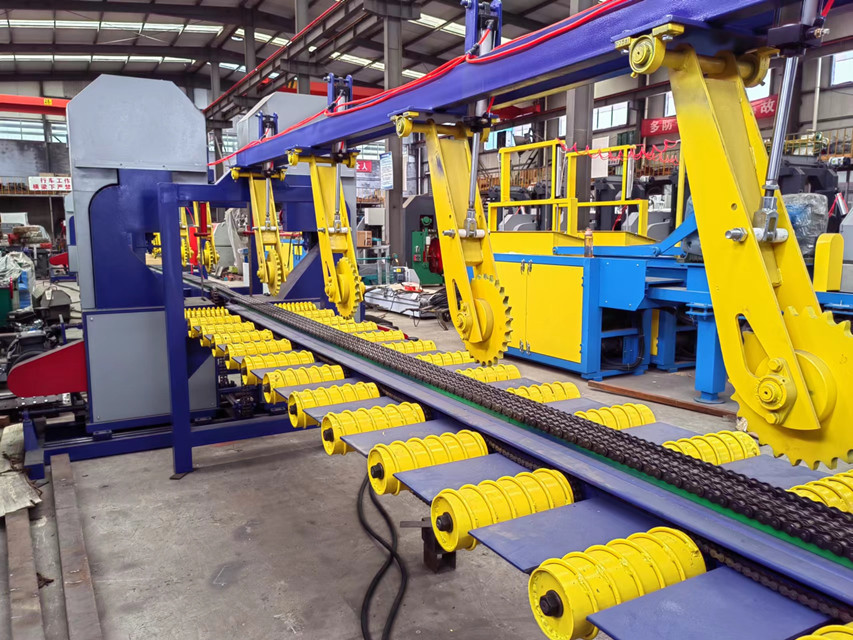

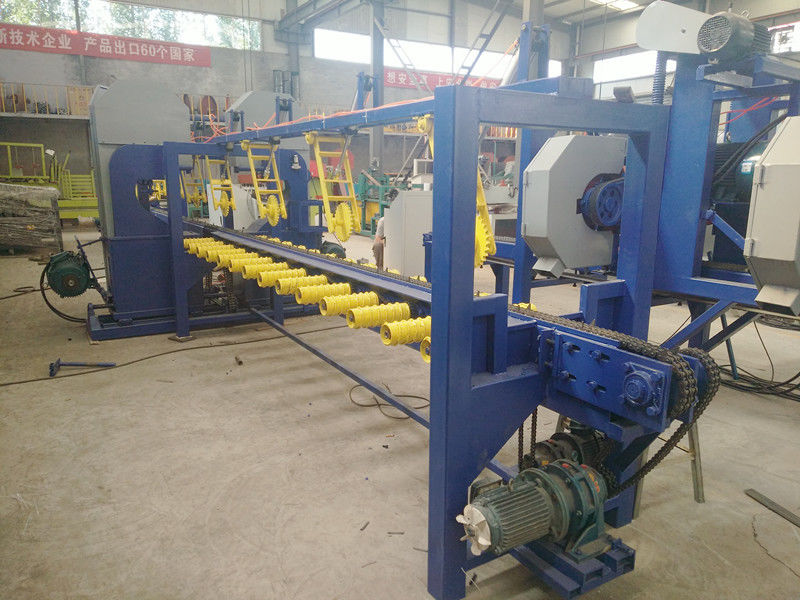

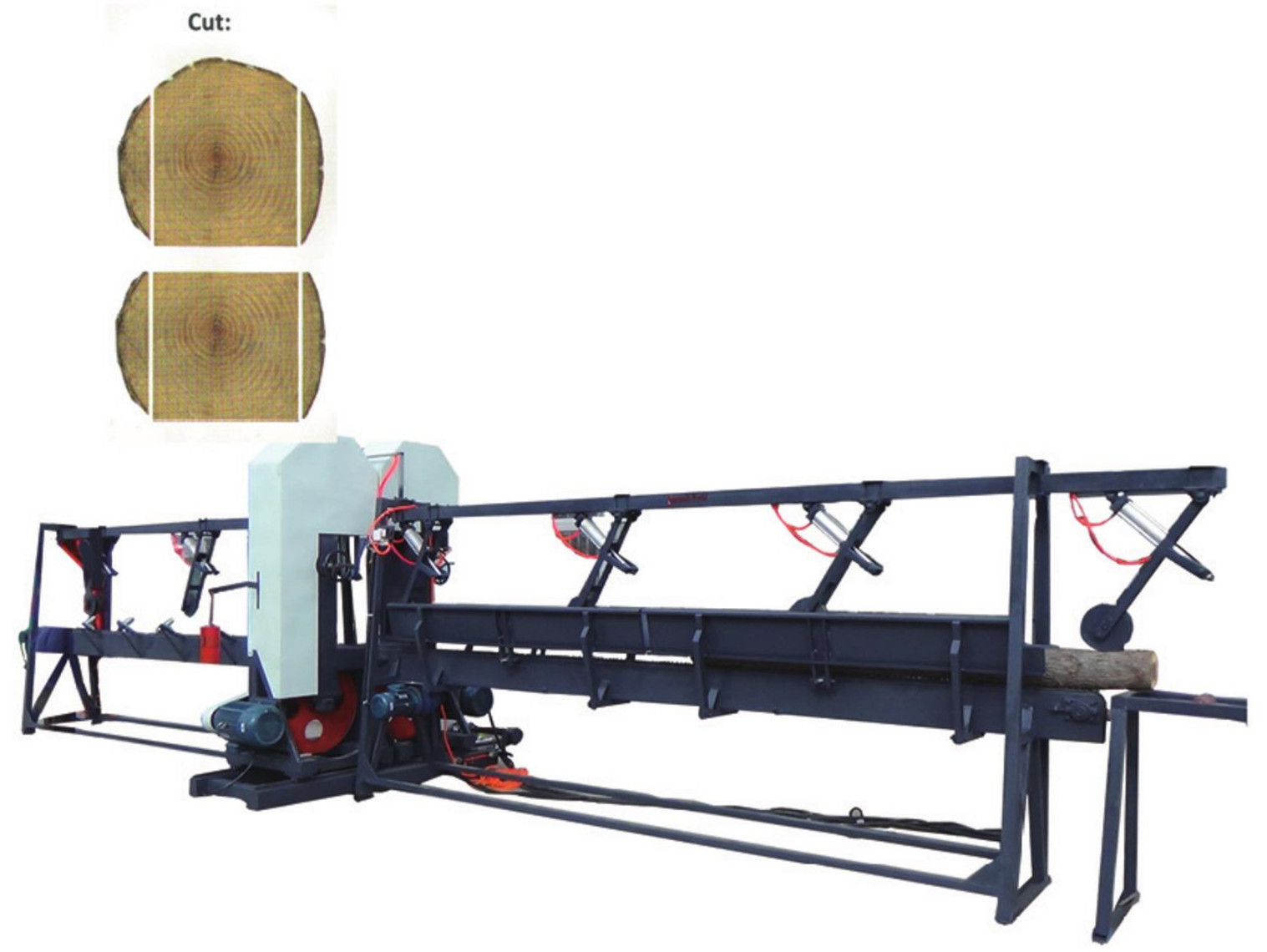

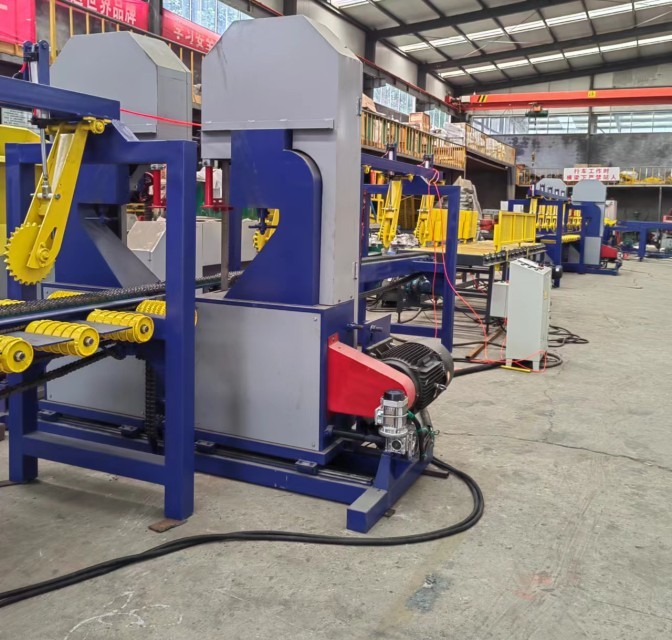

Photos
Optional - slabs slope conveyor
Optional - log loading deck
Optional -Roller conveyor
