Wood Pallet Crusher/Wood Pallet Shredder/industrial shredder for wood pallet
Wood Pallet Crusher
Technical data
| Model | SHTF1350 |
| Feeding Inlet | 1350*230mm |
| Blade Shaft Diameter | 450mm |
| Blade Quantity | 36 |
| Motor Power | 37KW |
| Conveyor belt length | 3000mm |
| Production Capacity | 60 Pallets/Hour |
| Weight | 3200KG |
|
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor |
|

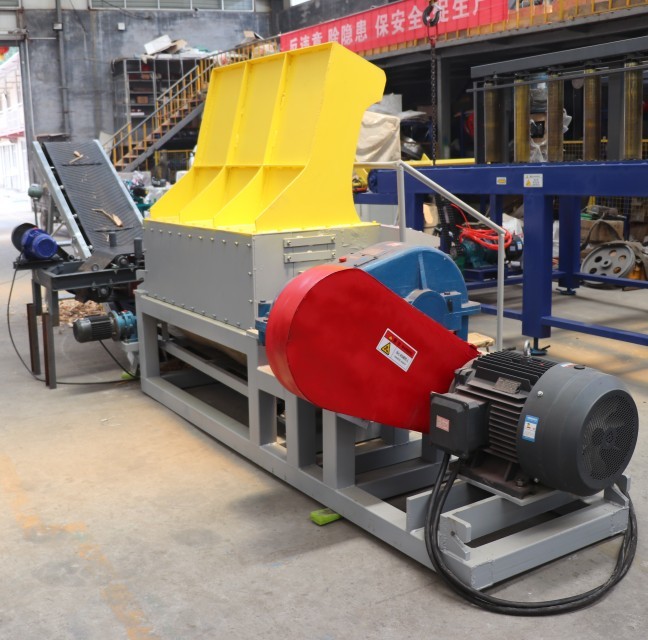

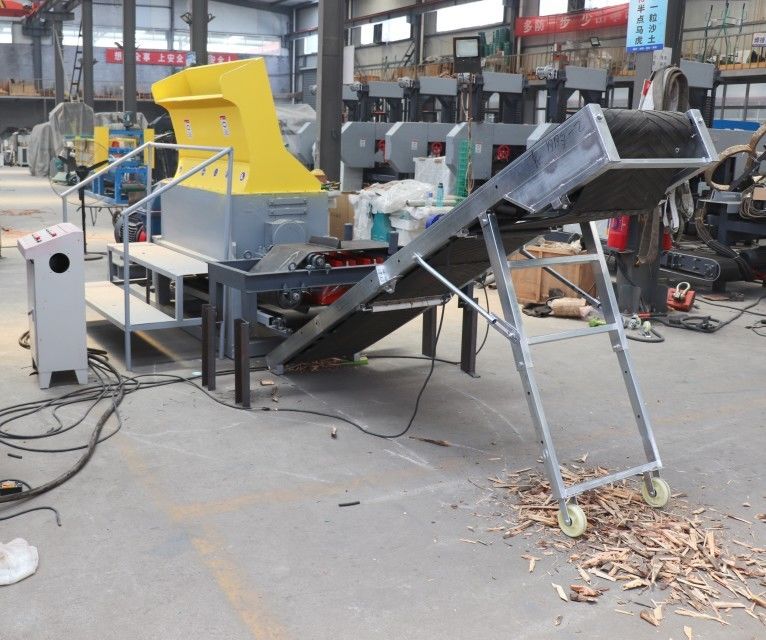

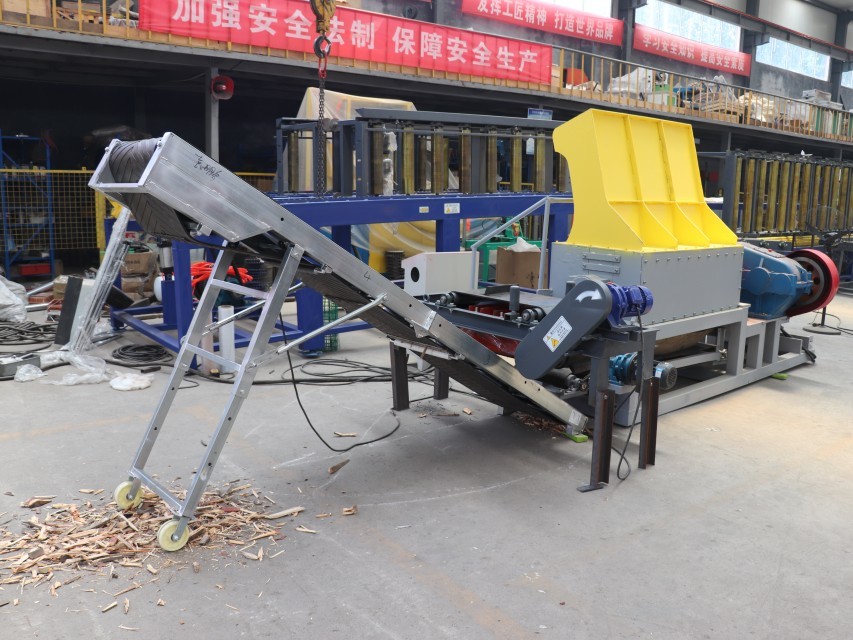

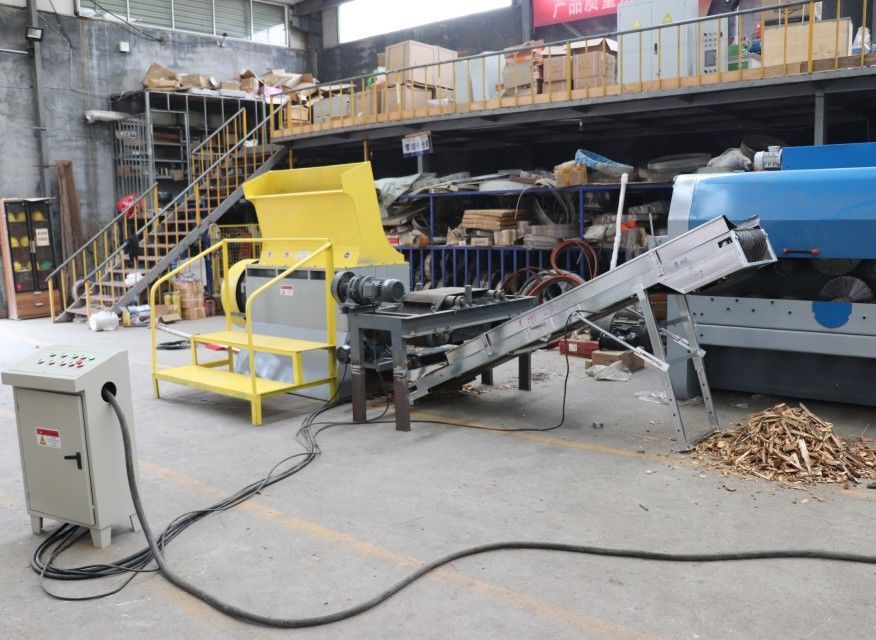

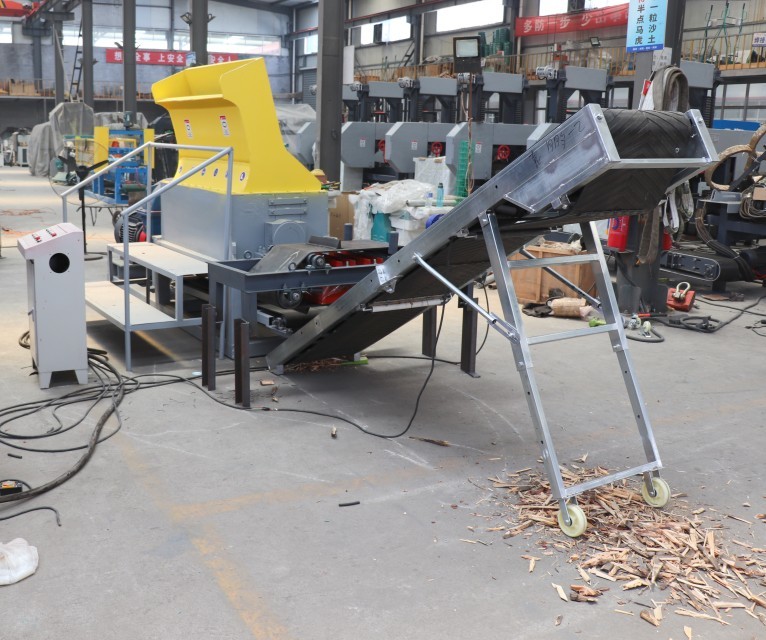

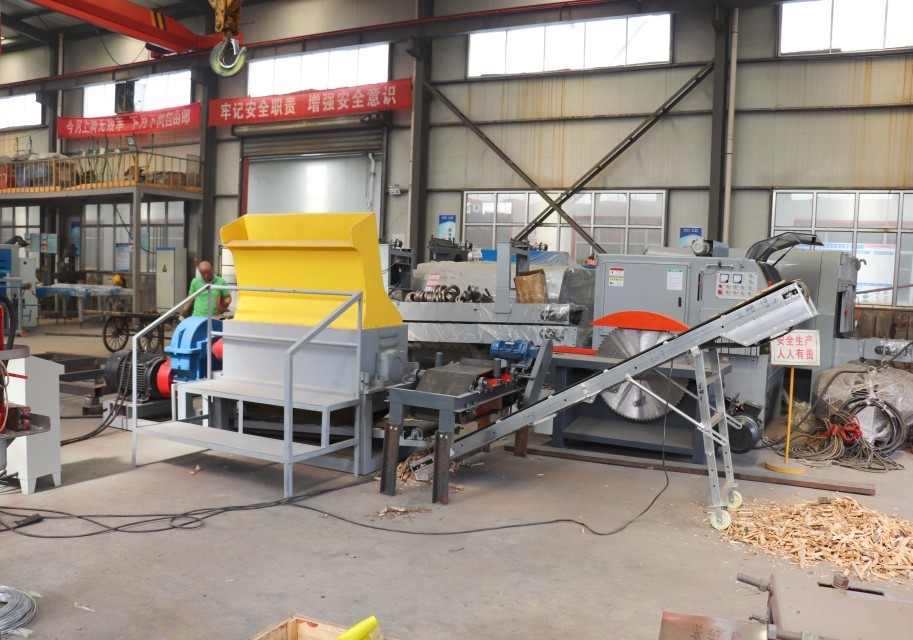

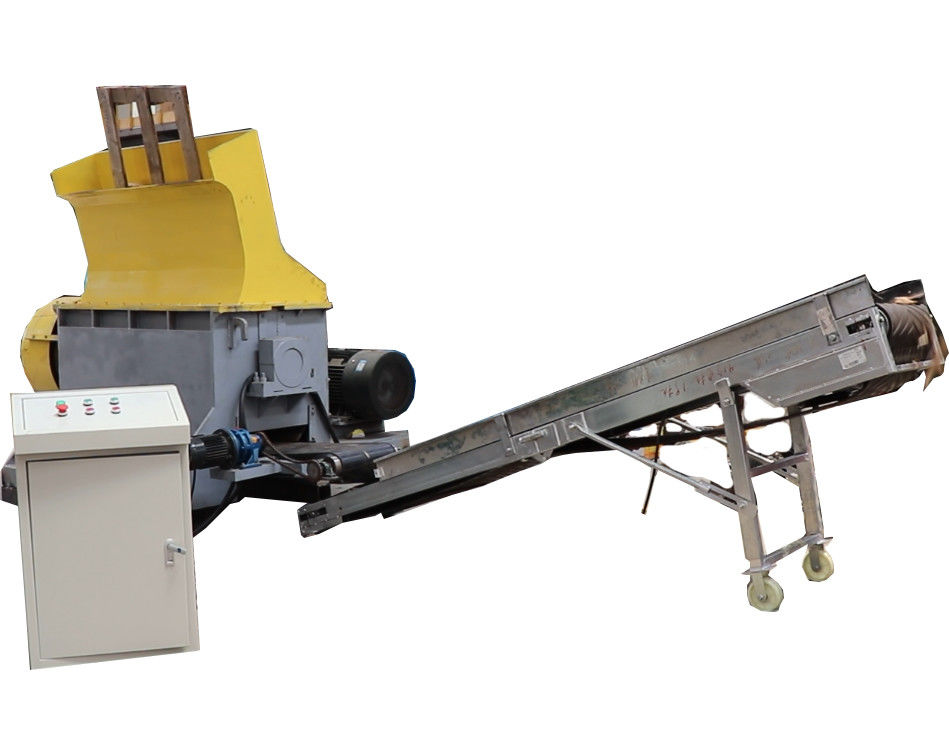

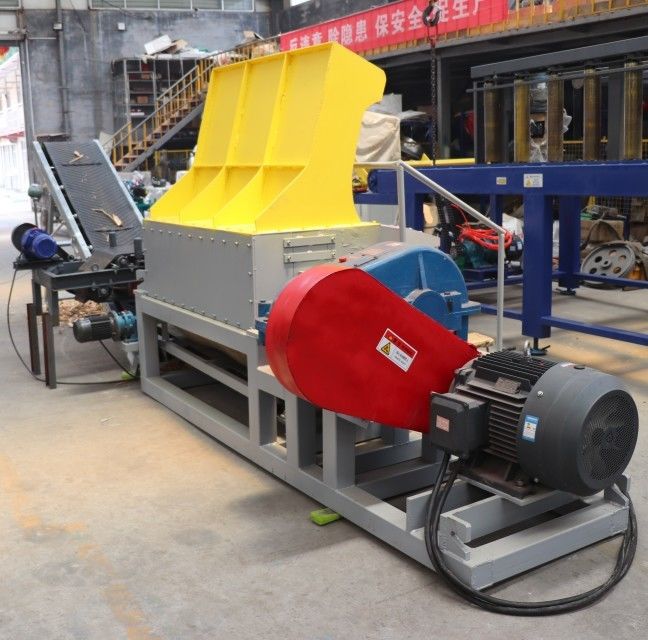

Detailed Image
Optional -magnetic machine
Roller and blades
Wood Chippers
Export Pallet Packing
Related Products
Heavy Duty Wood Composite Crusher
| Model | SH 800-500 | SH 1300-600 | SH 1600-600 |
| Feeding Inlet | 800*500mm | 1300*600mm | 1600*600mm |
| Blade Roller Diameter | 850mm | 850mm | 850mm |
| Blade Roller Speed | 850RPM | ||
| Capacity | 10-15tons/hour | 15-20tons/hour | 25-30tons/hour |
| YG8 Hammer Blade Quantity | 16pcs | 20pcs | 28pcs |
| Knife Blade Quantity | 2groups/4pcs | ||
| Max. Processing Wood Diameter | 300mm | 450mm | 450mm |
| Motor Power | 110kw | 160kw | 250kw |
| Wood Chipper Size | 20-40cm(Custmized) | ||
| Working Life of the Hammer Blades | 4000T-5000T | ||
STUMP CRUSHER
Specification:
| Technical data | Model SH3600-1600 |
| Blade shaft size | 1600x850mm |
| Rotor diameter | 800mm |
| Blade quantity | 4 |
| Main motor power | 185KW |
| Feeding inlet diameter | 3600mm |
| Out feed conveyor | 12meters |
| Capacity | 25-30Ton/Hour |
| Weight | 18000kg |
Wooden Pallet Dismanling Sawmill/Pallet Dismantler
Model |
TP1400 |
Working Table Length |
1700mm |
Horizontal table width |
1400mm |
Cutting Thickness |
5mm-150mm |
Saw Wheel Diameter |
600mm |
Motor Power |
7.5KW |
Processing Pallet Efficiecy |
40-60 pcs/min |
Band Saw Blade Size |
USA Blade 6850*41*1.3 mm |
Overall Size |
3300*1500*1500mm |
| Weight | 800KG |
Detailed Image
Optional : protective cover
Optional : also make machine as customer needs
Wood Powder/Sawdust Machine
|
Feeding inlet width |
1200MM |
|
Blade quantity |
84PCS |
|
Knife stick speed |
1850R/M |
|
Raw materials size |
20-50MM |
|
Main motor |
160KW |
|
Capacity |
5 Tons/Hour |
|
High pressure fan |
22KW |
|
motor of discharge machine |
4KW |
|
Feeding system |
1set,5.5KW,With strong magnetic stick |
|
Discharging system |
1set,5.5KW |
|
Bag dust collection |
1 unit(40bags, with Supports and pipes) |
|
Sacron Cyclone Dust Collector |
1unit(1200MM dia., with Supports and pipes) |
|
With Soft start inverter integrated control cabinet |
|
