Name: Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine
Brand: Weifang Jiuyi Information technology co., LTD
SKU: PQ1300-4
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Pallet Angle Cutting Machine

Condition: New

Voltage: 380v/3ph/50hz Or As Customer Needs

Power(w): 8.8KW

Color: Customer's Request

Processing Size: 800-1300mm

Circular Saw Blade Diameter: 300mm

Control Mode: Pallet Machine Production Line Integrated Supporting

After-sales Service Provided: Commissioning And Training

Warranty: 1 Year

Highlight:

Pallet angle cutting machine

Pallet Corner Cutting Machine

European Wooden Pallet Machine

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: PQ1300-4

Payment & Shipping Terms

Packaging Details: export packing or film wrapped container loading

Delivery Time: within 15 days

Payment Terms: T/T, Western Union

Supply Ability: 1500sets/year of Pallet angle cutting machine

Gallery

Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine

Product Description

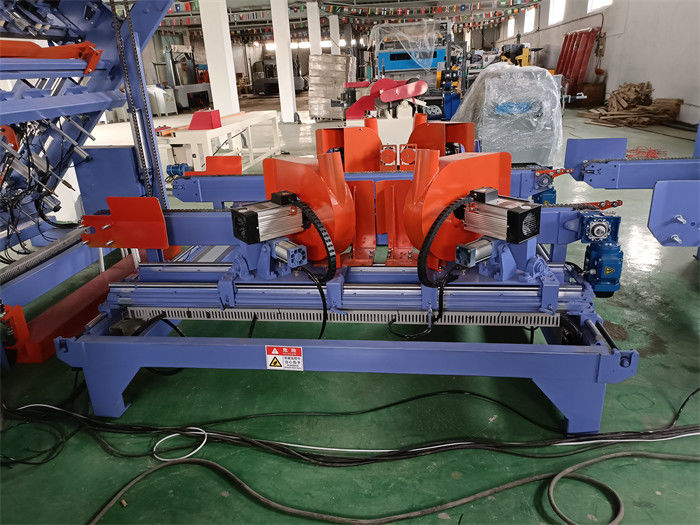

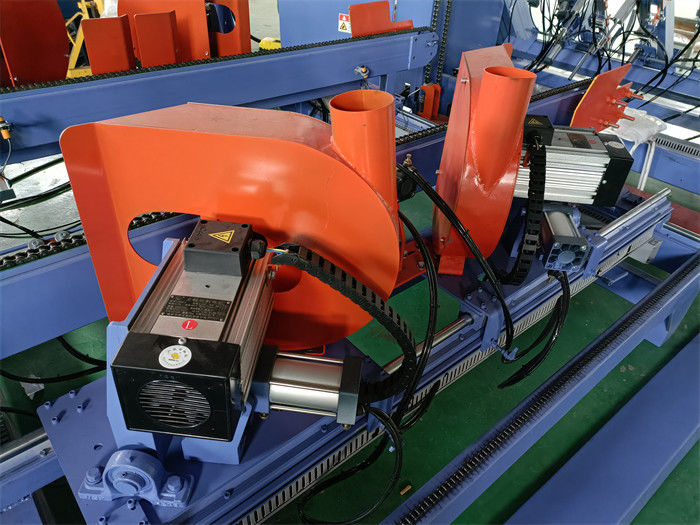

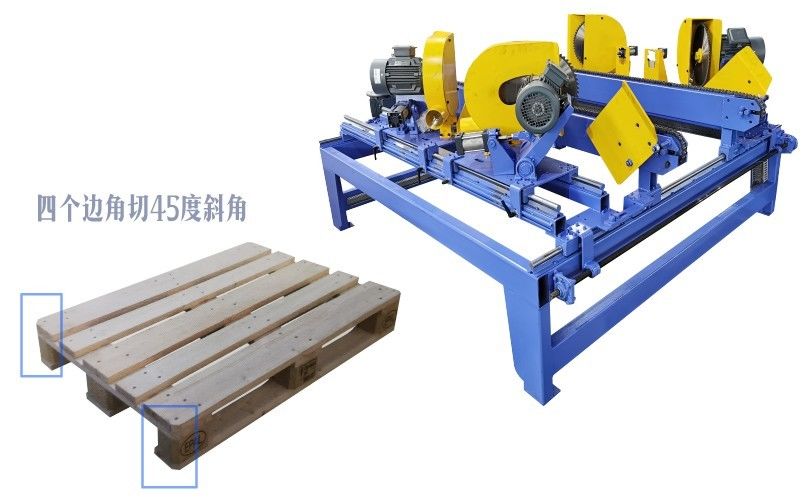

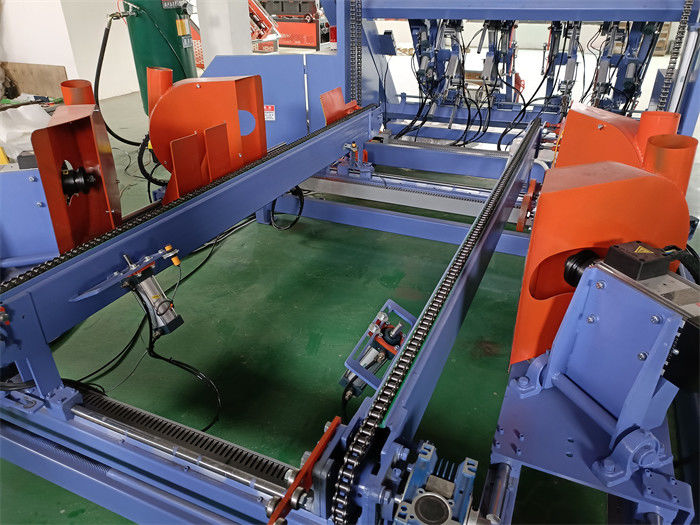

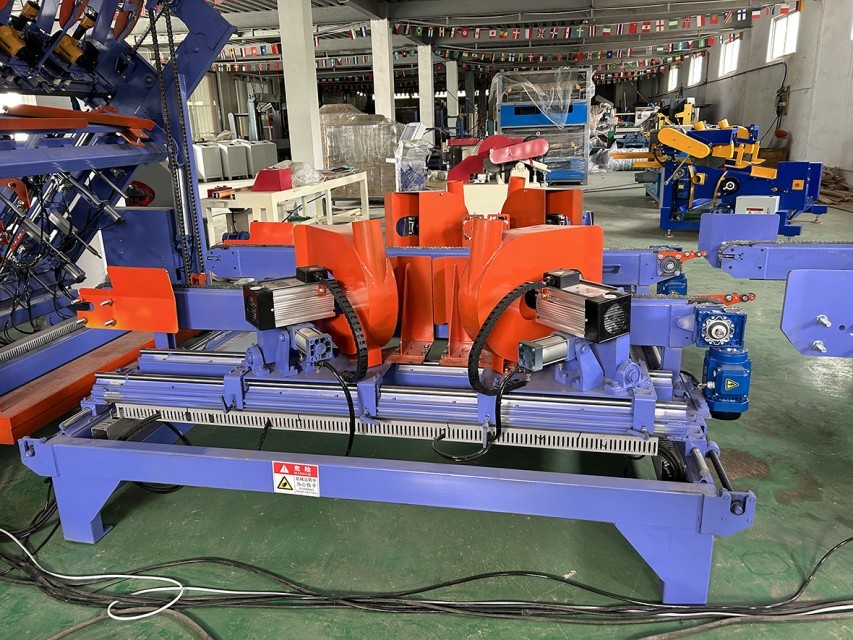

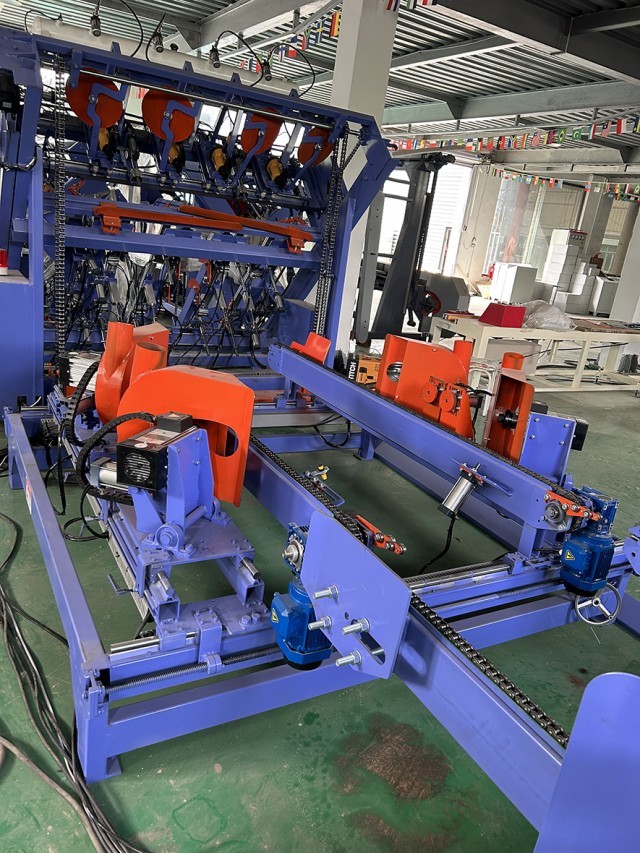

Pallet angle cutting machine

Technical data

Model	PQ1300-4
Processing size	800-1300mm
Circular saw blade diameter	300mm
Air pressure	0.8MPA
Speed	2900R/Min
Motor power	8.8KW
Control Mode	Pallet machine production line integrated supporting
Voltage	380V(Customized)
Operating mode	Touch screen
Production mode	Automatic feed/automatic Angle cutting
Machine size	270022001200mm


Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 0

Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 1

Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 2

Wood pallet storage platform

Technica data

Model	CL-3000	CL-4000
custom length	3000mm	4000mm
Table Length	1600mm
Operating speed	5-6m/min
Motor power	2.2KW
Control mode	Pallet machine production line integrated supporting
Voltage	380V(Customized)
Production mode	Feeding pallet machine automatic line


Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 3

Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 4

Related Machine

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation

-- Manual Feeding,Automatic Nailing and Automatic Stacking

-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.

-- After the nailing process,The pallets are turned over to the stacking platform automatically.

-- Convenient for forklift transport.

-- Save time and space.

-- Technical data

Model	AWPN-1300
Wood pallet length	600-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	220V/ 2kw Servo motor
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production efficiency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Weight	2000kg

Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 5

Euro Pallet Automatic Wood Pallet Making Line

Wood Pallet Machine Pallet Corner Cutting Machine, European Wooden Pallet Machine Pallet Angle Cutting Machine 7
