Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw

1 SET Heavy duty multi-head cutting saw
MOQ
USD2800-6900/SET
Price
Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Heavy Duty Multi-head Cutting Saw
Max. Sawing Height: 10 -120mm
Max. Sawing Length: 6000mm
Circular Blade Diameter: 450mm
Main Motor Power: 7.5kW*5 ,0.75kW*2
Blades Quantity: 3pcs, 4pcs, 5pcs
Capacity: 200m³/8h
Cutting Length: Adjusable
Guarantee: 1 Year
After-sales Service: Video Technical Support, Spare Parts
Highlight:

Multi Head Wood Cross Cut Saw

,

5heads Wood Cross cut saw

,

Multi Head Cut Off Saw
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: PE-40003,PE-50004,PE-60005
Payment & Shipping Terms
Packaging Details: wooden pallet or iron frame packing
Delivery Time: within 10 days
Payment Terms: T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Product Description

Multi end trim saw, Trim Saws for wood panels multiple rip saw machine

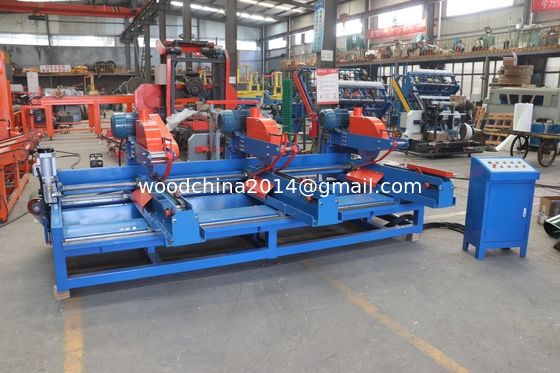

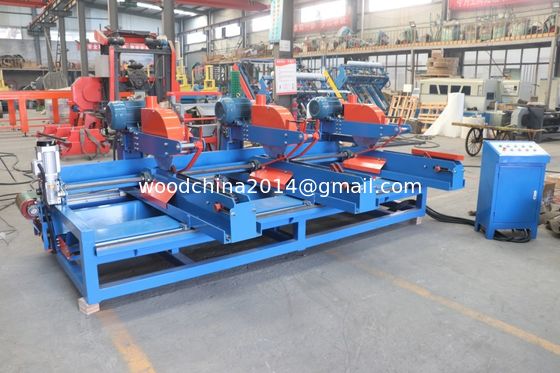

Heavy duty multi-head cutting saw

  • Technical data
Model PE-40003 PE-50004 PE-60005
Cutting Length 600-4000mm 600-5000mm 600-6000mm
Cutting Thickness 10-120mm 10-120mm 10-120mm
Cutting Width 10-400mm 10-400mm 10-400mm
Saw Diameter 450mm 450mm 450mm
Blade Pieces 3P 4P 5P
Motor

7.5kW*3

0.75kW*2

7.5kW*4

0.75kW*2

7.5kW*5

0.75kW*2
Efficiency 100m³/8h 150m³/8h 200m³/8h
Weight 2000kg 2500kg 3000kg
  • Images

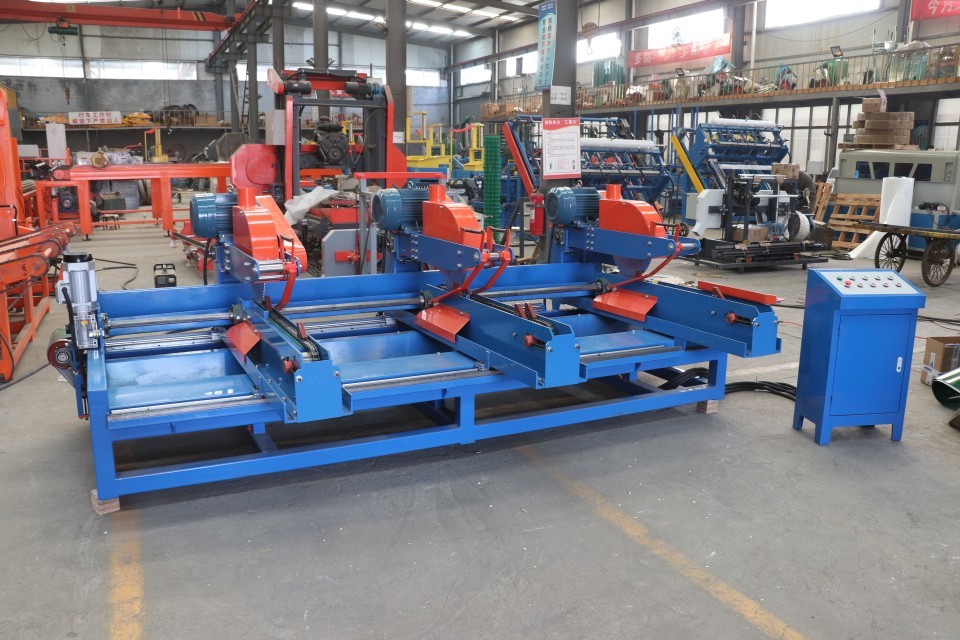

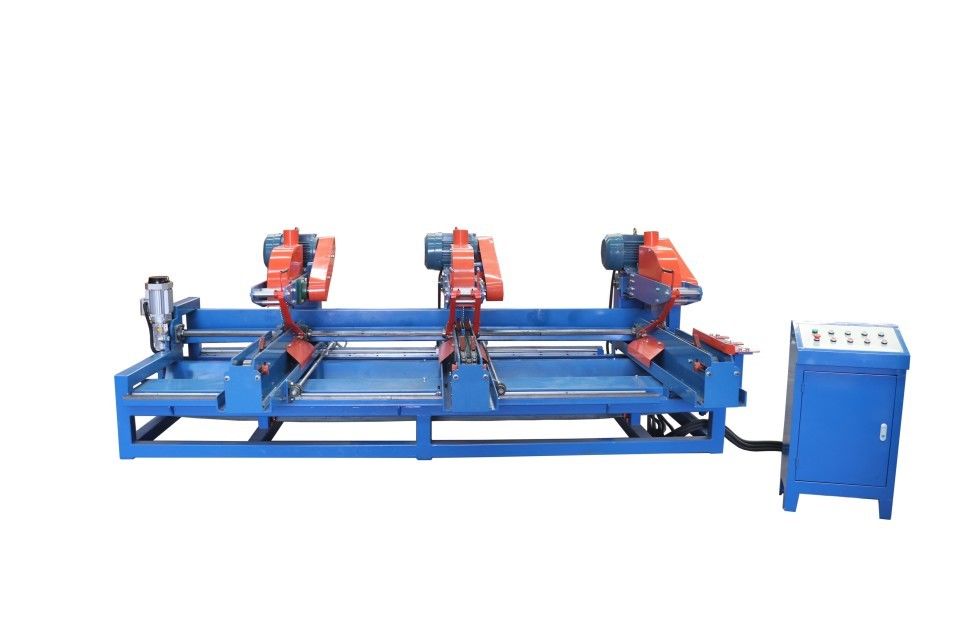

Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 0Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 1

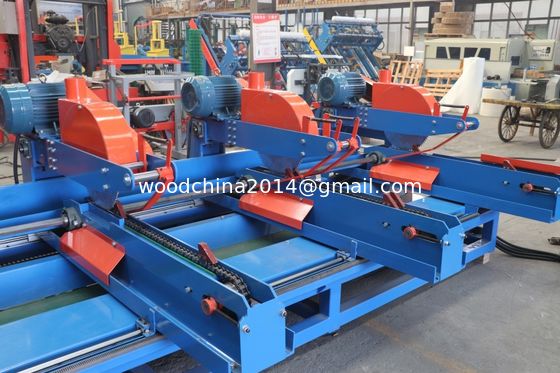

Light Wood Cut Off Trim Off Circular Saw

  • Data
Cutting length 400-1500mm or customized
Cutting thickness 10-120mm or customized
Cutting width 10-400mm or customized
Feeding speed 30m/min, adjustable speed
Saw blade diameter 450mm
Motor 4kw x 2, 0.75kw x 2
Efficiency 2000-3000pcs/hour
  • Images

Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 2Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 3

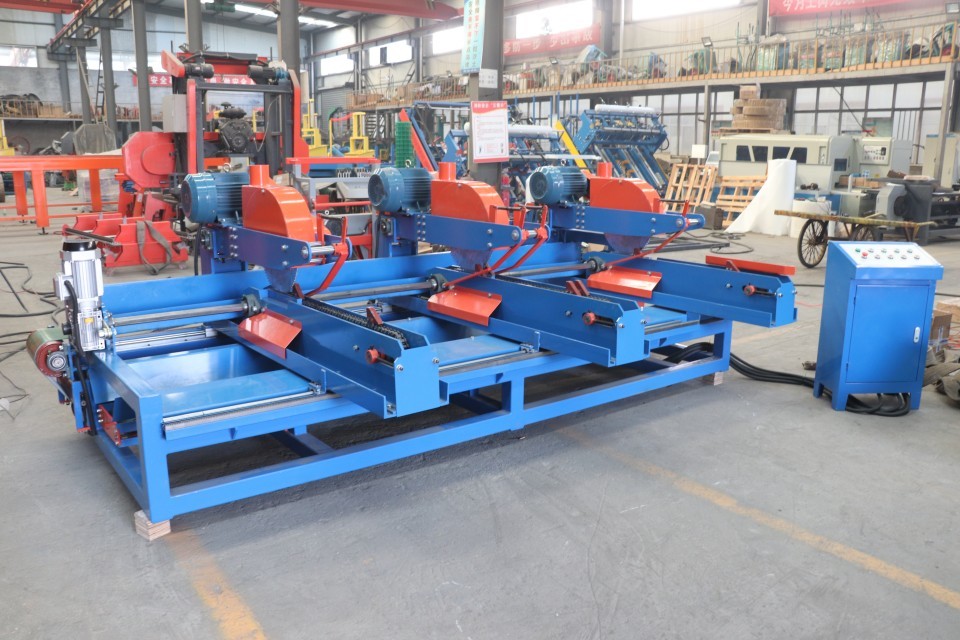

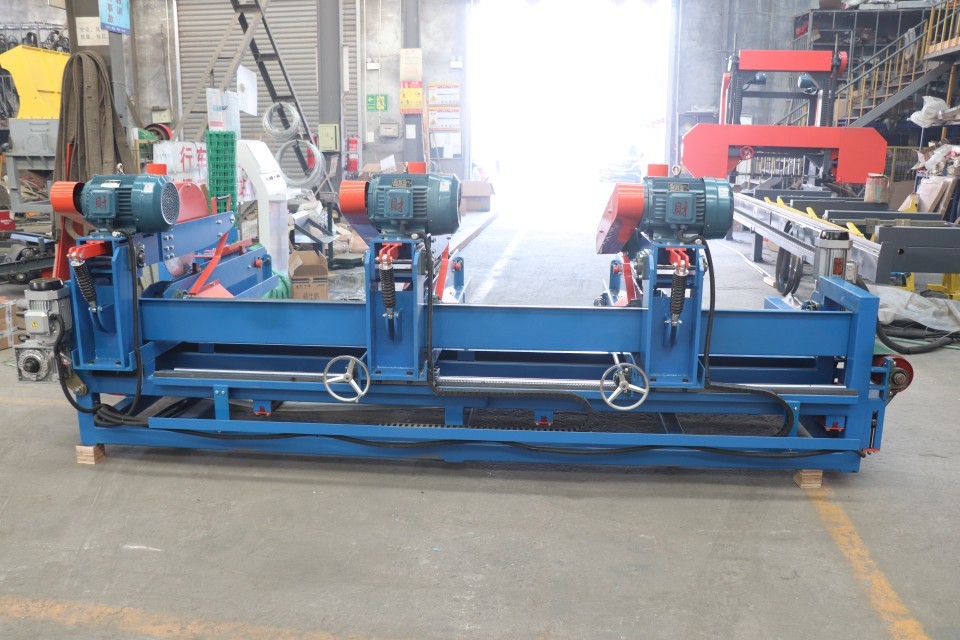

Trim Saw

  • cutting both ends of the panels in same length
  • cutting length is adjustable
  • with auto feeding
  • chain drive

Technical data:



Multi blades cutting off circular saw - Trim Saw
Model QT2000 QT3000 QT4000
Cutting height 100mm 100mm 100mm
Cutting width 2000mm 3000mm 4000mm
Circular blade diameter 300mm 300mm 300mm
Main motor power 3kw x2 3kw x3 3kw x4
weight 620kgs 820kgs 1020kgs
Overall size 3200x1800x1150mm 2200x1800x1150mm 4800x1800x1150mm



Photos:

Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 4

Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 5

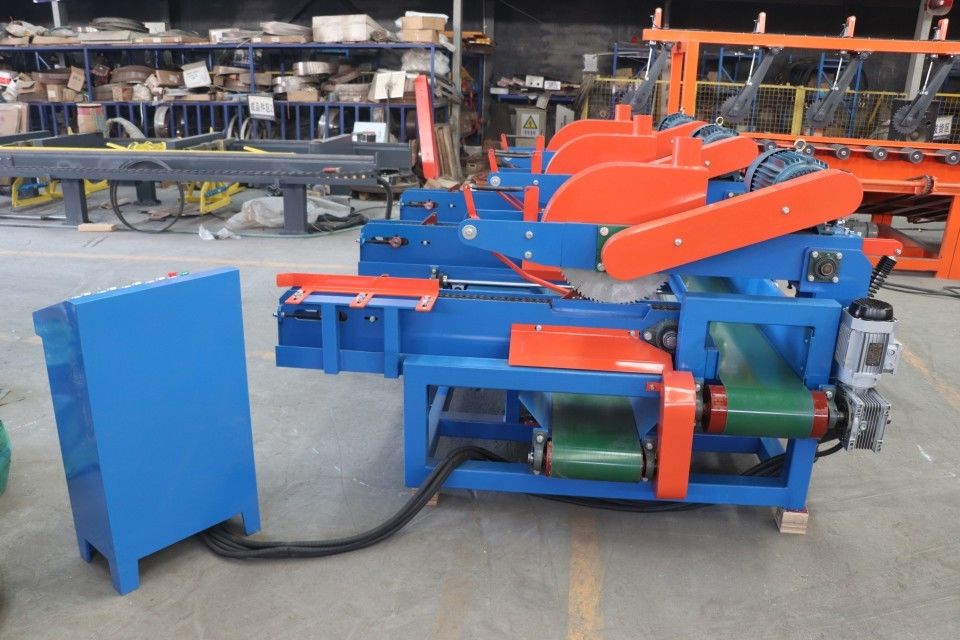

Multi Blades Ripsaw for Planks/Lumber Cutting

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness



Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model
SH60-300
SH80-300
SH100-300
SH120-300
SH150-300
Max. Sawing width
250-300mm
250-300mm
250-300mm
250-300mm
250-300mm
Max. Sawing thickness
60mm
30-80mm
40-100mm
50-120mm
60-150mm
Motor
18.5KW/22KW
22KW*2
22KW*2
22KW*2
30KW*2
Saw Blade Diameter
150MM
180mm
210mm
230mm
255mm
Spindle Diameter
50mm
50mm
50mm
50mm
50mm
Weight
1190kg
1260kg
1420kg
1560kg
1620kg



Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 6Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 7

Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 8

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Sawing width
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
Sawing thickness
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Saw Blade Diameter
180MM
230mm
255mm
230mm
280mm
280mm
380mm
Spindle Diameter
70mm
70mm
70mm
80mm
80mm
80mm
100mm
Weight
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg



Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 9Multi Head Wood Cross Cut Saw Multi blade Gang Saw Heavy Duty 3/4/5 Heads Multi Head Cut Off Saw 10
