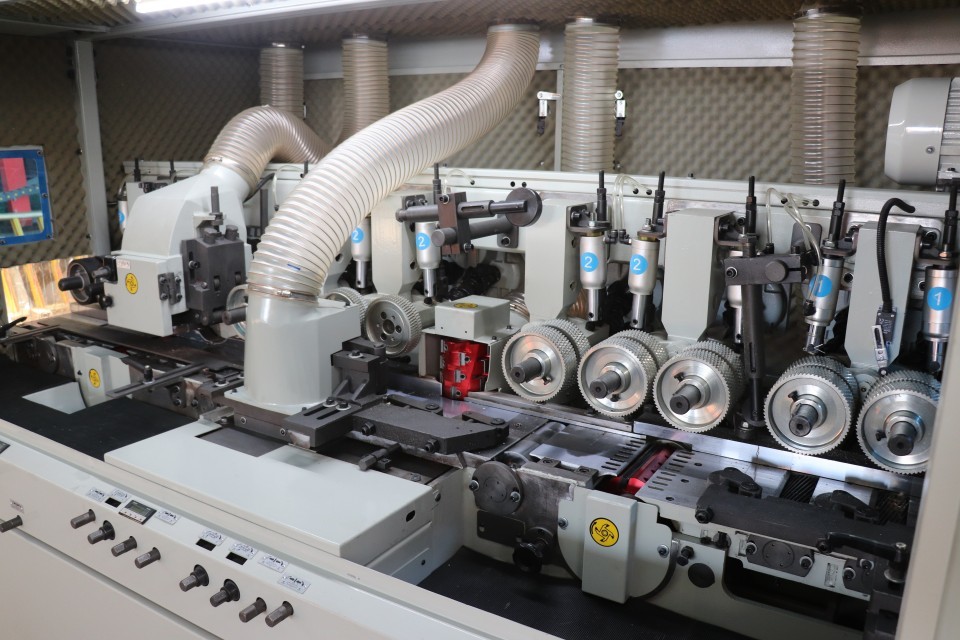

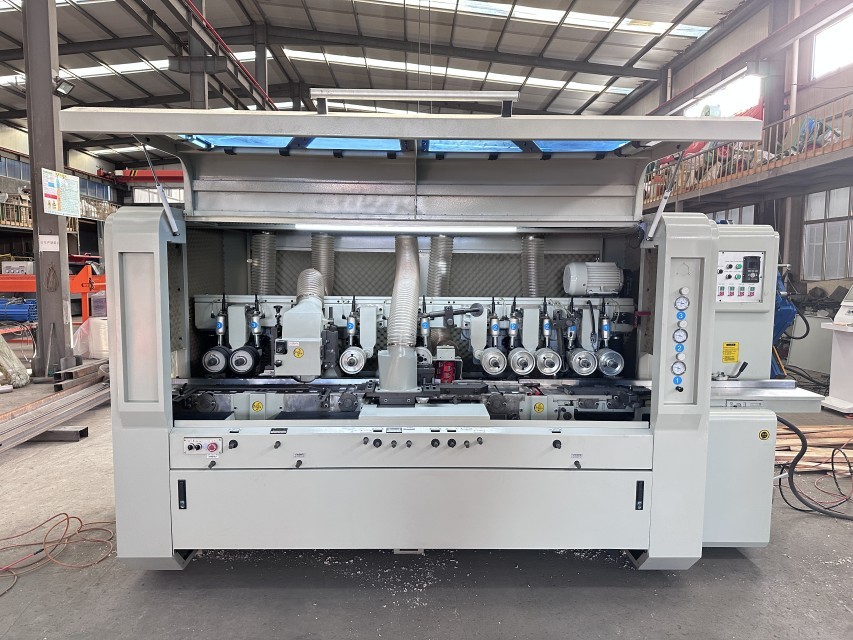

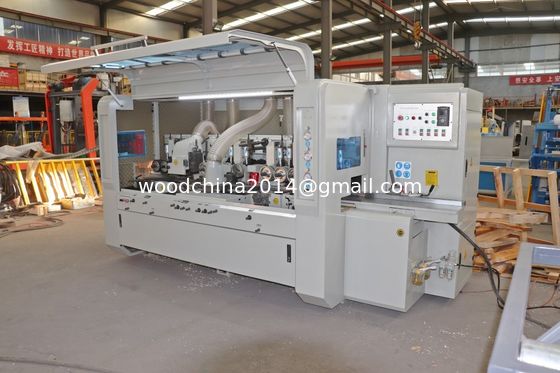

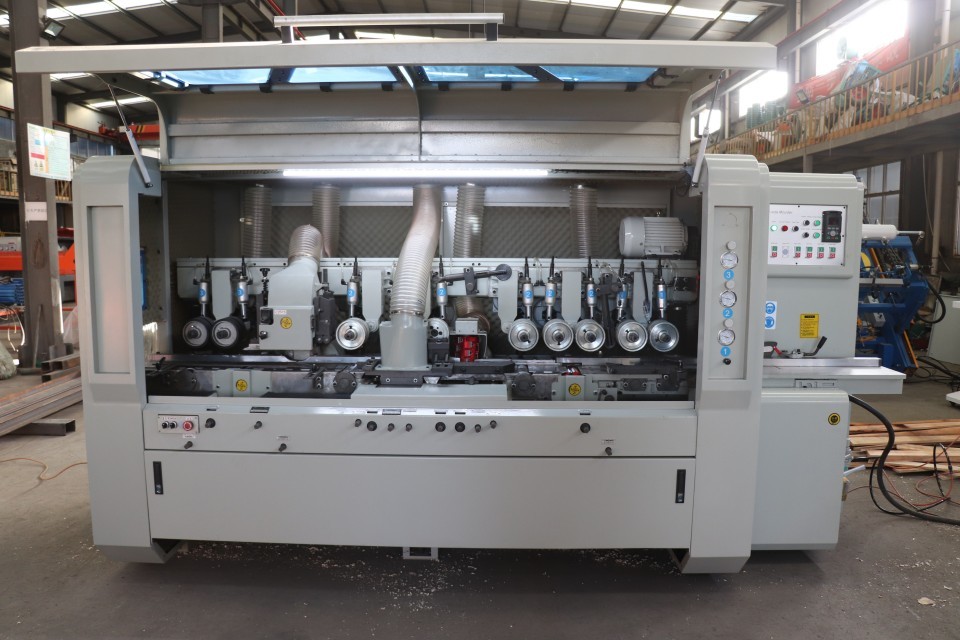

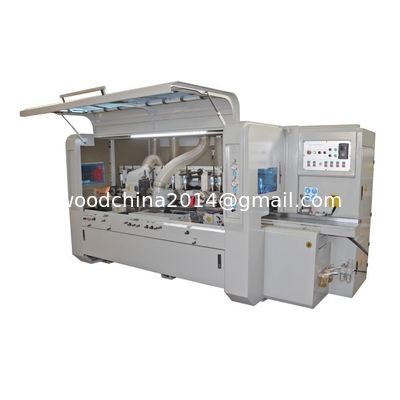

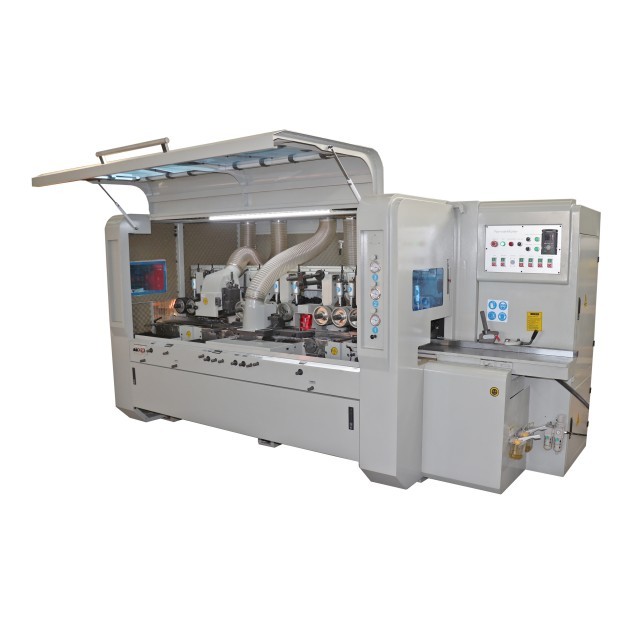

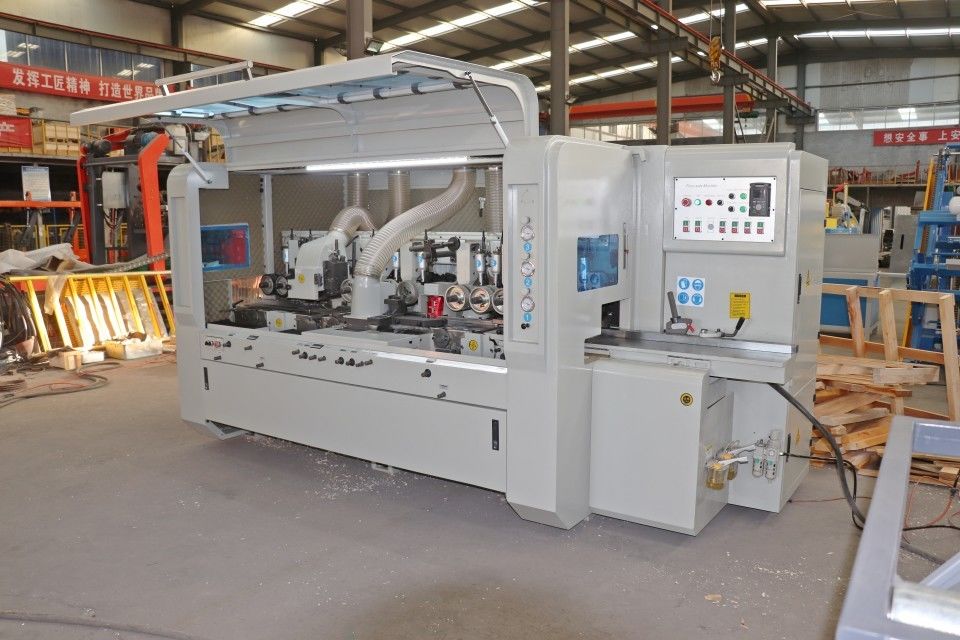

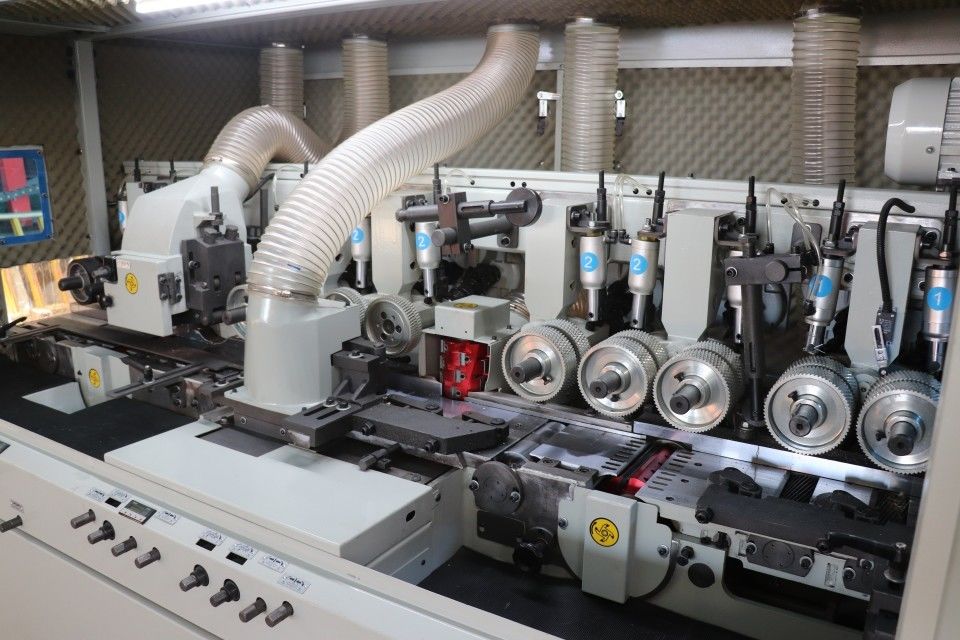

The 4 side planer is an outstanding wood planer machine designed for high precision and efficiency in the woodworking industry. With a robust weight of 4200kg, this machine provides a stable and sturdy platform for a variety of planing tasks. The planer for wood is engineered to cater to the needs of both small-scale woodshops and large production lines, offering flexibility and reliability in wood processing.
| Model | SH-423 | SH-523 | SH-623 |
| Working Width | 25-230mm | 25-230mm | 25-230mm |
| Working Thickness | 8-160mm | 8-160mm | 8-160mm |
| In-Feed-Table Length | 1970mm | 1970mm | 1970mm |
| Feeding Speed | 6-36m/min | 6-36m/min | 6-36m/min |
| Spindle Diameter | φ40 | φ40 | φ40 |
| Spindle Revolution Speed | 6200r/min | 6200r/min | 6200r/min |
| Air Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 1st Bottom Spindle | 7.5kW/10HP | 7.5kW/10HP | 7.5kW/10HP |
| Right Vertical Spindle | 7.5kW/10HP | 7.5kW/10HP | 7.5kW/10HP |
| Left Vertical Spindle | 7.5kW/10HP | 7.5kW/10HP | 7.5kW/10HP |
| 1st Top Spindle | 11kW/15HP | 11kW/15HP | 11kW/15HP |
| 2st Top Spindle | — | — | 7.5kW/10HP |
| 2nd Bottom Spindle | — | 5.5kW/7.5HP | 5.5kW/7.5HP |
| Top Spindle Lifting | — | — | 0.37kW/0.5HP |
| Feeding Beam Lifting | 0.75kW/1HP | 0.75kW/1HP | 0.75kW/1HP |
| Feeding Motor | 5.5kW/7.5HP | 5.5kW/7.5HP | 5.5kW/7.5HP |
| Total Power | 39.75kW/HP | 47.255kW/64.7HP | 55.12kW/75HP |
| 1st Bottom Spindle | φ125 | φ125 | φ125 |
| Right Vertical Spindle | φ125-φ180 | φ125-φ180 | φ125-φ180 |
| Left Vertical Spindle | φ125-φ180 | φ125-φ180 | φ125-φ180 |
| 1st Top Spindle | φ125-φ180 | φ125-φ180 | φ125-φ180 |
| 2st Top Spindle | — | — | φ125-φ180 |
| 2nd Bottom Spindle | φ125-φ200 | φ125-φ200 | φ125-φ200 |
| Dust Outlet Diameter | φ140 | φ140 | φ140 |
| Overall Dimensions | L3900*W1750*H1940 | L3900*W1750*H1940 | L4400*W1750*H1940 |
| Weight | 4200kg | 4200kg | 4500kg |
Our Wood Planing Machine comes with comprehensive technical support and services designed to ensure optimal performance and longevity of your product. Our support includes:
Installation Guidance: Detailed instructions and support for setting up your wood planing machine for the first time, ensuring you get off to a smooth start.
User Manual: A complete user manual with clear operating instructions, safety guidelines, and maintenance tips to help you get the most out of your machine.
Troubleshooting Assistance: Quick and effective solutions to common issues that might arise during the use of the wood planing machine, minimizing downtime and frustration.
Maintenance Support: Professional advice on how to maintain your wood planing machine to keep it running efficiently and extend its life.
Parts and Service: Information on how to order replacement parts or schedule a service visit if you encounter a problem that requires professional attention.
Warranty Service: Details on the warranty period and what it covers, so you can have peace of mind about your investment.
Software Updates: Notifications and support for any software updates that become available for your wood planing machine, ensuring it stays current with the latest improvements and features.
Our goal is to provide you with the support you need to operate your wood planing machine safely and efficiently, while also optimizing its performance and productivity. For any further assistance, please refer to our contact us section to get in touch with our support team.
