High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

1 SET high speed wood cut off saw
MOQ
US $1,500 - 3,500 / Set
Price
High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Speed Wood Cut Off Saw Machine
Max Cutting Width: 520mm
Max. Cutting Thickness: 200mm, Width 190mm
Saw Blade Diameter: 400MM, 600MM
Motor Power: 5.5KW, 7.5KW
Weight: 300KG, 550KG
Overall Dimension: 2900*930*1100MM,4250*1150*1300MM
Warranty: 1 Year
After-sales Service: Video Technical Support, Spare Parts
Cutomize: Yes
Highlight:

Automatic Wood Cut Off Saw

,

High Speed Wood Cut Off Saw

,

Timber Wood Cut Off Saw
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SH300,SH500, SH520
Payment & Shipping Terms
Packaging Details: container loading of high speed wood cut off saw
Delivery Time: within 20 days
Payment Terms: T/T, Western Union
Supply Ability: 1500sets/year
Product Description

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

High Speed Wood Cut Off Saw
  • Technical data
Model SH300 SH500 MJ520
Max Cutting Width 300mm 500mm 520mm(200mm)
Max Cutting Thickness 40mm 70mm 50mm(190mm)
Saw Blade Size 400mm 400mm 600mm
Motor Power 4KW 5.5kw 7.5kw
Saw Spindle Speed 2840r/min 1850r/min 1850r/min
Feeding Conveyor 1000*640mm 1000*640mm 1200*660mm
Outfeeding Conveyor 1000*640mm 1200*660mm 1000*640mm
  • Detailed Image

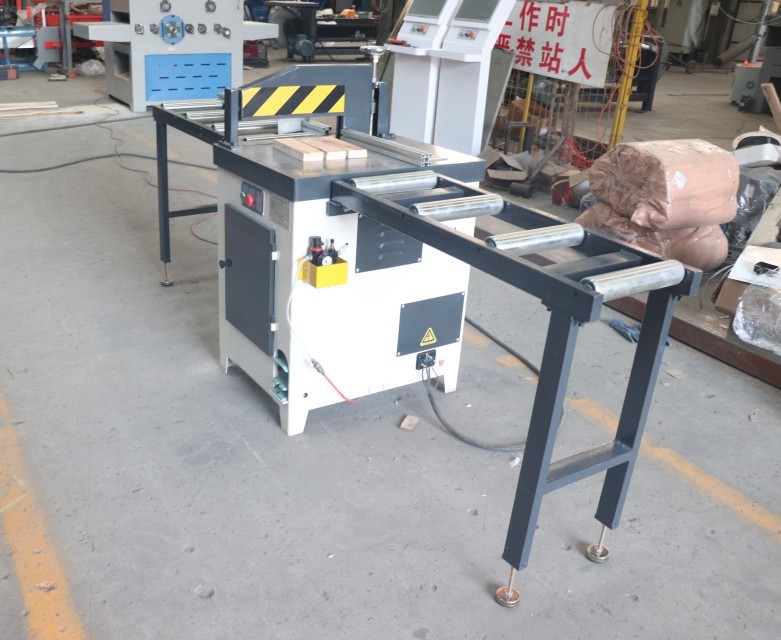

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 0

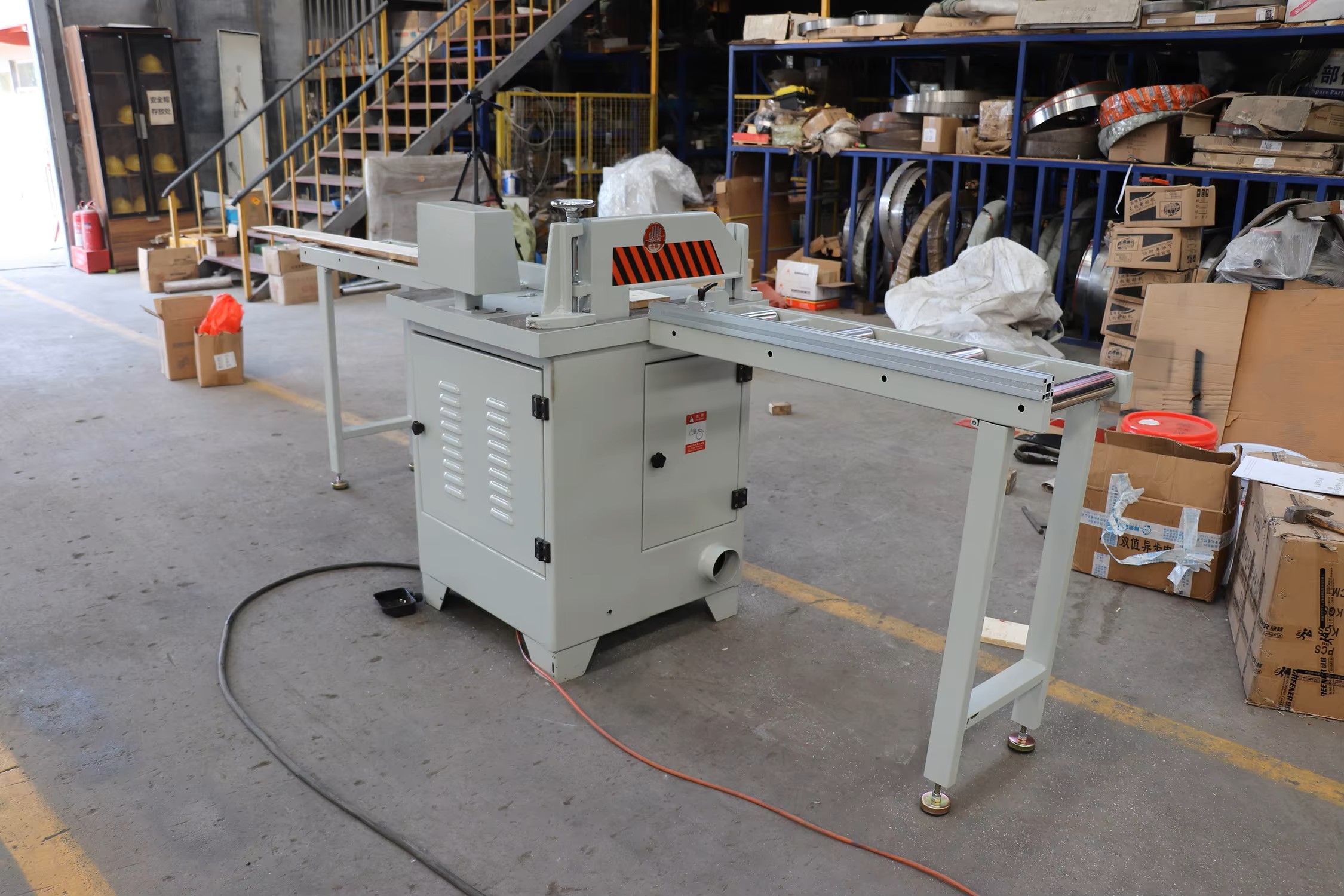

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 1


Automatic Wood Cut Off Saw Machine



Model
DZ-450
DZ-600
Saw Blade diameter
450mm*30mm
600mm*30mm
Feeding table length
2m/ 4m/ 6m
2m/ 4m/ 6m
Discharge table length
1200mm
1200mm
Cutting height
10-120mm
10-140mm
Cutting width
30- 200mm
30- 300mm
Cutting section thickness*width
Max. 120*150mm,100*200mm
Max.120*300mm,140*280mm
Feeding speed
5-30m/min
5-30m/min
Cutting speed
40pcs/min
45pcs/min
Cutter spindle rotation speed
3000rpm
3000rpm
Servo drive motor power
0.75kw
1kw
Cutting motor power
7.5kw/11HP
11kw/15HP
Total power
8.5kw
12.5kw
Pressing method
Cylinder, 0.5-0.7Mpa
Cylinder, 0.5-0.7Mpa
Cutting tolerance
In +/-1mm
In +/-1mm
Dust collection port
100mm*2pc
100mm*2pc
Electrical components
Schneider
Schneider
PLC Touching screen
Siemens
Siemens
Voltage
380v 50Hz 3 phase
380v 50Hz 3 phase

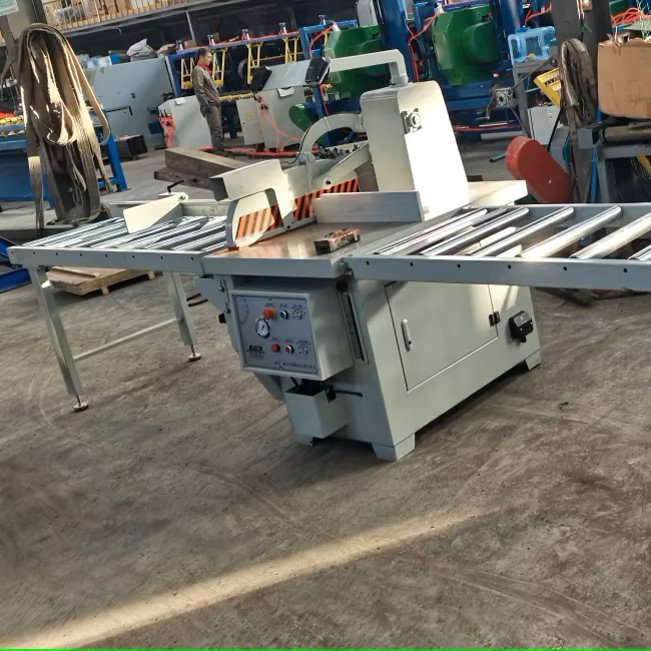

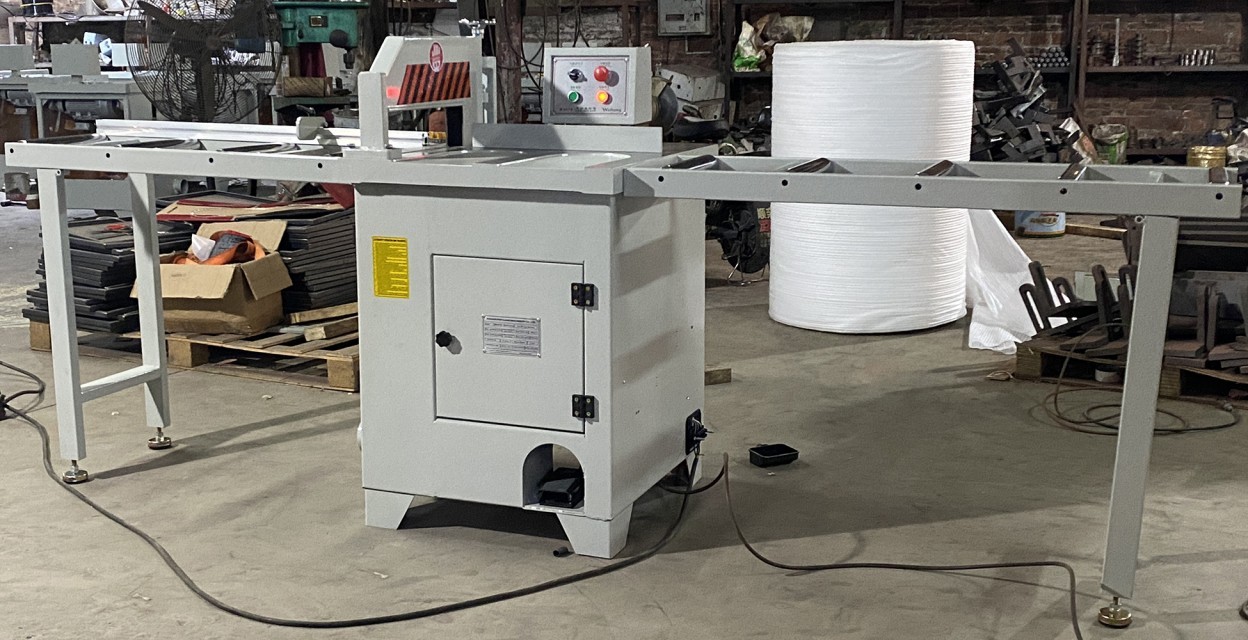

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 2High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 3

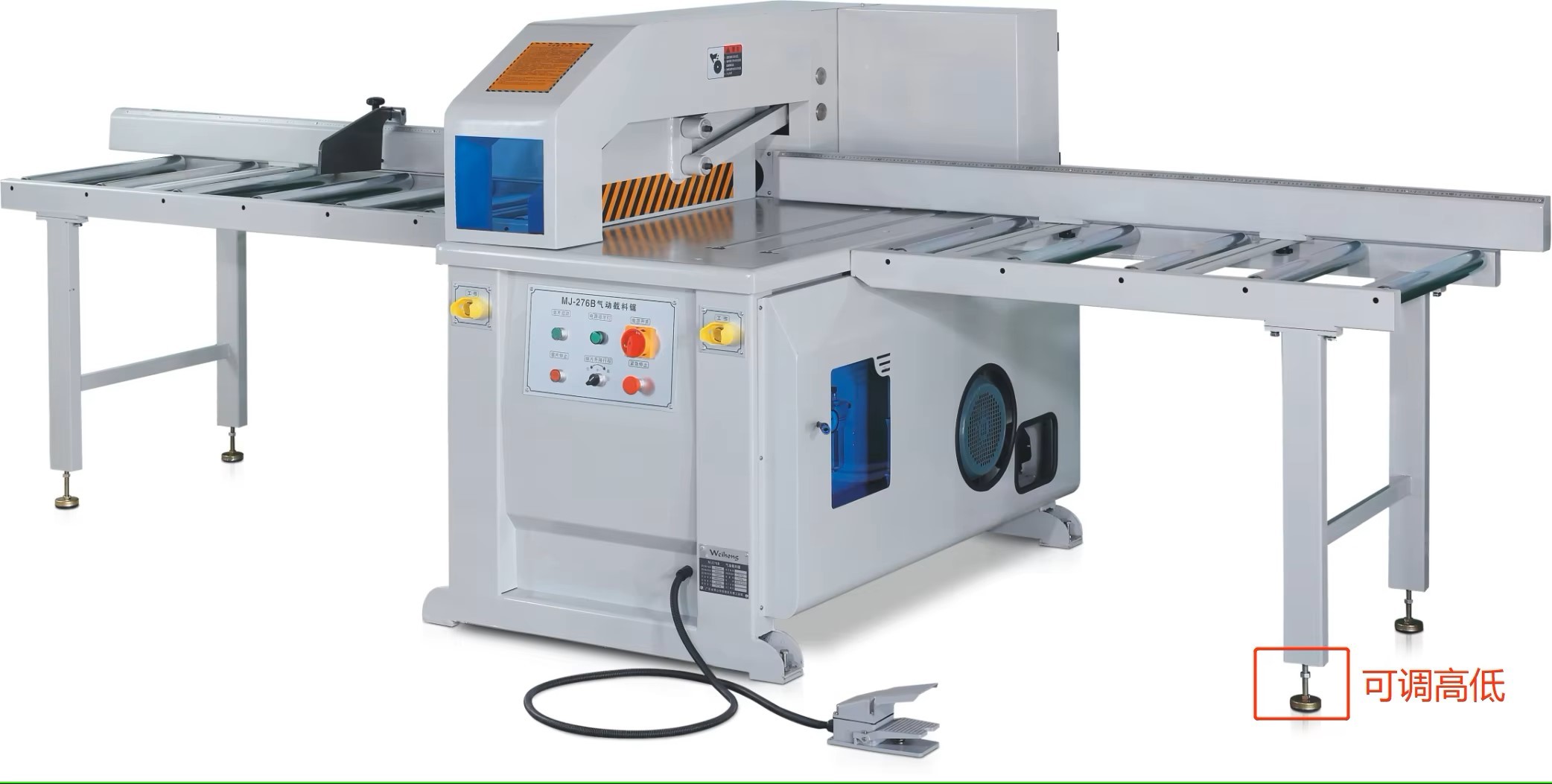

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 4



Related Products:

Heavy Duty Multi Heads Cut-off Saw



Model PE-40003 PE-50004 PE-60005
Cutting Length 600-4000mm 600-5000mm 600-6000mm
Cutting Thickness 10-120mm 10-120mm 10-120mm
Cutting Width 10-400mm 10-400mm 10-400mm
Saw Diameter 450mm 450mm 450mm
Blade Pieces 3P 4P 5P
Motor

7.5kW*3

0.75kW*2

7.5kW*4

0.75kW*2

7.5kW*5

0.75kW*2
Efficiency 100m³/8h 150m³/8h 200m³/8h
Weight 2000kg 2500kg 3000kg

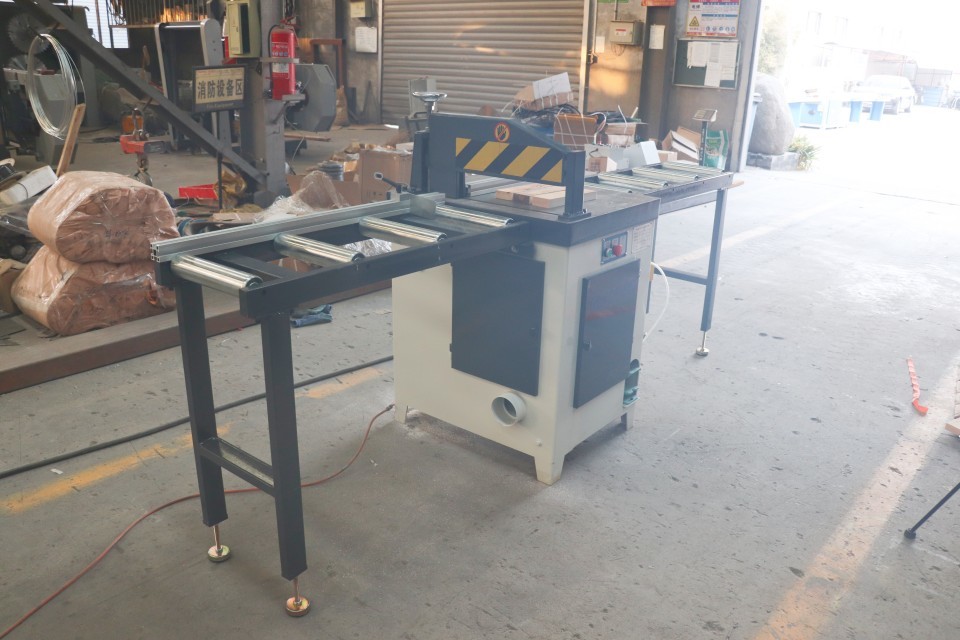

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 5High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 6



Pallet Foot Pier Cutting Saw Machine



Model JD-1500
Cutting wood max. length 1500mm
Cutting Thickness 50-120mm
Cutting Width 60-200mm
Pallet foot pier size 30-200mm
Saw Diameter 400mm
Motor 7.5kw/3phase
Production capacity 1500-1800P/H
Weight 350kgs

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 7



Multi Blades Circular Saw for wood panels cutting off

  • cutting both ends of the panels in same length
  • cutting length is adjustable
  • with auto feeding
  • chain drive

Technical data:



Multi blades cutting off circular saw
Model QT2000 QT3000 QT4000
Cutting height 100mm 100mm 100mm
Cutting width 2000mm 3000mm 4000mm
Circular blade diameter 300mm 300mm 300mm
Main motor power 3kw x2 3kw x3 3kw x4
weight 620kgs 820kgs 1020kgs
Overall size 3200x1800x1150mm 2200x1800x1150mm 4800x1800x1150mm



Photos:

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 8

High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 9



Wood Slasher

  • Technical data
Technical Parameter DM1100 DM1300 DM1600 DM1900 DM2100 DM2400
Guide Plate Length(MM) 1100 1300 1600 1900 2100 2400
Log Diameter(MM) 900 1100 1300 1600 1900 2200
Motor(KW) 3 3 4 4 5.5 5.5
Weight(KG) 180 190 200 220 250

280





High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 10High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine 11
