Chainsaw Wood Log Cutter Off Machine, Portable Log Cutting Slasher Sawmill

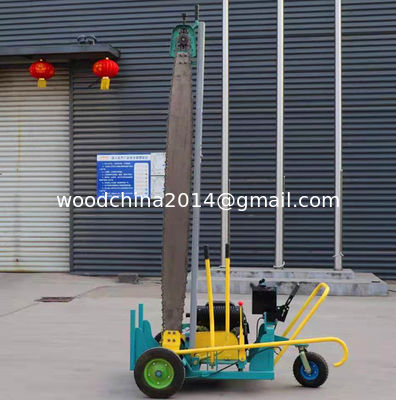

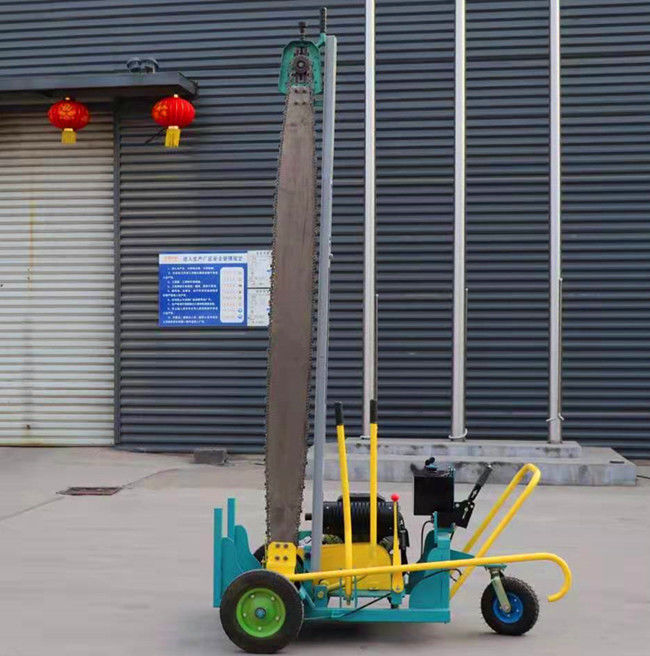

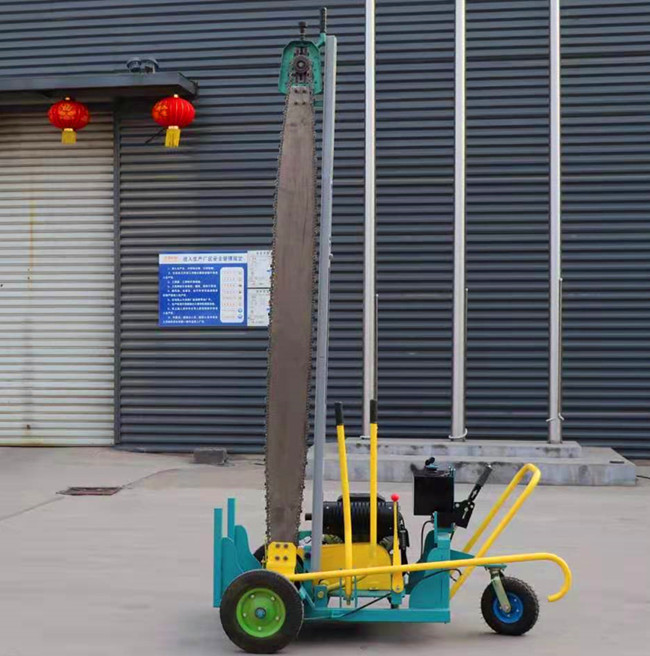

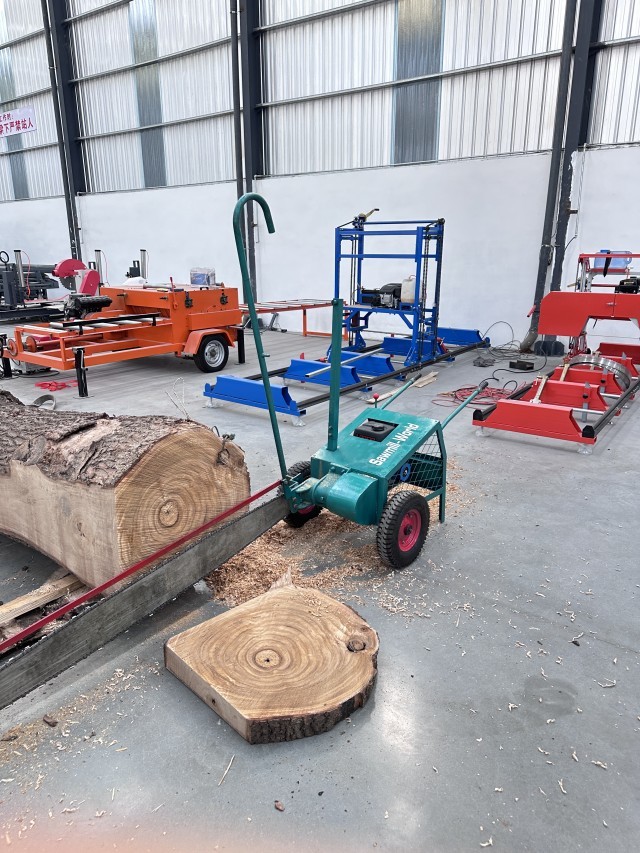

Wood Slasher
Wood slasher is one of the auxiliary equipment for wood working industry,mainly used for wood company,wood working factory,man-made plate factory,plywood factory,furniture factory and lumber yard,also been used for cutting wood log in war industry,construction,mining,railways and bridge building.

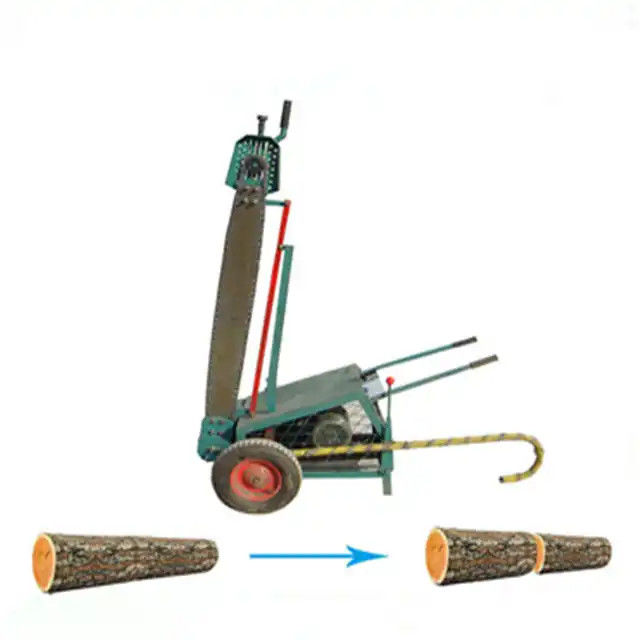

The slasher we produced specialized in cutting wood log.It is much more productive than trandtional cutting ways like manunal and chain saw.

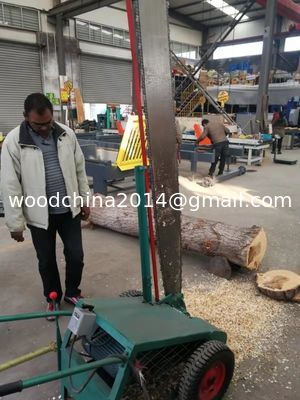

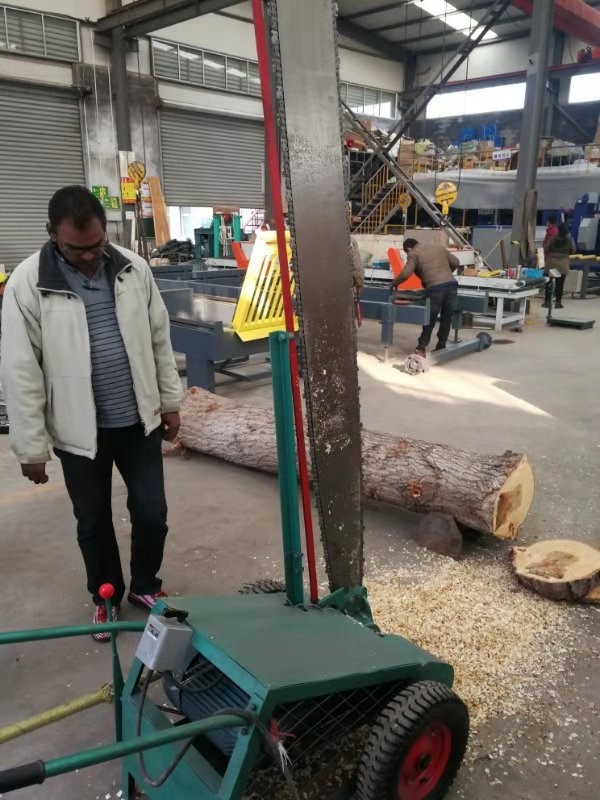

Based on the our user,our slasher can cut a 1200mm diameter wood log in 50 seconds,while it will take 25 minutes in manunal.
| Technical Parameter | DM1100 | DM1300 | DM1600 | DM1900 | DM2100 | DM2400 |
| Guide Plate Length(MM) | 1100 | 1300 | 1600 | 1900 | 2100 | 2400 |
| Log Diameter(MM) | 900 | 1100 | 1300 | 1600 | 1900 | 2200 |
| Motor(KW) | 3 | 3 | 4 | 4 | 5.5 | 5.5 |
| Weight(KG) | 180 | 190 | 200 | 220 | 250 |
280 |
Side Moving type
1. Easy Installation and disassemble.
2. Sawmill track can be extended
|
Specifications
|
BXLJ600 | DDLJ600 | DDLJ900 | DDLJ1500 |
|
Guide bar length
|
18-36inch | 36inch | 42 inch | 1900mm |
|
Cut length (mm)
|
3600 | 3500 | 3500 | 4500 |
|
Cut max. diameter(mm)
|
600 | 600 | 900 | 1500 |
|
Electric motor(kw)
|
chainsaw | 5.5 | 7.5 | 15 |
|
Saw head up/down
|
manual | manual | manual | electric |
|
Saw head walking
|
manual | manual | manual | frequency variable |
|
Track length(mm)
|
4800 | 4800 | 5000 | 6000 |
|
Total weight(kg)
|
120 | 120 | 250 |
1000
|
|
Packing size(mm)
|
1700*1200*1400 | 1700*1200*1400 | 2500*1300*1600 | 3300*1700*2200 |
| Model | SHDJ-200 | SHDJ-250 | SHDJ-320 |
| Processing Diameter | 200mm | 250mm | 320mm |
| Main Motor | 5.5kw | 5.5kw | 7.5kw |
| Saw Blade Diameter | 500mm | 600mm | 800mm |
| Sawing length | adjustable | adjustable | adjustable |
| Stepping up wood way | pneumatic | pneumatic | pneumatic |
| Weight | 500kgs | 600kgs | 700kgs |
