Price of portable chainsaw mill,chainsaw sawmill/horizontal cutting electrical chainsaw mill portable

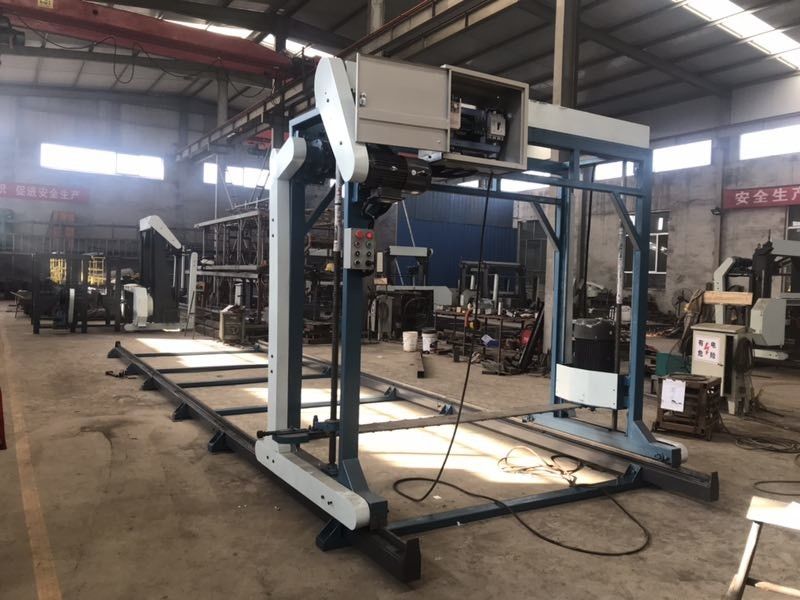

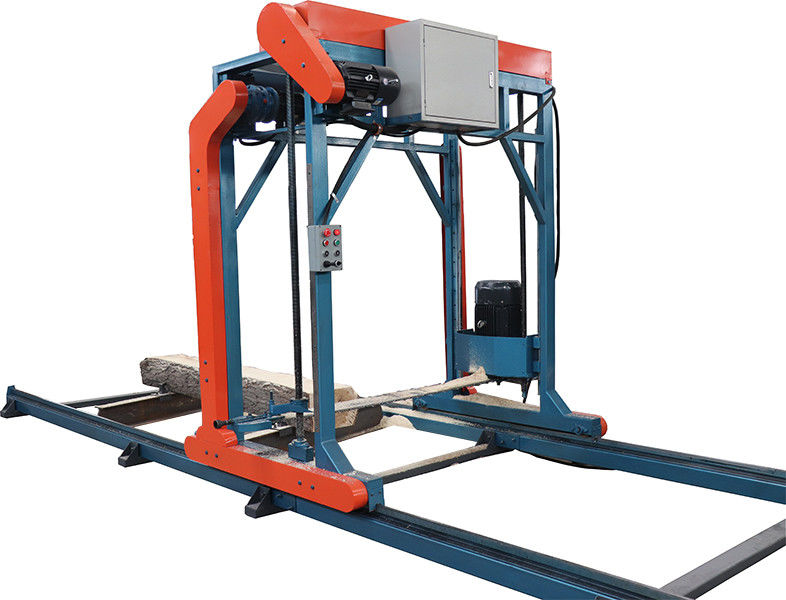

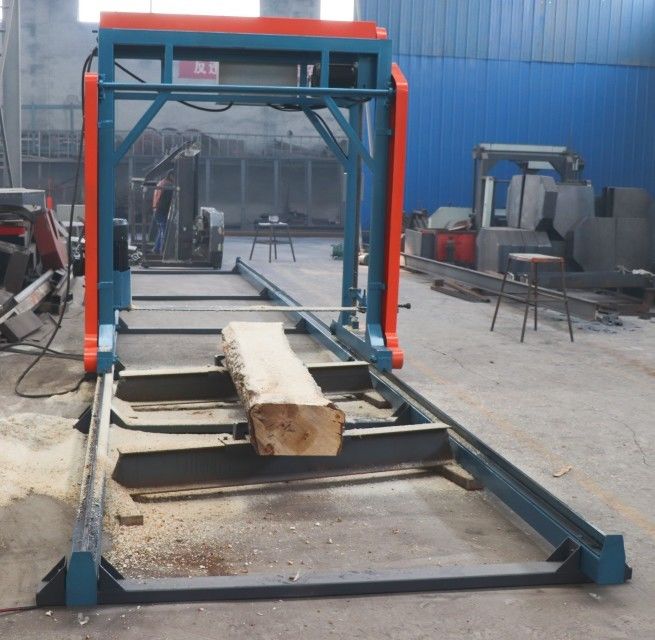

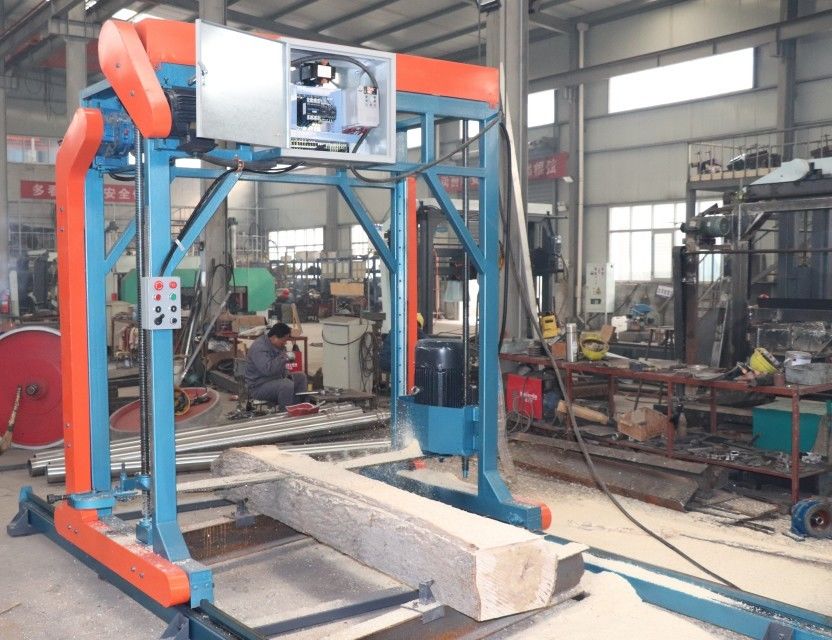

Electric Chainsaw Mill Machine
1. Easy Installation and disassemble.
2. Sawmill track can be extended
|
Specifications
|
BXLJ600 | DDLJ600 | DDLJ900 | DDLJ1500 |
|
Guide bar length
|
18-36inch | 36inch | 42 inch | 1900mm |
|
Cut length (mm)
|
3600 | 3500 | 3500 | 4500 |
|
Cut max. diameter(mm)
|
600 | 600 | 900 | 1500 |
|
Electric motor(kw)
|
chainsaw | 5.5 | 7.5 | 15 |
|
Saw head up/down
|
manual | manual | manual | electric |
|
Saw head walking
|
manual | manual | manual | frequency variable |
|
Track length(mm)
|
4800 | 4800 | 5000 | 6000 |
|
Total weight(kg)
|
120 | 120 | 250 |
1000
|
|
Packing size(mm)
|
1700*1200*1400 | 1700*1200*1400 | 2500*1300*1600 | 3300*1700*2200 |
1. Easy usage and installation.
2. Track can be extended .
|
Specifications |
QYLJ600 | QYLJ900 | QYLJ1500 |
|
Guide bar length |
36inch | 42inch | 1900mm |
|
Cut length (mm) |
3500 | 3500 | 4500 |
|
Cut max. diameter(mm) |
600 | 900 | 1500 |
|
Gasoline Engine |
12HP | 16HP | 27HP |
|
Saw head up/down |
manual | manual | manual |
|
Saw head walking |
manual | manual | manual |
|
Track length(mm) |
4800 | 5000 | 6000 |
|
Total weight(kg) |
220 | 300 | 900 |
|
Packing size(mm) |
1700*1300*1500 | 2500*1300*1600 | 3300*1700*2200 |
Diesel Engine Powered Horizontal Portable Band Sawmill
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood width max. |
700MM | 1000mm | 1300mm | 1600mm |
|
Saw Wheel Diameter(MM) |
600mm | 700mm | 700mm | 700mm |
|
Sawing Wood Thicknes |
10-200mm | 10-300mm | 10-300mm | 10-300mm |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500mm | 6100mm | 6600mm | 7100mm |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Optional Parts: Extend sawmill track
Optional Parts: wheel for mobile usage
Optional Parts: Hydraulic log loading arm
Optional Parts: Hydraulic log loading arm +Inverter feeding +Touching screen auto setworks
Portable Horizontal Band Sawmill (Electric Model )
Technical data:
| Specifications: | ||||
|
Model |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
