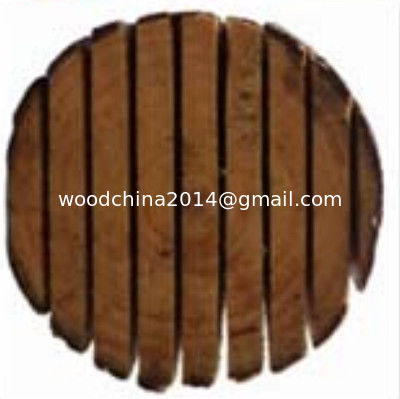

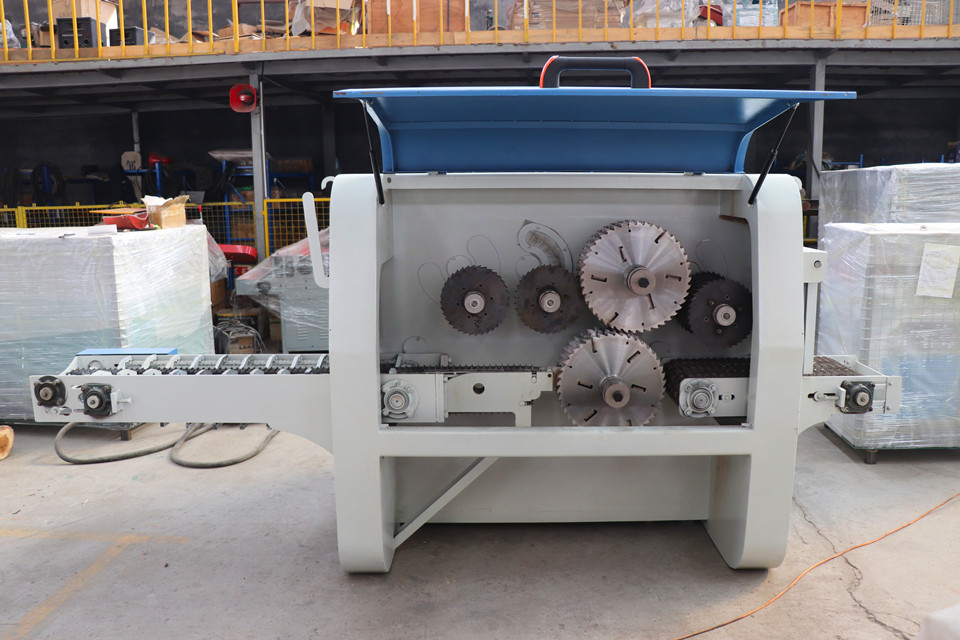

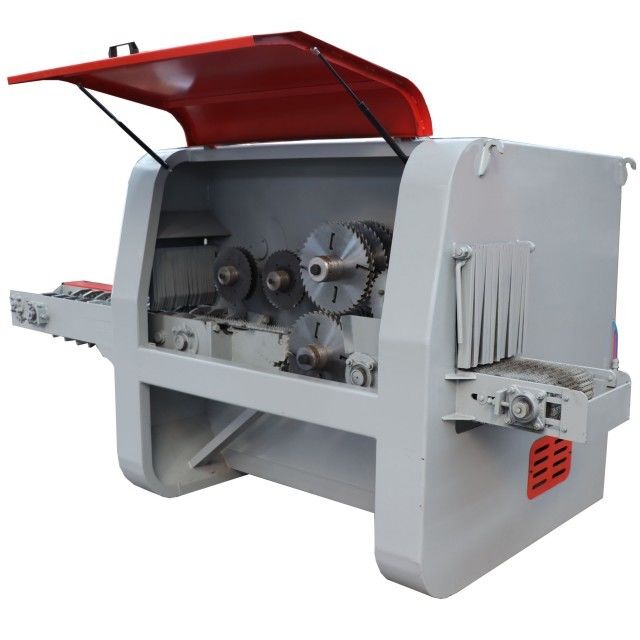

1.Cut logs into planks at several pieces per time.
2.With log centering feeding conveyor
3.Automatic controlling
Specifications:
| Model | SHYM200 | SHYM250 | SHYM300 |
| Sawing log diameter | 80-200mm | 120-250mm | 150-300mm |
| Min sawing log length | 600mm | 600mm | 600mm |
| Blade cooling | Shaft center spraying water to cool | ||
| Main motor power | 22KW X 2 | 30KW X2 | 37KW X2 |
| Feeding motor | 1.5KW | 1.5KW | 2.2KW |
| Saw blade diameter | 305mm | 355mm | 405mm |
| Weight | 2000kg | 2500kg | 2800kg |
| Model | SHYM350 | SHYM400 | SHYM450 |
| Sawing log diameter | 200-350mm | 250-400mm | 300-450mm |
| Min sawing log length | 600mm | 600mm | 600mm |
| Cooling method | Shaft center spraying water to cool | ||
| Main motor power | 45KW X2 | 55KW X 2 | 55KW X2 |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 480mm | 520mm | 600mm |
| Weight | 3200kg | 3500kg | 3800kg |
|
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding |
|||

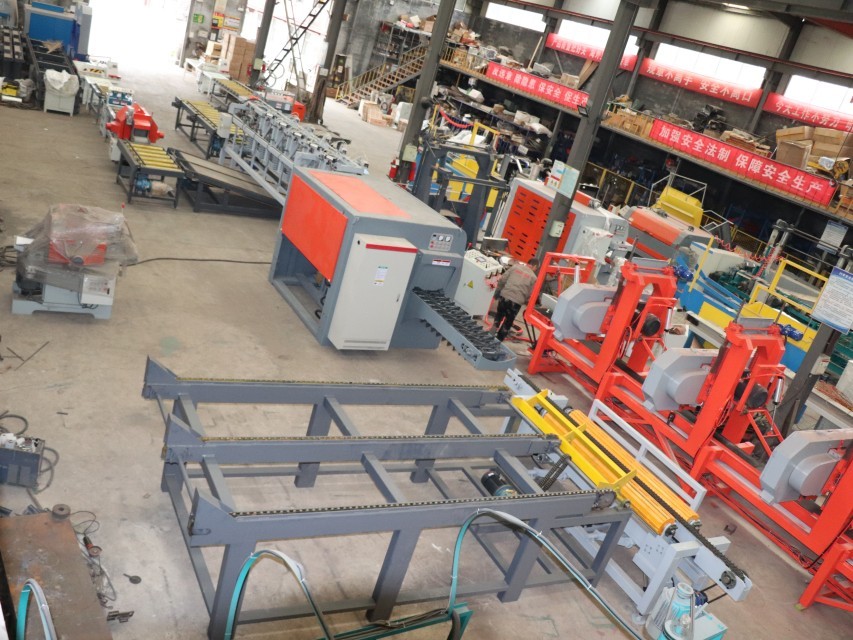

Production line of Round Log Multi Blades Ripsaw and Lumber Multi Ripsaw
| Log Cutting Multiple Blades Sawmill | |
| Max Cutting Log Diameter | 450mm |
| Min Cutting Log Diameter | 200mm |
| Log Length | 800-3000mm |
| Cutting Speed | 9-25m/min |
| Motor power | 75KW *2 |
| Centralise Model | Touch Screen Digital Control |
| Automatic Rotation Centralise Roller Conveyor | |
| Conveyor Length | 6000mm |
| Conveyor Width | 1000mm |
| Motor Power | 2.2KW |
| Centralise Model | Pneumatic |
| SH200-400 Log Cutting Multiple Blades Sawmill | |
| Sawing max. width | 400mm |
| Sawing max. thickness | 200mm |
| Sawing speed | 10-25Meter/minute |
| Main Motor power | 45KW*2 |
| Feeding Motor | 2.2KW |
| Saw blade quantity | 2-10 pieces |
| Saw Blade Diameter | 355mm |
| Variable Frequency Speed Adjustable Feeding, | |
| Axles Center Water Cooling System, | |
| Slab Slop Conveyor | |
| Length | 3000mm |
| Width | 2500mm |
| Motor | 2.2KW |
| Slab Cutting Multiple Blades Horizontal Circular Saw | |
| Max Cutting Width | 300mm |
| Max. sawing thickness | 80mm |
| Feeding | Frequency variable auto feeding |
| Motor | 15KW*2 |
| 500 High Speed Multiple Blade Rip Sawmill | |
| Max Cutting Plank Width | 500mm |
| Max Cutting Plank Thickness | 50mm |
| Circular Saw Blade Quantity | 1-3 Pieces |
| Motor Power | 22kw |
| Conveyor Belt | |
| 160-400 Conveyor Belt | 600mm*8000mm,3KW |
| BP300 Conveyor Belt | 600mm*12000mm,3KW |
| Chain Conveyor | |
| Length | 20000mm |
| Width | 1800mm |
| Motor power | 5.5KW |
