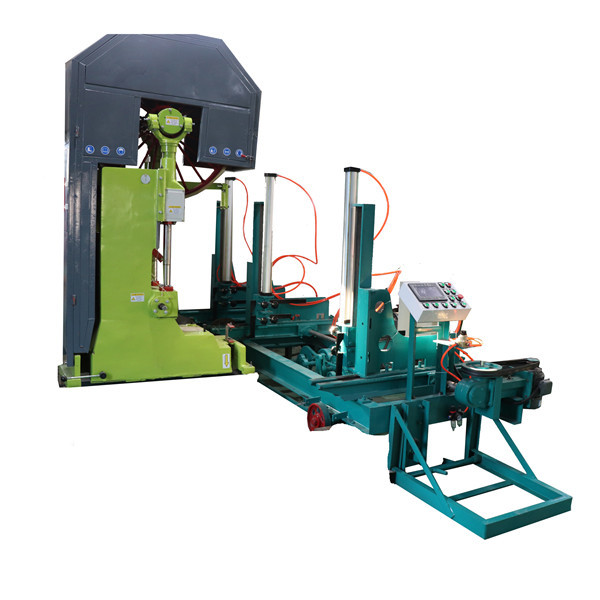

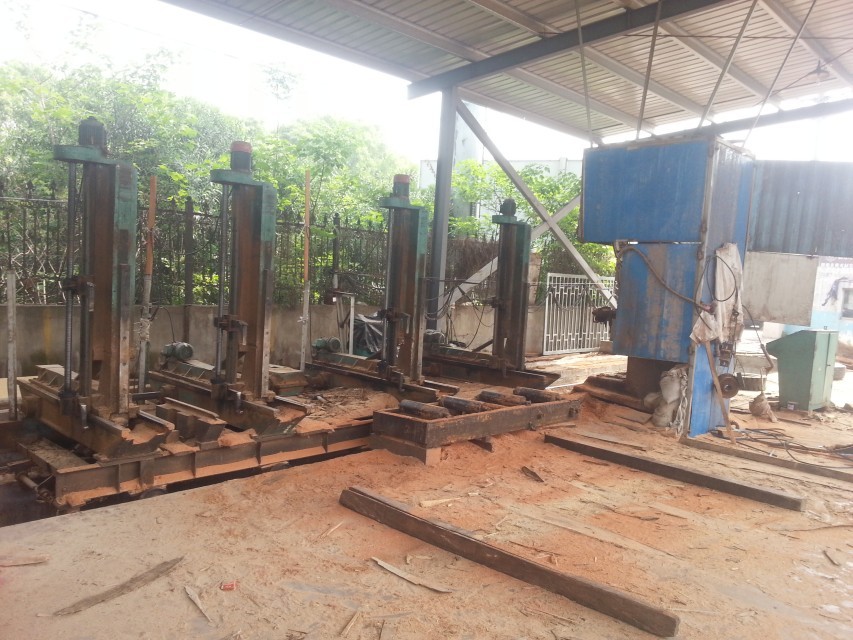

MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
1.MJ3212 CNC vertical band sawmill with automatic log carriage
| Technical data | MJ3212-ZD3000 | MJ3212-ZD5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum sawing log diameter | 1200mm | 1200mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 37KW | 37KW |
| Saw blade L*W*T | 8600x150x1.25mm | 8600x150x1.25mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 7500kgs | 8000kgs |
2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage
| Technical data | MJ3212B-ZD3000 | MJ3212B-ZD5000 |
| Saw wheel diameter | 1250mm | 1250mm |
| Maximum sawing log diameter | 1500mm | 1500mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 45KW | 45KW |
| Saw blade L*W*T | 9200x150x1.25mm | 9200x150x1.25mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 11000kgs | 12000kgs |
Working video link: Video link : https://youtu.be/IMPfTBpJqh0
