Home /Products/Vertical Band Sawmill/40'' Wood Log cutting vertical band saw machine band sawmills with carriage

40'' Wood Log cutting vertical band saw machine band sawmills with carriage

1 SET

MOQ

US $6,000 - 50,000 / Set

Price

40'' Wood Log cutting vertical band saw machine band sawmills with carriage

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Vertical Band Saw

Condition: New

Usage: Woodworking

Voltage: 380V/50Hz/3Phase Or As Customer Needs

Power(w): 22KW

Saw Wheel Diameter: 40inch(1000mm)

Max. Sawing Log Diameter: 800mm

Sawing Log Length: 6meters

Weight: 3000kg - 4000kg

Warranty: 1 Year

Keyword: Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1500sets/year

Gallery

40'' Wood Log cutting vertical band saw machine band sawmills with carriage

Product Description

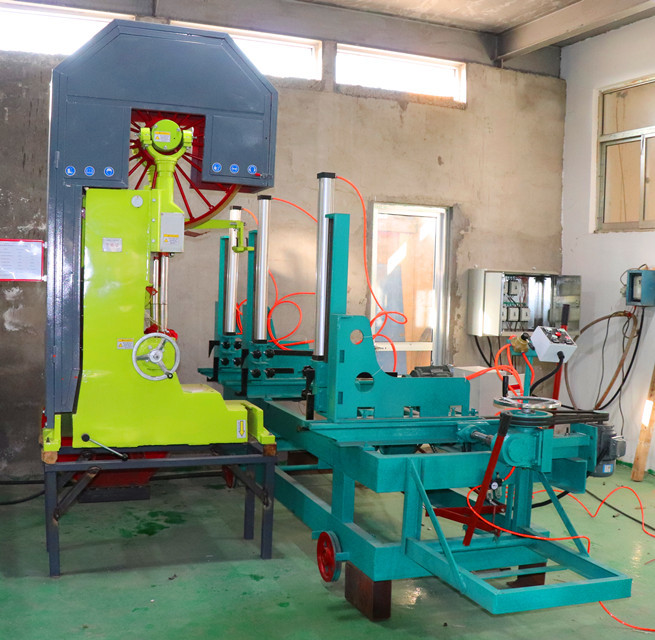

MJ3210 Vertical Band Sawmill with Log Carriage

1.MJ3210 Vertical band sawmill with electric log carriage

Manual log clamp or pneumatic log clamping
Electrical log feeding
Electrical setting sawn sizes
Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs

Technical data	MJ3210-DD3000	MJ3210-DD5000
Saw wheel diameter	1000mm	1000mm
Maximum sawing log diameter	800mm	800mm
Maximum sawing log length	4meters	6meters
Main motor	22KW	22KW
Carriage clip stake quantity	3sets	4sets
Saw blade LWT	6850x125x1.05mm	6850x125x1.05mm
Wood grasp mode	Manual	Manual
Carriage walking/advance	Electric	Electric
Setting sawn size	Electric	Electric
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	3000kgs	4000kgs

40'' Wood Log cutting vertical band saw machine band sawmills with carriage 0

2.MJ3210 Vertical band sawmill with CNC auto log carriage

Pneumatic log clamping
Automatic log feeding, frequency variable so speed adjustable
Touching screen setting sawn sizes
Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
Technical data

	MJ3210-ZD3000	MJ3210-ZD5000
Saw wheel diameter	1000mm	1000mm
Maximum sawing log diameter	800mm	800mm
Maximum sawing log length	4meters	6meters
Main motor	22KW	22KW
Carriage clip stake quantity	3sets	4sets
Saw blade LWT	6850x125x1.05mm	6850x125x1.05mm
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	3000kgs	4000kgs

40'' Wood Log cutting vertical band saw machine band sawmills with carriage 1

40'' Wood Log cutting vertical band saw machine band sawmills with carriage 2

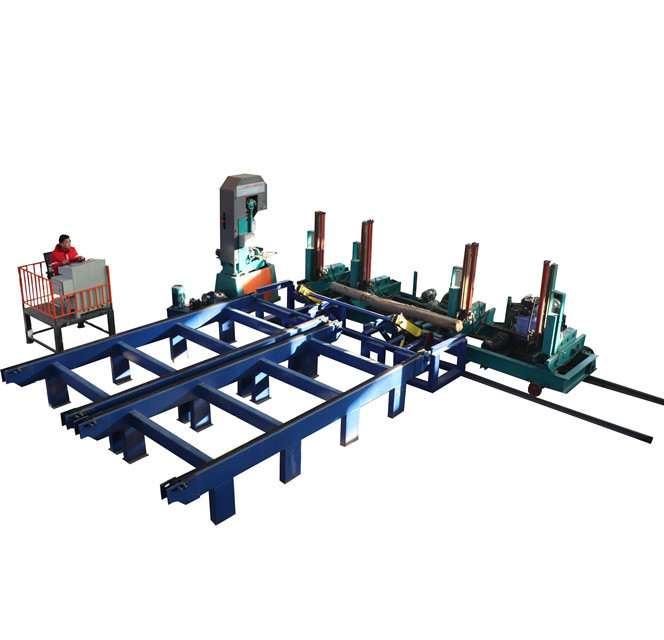

Vertical band sawmill withh Hydraulic log rotation auto carriage (diameter:1.15M,length 2.25M)

Log loading deck -optional

40'' Wood Log cutting vertical band saw machine band sawmills with carriage 3

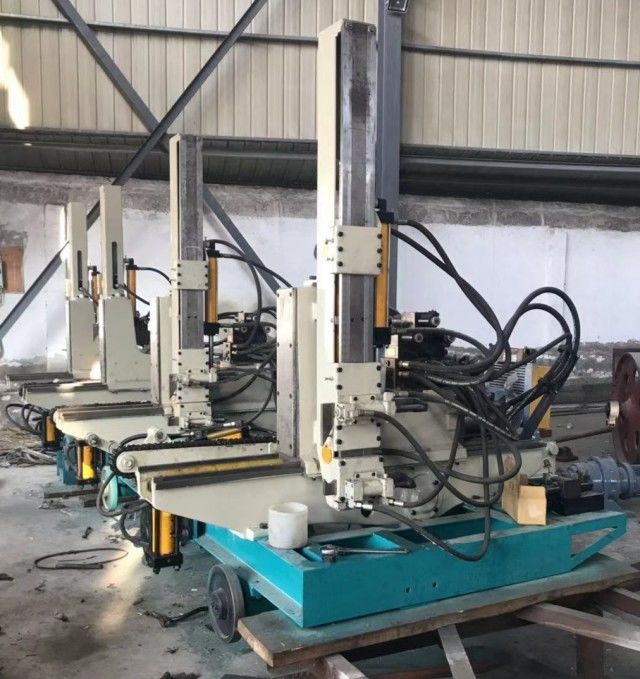

Vertical band saw with hydraulic log carriage

MJ3212-CNC3000 hydraulic type
Saw Wheel Diameter	1250mm
Max Sawing Wood Diameter	1200mm
Main Motor Power	37kw
Carriage Length	3000mm
Max Sawing Wood Length	4000mm
Wood Grasp Clip Quantity	Electric or Pneumatic × 3
Log turning	hydraulic rotatioin
Carriage Forward/Backward	Electric
Sawing Thickness Setting	Touch screen

40'' Wood Log cutting vertical band saw machine band sawmills with carriage 4
