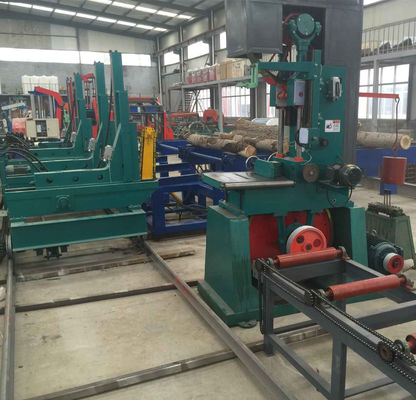

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Technical Specifications:
| Technical data | MJ3310-DD3000 | MJ3310-DD5000 |
| Saw wheel diameter | 1070mm | 1070mm |
| Maximum sawing log diameter | 1000mm | 1000mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 30KW | 30KW |
| Saw blade L*W*T | 7400x150x1.05mm | 6850x125x1.05mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | Electric |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 4500kgs | 6000kgs |
| Technical data | MJ3310-ZD3000 | MJ3310-ZD5000 |
| Saw wheel diameter | 1070mm | 1070mm |
| Maximum sawing log diameter | 1000mm | 1000mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 30KW | 30KW |
| Saw blade L*W*T | 7400x150x1.05mm | 7400x150x1.05mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 4500kgs | 6000kgs |
