Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

1 SET

MOQ

USD5,000-USD50,000/SET

Price

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Vertical Band Sawmill With CNC Log Carriage

Application: Vertical Cutting Wood Logs

Condition: New

Max. Sawing Log Diameter: 1000mm Or 40''

Max. Sawing Log Length: 6meters

Feeding: Electric Type

Saw Clip And Wheel Up/down: Electric

Carriage Moving Right/left: Automatic

Band Wheel Diameter: 1070mm

Main Motor Power: 30KW

Highlight:

Diameter 1000mm Vertical Band Sawmill

,

1000mm Vertical Band Sawmill

,

30KW Wood Working Band Saw

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ3210-Z5000,MJ3310-Z3000, MJ3212-Z5000

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 20 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1500sets/year

Gallery

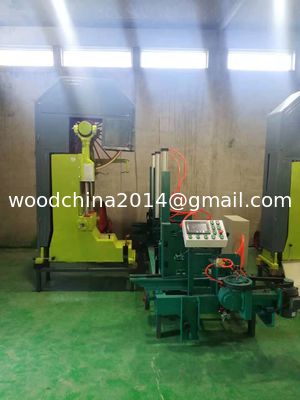

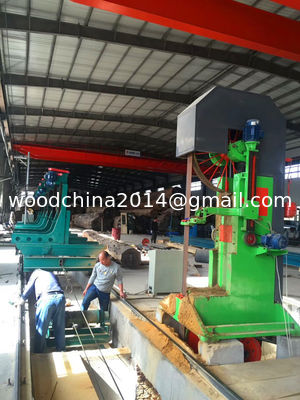

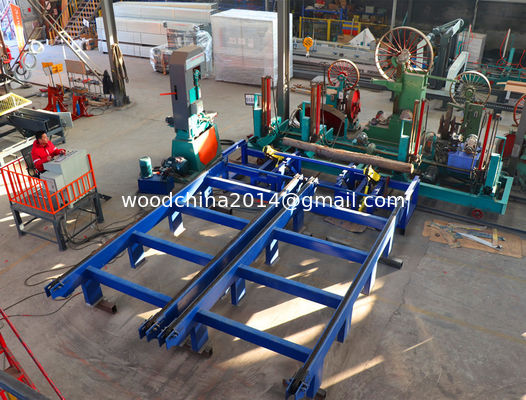

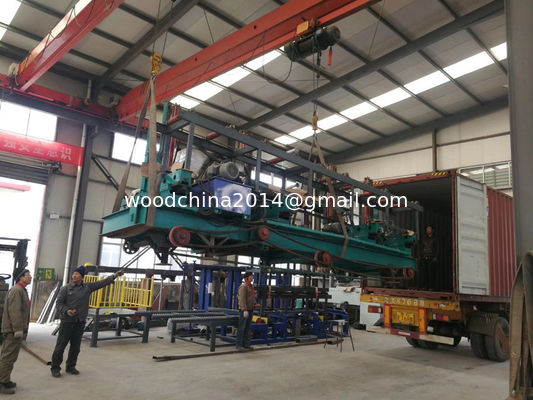

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

Product Description

Electric Vertical Band Saw Log Cutting Band Sawmill with CNC carriage For Sale

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.
In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Technical data

Technical data	MJ3310-DD3000	MJ3310-DD5000
Saw wheel diameter	1070mm	1070mm
Maximum sawing log diameter	1000mm	1000mm
Maximum sawing log length	4meters	6meters
Main motor	30KW	30KW
Saw blade LWT	7400x150x1.05mm	6850x125x1.05mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Manual	Manual
Carriage walking/advance	Electric	Electric
Setting sawn size	Electric	Electric
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	4500kgs	6000kgs

Manual type carriage :

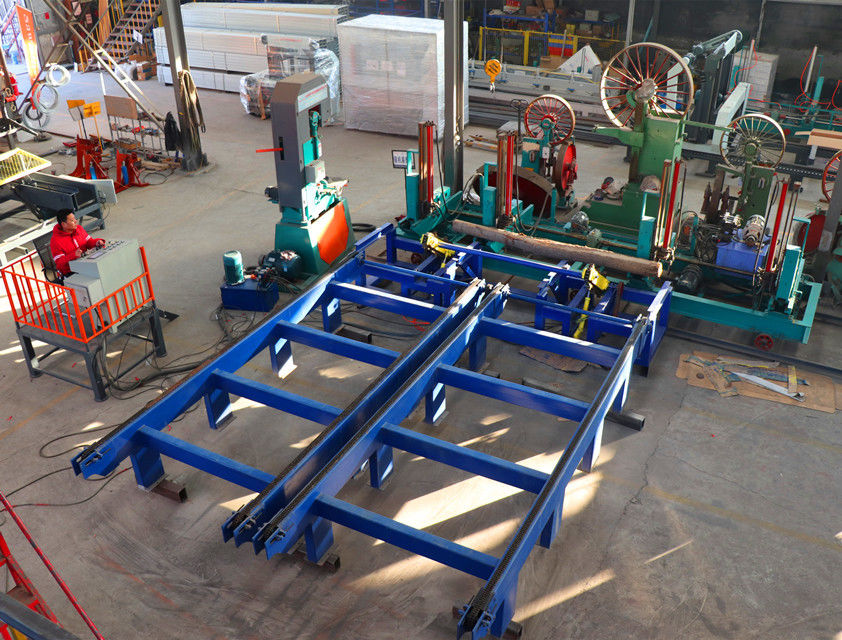

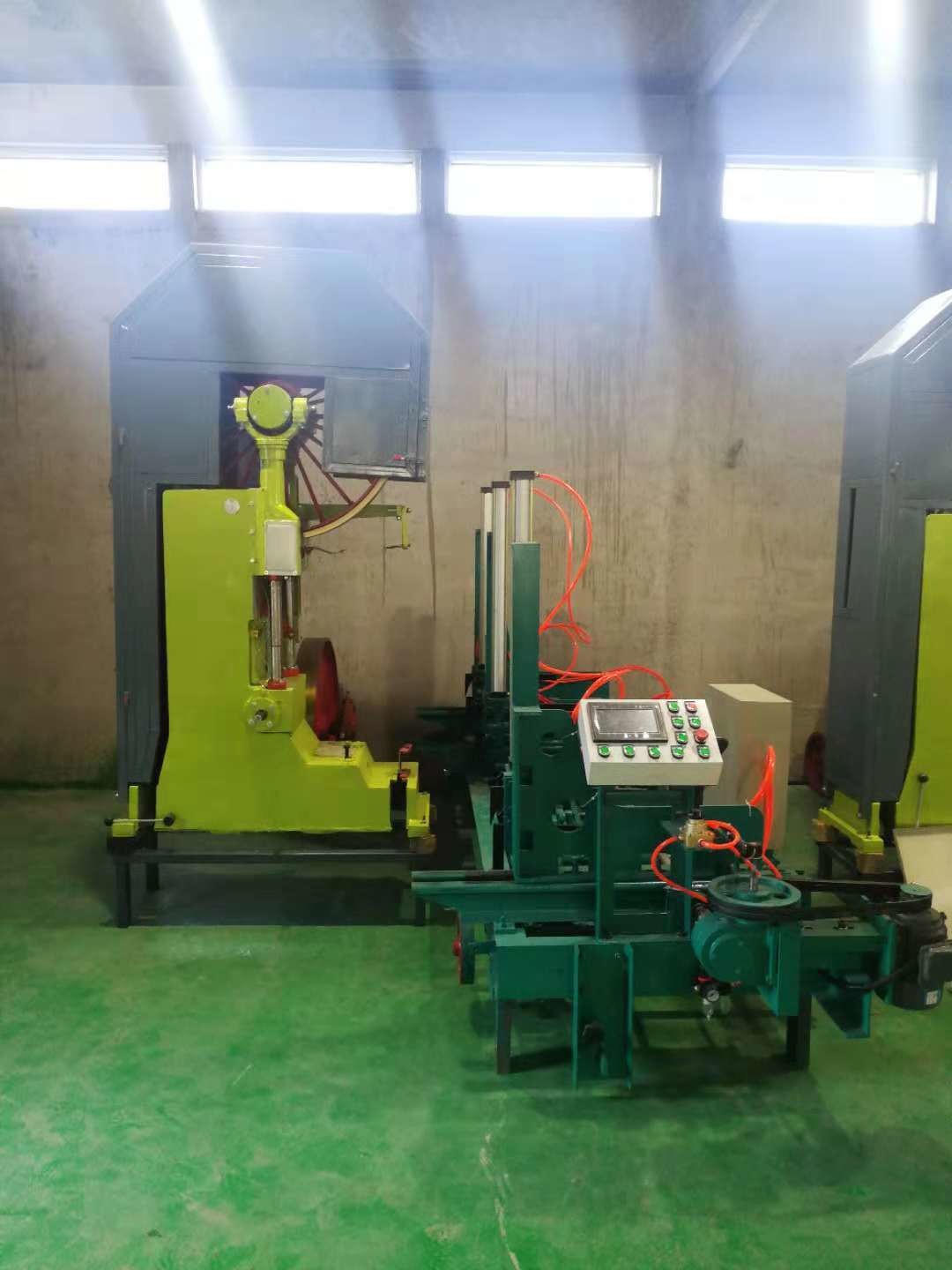

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage 0

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage 1

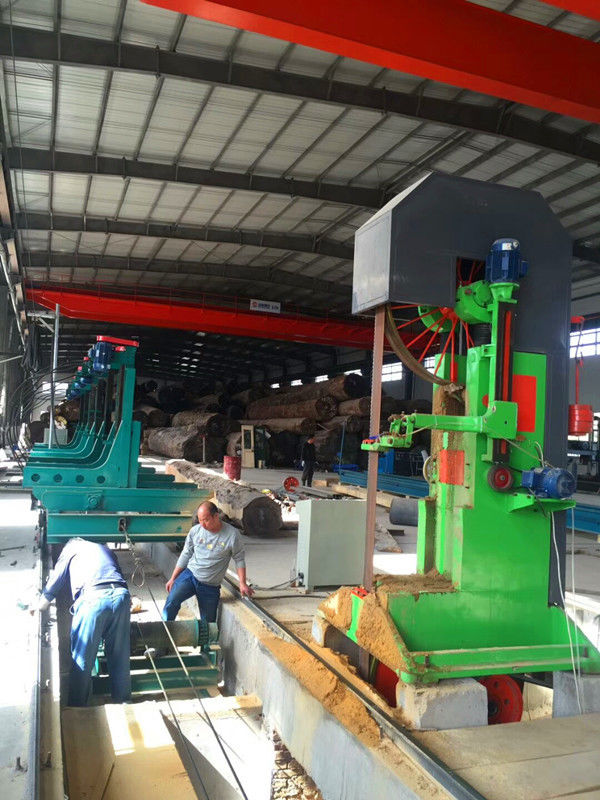

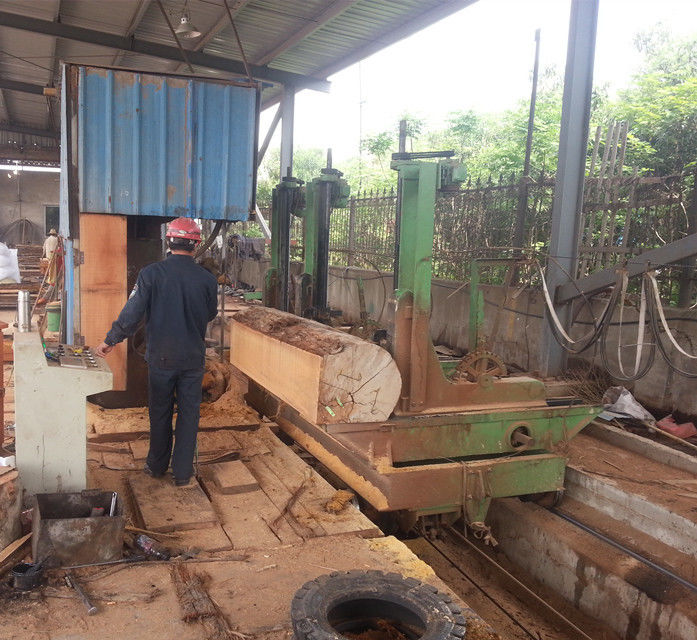

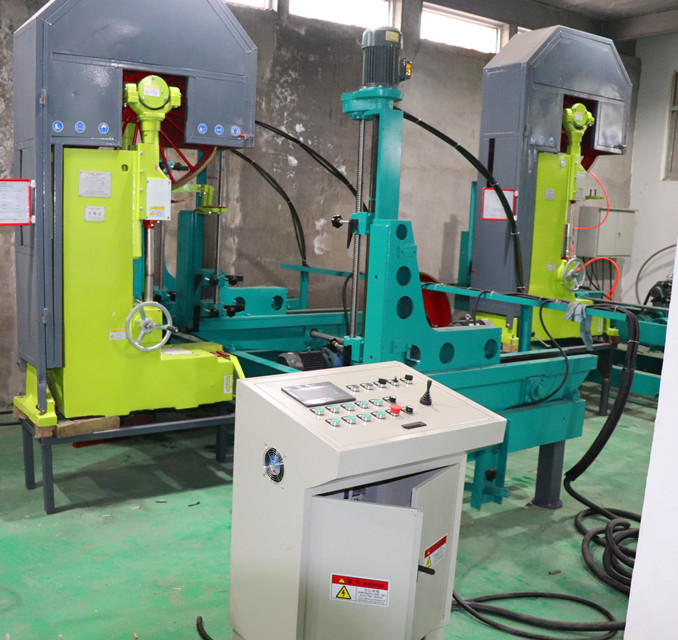

MJ3310 Vertical Band Sawill with CNC automatic Log Carriage

Technical data	MJ3310-ZD3000	MJ3310-ZD5000
Saw wheel diameter	1070mm	1070mm
Maximum sawing log diameter	1000mm	1000mm
Maximum sawing log length	4meters	6meters
Main motor	30KW	30KW
Saw blade LWT	7400x150x1.05mm	7400x150x1.05mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	4500kgs	6000kgs

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage 2

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage 3

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage 4
