Home /Products/Vertical Band Sawmill/Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

1 SET
MOQ
US $6,000 - 50,000 / Set
Price
Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Name: China Vertical Band Sawmill
Condition: New
Type: Vertical Band Saw
Application: Cut Logs Into Planks, Lumber
Max. Sawing Log Diameter: 1000mm
Max. Sawing Log Length: 6meters Or As Cutomer Needs
Power(W): 30kw To 50kw
Carriage Length: 5meters
Carriage Moving: Electric Or Frequency Auto Feeding
Opertion: Electric Button Or CNC Digital Controlling
Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machine Overseas
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ3310-Z5000,MJ3310-Z3000, MJ3310-D5000, MJ3212-5000
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Product Description

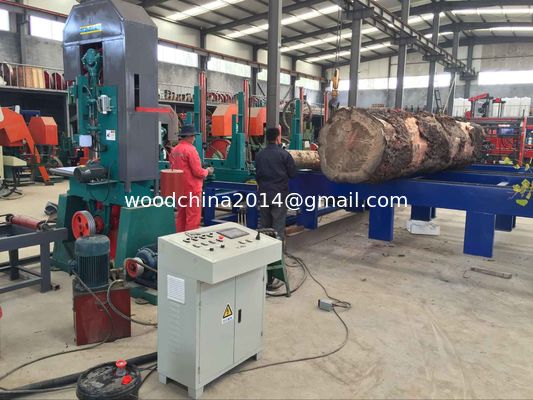

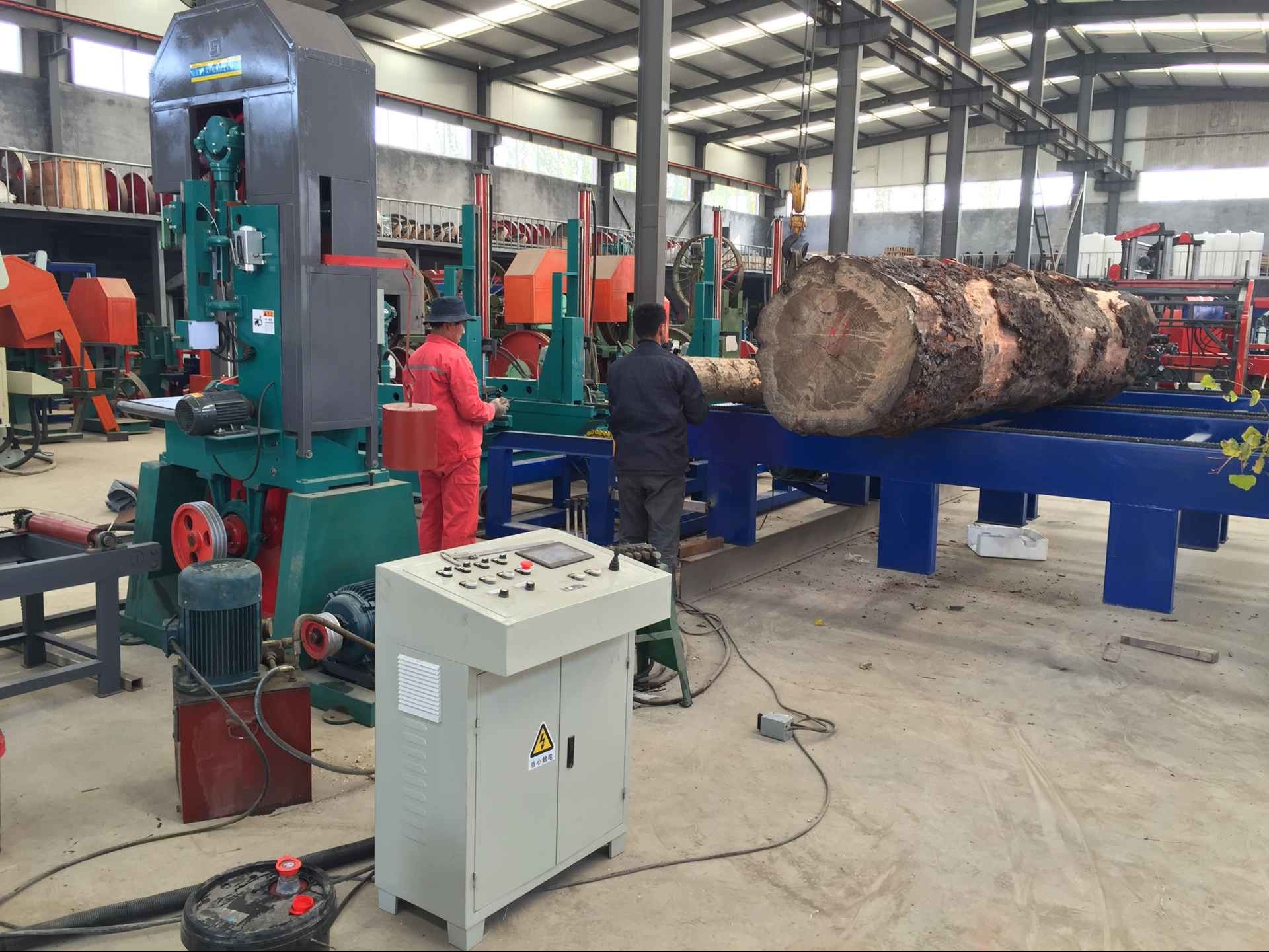

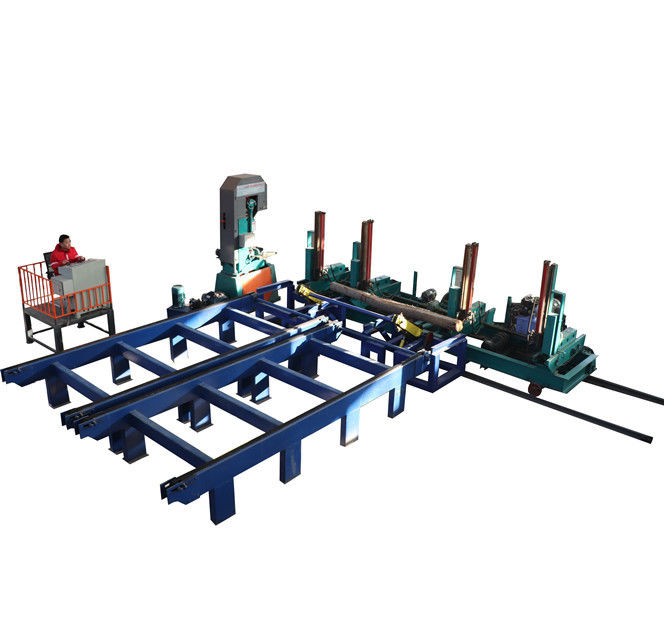

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.



Technical Specifications:

Technical data MJ3310-DD3000 MJ3310-DD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 0

Technical data MJ3310-ZD3000 MJ3310-ZD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs



Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 1

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 2

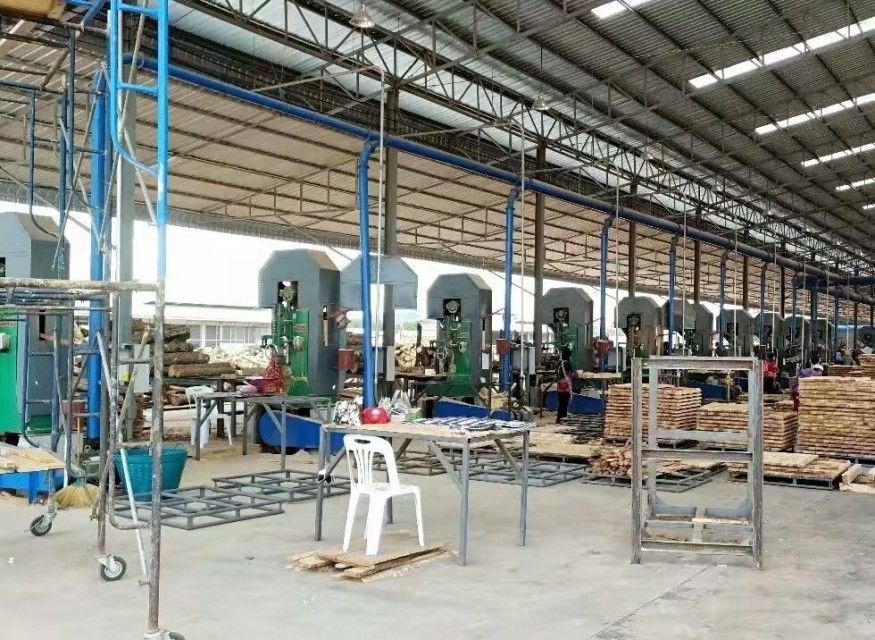

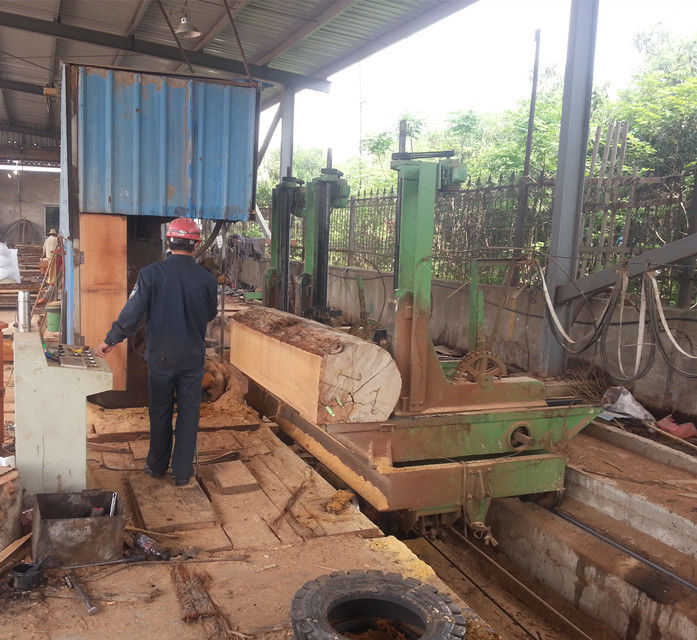

Feedback from Users

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 3Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 4

Optional parts - log loading deck

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 5

Optional parts - Board roller conveyor

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.



  • It is simple installation,easy operation,labor saving,and high productivity.
  • This machine can be drived by either electric motor or diesel engine.
  • It is widely used by the timber processing enterprises in the virgin forests areas.

Diesel Engine Powered Horizontal Portable Band Sawmill



Technical Parameter

 MJ700P MJ1000D MJ1300D MJ1600D



Sawing Wood width max.

 700MM 1000mm 1300mm 1600mm



Saw Wheel Diameter(MM)

 600mm 700mm 700mm 700mm



Sawing Wood Thicknes

 10-200mm 10-300mm 10-300mm 10-300mm



Sawing Wood Length (MM)

 1300-4500 1300-4500 1300-4500 1300-4500



Engine

 22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

 5500mm 6100mm 6600mm 7100mm



Machine Length(MM)

 5800 5800 5800 5800



Total Weight (KG)

 1100 1100 1300 1500



Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 6

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 7

Optional Parts: Extend sawmill track

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting 8
